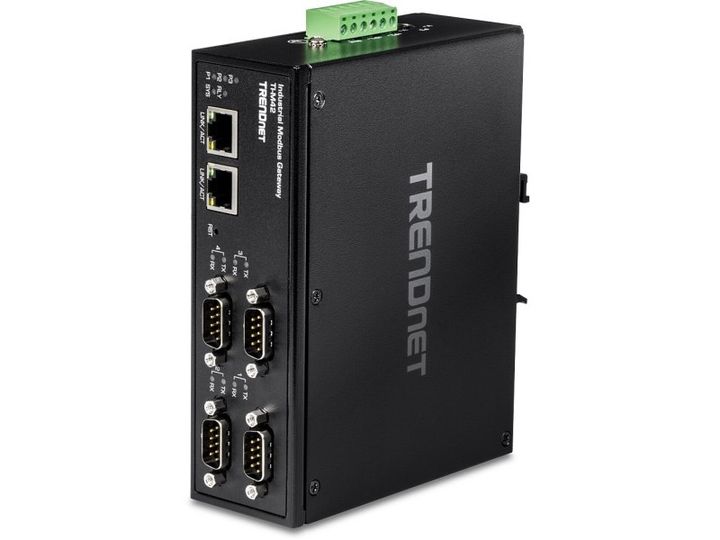

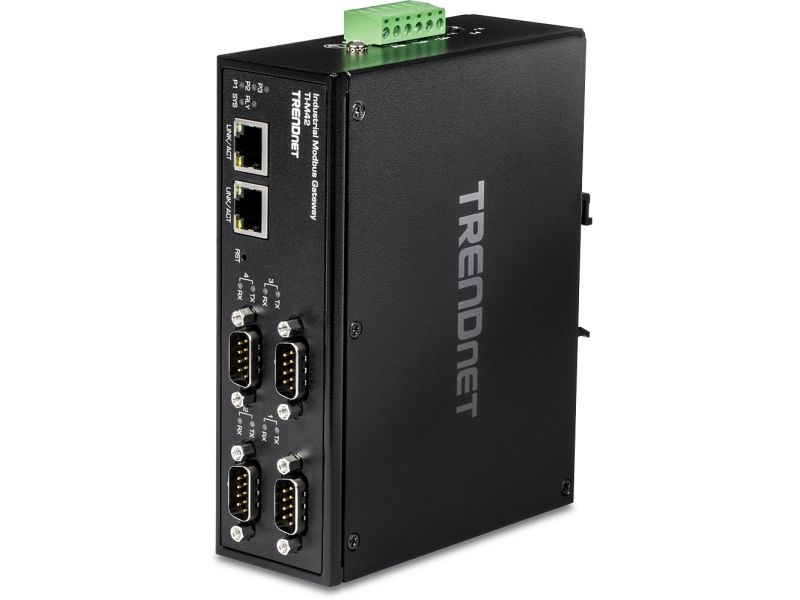

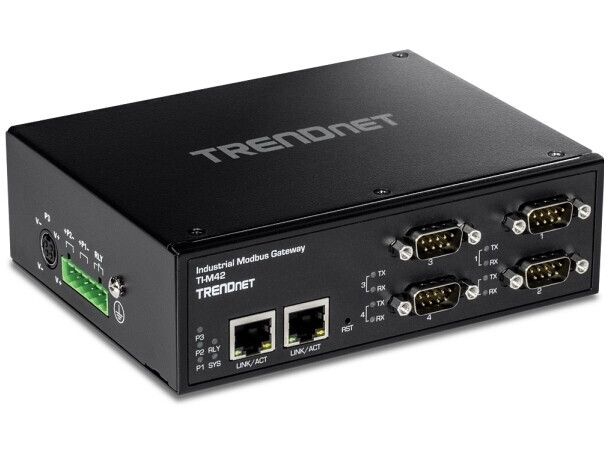

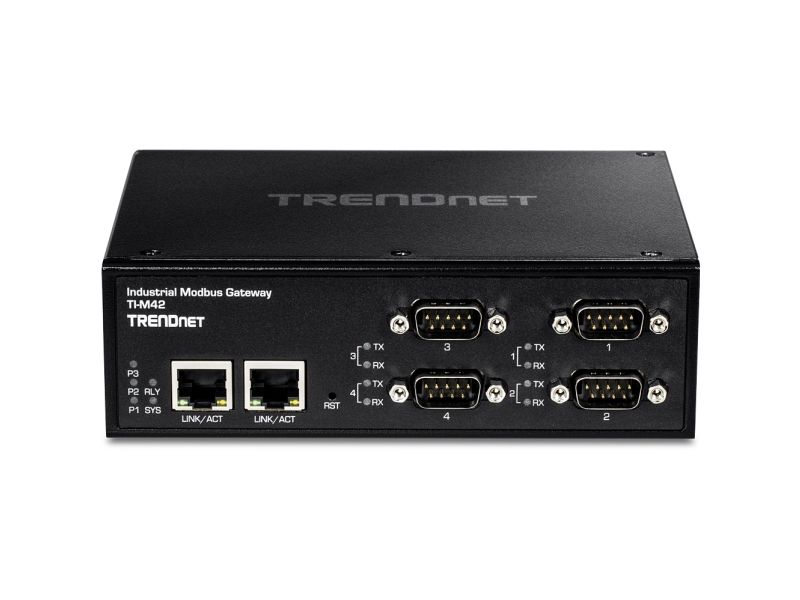

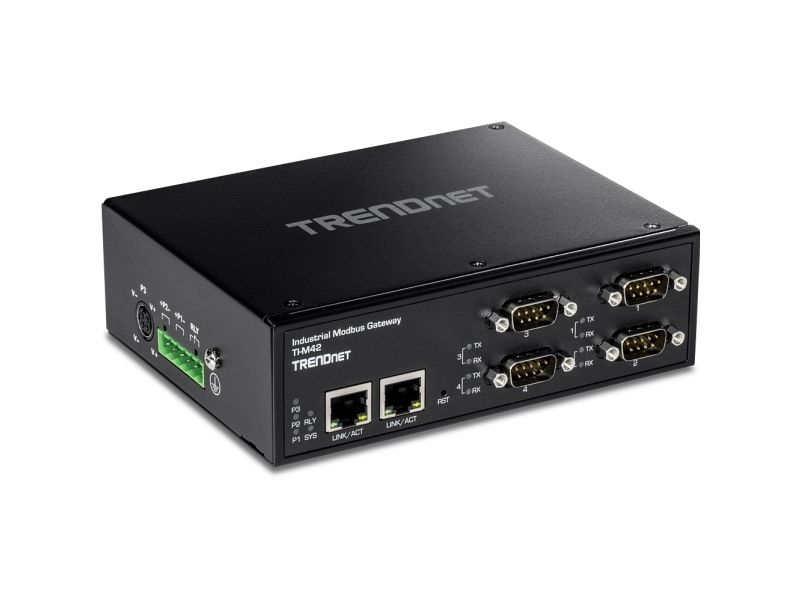

TRENDnet's Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100 m (328 feet) using Cat5e cabling. This industrial gateway allows users to connect four Modbus serial devices to a network.
Ethernet, Fast Ethernet, Modbus, RS-442, RS-485, RS-232
Effekt
DC 12 - 56 V
TAA kompatibel
Ja
Dimensioner (B x D x H)
3.1 cm x 8 cm x 10.3 cm
Vægt
154 g
Producentgaranti
1 års garanti
Generelt
Enhedstype
Gateway
Bredde
3.1 cm
Dybde
8 cm
Højde
10.3 cm
Vægt
154 g
Netværk
Model

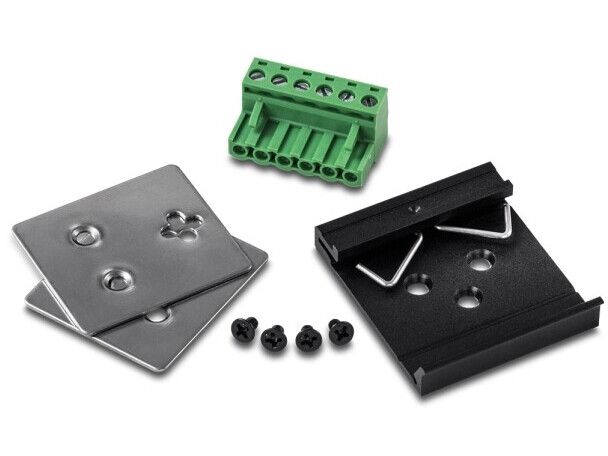

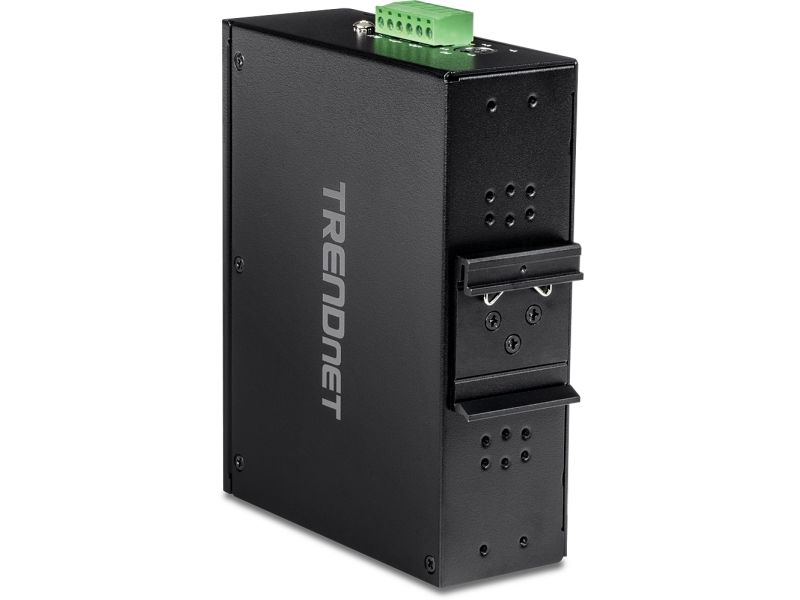

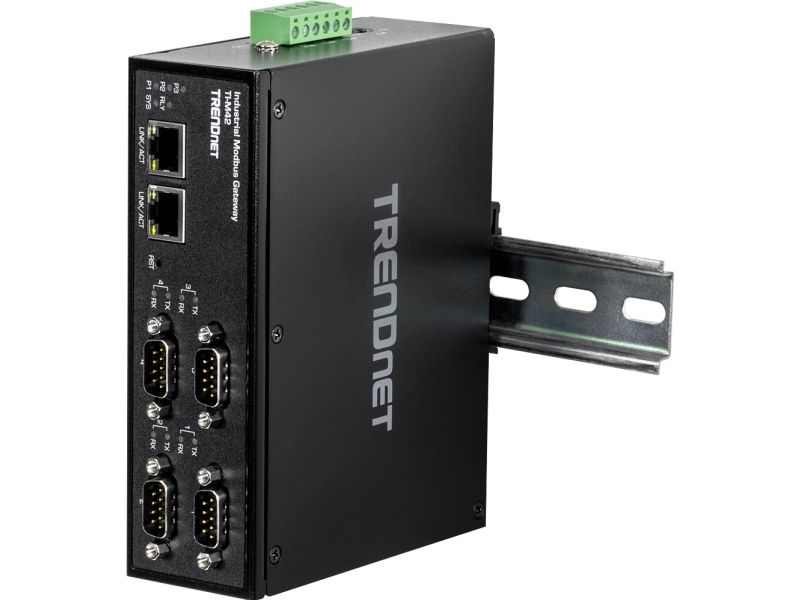

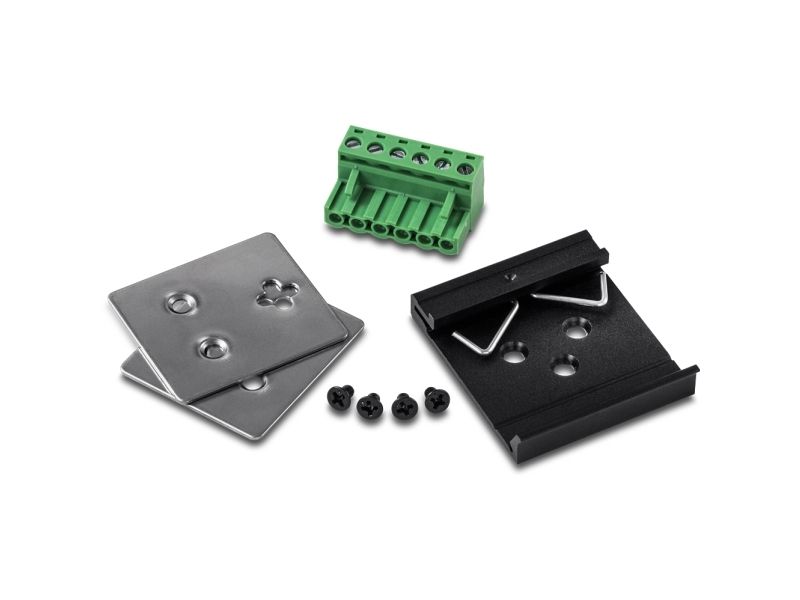

Væg/DIN-skinnemonterbar
Antal porte
4
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Modbus, RS-442, RS-485, RS-232
Protokol til fjernadministration
Telnet
Egenskaber
Modbus-kompatibel, metalkabinet
Ekspansion / Konnektivitet
Interface

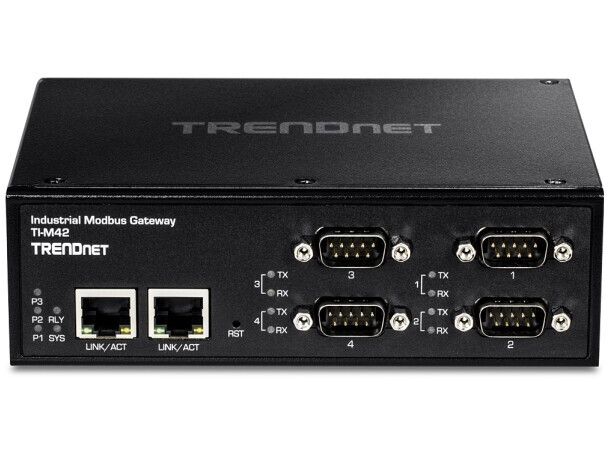

2 x RS-232/422/485 - DB-9 2 x 100Base-TX - RJ-45
Diverse
MTBF (forventet tid mellem fejl)
535,534 timer
Overensstemmelsesstandarder
EN 61000-4-4, EN 61000-4-2, EN 61000-4-5, IP30, UL, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6
TAA kompatibel
Ja
Effekt
Nødvendig spænding

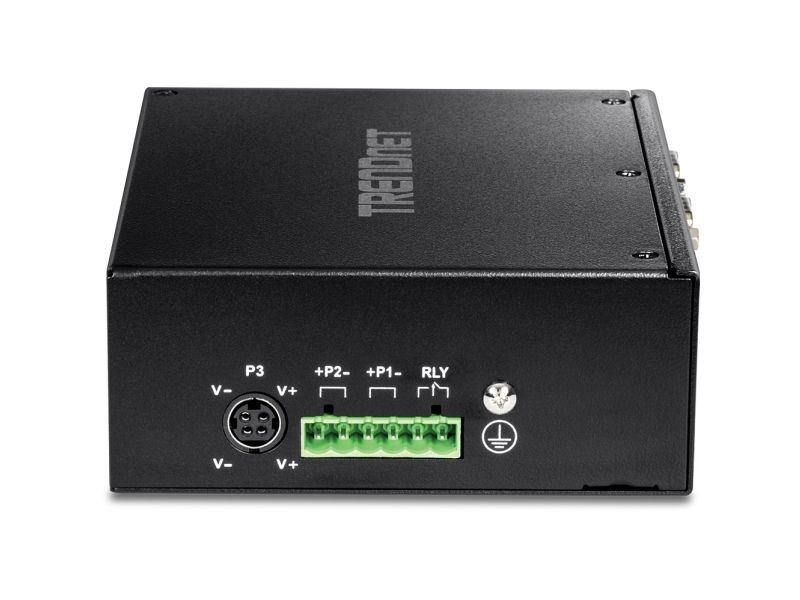

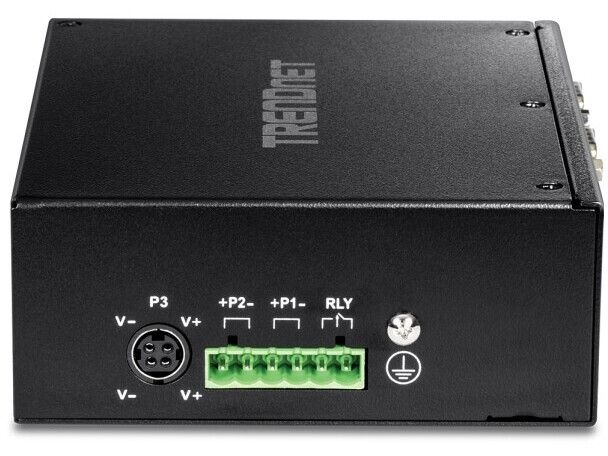

DC 12 - 56 V
Producentgaranti
Service & Support
Begrænset garanti - 1 år
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
75 °C
Fugtighedsgrad ved brug
95%
