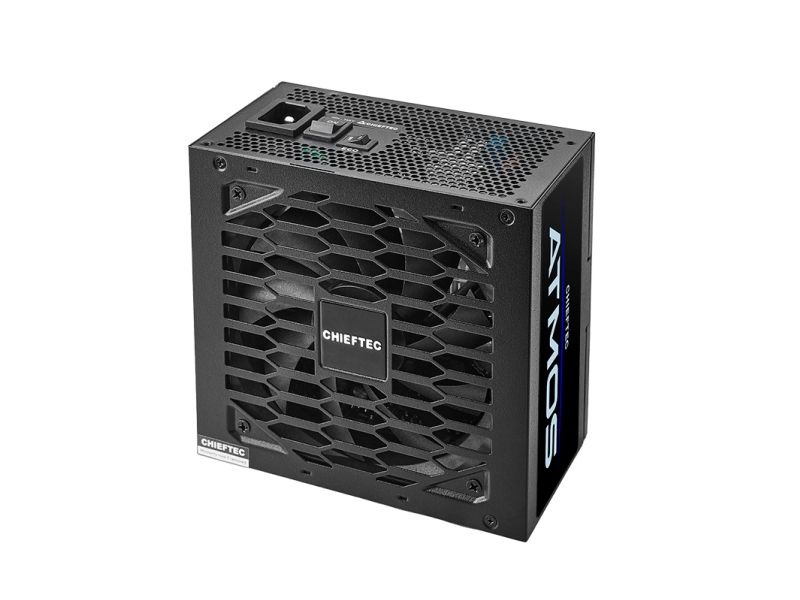

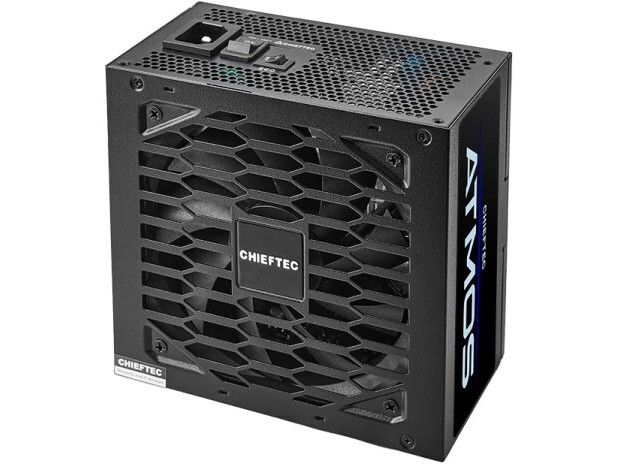

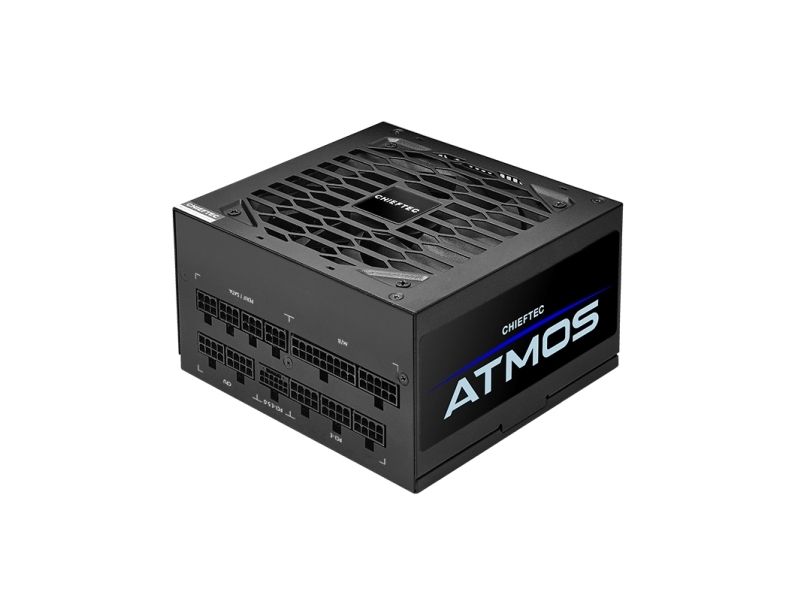

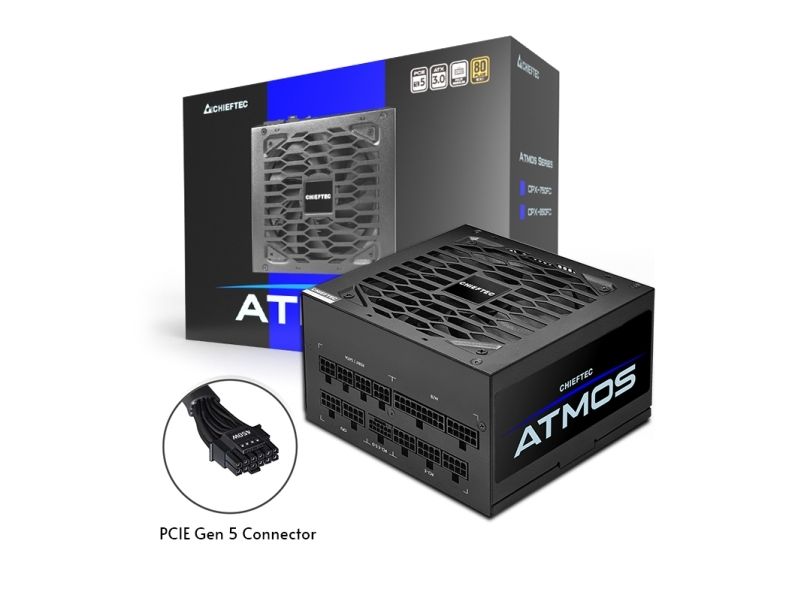

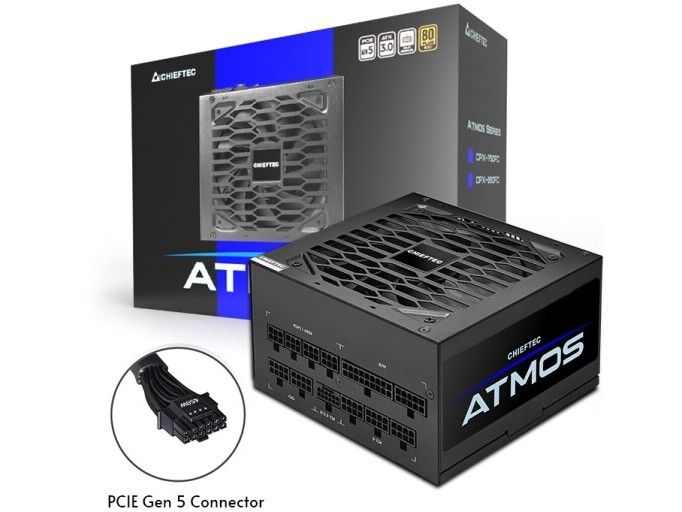

The CHIEFTEC ATMOS series is built to Intel‘s ATX 3.0 standard and supports PCIe GEN5 with 80 PLUS® GOLD certified efficiency, delivering exceptional performance up to 850W. The ATMOS series features a state-of-the-art technical design including an SRC Full-bridge converter with DC-to-DC technology, and Japanese capacitors to ensure longevity and stability.

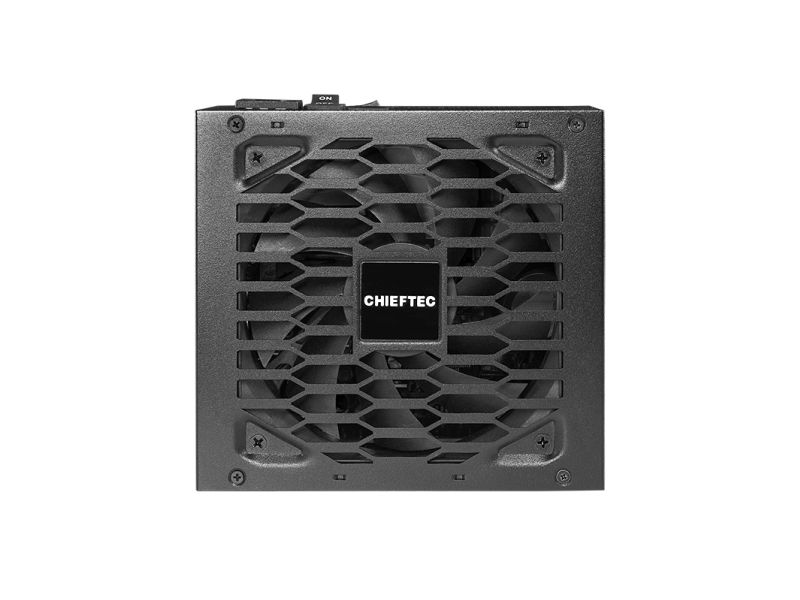

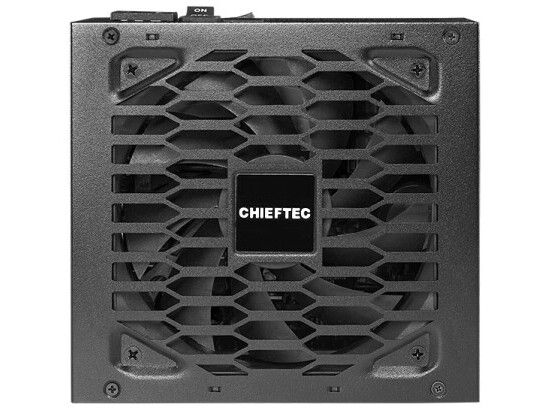

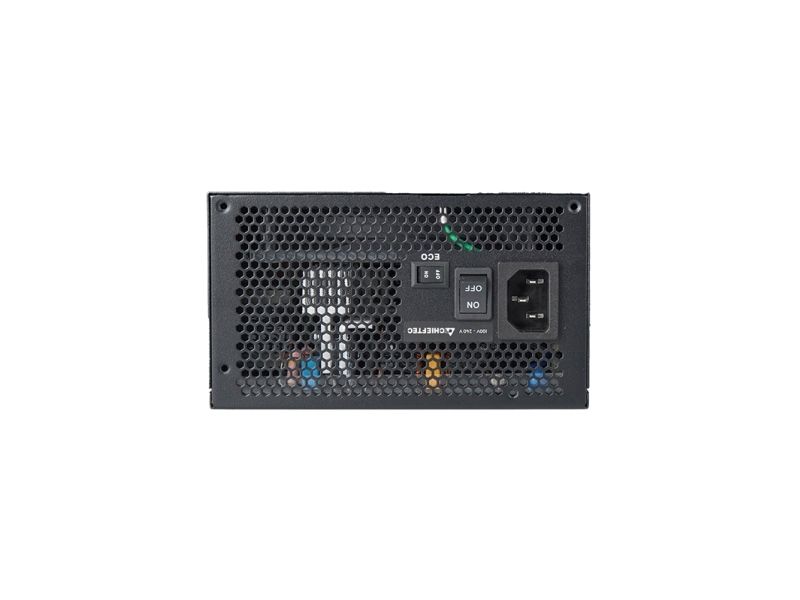

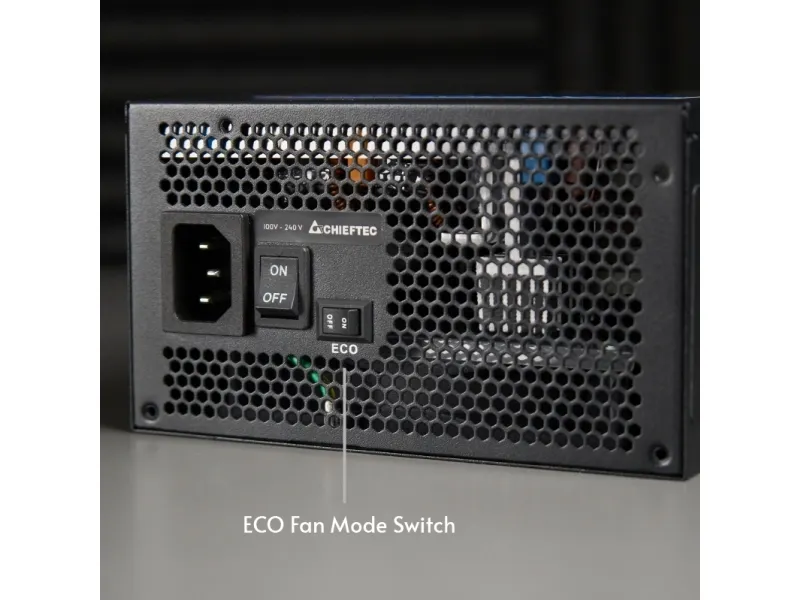

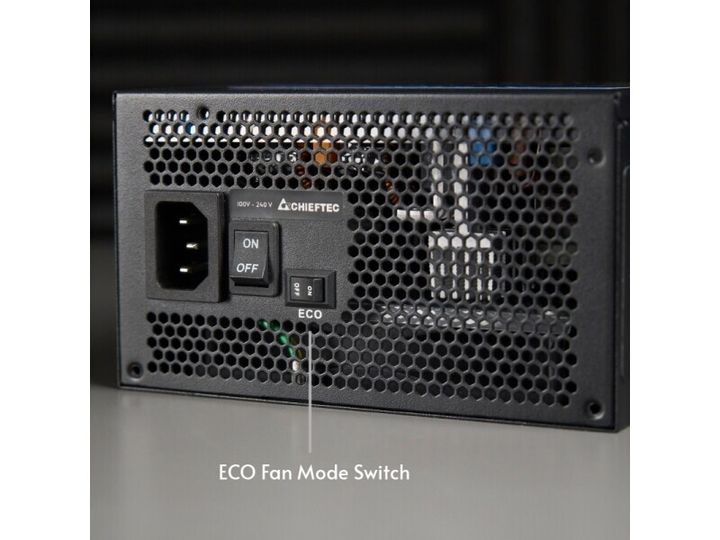

The ATMOS 120mm FDB silent fan optimizes the balance between cooling and noise with excellent durability, while the ECO fan mode enables fanless operations at low loads. CHIEFTEC’s multiple security protection technology is designed to keep your system safe.
Produktbeskrivelse

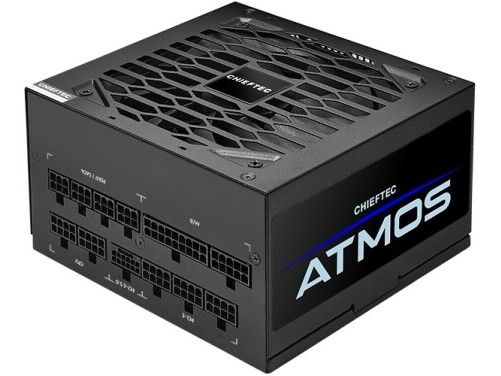

Chieftec ATMOS Series CPX-850FC - strømforsyning - 850 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0
80 PLUS certificering
80 PLUS Gold
Vægt
1.52 kg
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 Watt
Output Current
+5V - 20 A +3.3V - 20 A +12V1 - 70.8 A -12V - 0.3 A +5VSB - 3 A

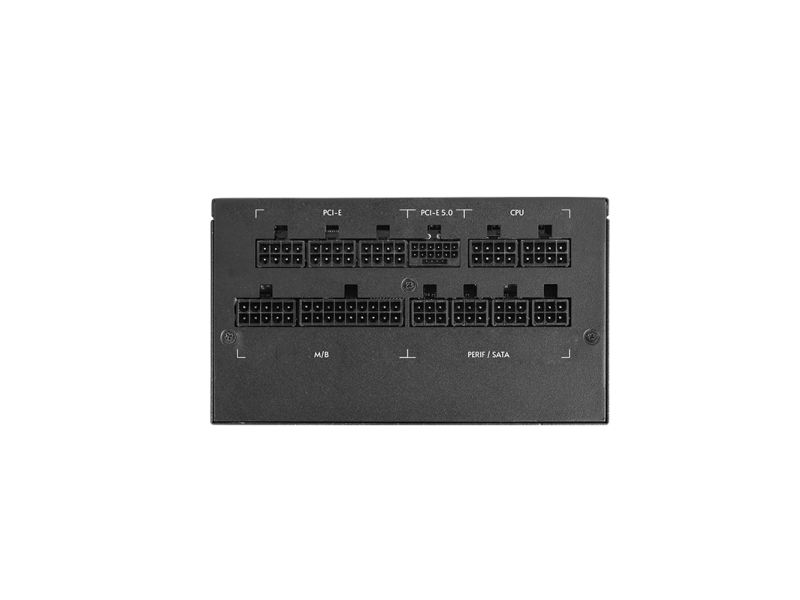

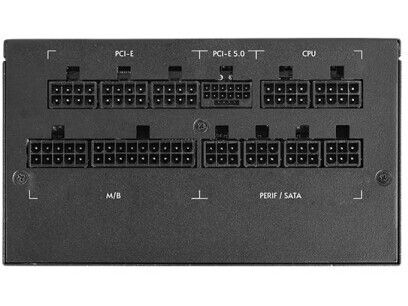

Output-stikforbindelser

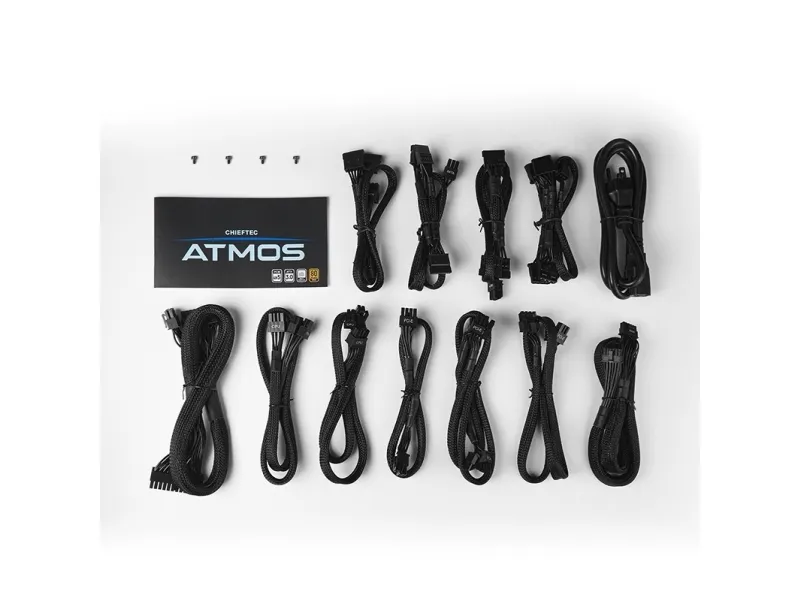

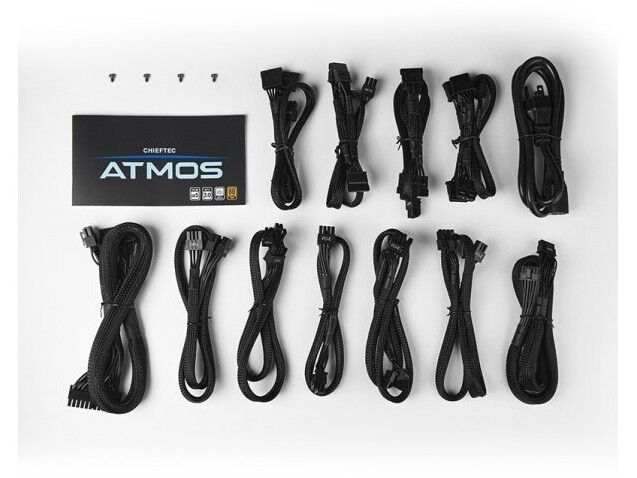

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 9 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 12VHPWR 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
5 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 9 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 12VHPWR 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 Watt
Output Current
+5V - 20 A +3.3V - 20 A +12V1 - 70.8 A -12V - 0.3 A +5VSB - 3 A
Strømfaktor (PF)
0.9
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Fuld modulær, køleblæser til flydende dynamisk leje, Automatic Fanspeed Control (AFC), overbelastningsbeskyttelse, beskyttelse mod overophedning, overspændingsbeskyttelse, kortslutnings beskyttelse, Surge & Inrush Protection (SIP), beskyttelse mod overstrøm, DC-DC teknologi, Eco Fan Control, Full Bridge-topologi
