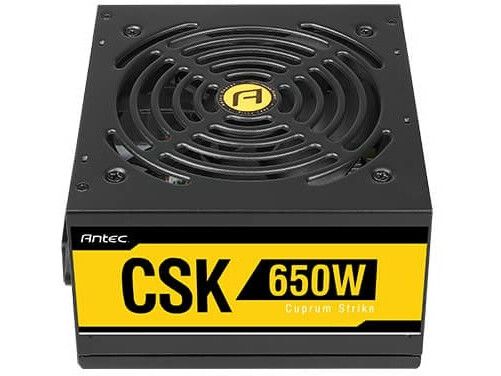

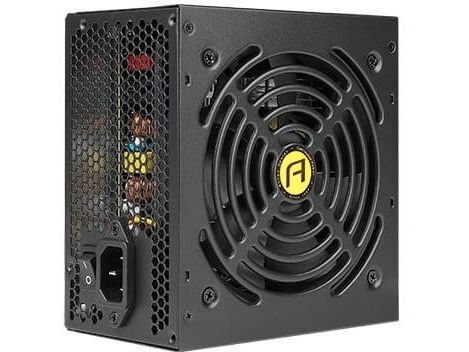

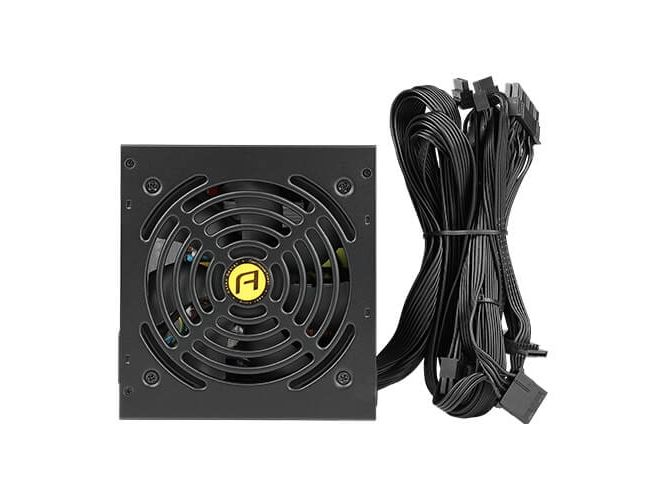

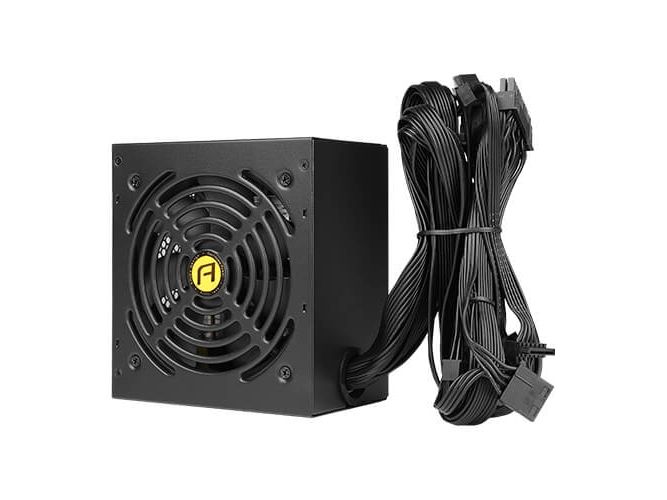

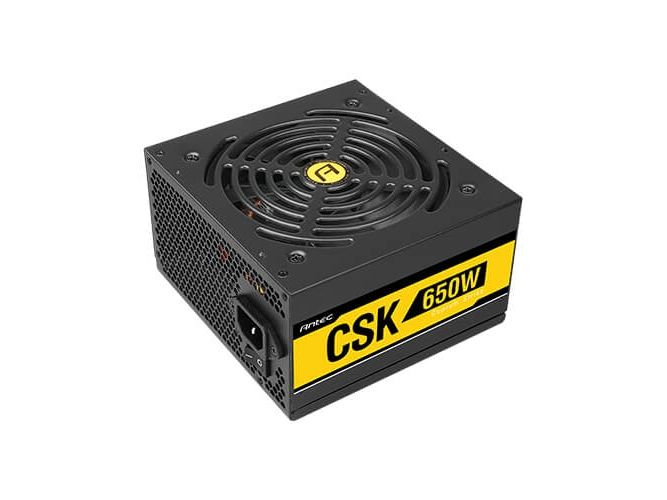

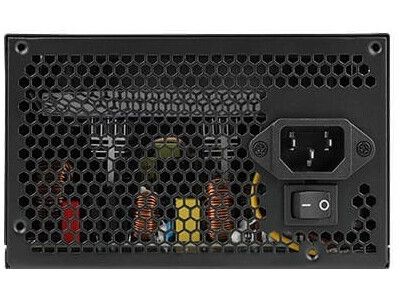

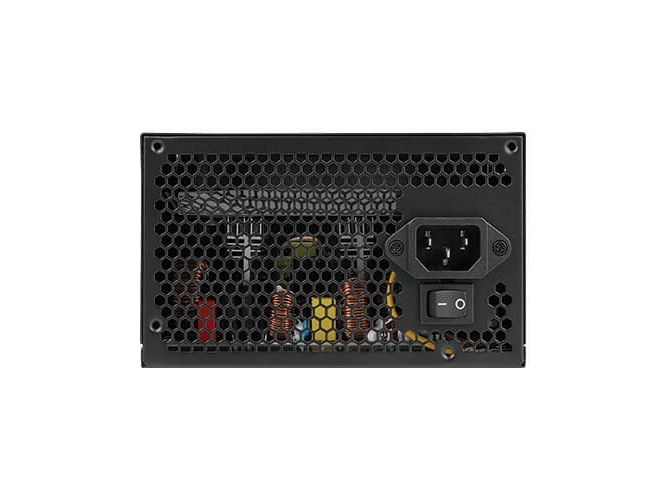

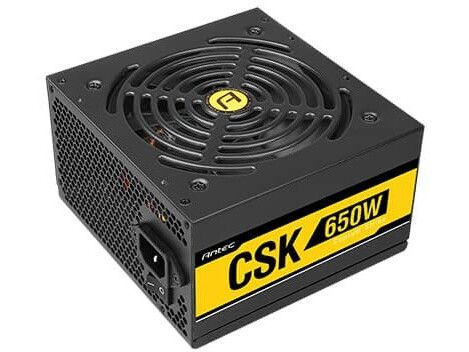

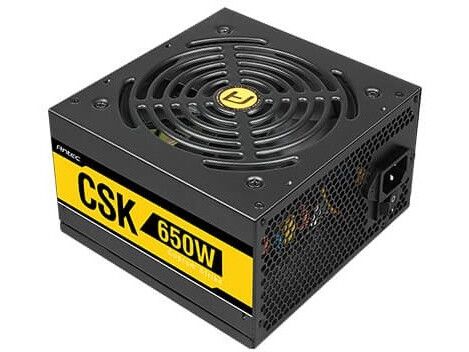

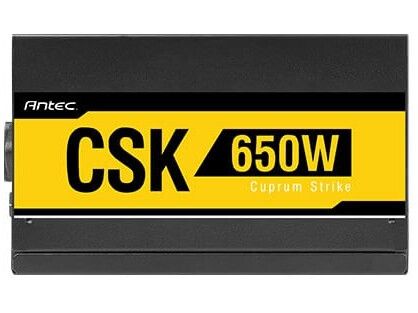

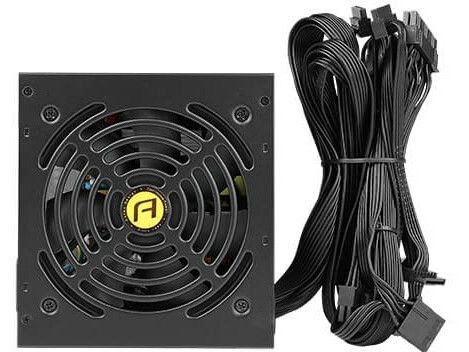

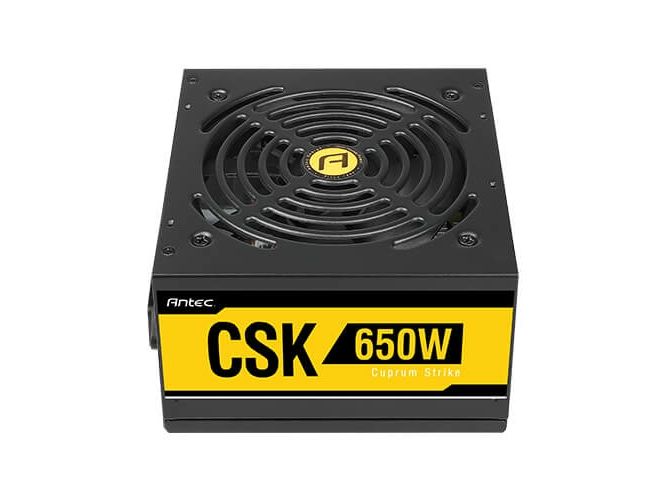

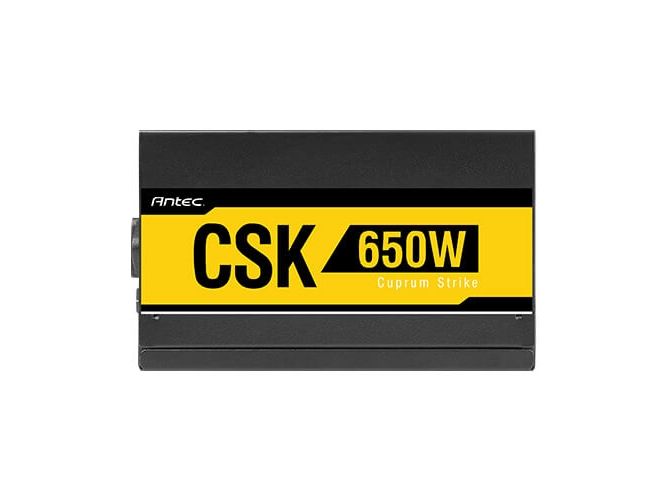

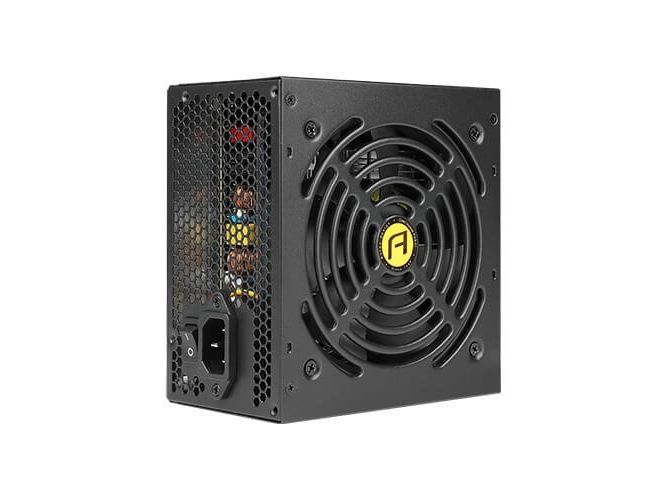

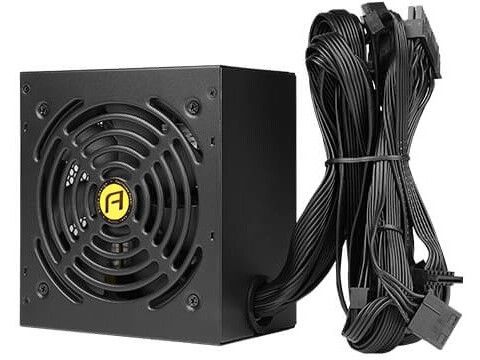

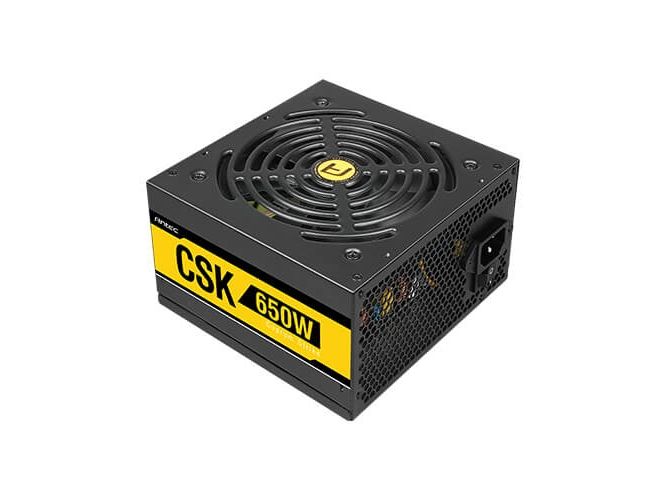

Antec CSK650 EC 80+ Bronze - 650W

Item no.: [20200135] | Manufacturer: Antec | Model no.: 0-761345-11747-0 | EAN: 0761345117470

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 85,71

Incl. VAT 107,14

Total incl. delivery 122,14

Read further specifications and description

The Antec Cuprum Strike CSK650 power supply delivers reliable performance with a powerful output of 650 watts, ensuring that your system operates efficiently. Designed to ensure smooth functionality, it features a 120 mm fan for effective cooling, and operates within a safe temperature range of 0°C to 40°C. This power supply complies with various international standards, including TUV, FCC, and RCM, reflecting its commitment to quality and safety in electrical components. Equipped with numerous protective features such as overheat protection, overvoltage protection, and short-circuit protection, the CSK650 provides peace of mind during operation. Moreover, the 80 PLUS Bronze certification signifies improved efficiency, making it a choice for users looking to optimize their power consumption.

Produktbeskrivelse	Antec Cuprum Strike CSK650 - strømforsyning - 650 Watt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.31/ EPS12V
80 PLUS certificering	80 PLUS Bronze
Vægt	1.95 kg
Lokalisering	Ecuador
Indgangspænding	AC 100-240 V
Udgangspænding	DC +3.3, DC +5, DC ±12 V
Strømkapacitet	650 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 50 A -12V - 0.3 A +5VSB - 3 A
Output-stikforbindelser	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 7 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem	120 mm ventilator
Dimensioner (B x D x H)	15 cm x 14 cm x 8.6 cm
Producentgaranti	3 års garanti

Generelt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.31/ EPS12V
PSU formfaktor	ATX
Lokalisering	Ecuador
Strømenhed
Indgangspænding	AC 100-240 V
Nødvendig frekvens	50 - 60 Hz
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 7 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding	DC +3.3, DC +5, DC ±12 V
Strømkapacitet	650 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 50 A -12V - 0.3 A +5VSB - 3 A
Effektivitet	88%
80 PLUS certificering	80 PLUS Bronze
Diverse
Kølesystem	120 mm ventilator
Egenskaber	CircuitShield, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, beskyttelse mod overophedning, ingen lastdriftbeskyttelse, ikke-modulær
Overensstemmelsesstandarder	cTUVus, TUV, CB, RCM, FCC, CCC
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	40 °C
Mål og vægt
Bredde	15 cm
Dybde	14 cm
Højde	8.6 cm
Vægt	1.95 kg
Mål & vægt (forsendelse)
Vægt ved forsendelse	2.13 kg

The item is known under the following item numbers in our system

EAN:	0761345117470
SKU:	0-761345-11747-0
