MSI Z790 GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192 GB

Item no.: [20221602] | Manufacturer: MSI | Model no.: Z790 GAMING PLUS WIFI | EAN: 4711377134712

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 176,28

Incl. VAT 220,35

Total incl. delivery 235,35

Read further specifications and description

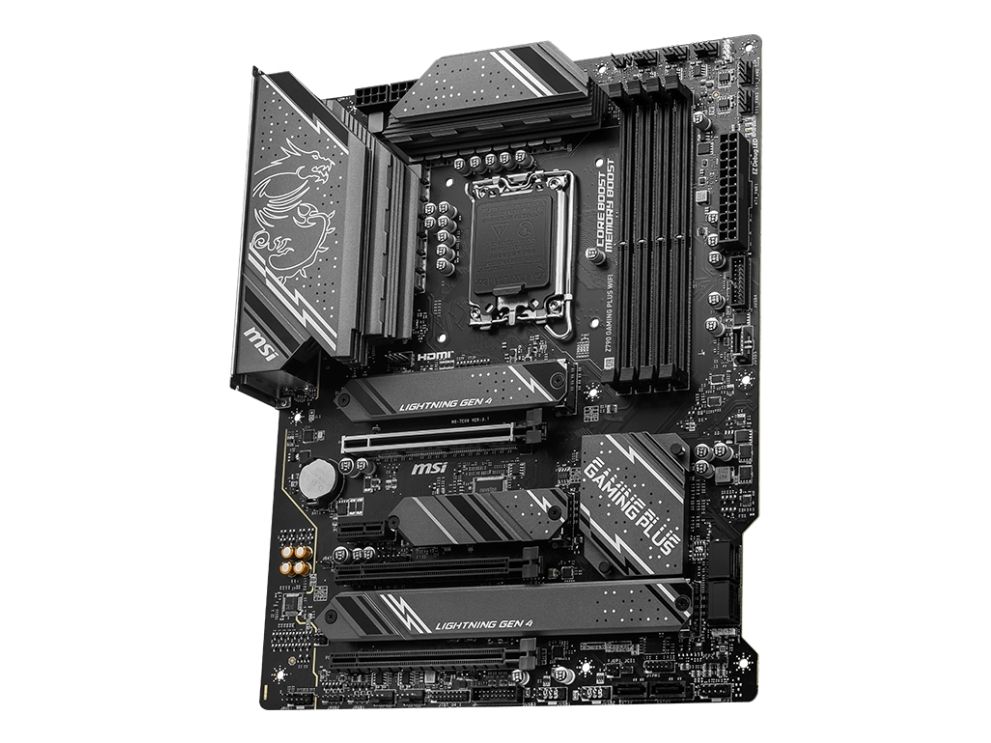

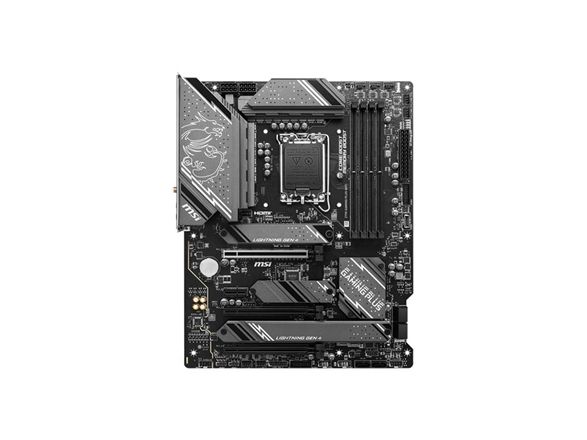

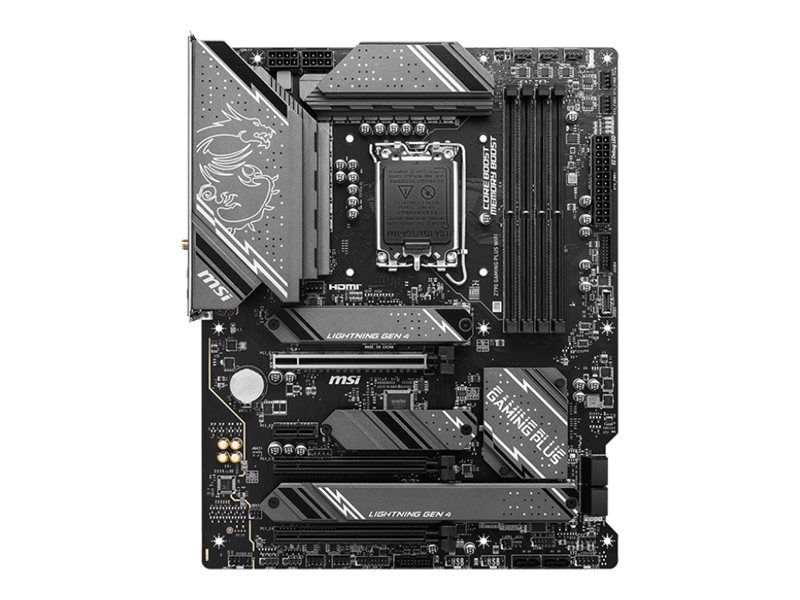

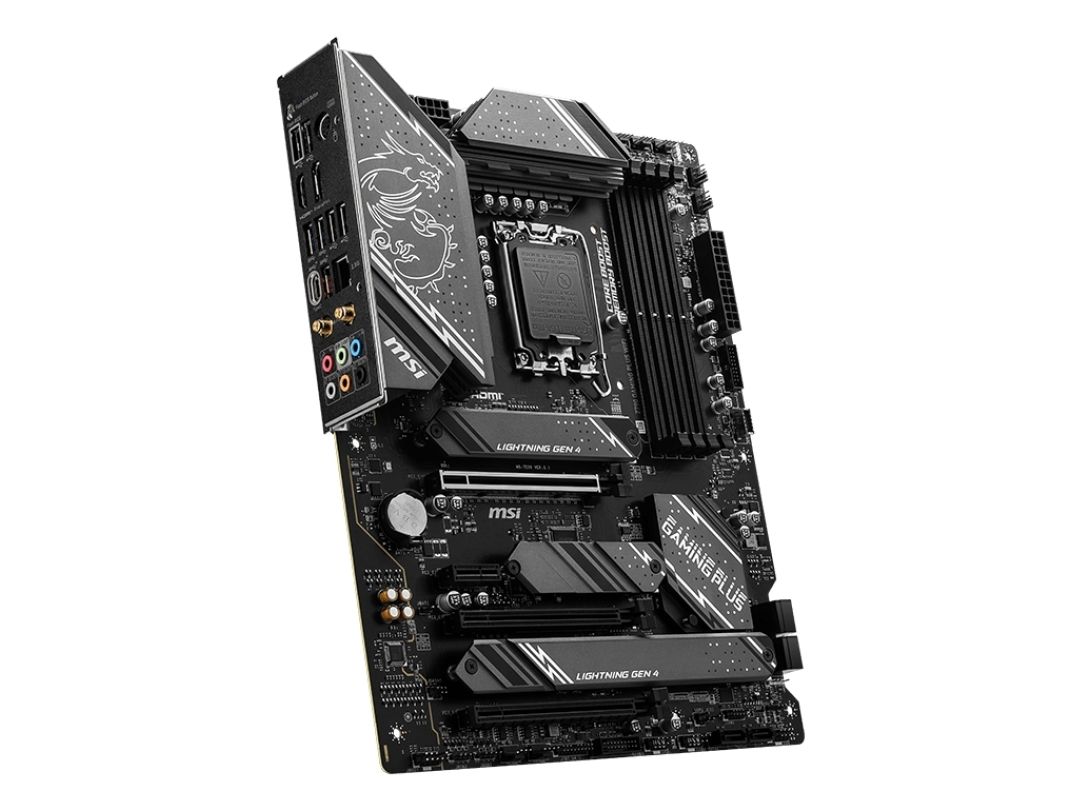

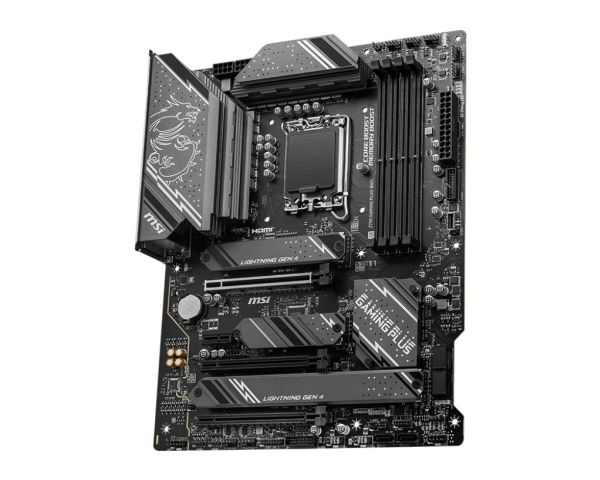

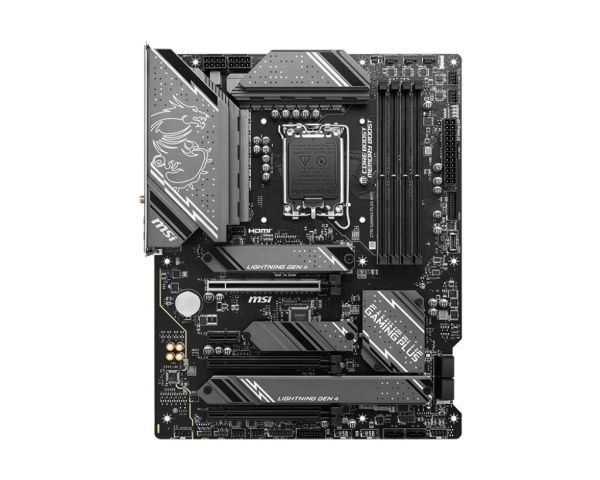

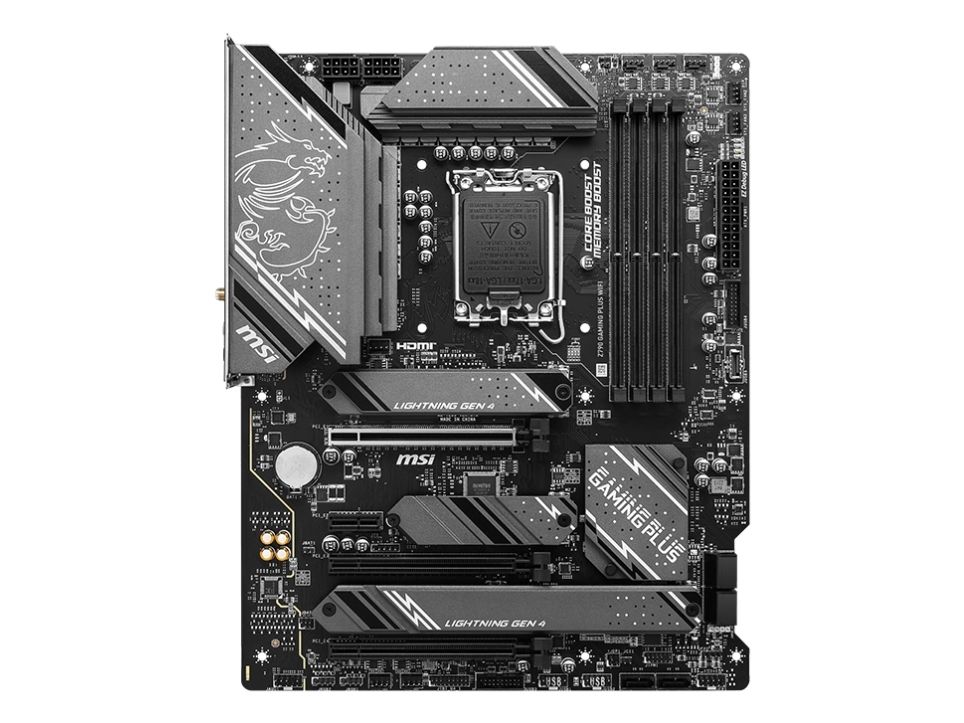

The MSI Z790 Gaming Plus Wifi motherboard is designed to meet the demands of gamers and professionals, offering a blend of performance, connectivity, and durability. With support for Intel processors and high-speed DDR5 memory, it provides the horsepower needed for demanding applications and gaming. The motherboard features advanced cooling solutions to ensure stability under heavy loads, while its comprehensive connectivity options, including USB-C and wireless technologies, make it a versatile choice for any build. Whether you're creating a gaming rig or a professional workstation, the Z790 Gaming Plus Wifi stands ready to serve as the cornerstone of your system.

Produktbeskrivelse	MSI Z790 Gaming Plus Wifi - bundkort - ATX - LGA1700 sokkel - Z790
Produkttype	Bundkort - ATX
Chipsættype	Intel Z790
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse	192 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	6 x SATA-600 (RAID), 4 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel Z790
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse	192 GB
Teknologi	DDR5
Bus Clock	4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC897
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 2 x PCIe 3.0 x1 3 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) 1 x M.2 socket (Key E)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

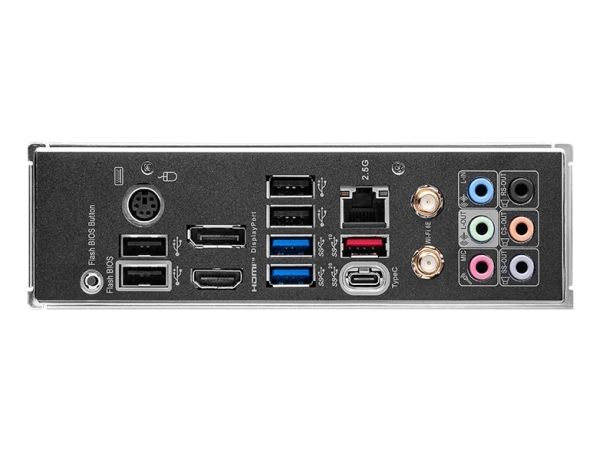

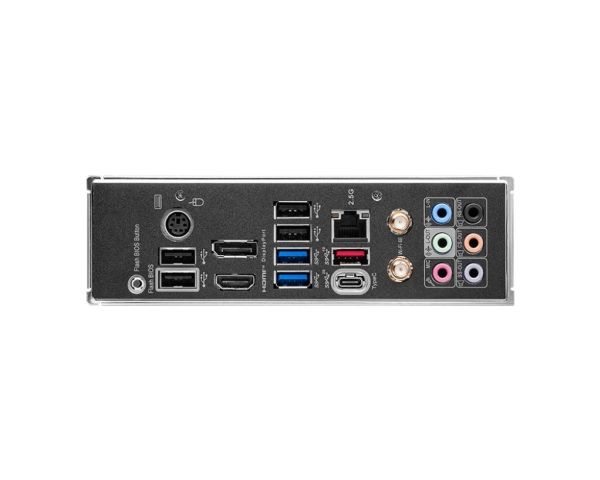

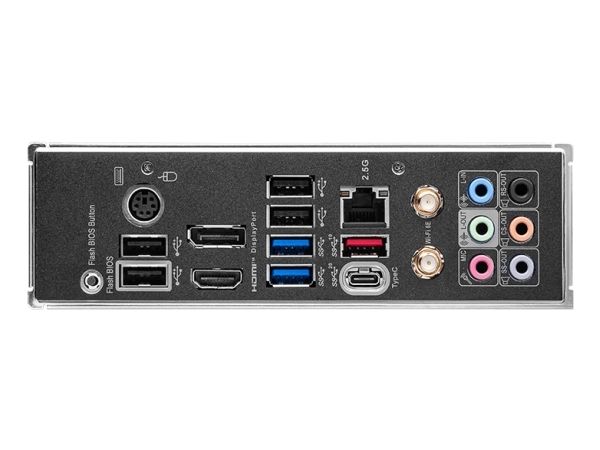

Interface	1 x HDMI 1 x DisplayPort 4 x USB 2.0 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud (sidesurround) - mini-jack 2 x antenne 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2-tastatur/mus
Interne interfaces	4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x Thunderbolt 4 - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, ACPI 6,4 support, SMBIOS 3,5 support, MSI ClickBIOS 5
Hardware egenskaber	MSI Mystic Light, Debug LED, M.2 Shield FROZR, MSI Core Boost, MSI Audio Boost, Extended Heatsink Design, præmonteret I/O-skjold, 6 Layer PCB, MSI PCIe Steel Slot, Water Pump Header, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), MSI Steel Armor, MSI Memory Boost
Diverse

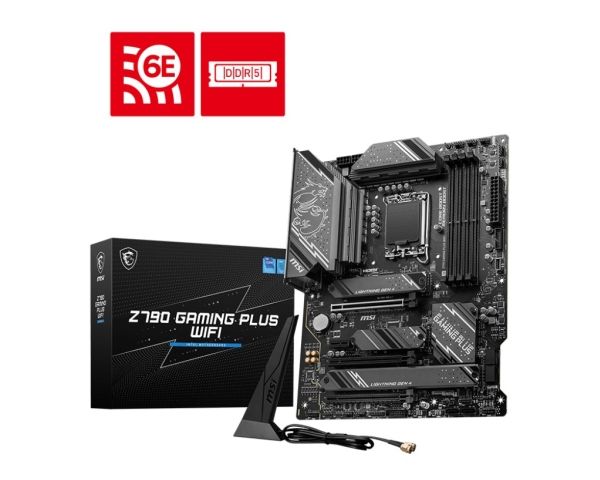

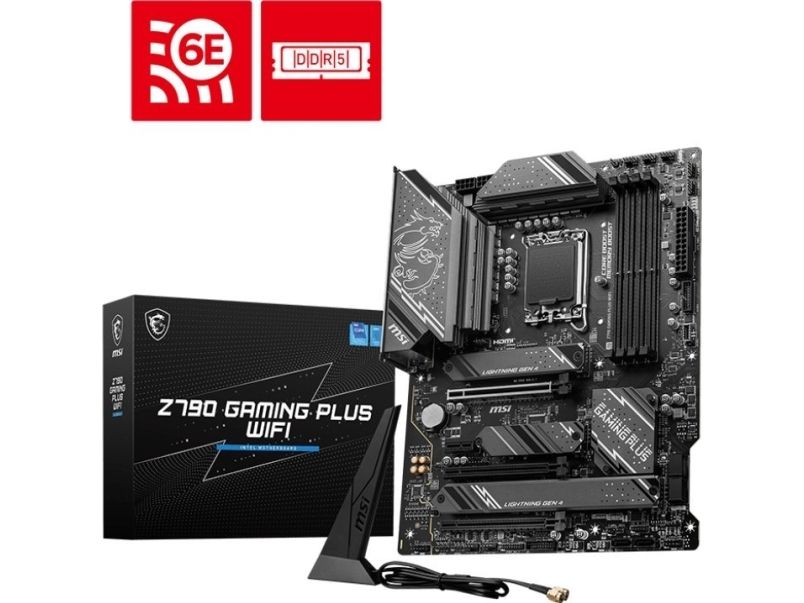

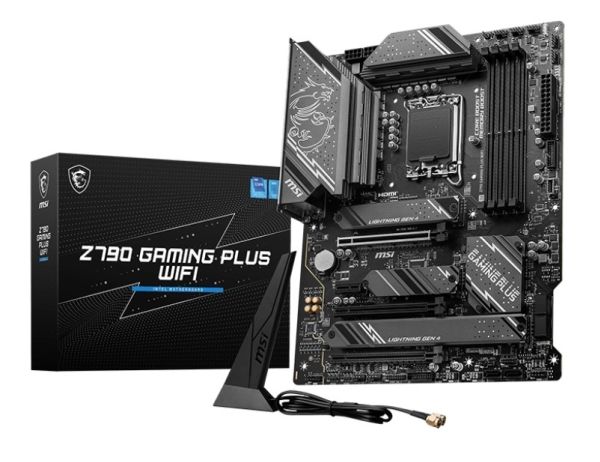

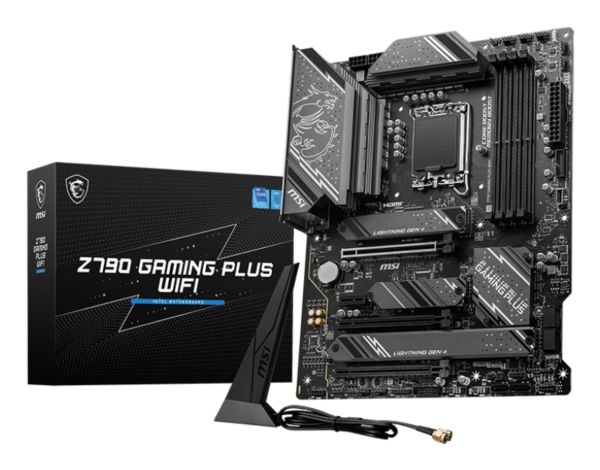

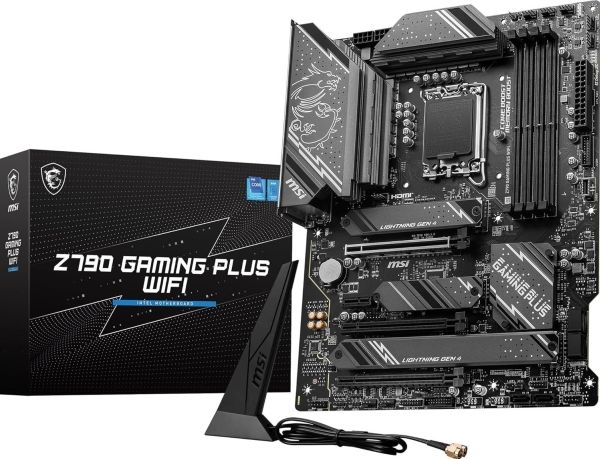

Udstyr inkluderet	Wi-Fi-antenne, 3 x M.2 klemmer, m.2 screw/standoff-sæt, kabelmærkat
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Drivers & Utilities, MSI Center, Intel Extreme Tuning Utility, MSI CPU-Z, Norton 360 Deluxe (60 dages prøvetid), AIDA64 Extreme - MSI Edition, Adobe Creative Cloud (gratis prøve), Adobe Acrobat Reader
Overensstemmelsesstandarder	DisplayPort 1.4, FIPS, FISMA
Bredde	30.5 cm
Dybde	24.4 cm

The item is known under the following item numbers in our system

EAN:	4711377134712
EAN:	1210001904033
SKU:	Z790 GAMING PLUS WIFI
SKU:	7E06-026R
SKU:	Z790GAMINGPLUSWIFI

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
