The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
400,98
Incl. VAT 501,23
Total incl. delivery
516,23
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

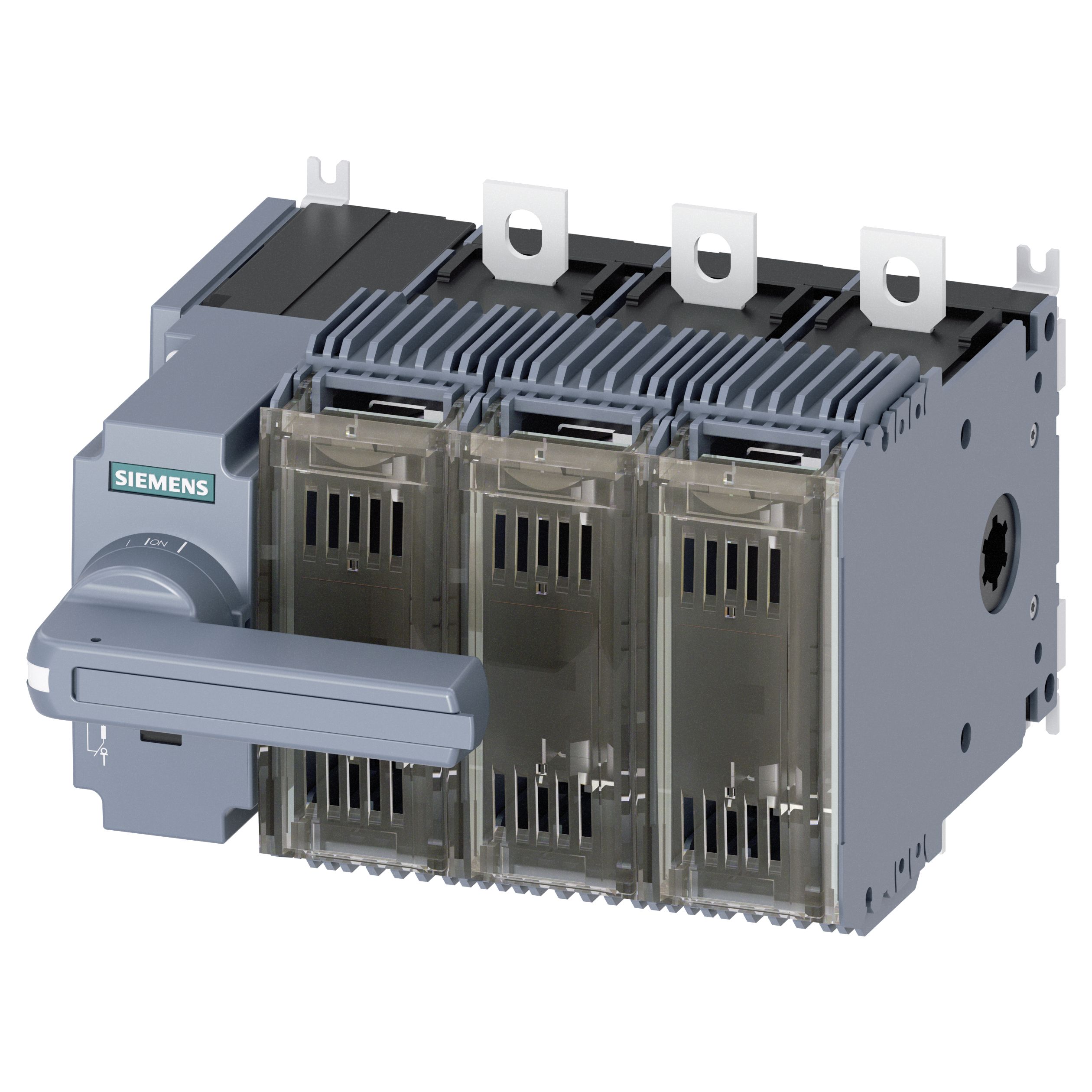

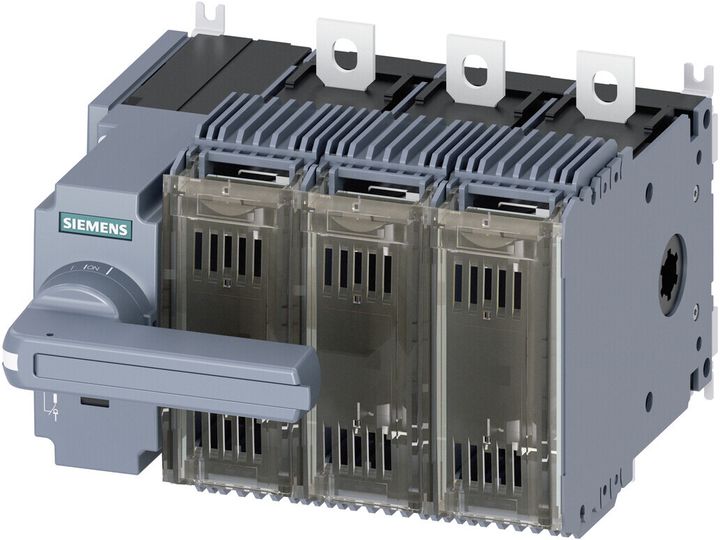

Fuse switch-disconnector 3KF2 125 A sz2 3P LV HRC 000
International Protection (IP) code
IP00
Minimum order quantity
1 pc(s)
Compliance certificates
CE, RoHS
Main circuit connection type
Other
Number of poles
3
Control element type
Other
Rated continuous current (Iu)
125 A
Integrated motor drive
No
Optional motor drive
No
Maximum rated operational voltage (Ue AC)
690 V
Emergency stop version
No
Main switch version
Yes
Safety switch version
Yes
Rated operational power (AC-23, 400V)
55000 kW
Error protection
No
Conditioned rated short-circuit current (Iq)
100 kA
Suitable for floor mounting
Yes
Battery included
No
Package weight
3.16 kg
Package depth
245 mm
Package width
290 mm
Package height
175 mm
Connector included
No
Fuse size
NH000, NH00
Maximum order quantity
1 pc(s)
The item is known under the following item numbers in our system
EAN:
4001869536125
SKU:
3KF23122LF11
SKU:
3KF2312-2LF11
SKU:
SIE-10485896
