Supermicro PWS-920P-1R2, 920 W, 100 - 240 V, 50 - 60 Hz, 11 A, 5.5 A, Active
Item no.: [20321180] | Manufacturer: SUPER MICRO Computer | Model no.: PWS-920P-1R2 | EAN: 8015747190916
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
256,57
Incl. VAT 320,71
Total incl. delivery
335,71
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

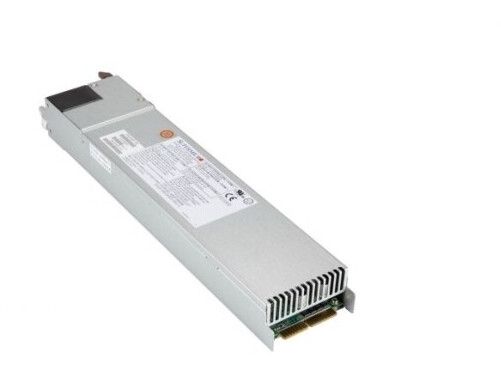

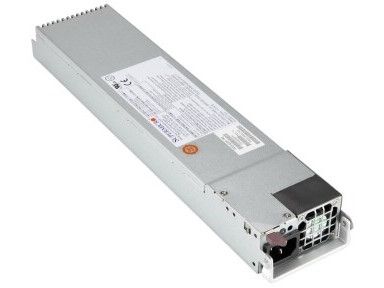

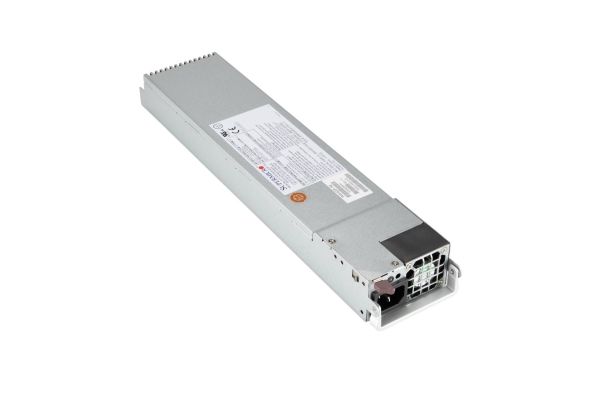

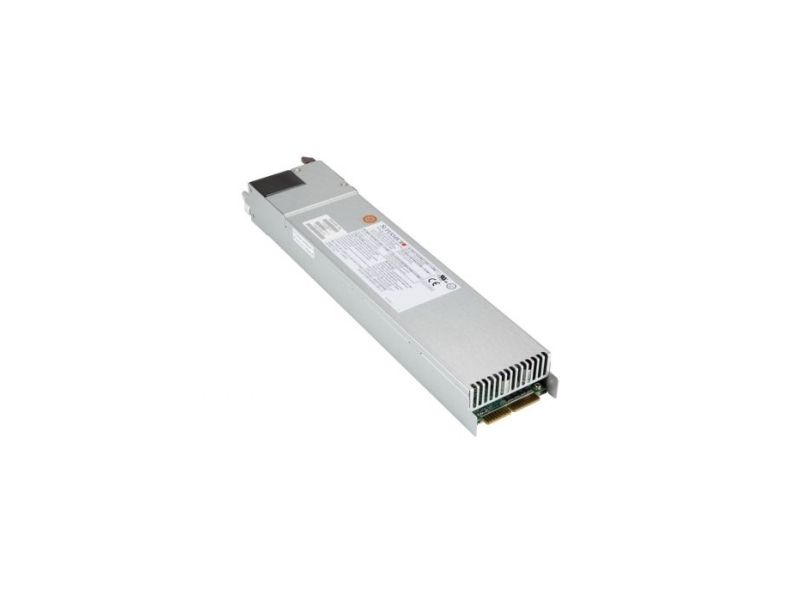

The Supermicro PWS-920P-1R2 is an 80 Plus Platinum level redundant power supply capable of supplying 920W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Total power
920 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Maximum input current (@110V)
11 A
Maximum input current (@220V)
5.5 A
Power Factor Correction (PFC) type
Active
Max output current (+12V)
75 A
Max output current (+5V)
4 A
Efficiency
94%
Purpose
Server
Power supply unit (PSU) form factor
1U
80 PLUS certification
80 PLUS Platinum
Compliance certificates
REACH, RoHS
Width
79 mm
Depth
40 mm
Height
336 mm
Harmonized System (HS) code
84733020
Sustainability compliance
Yes
