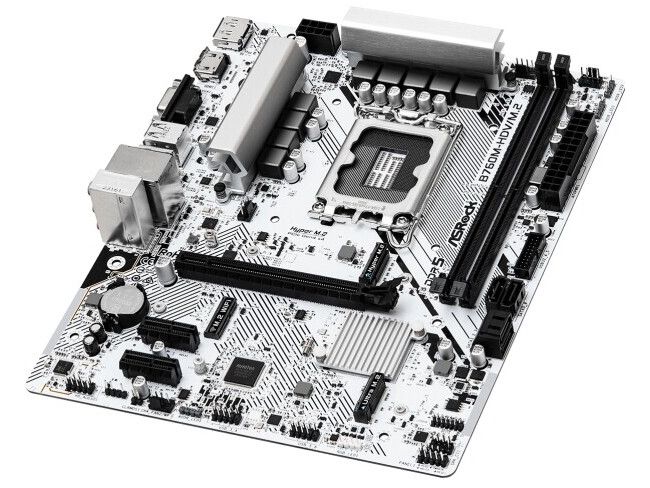

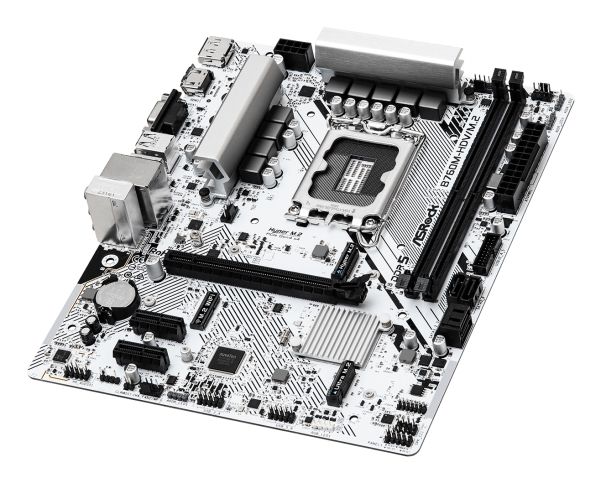

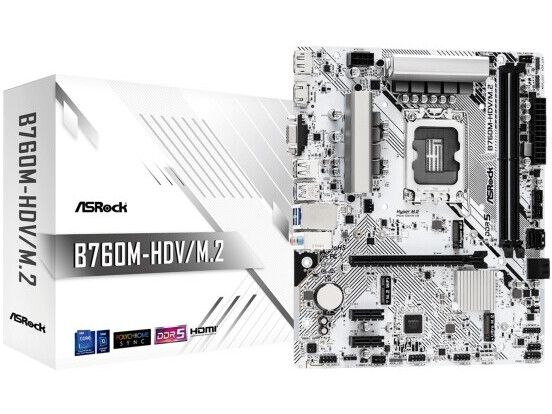

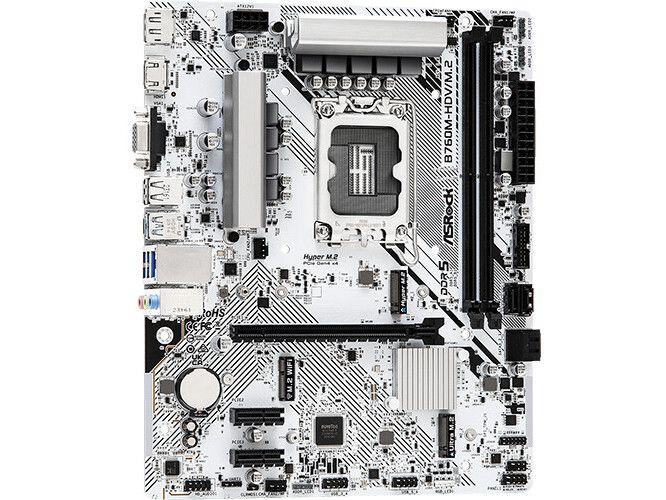

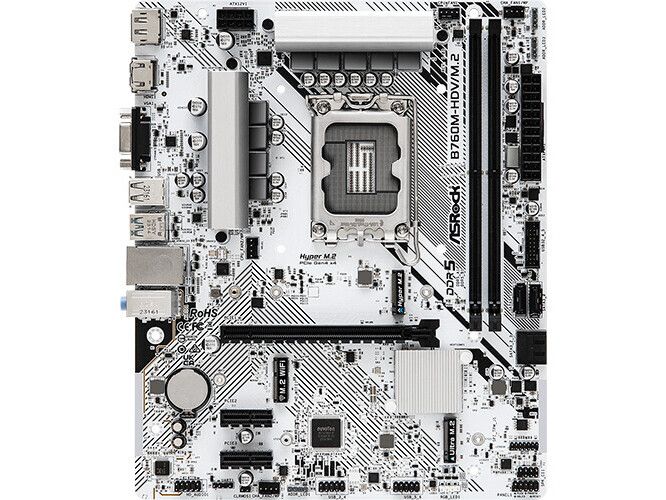

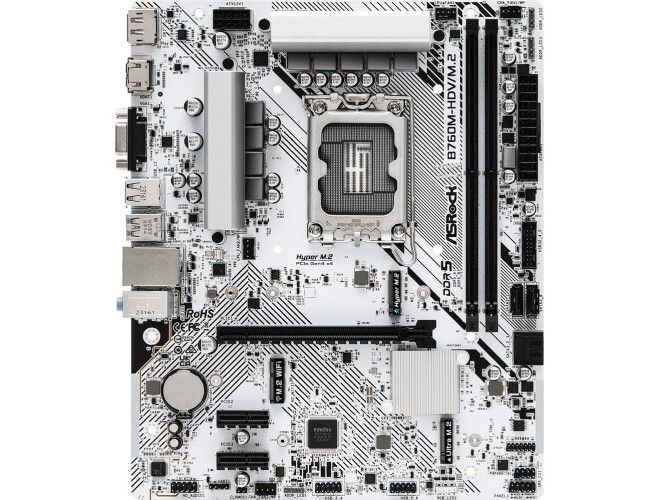

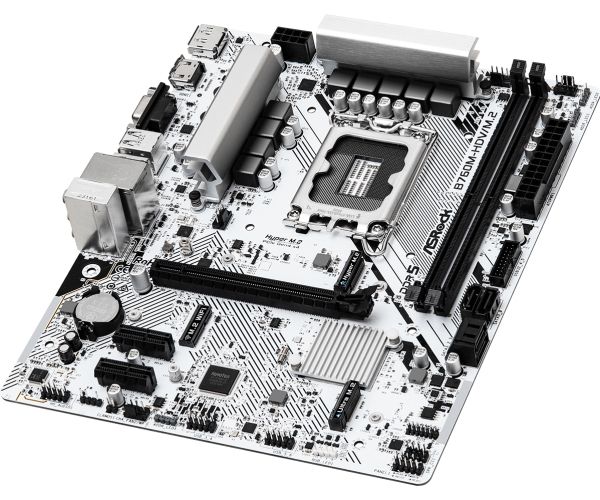

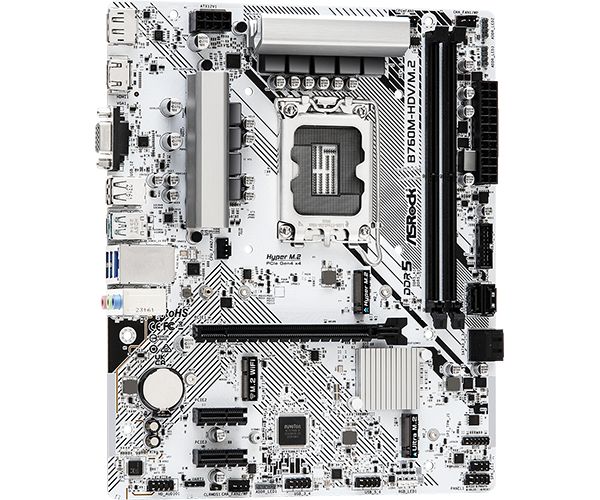

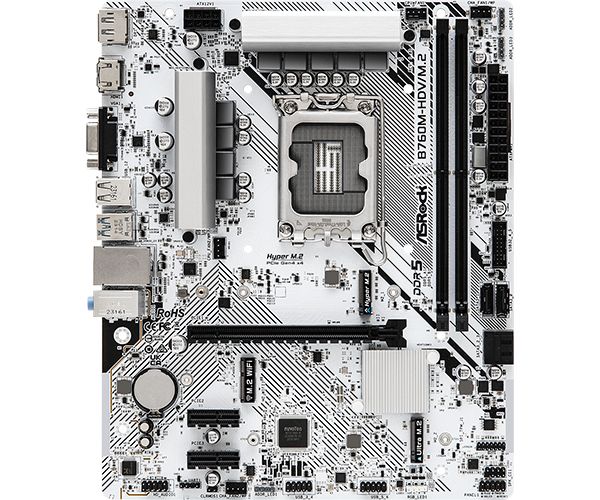

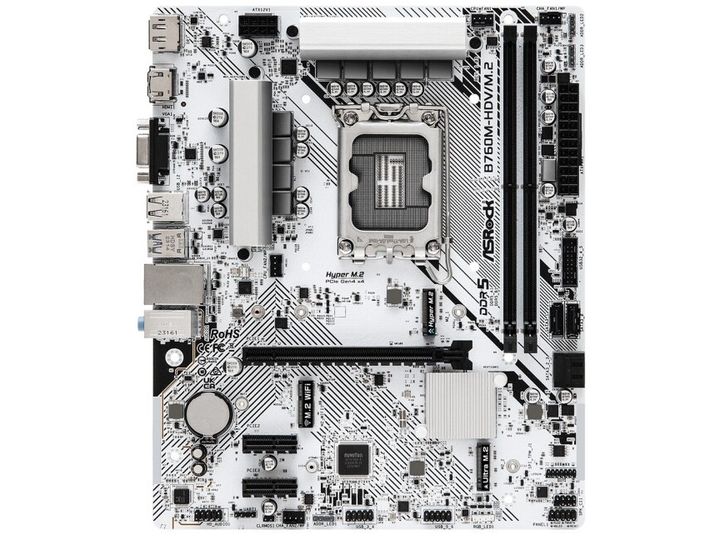

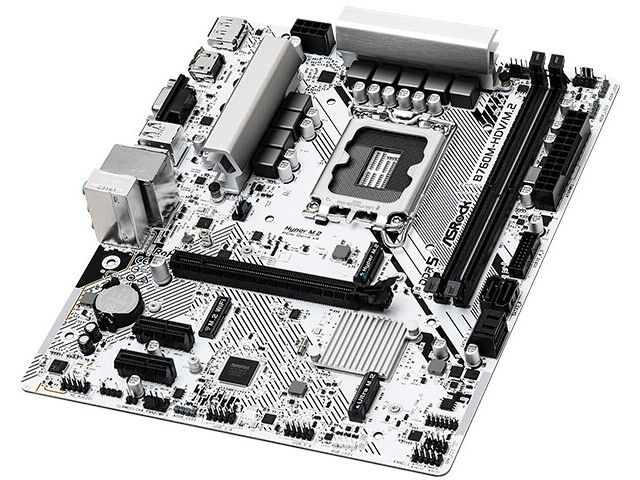

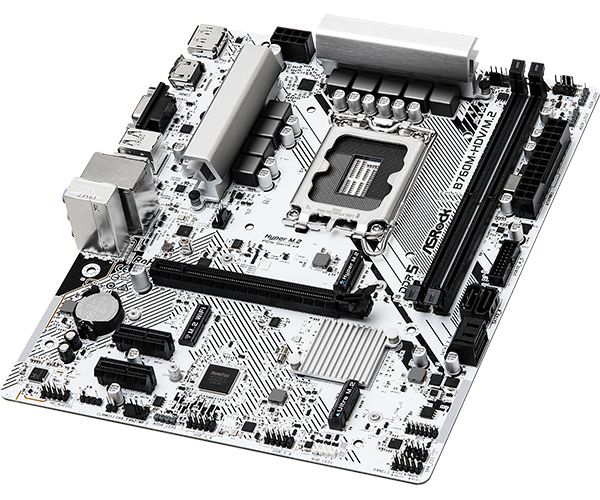

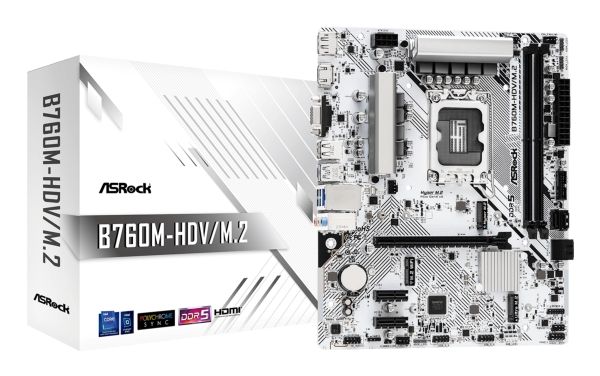

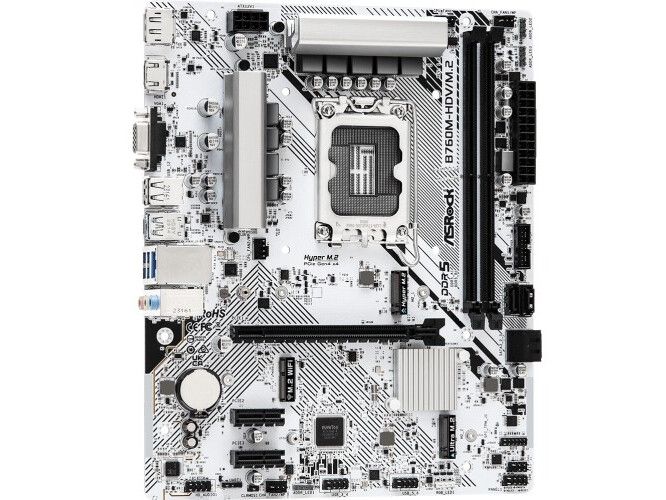

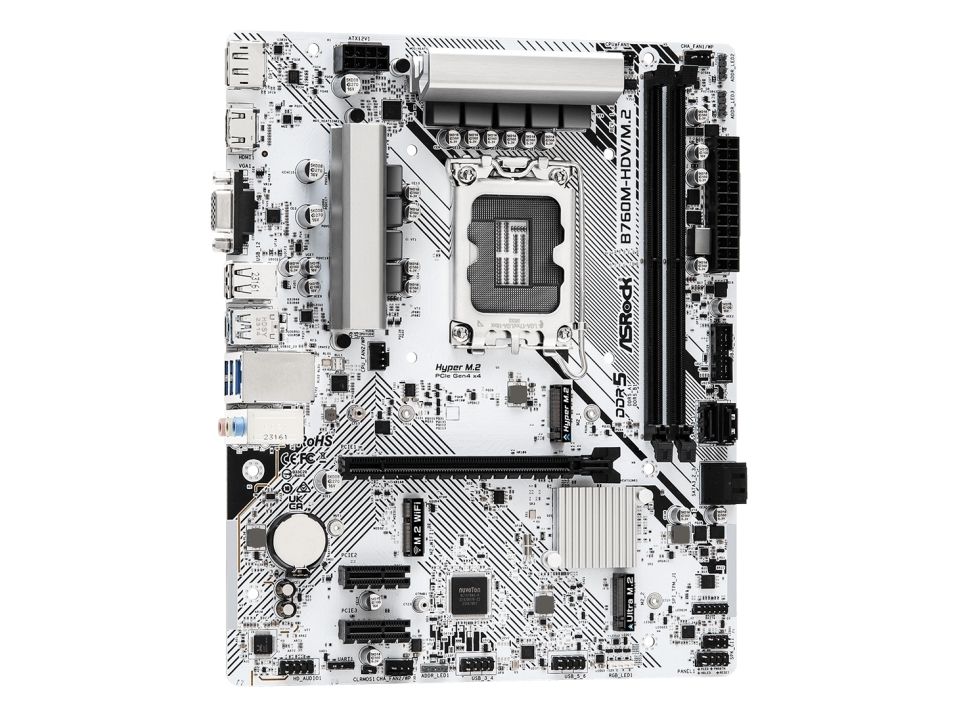

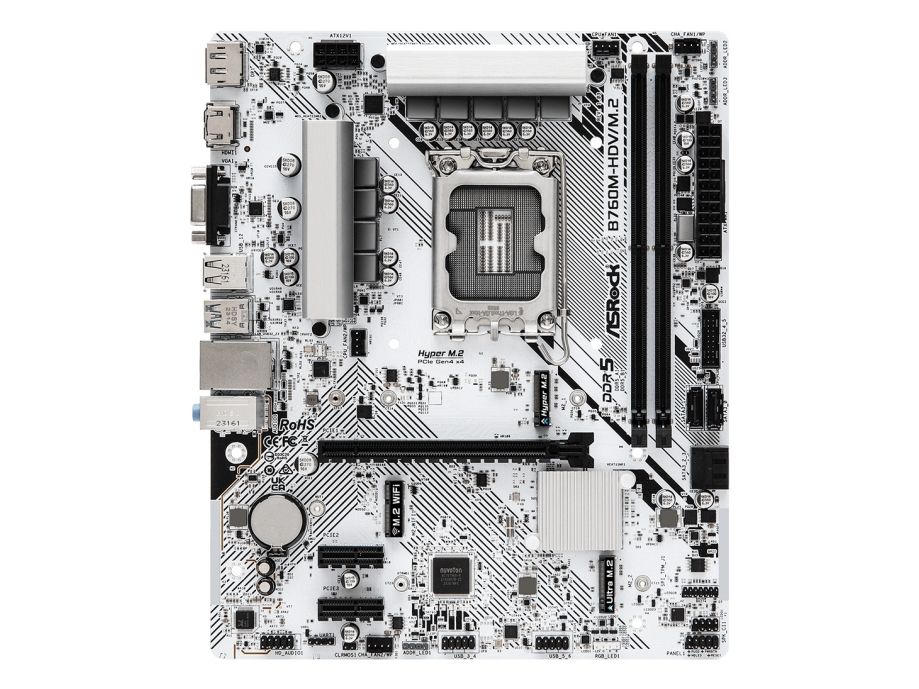

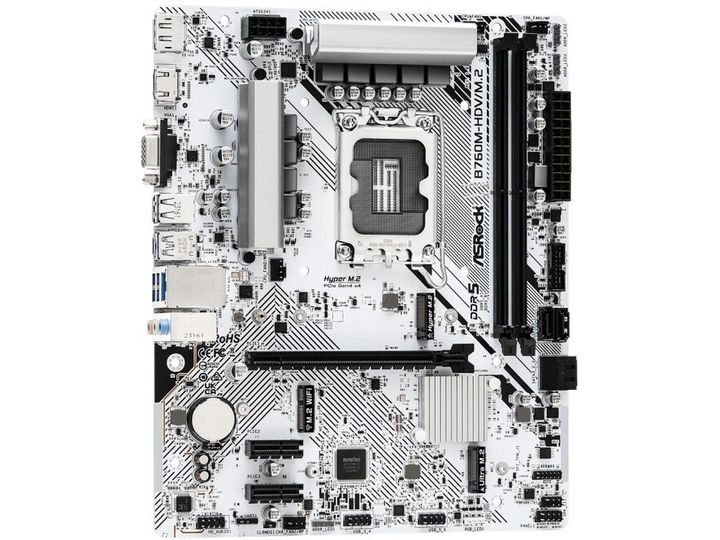

The ASRock B760M-HDV/M.2 motherboard is designed to cater to the needs of modern PC builders and gamers, offering a blend of performance, connectivity, and durability. With support for Intel Core processors, users can expect seamless computing experiences, whether for work or play. The motherboard's high-speed DDR5 memory support, coupled with advanced storage options including Hyper M.2 and Ultra M.2 sockets, ensures rapid data access and transfer speeds, enhancing overall system responsiveness.
For connectivity, the motherboard boasts a comprehensive array of ports including VGA, HDMI, DisplayPort, and USB-C 3.2 Gen 1, facilitating the connection of multiple peripherals and displays. Networking is handled by a 2.5 Gigabit Ethernet controller, providing users with fast and reliable Internet access. Additionally, the motherboard features a robust 7+1+1 Phase Power Design and ESD Protection, ensuring stable power delivery and protecting the system from electrical surges. With these features, the ASRock B760M-HDV/M.2 motherboard stands out as a solid foundation for building a high-performance PC.
Dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8125BG
Netværks interfaces
2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 2 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E-åbning) 1 x M.2 socket (2260/2280 M.2 Key M-åbning) 1 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 1 x Hyper M.2 PCIe 3.0 -stikforbindelser: 1 x Ultra M.2

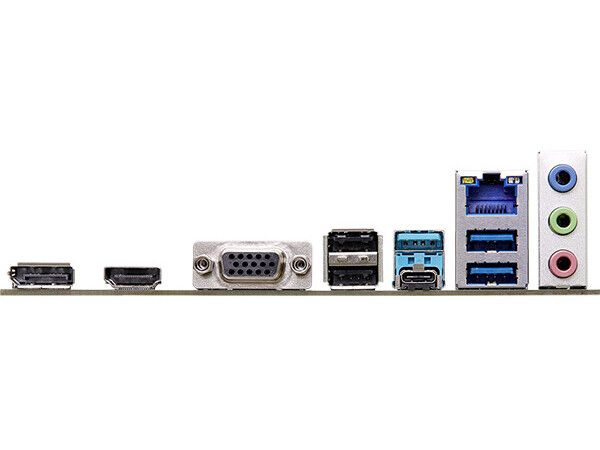

Interface

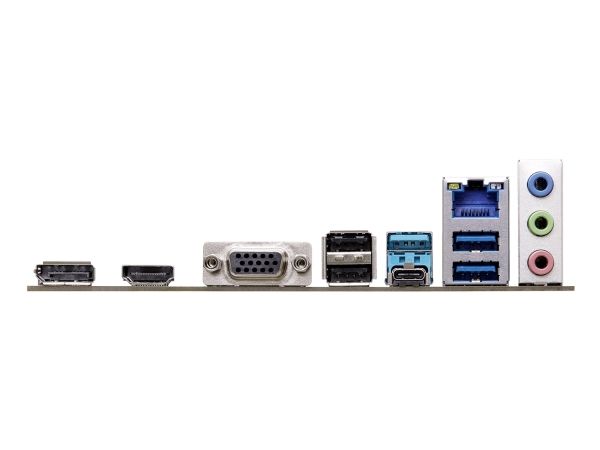

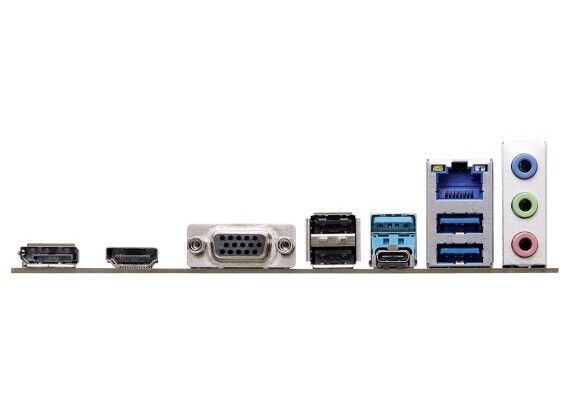

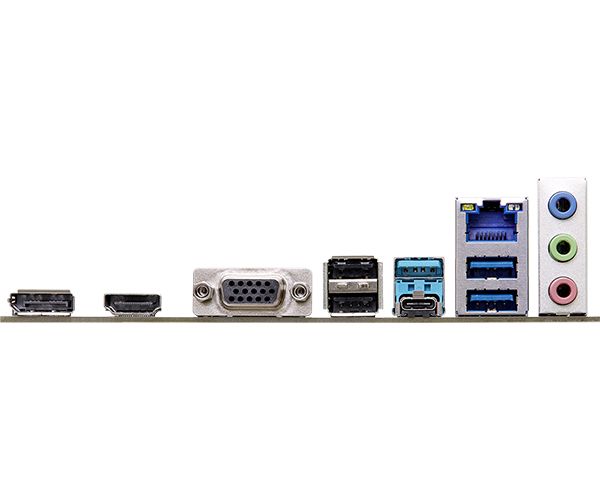

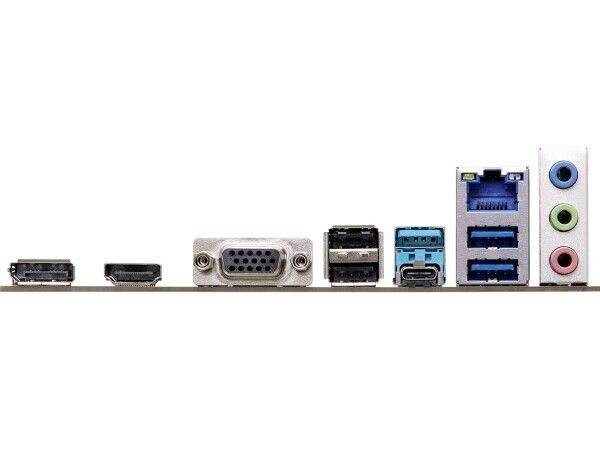

1 x VGA 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack
Interne interfaces
2 x USB 3.2 Gen 1 - intern stik 4 x USB 2.0 - intern stik 1 x SPI - intern stik 1 x højttaler - intern stik 1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
7+1+1 Phase Power Design, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Easy RAID Installer, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), Intel Turbo Boost Max Technology 3.0, Intel Hybrid Technology, ESD Protection, ASRock Polychrome RGB
Diverse
Udstyr inkluderet
IO-skjold, 3 x M.2 skruer
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC
