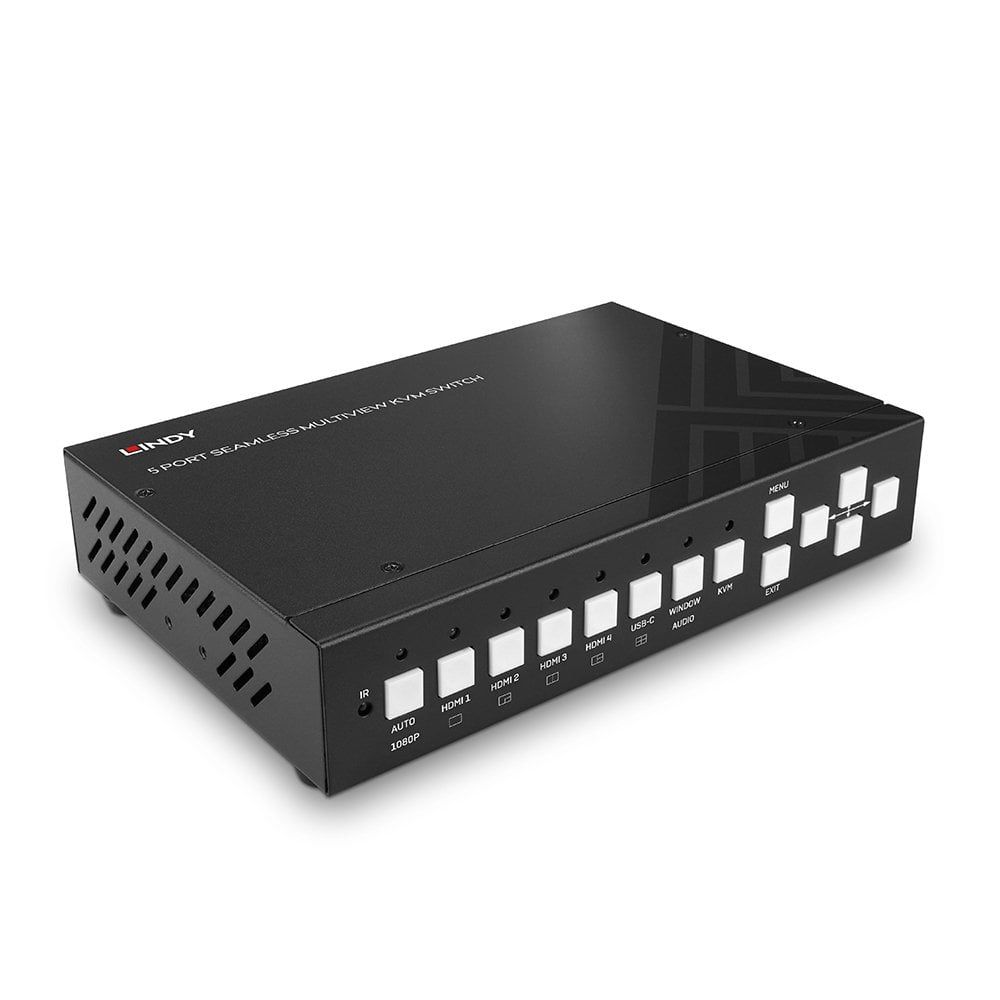

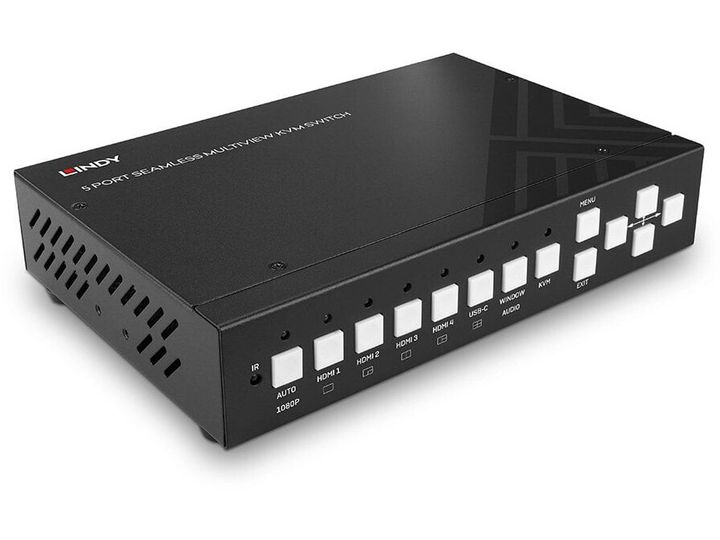

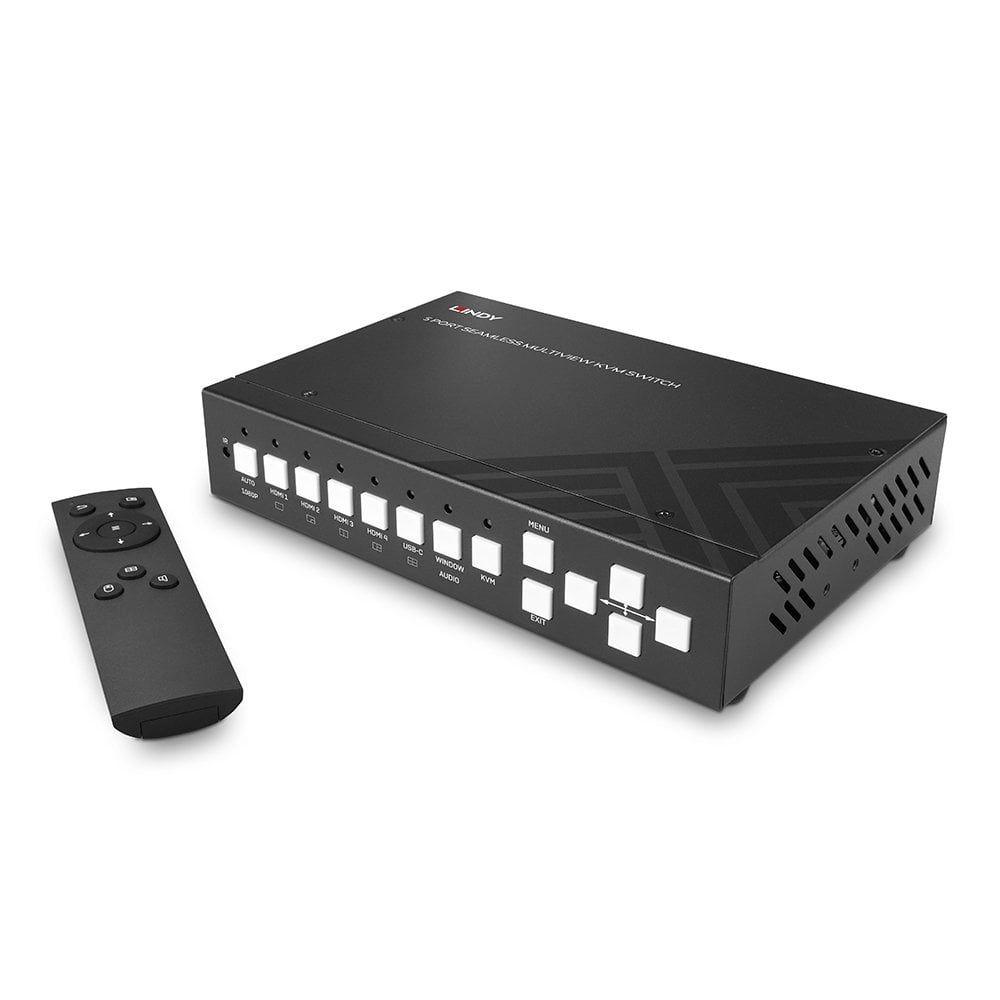

This advanced HDMI 4K60 Switch is able to display up to 4 sources at the same time on a 4K screen with KVM control connecting also the USB Type B ports. There are 5 different Multiview modes, Single, PIP, PBP, 3xWIN and 4xWIN while with USB roaming function is possible to get the KVM control of different sources by simply moving the mouse pointer from one window to another.

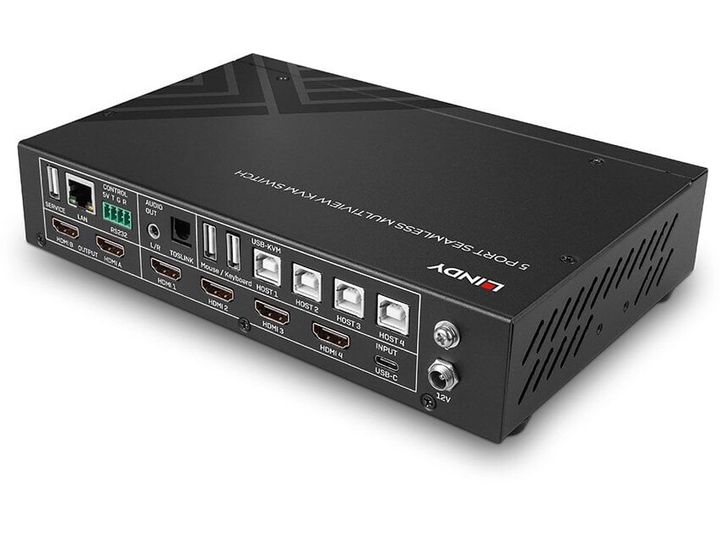

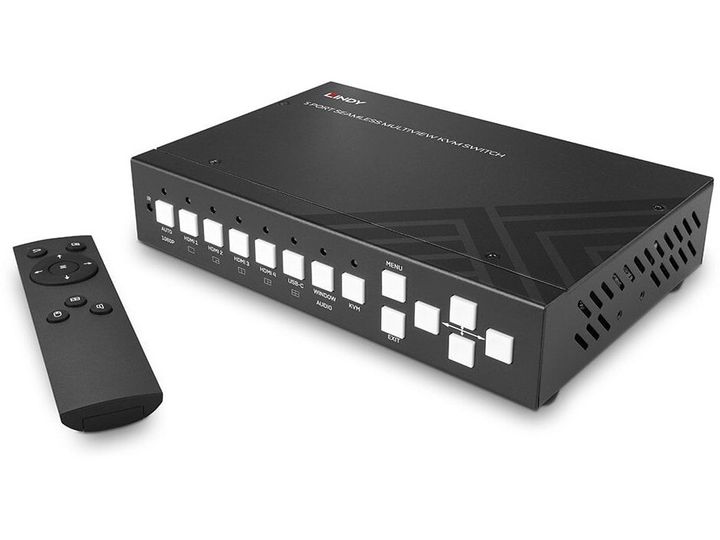

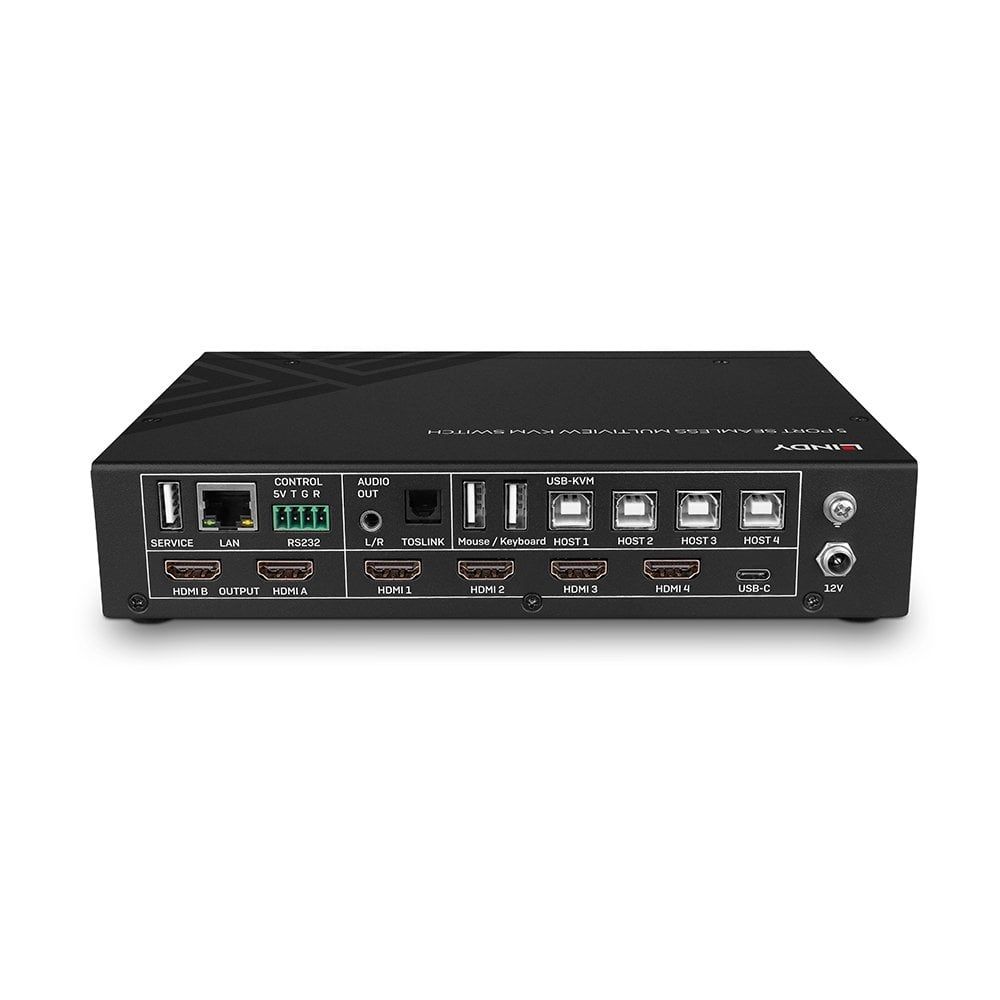

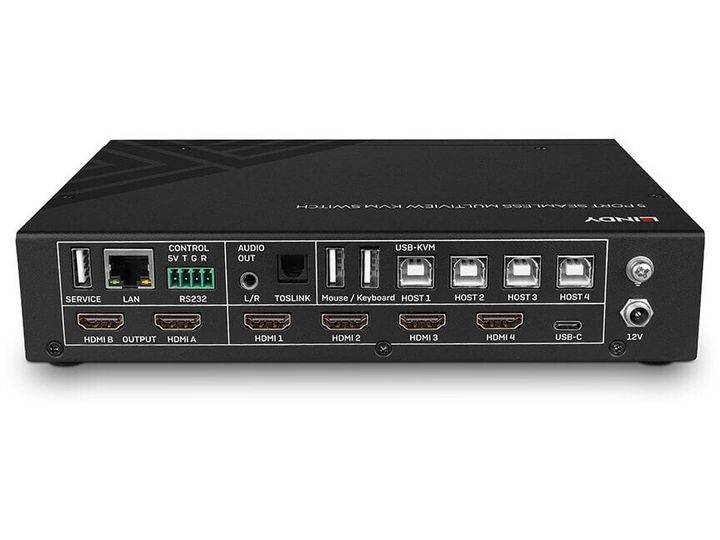

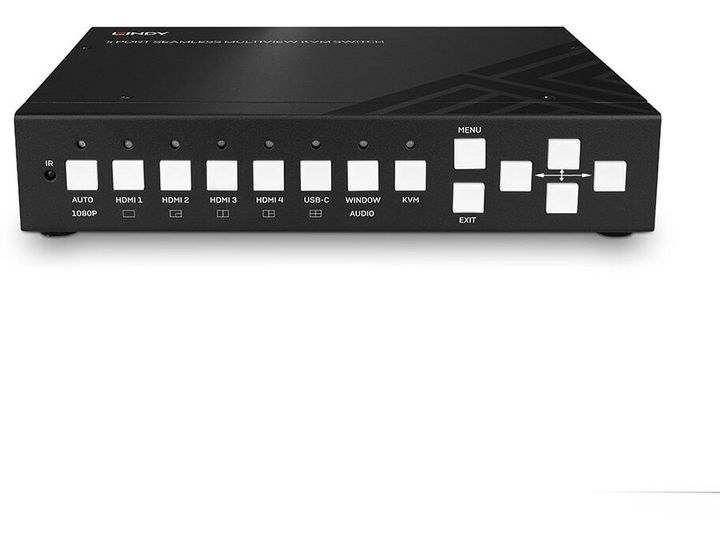

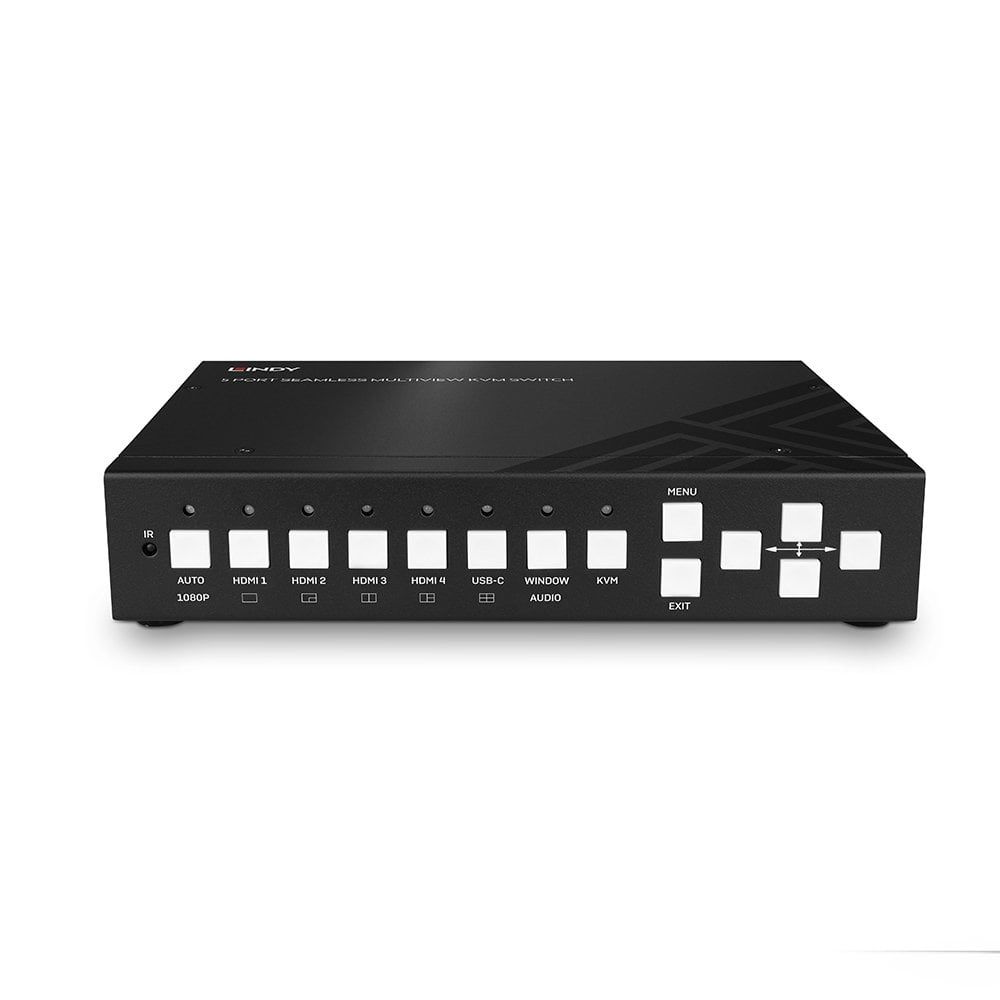

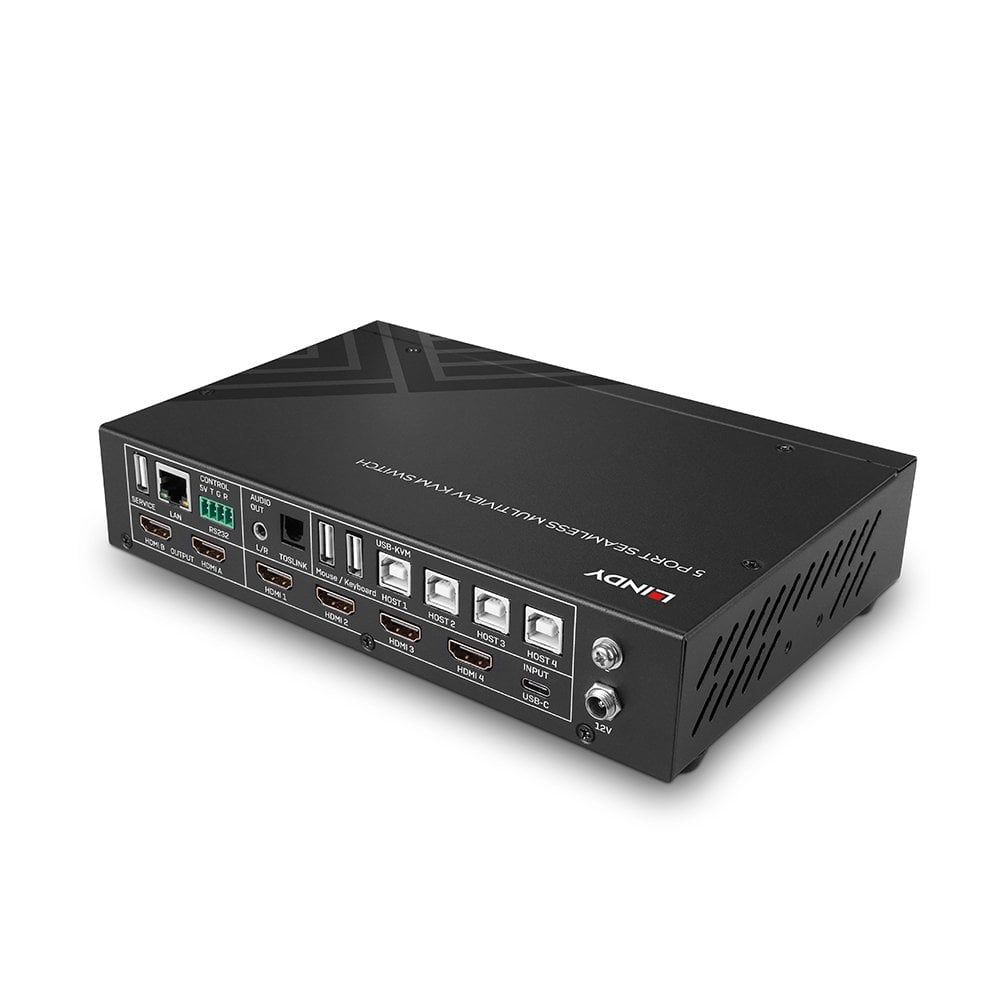

The unit has 4 HDMI and 1 USB Type C video inputs, switching between the sources is seamless, without any black screen or screen freezing. All the features can be managed in many ways, by pushing the buttons on the front panel via OSD menu, IR remote control (included), keyboard hot-keys for KVM selection, TCP/IP or RS-232 software GUI and commands. All of these different possibilities and features make this Switch perfect for any kind of installation, from AV pro solutions to mission critical control rooms, in broadcasting, E-Sports and security applications.
It provides also one additional HDMI mirrored output for local monitoring or for video capture adding a HDMI to USB video capture device. 3.5mm analog and TosLink digital optical audio outputs allow to manage independent audio selection, supporting many audio formats; with LPCM 2.0 format the volume can be controlled as well.
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
Console ports
3.5mm headphone, HDMI, USB A
HDMI ports quantity
6
HDMI version
2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Console USB ports quantity
2
Console HDMI ports quantity
2
USB connector type
USB Type-A, USB Type-B
Audio connections
Yes
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
Audio channels
7.1
Audio decoding technologies
DTS-HD
Product colour
Black
Housing material
Metal
Display switch button
Yes
Push button
Yes
Certification
California Proposition 65
Built-in display
No
Power source
DC
Input voltage
12 V
Input current
2.5 A
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
10 - 70%
Width
219 mm
Depth
146 mm
Height
44 mm
Weight
1.3 kg
Package width
360 mm
Package depth
260 mm
Package height
75 mm
Package weight
1.8 kg
Package type
Box
Manual
Yes
Packaging content
5 Port HDMI 4K60 Seamless Multiview KVM SwitchIR remote control4-Pin Terminal Block2x Mounting ears with screwsMulti-Country Power Supply (EU, UK, US & AUS)Lindy Manual
Power requirements
12VDC 2.5A
Warranty period
2 year(s)
Sustainability compliance
Yes
