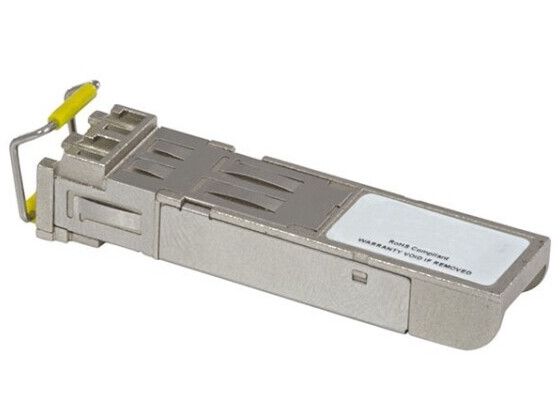

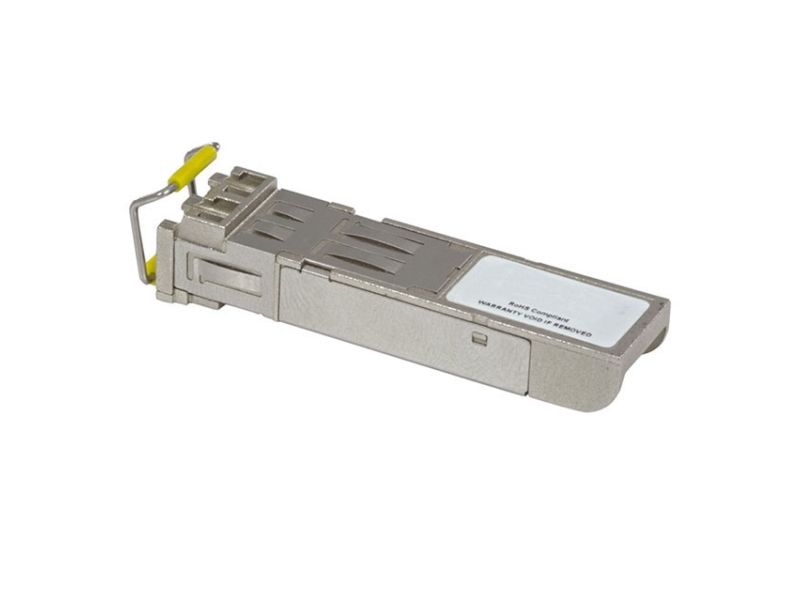

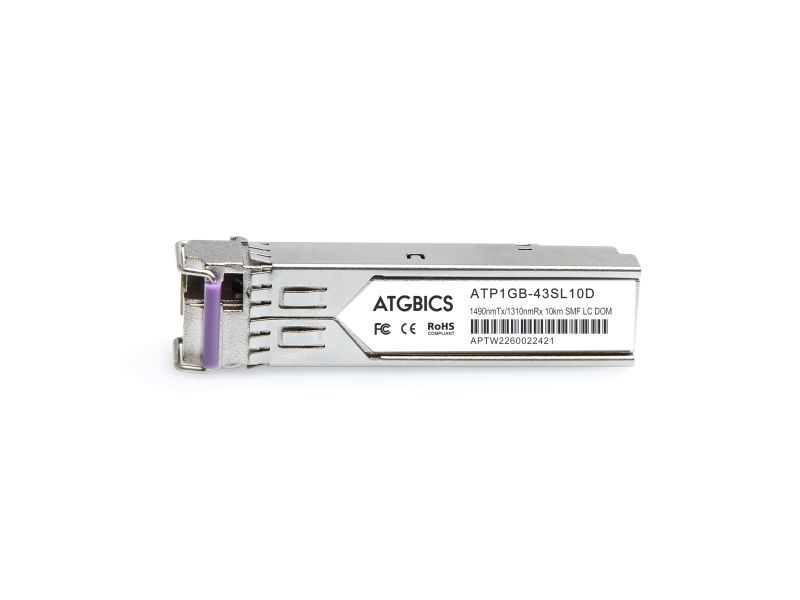

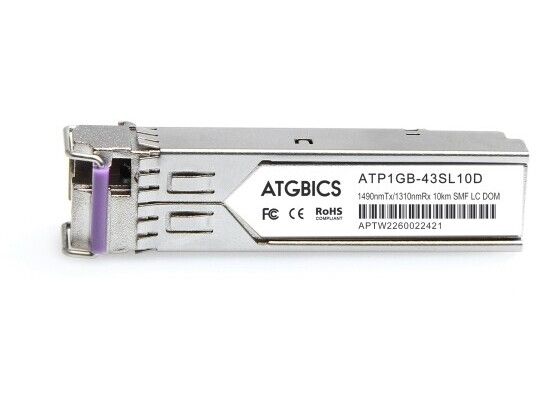

ATGBICS GLC-BX-D Cisco Compatible Transceiver SFP 1000Base-BX-D (Tx1490nm/Rx1310nm SMF 10km LC DOM), Fiber optic, 1000 Mbit/s, SFP, LC, BX-D, 10000 m

Item no.: [2040248] | Manufacturer: Prolabs | Model no.: GLC-BX-D-C | EAN: 4260380720813

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 1 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 4,69

Incl. VAT 5,86

Total incl. delivery 20,86

Read further specifications and description

While most optical transceivers are defined by standard bodies or Multi-source Agreements (MSAs), many optical switch and transport OEMs add information in the DOM that require match or the transceiver is not interoperable. ProLabs transceivers are the high-quality, dependable, cost-effective alternative. ProLabs offers all the standard transceiver packages including the code to be interoperable giving you a single source for your transceiver needs.

Produktbeskrivelse	ProLabs GLC-BX-D-C - SFP (mini-GBIC) transceiver modul - 1GbE, Fibre Channel
Enhedstype	SFP (mini-GBIC) transceiver modul - LC enkelttilstand
Model	Indstiksmodul
Kabeltype	1000Base-BX-D
Dataoverførselshastighed	1.25 Gbps
Optisk bølgelængde	1490 (TX) / 1310 (RX) nm
Dataforbindelsesprotokol	1GbE, Fibre Channel
Maks. overføringsafstand	20 km
Dimensioner (B x D x H)	1.37 cm x 5.84 cm x 1.34 cm
Designet for	Cisco Catalyst 2960, 2960G, 2960S, 3560, 3560E, 3560G, 3560V2, 3560X, 3750, 3750G, 3850, 4500, 4948, ESS9300; Catalyst Compact 2960; Integrated Services Router 1111, 1112, 1113, 1116, 1117, 1118; ME 2400, 3400; Nexus 93180, 9372; Supervisor Engine 720, II-Plus-10, II-Plus-TS

Generelt
Enhedstype	SFP (mini-GBIC) transceiver modul
Model	Indstiksmodul
Netværk
Forbindelsesteknologi	Kablet
Kabeltype	1000Base-BX-D
Dataforbindelsesprotokol	1GbE, Fibre Channel
Fiberkanal	FC-PH, FC-PH-2, FC-PH-3, FC-PI-2
Dataoverførselshastighed	1.25 Gbps
Optisk bølgelængde	1490 (TX) / 1310 (RX) nm
Maks. overføringsafstand	20 km
Egenskaber	Digital Optical Monitoring (DOM) support, Digital Dianostisering
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.3z
Ekspansion / Konnektivitet
Interface	1 x Ethernet 1000Base-BX-D - LC enkelttilstand
Kompatible åbninger	1 x SFP (mini-GBIC)
Diverse
Overensstemmelsesstandarder	RoHS, Laser Class 1, EN 60825-1, MSA
Mål og vægt
Bredde	1.37 cm
Dybde	5.84 cm
Højde	1.34 cm
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	70 °C
Oplysninger om kompatibilitet
Designet for	Cisco Catalyst 2960-24LC-S, 2960-24PC-L, 2960-24PC-S, 2960-24TC, 2960-24TC-L, 2960-24TC-S, 2960-48PST-L, 2960-48PST-S, 2960-48T, 2960-48TC, 2960-48TC-L, 2960-48TC-S, 2960-8TC, 2960-8TC-S, 2960G-24TC, 2960G-48TC, 2960G-8TC, 2960S-24PD-L, 2960S-24PS-L, 2960S-24TD-L, 2960S-24TS-L, 2960S-24TS-S, 2960S-48FPD-L, 2960S-48FPS-L, 2960S-48LPD-L, 2960S-48LPS-L, 2960S-48TD-L, 2960S-48TS-L, 2960S-48TS-S, 3560-12PC, 3560-12PC-S, 3560-24PS EMI, 3560-24PS SMI, 3560-24TS, 3560-24TS EMI, 3560-24TS SMI, 3560-48PS, 3560-48PS EMI, 3560-48PS SMI, 3560-48TS, 3560-48TS EMI, 3560-48TS SMI, 3560-8PC, 3560E-12D, 3560E-12SD-E, 3560E-12SD-S, 3560E-24PD, 3560E-24TD, 3560E-48PD, 3560E-48PD-F, 3560E-48TD, 3560E-48TD-SD, 3560G-24PS, 3560G-24PS EMI, 3560G-24PS SMI, 3560G-24TS, 3560G-24TS EMI, 3560G-24TS SMI, 3560G-48, 3560G-48PS, 3560G-48PS EMI, 3560G-48PS SMI, 3560G-48TS, 3560G-48TS EMI, 3560G-48TS SMI, 3560V2-24PS, 3560V2-24TS, 3560V2-24TS-SD, 3560V2-48PS, 3560V2-48TS, 3560X-24P-L, 3560X-24P-S, 3560X-24T-L, 3560X-24T-S, 3560X-48PF-L, 3560X-48PF-S, 3560X-48P-L, 3560X-48P-S, 3560X-48T-L, 3560X-48T-S, 3750-24PS, 3750-24PS EMI, 3750-24PS SMI, 3750-24TS SMI, 3750-24TS-E, 3750-48PS, 3750-48PS EMI, 3750-48PS SMI, 3750-48TS-E, 3750-48TS-S, 3750G-12S, 3750G-12S-E, 3750G-12S-S, 3750G-24PS-E, 3750G-24PS-S, 3750G-24TS, 3750G-24T-S, 3750G-24TS EMI, 3750G-24TS-S, 3750G-48PS, 3750G-48PS-E, 3750G-48PS-S, 3750G-48TS, 3750G-48TS-E, 3750G-48TS-S, 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24PW-S, 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-24U-S, 3850-48F-E, 3850-48F-L, 3850-48F-S, 3850-48P-E, 3850-48P-L, 3850-48P-S, 3850-48PW-S, 3850-48T-E, 3850-48T-L, 3850-48T-S, 3850-48U-S, 4500 Series Supervisor Engine V-10GE, 4948, ESS9300 Embedded Series Cisco Catalyst Compact 2960C-8TC-L Cisco Integrated Services Router 1111, 1112, 1113, 1116, 1117, 1118 Cisco ME 2400-24TS, 3400-24TS Cisco Nexus 93180YC-FX, 9372PX-E Cisco Supervisor Engine II-Plus-10GE, II-Plus-TS

The item is known under the following item numbers in our system

SKU:	GLC-BX-D-C
EAN:	4260380720813

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
