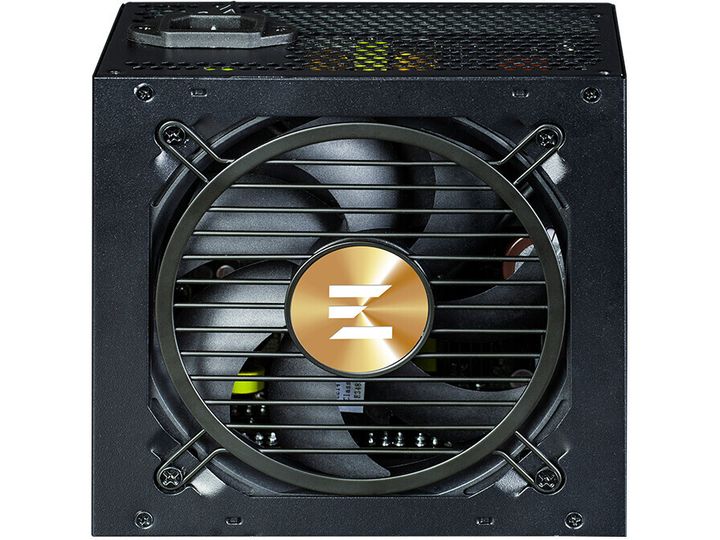

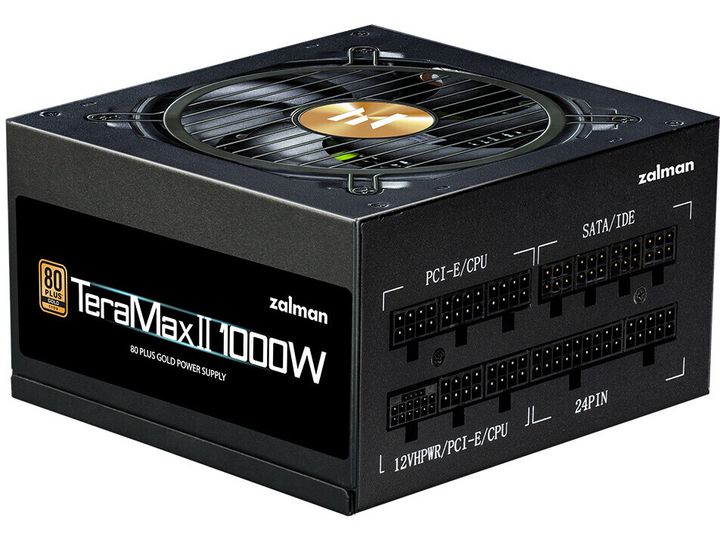

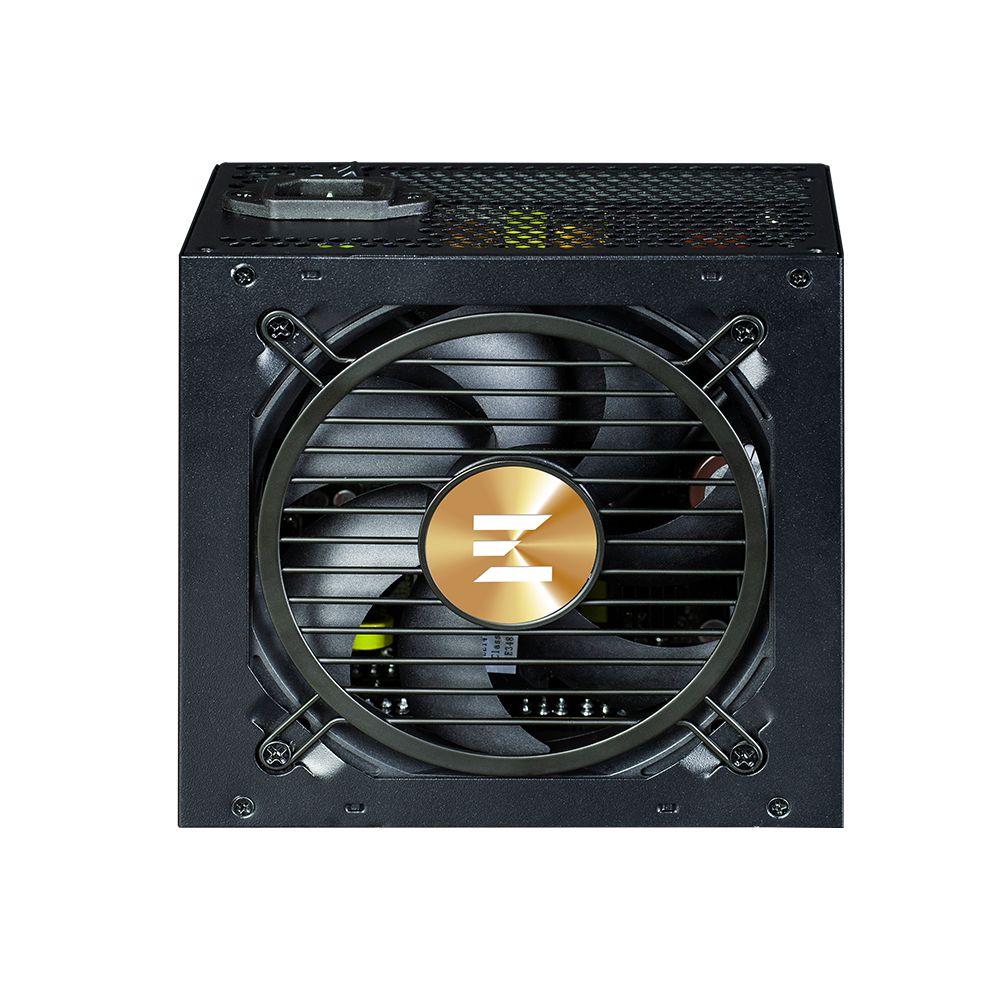

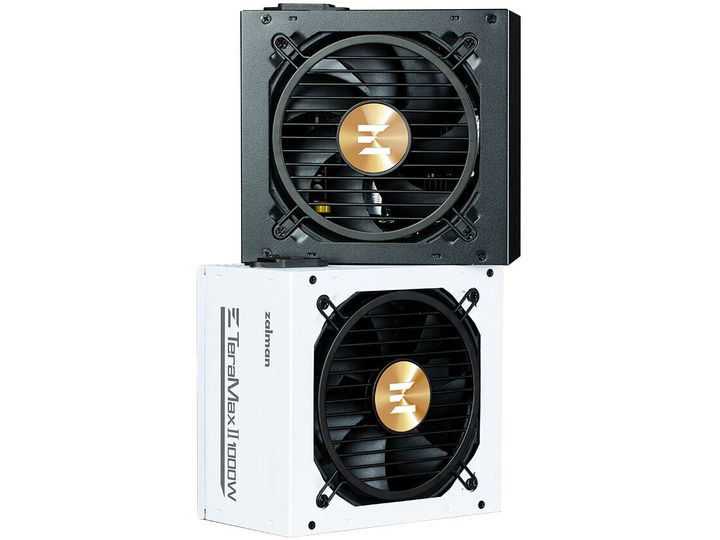

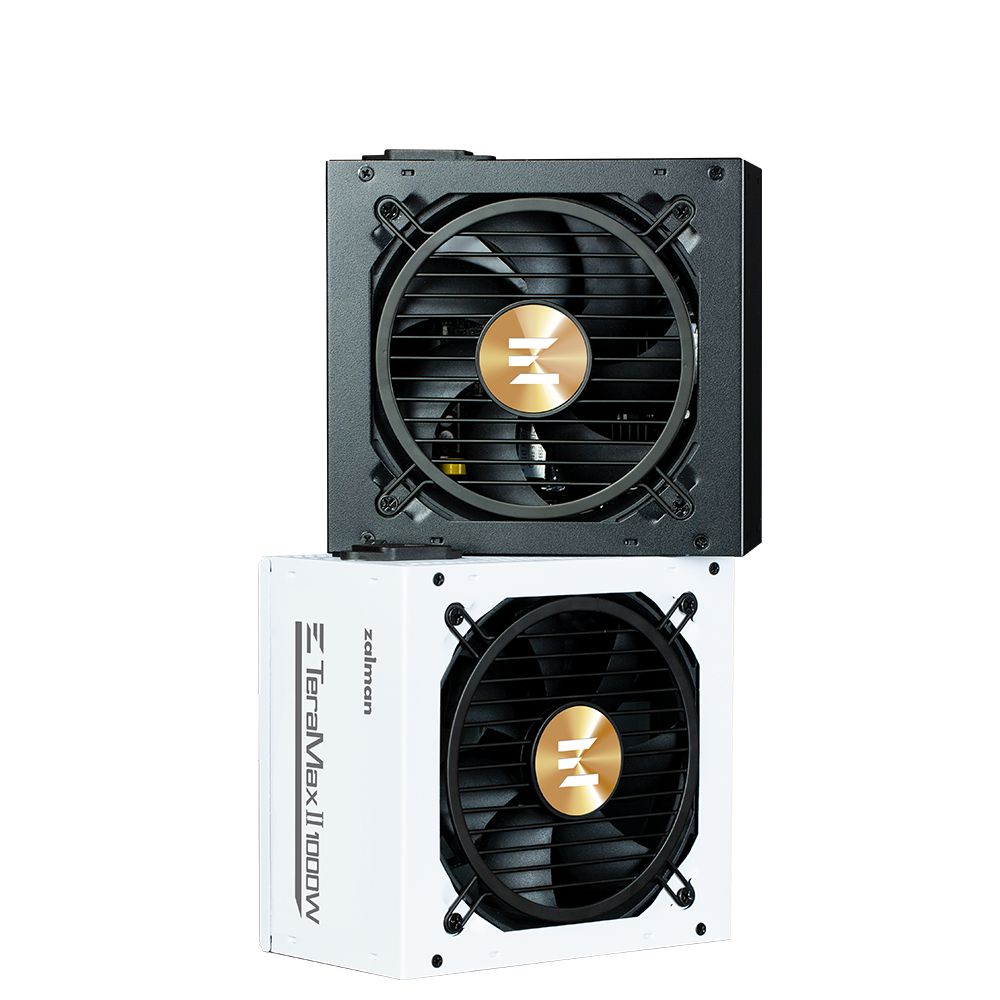

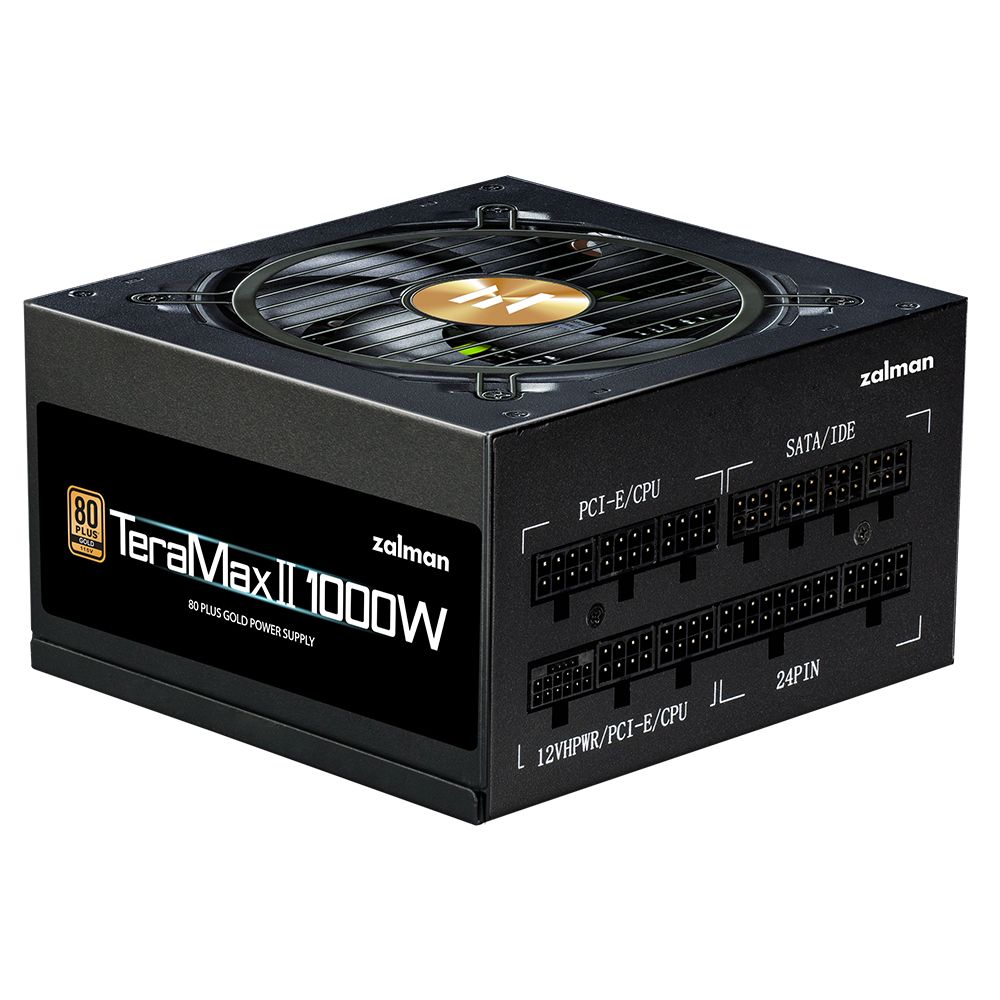

Zalman TeramaxII power supply modular 1000 W 24-pin ATX (ATX, black)
Total power
1000 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
12-6 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1000 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.33 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Efficiency
90%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector
24-pin ATX
Motherboard power cable length
60 cm
SATA power cable length
500 mm

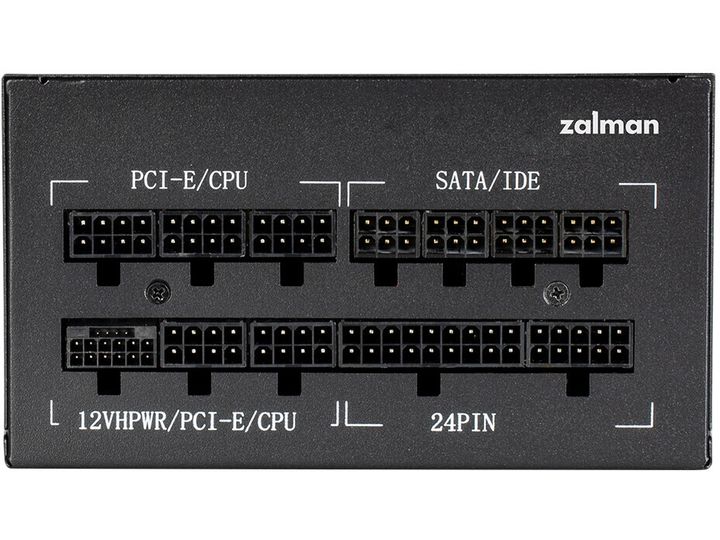

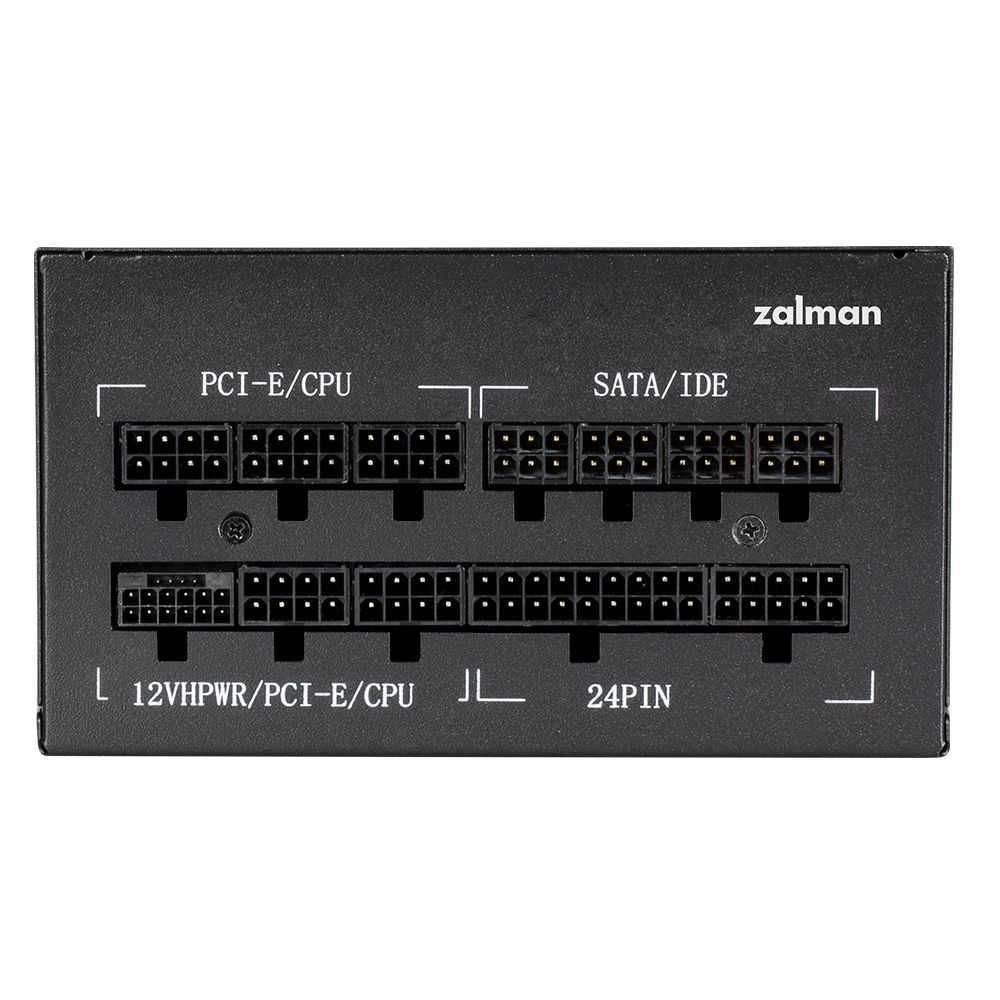

PCI Express power connectors (6+2 pin)
4
Purpose
PC
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h
Product colour
Black
Fan diameter
12 cm
Operating temperature (T-T)
10 - 40 °C
Compliance certificates
EAC, TÜV mark, RoHS, CB, CE, cTUVus
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
2.8 kg
