InLine PoE+ Gigabit Network Switch 5 Port (4x PoE+), 1xSFP, 1Gb/s, desktop, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Item no.: [20440421] | Manufacturer: Inline | Model no.: 32305R | EAN: 4043718316380
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
60,69
Incl. VAT 75,86
Total incl. delivery
90,86
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Easily expand Gigabit networks and power PoE devices
Power and data over one cable:4x PoE+ ports deliver up to 30 W per port, total power 65 W.
Flexible uplink option:1000Base-X SFP port for 1.25 Gb/s modules.
More range when needed:mode up to 250 m over patch cable at 10 Mb/s (ports 3 and 4).
Ready to use immediately:5x RJ45 with 10/100/1000 Mb/s, auto-negotiation and auto-MDI/MDI-X.
Quick status check:LEDs for Power, Mode and Ports.

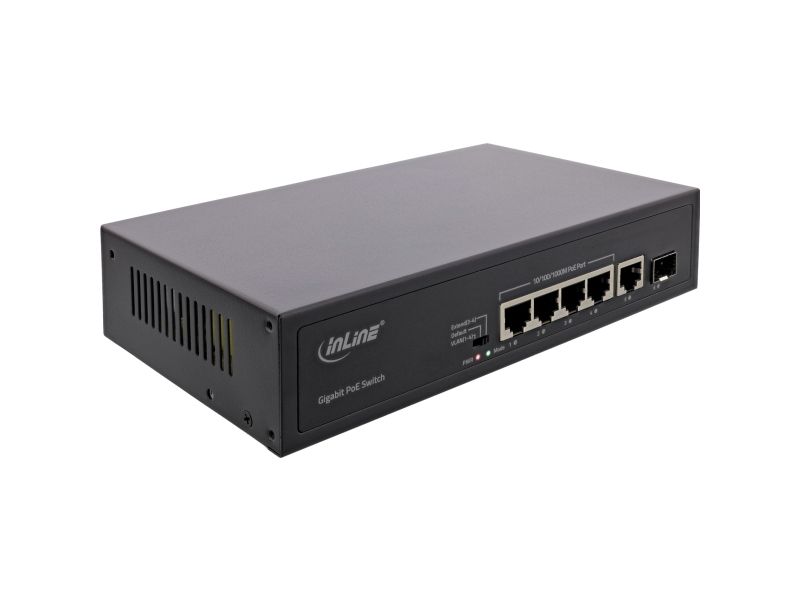

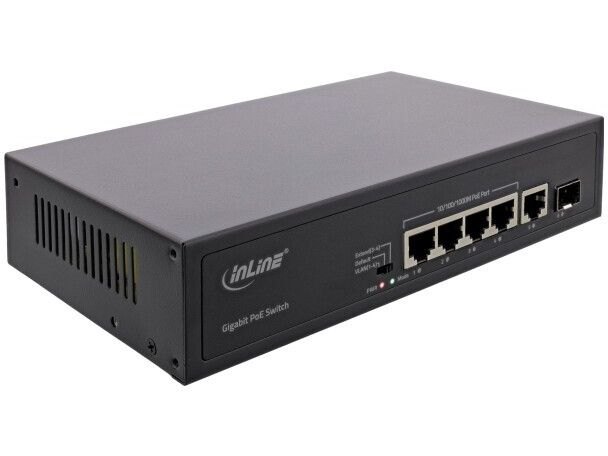

This compact desktop switch upgrades existing networks to Gigabit and powers PoE-capable devices directly over the existing patch cable. Four PoE+ ports provide power for IP cameras, IP phones and access points, while the SFP uplink with 1000Base-X modules enables connectivity over longer distances.
In professional IT environments and on-site installations, the selectable operating mode supports clean segmentation through VLAN port isolation or an increase in range, for example at distributed camera locations. The plug-and-play design facilitates deployment in service and in existing infrastructures of companies and public institutions.

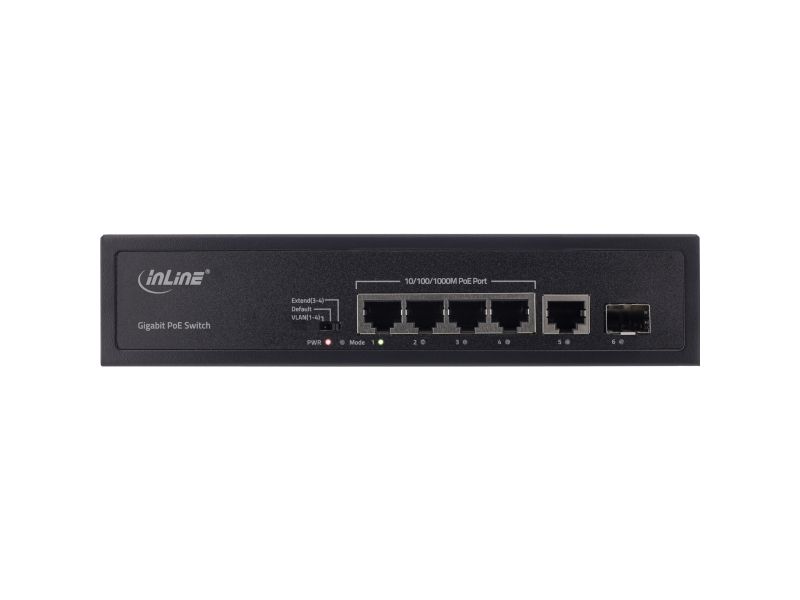

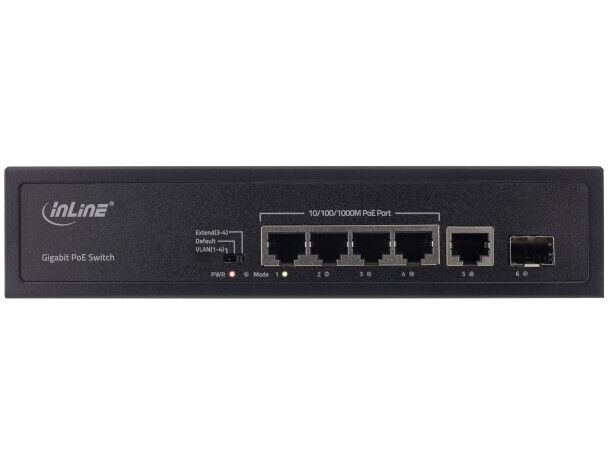

Ports:4x 10/100/1000Base-T RJ45 PoE+, 1x 10/100/1000Base-T RJ45, 1x 1000Base-X SFP
Data rate RJ45:10/100/1000 Mb/s
Data rate SFP:1.25 Gb/s
Standards:IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x flow control, IEEE 802.3af PoE, IEEE 802.3at PoE+
Modes:normal mode; VLAN port isolation (ports 1-4); extended range up to 250 m at 10 Mb/s (ports 3 and 4)
PoE power supply:endspan
PoE output voltage:52 V DC per port
PoE output power:30 W per port
Total power:65 W
LED indicators:Power, Mode, Port (1-6)
Dimensions:20.2 x 12 x 4.5 cm
Weight:approx. 616 g

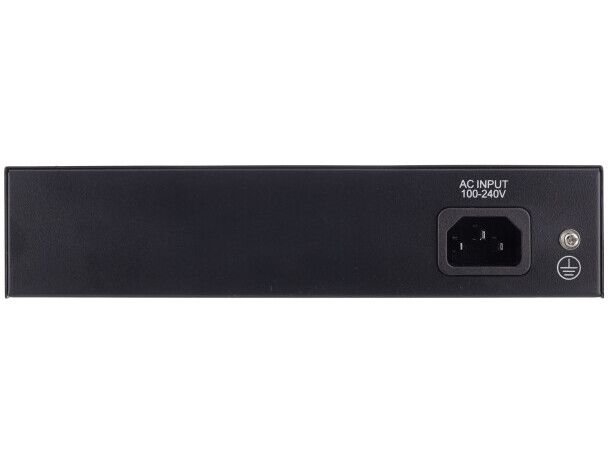

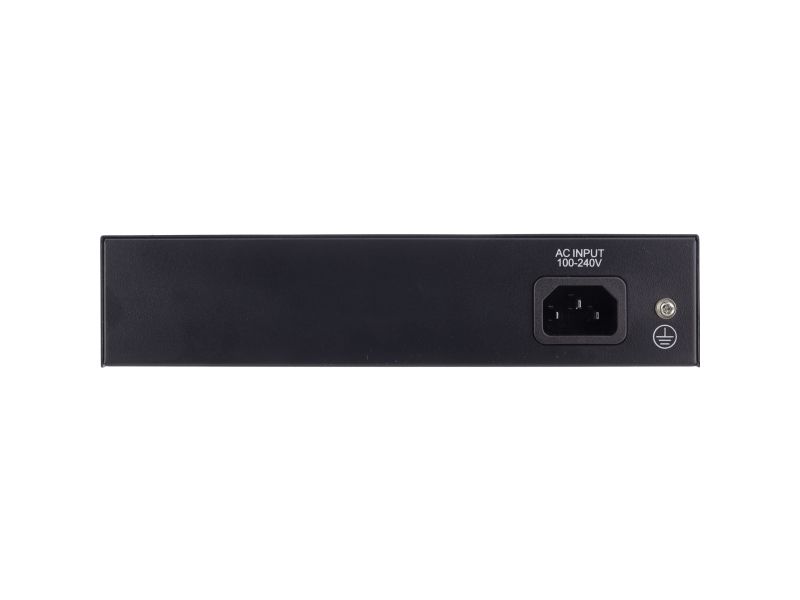

Input voltage:100-240 V AC, 50/60 Hz
Environment:operation 0-40 °C; storage -20-70 °C; humidity 20-95 % non-condensing
Form factor:desktop
Scope of delivery:switch, manual (German/English), power cord, 4 rubber feet
