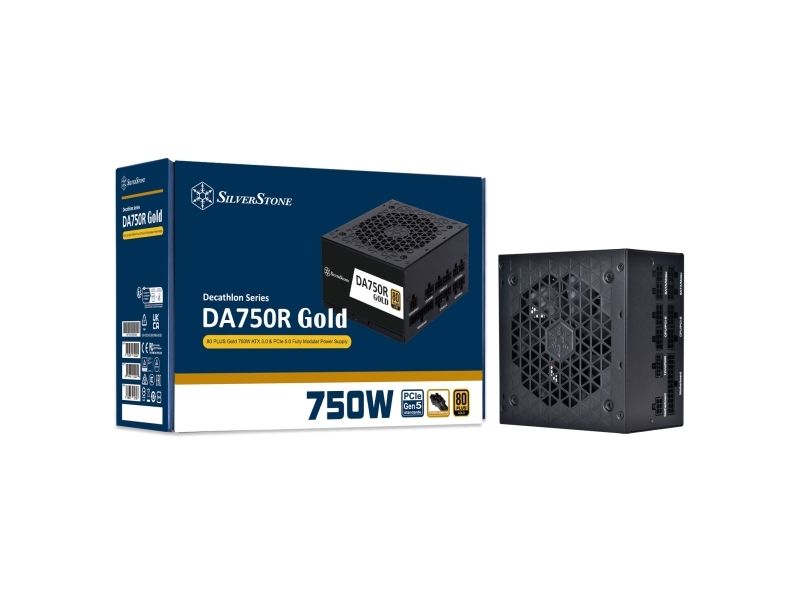

SST-DA750R-GMA (schwarz, 1x 12-Pin ATX3.0, 4x PCIe, Kabel-Management, 750 Watt)

Item no.: [20457144] | Manufacturer: Silverstone Technology | Model no.: SST-DA750R-GMA | EAN: 4710679816821

Remote stock (5-7 days)

The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping @price - GLS

12,00

EUR 113,87

Incl. VAT 142,34

Total incl. delivery 157,34

Read further specifications and description

Specially designed cover designed to effectively dissipate the residual heat

Flat cables have much greater flexibility to allow for tighter folding and management of cables

12V-2x6 PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12V-2x6) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems.

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

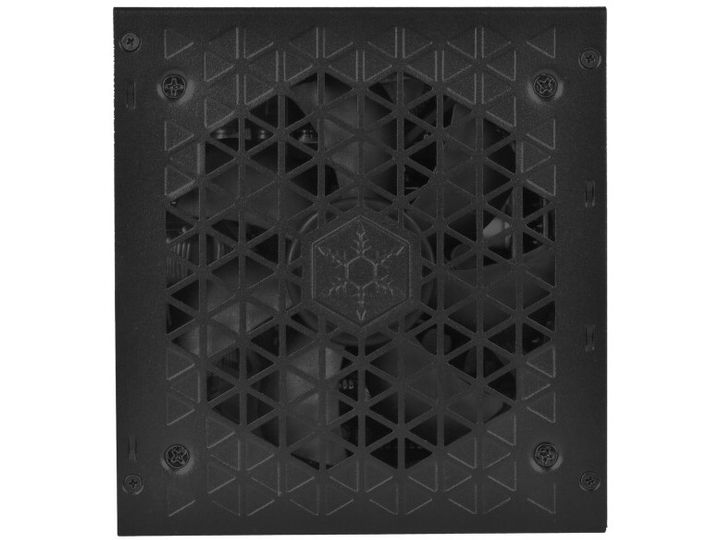

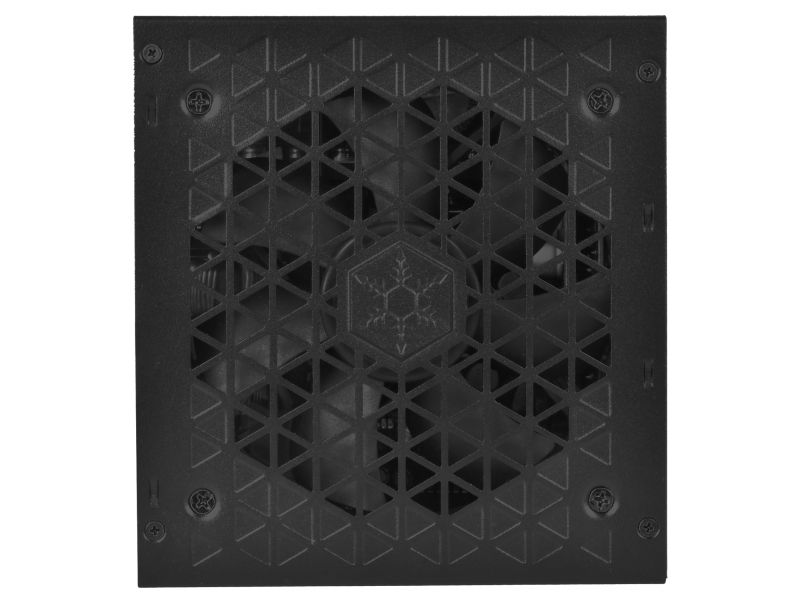

Silent running 120mm fan with advanced semi-fanless operation

Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking

Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection

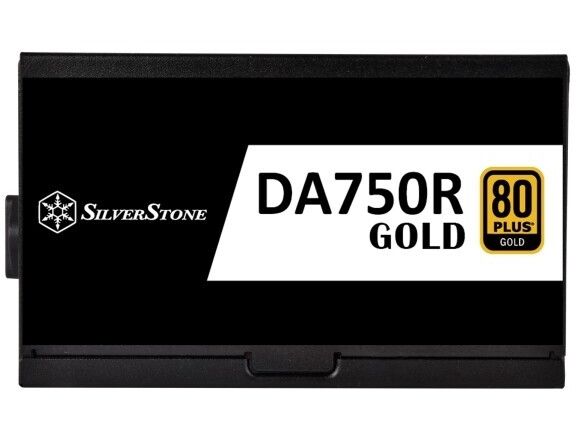

Produktbeskrivelse	SilverStone Decathlon Series DA750R Gold - strømforsyning - 750 Watt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.4/ EPS12V
80 PLUS certificering	80 PLUS Gold
Vægt	2.08 kg
Indgangspænding	AC 100-240 V
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	750 Watt

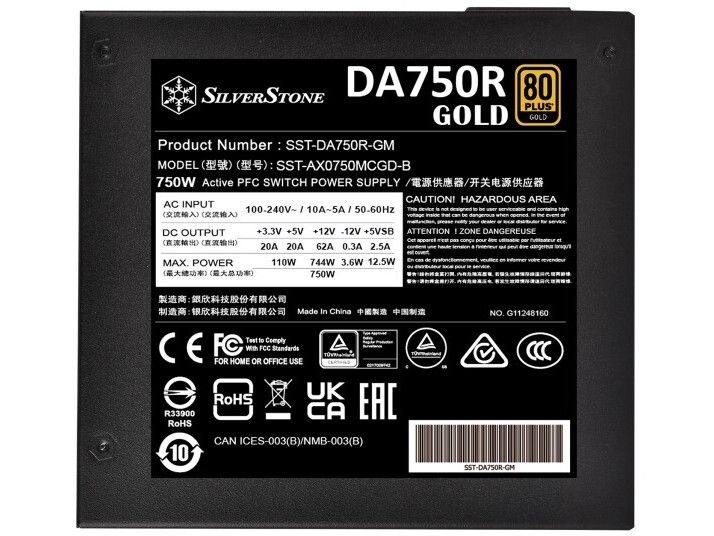

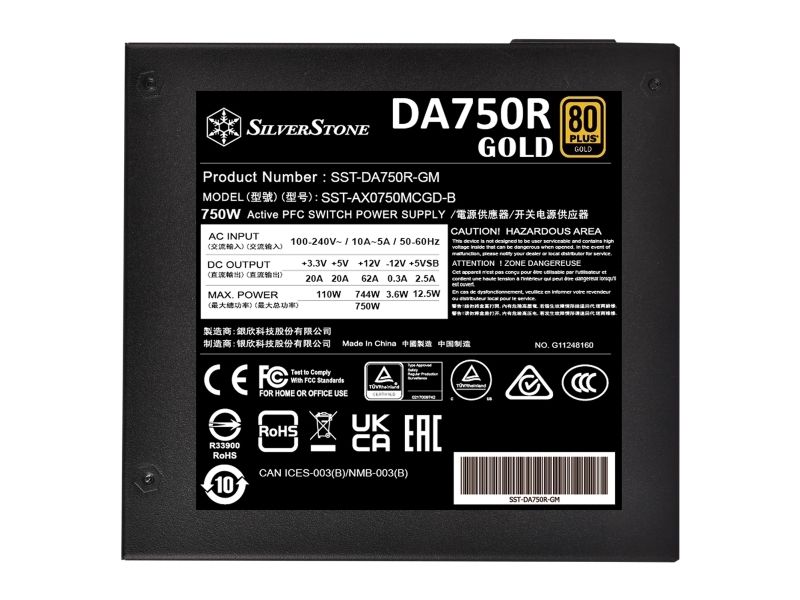

Output Current	+3.3V - 20 A / 0 A +5V - 20 A / 0 A +12V - 62.5 A / 0 A +5VSB - 3 A / 0 A -12V - 0.3 A / 0 A

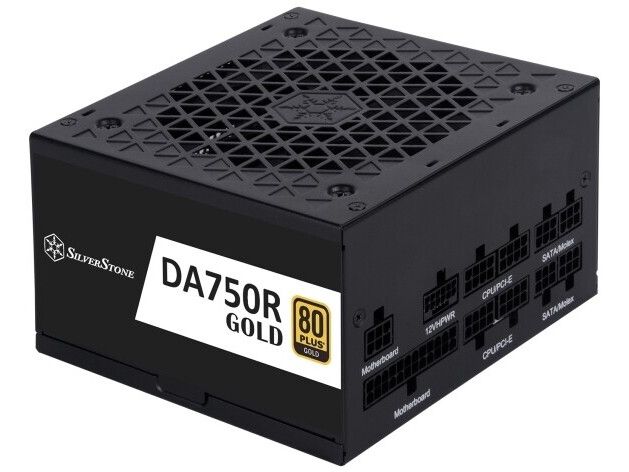

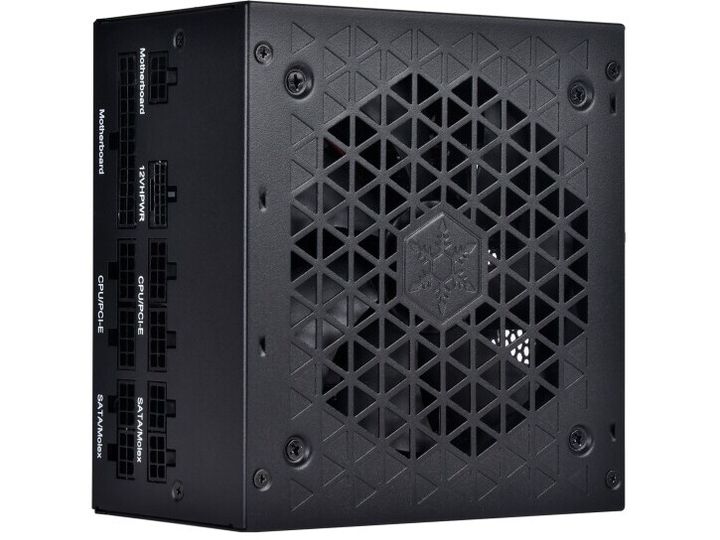

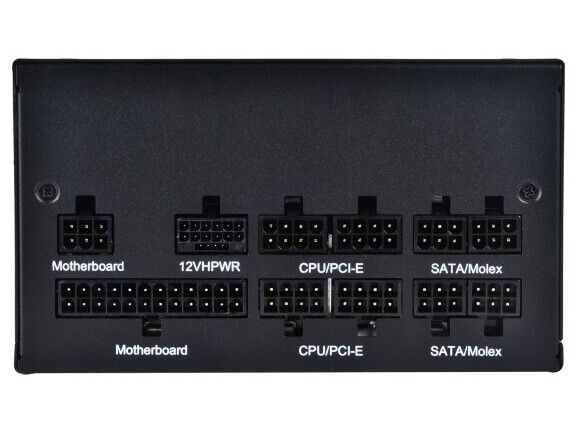

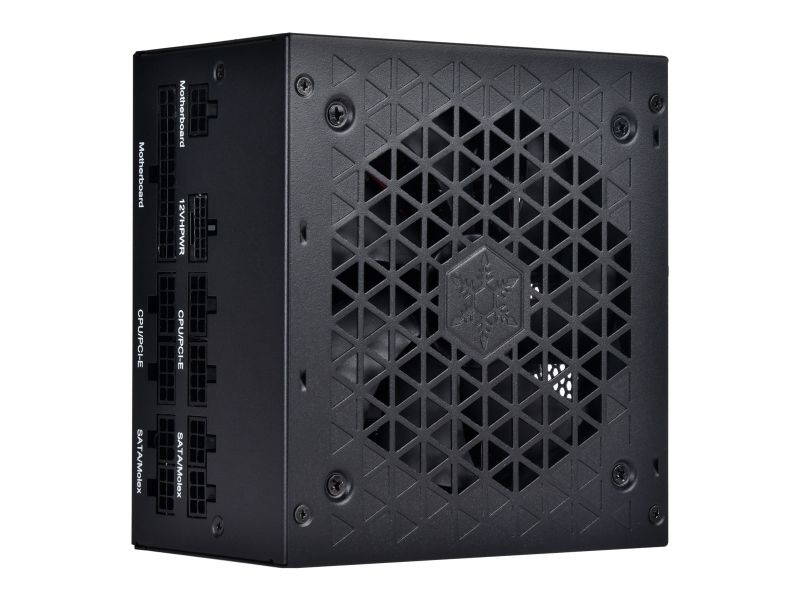

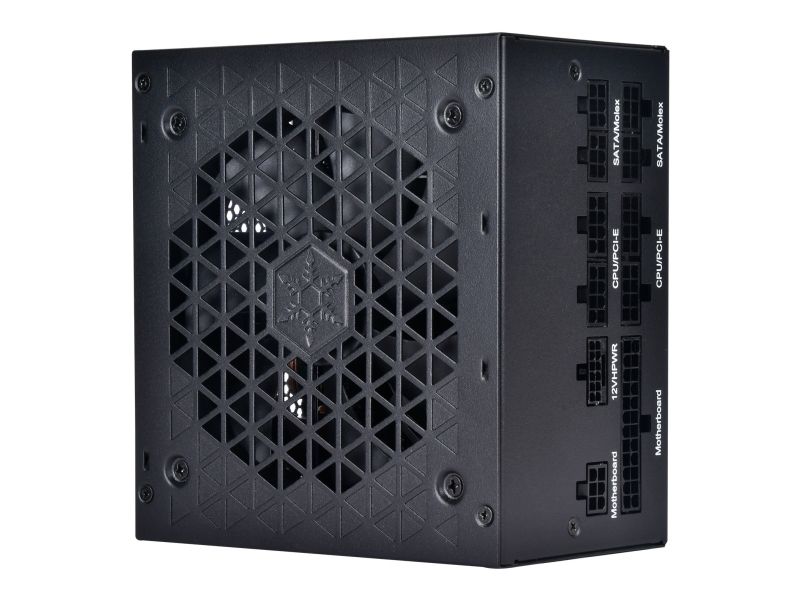

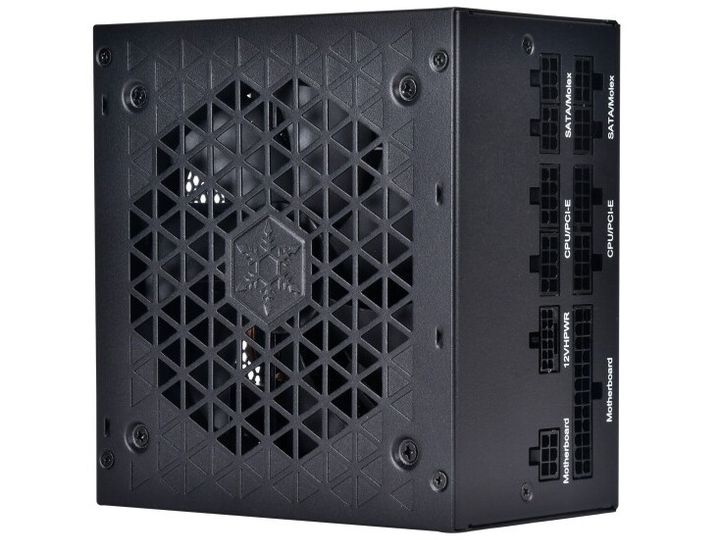

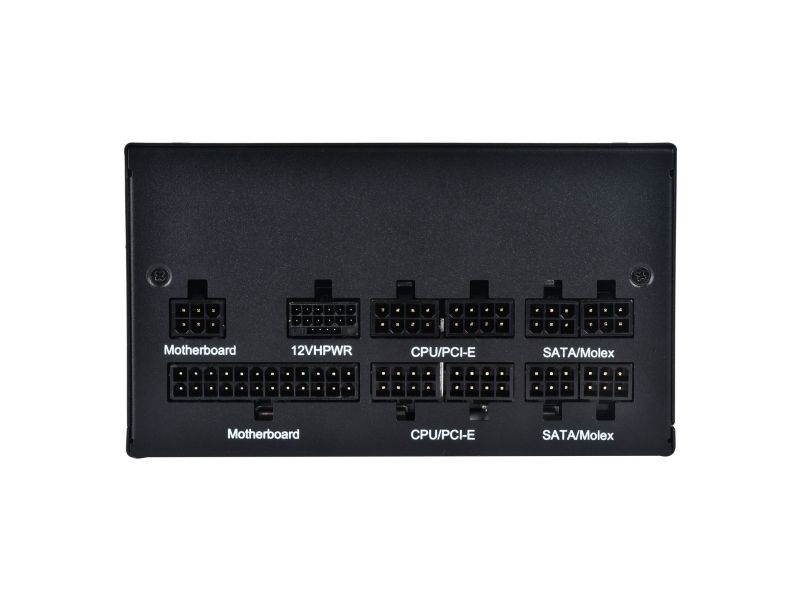

Output-stikforbindelser	4 x 4-PIN mini-strømforsyningsforbinder 1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin +12 V med aftagelig 4 pin sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12 V 2x6 PCIE 5.0 8 x 15 pin Serial ATA strøm
Modulær Kabel Administration	Ja
Kølesystem	120 mm ventilator
Farve	Sort
Dimensioner (B x D x H)	15 cm x 14 cm x 8.6 cm
Producentgaranti	3 års garanti

Generelt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.4/ EPS12V
PSU formfaktor	ATX
Farve	Sort
Strømenhed
Indgangspænding	AC 100-240 V
Indgangspændingsområde	AC 90 - 264 V
Nødvendig frekvens	47 - 63 Hz
Detaljer om strømudgangskonnektorer	4 x 4-PIN mini-strømforsyningsforbinder 1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin +12 V med aftagelig 4 pin sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12 V 2x6 PCIE 5.0 8 x 15 pin Serial ATA strøm
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	750 Watt
Output Current	+3.3V - 20 A / 0 A +5V - 20 A / 0 A +12V - 62.5 A / 0 A +5VSB - 3 A / 0 A -12V - 0.3 A / 0 A
Effektivitet	87%-89%
Modulær Kabel Administration	Ja
80 PLUS certificering	80 PLUS Gold
Diverse
MTBF (forventet tid mellem fejl)	100,000 timer
Kølesystem	120 mm ventilator
Egenskaber	LED indikator, blyfri maling, beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, enkelt 12V skinne, fuld modulær, 24 timer/7 dage løbende brug
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	50 °C
Lydudbredelse	0 dBA
Mål og vægt
Bredde	15 cm
Dybde	14 cm
Højde	8.6 cm
Vægt	2.08 kg

The item is known under the following item numbers in our system

EAN:	4710679816821
SKU:	SST-DA750R-GMA

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
