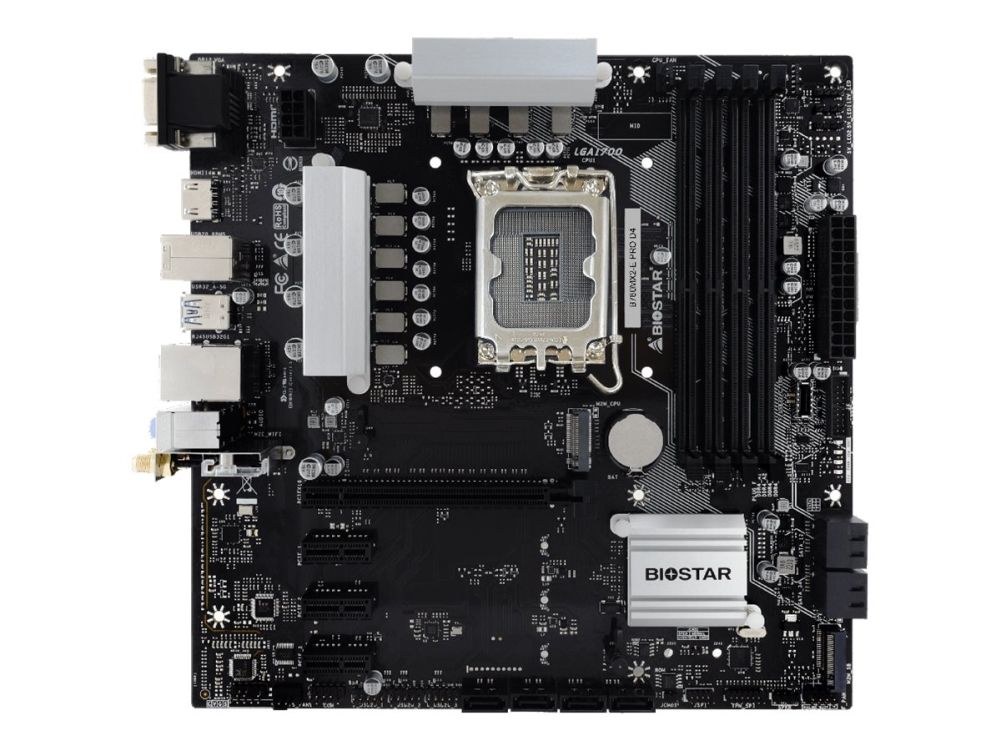

Biostar B760MX2-E Pro D4 (B760,S1700,mATX,DDR4)

Item no.: [20463680] | Manufacturer: Biostar | Model no.: B760MX2-EProD4 | EAN: 4712960687349

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 94,30

Incl. VAT 117,88

Total incl. delivery 132,88

Produktbeskrivelse	Biostar B760MX2-E Pro D4 - 6.0 - bundkort - micro ATX - LGA1700 sokkel - B760
Produkttype	Bundkort - micro ATX
Chipsættype	Intel B760
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger ikke-ECC
Lagringsporte	8 x SATA-600, 2 x M.2
USB / FireWire porte	3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	Intel B760
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse	128 GB
Bus Clock	1866 MT/s, 2133 MT/s, 2400 MT/s, 2666 MT/s, 2800 MT/s, 2933 MT/s, 3200 MT/s, 3600 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4600 MT/s (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Egenskaber	Intel Extreme Memory Profiles (XMP), dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC897
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8125B
Netværks interfaces	2.5 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (2230 M.2 Key E-åbning) 1 x PCIe 4.0 x16 3 x PCIe 3.0 x1
Grænseflade (lagring)	SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2
Interface	2 x antenne 1 x PS/2-tastatur/mus 1 x HDMI 1 x DisplayPort 1 x LAN (2.5Gigabit Ethernet) 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 3 x USB 3.2 Gen 1 1 x VGA 2 x USB 2.0
Interne interfaces	1 x USB-C 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 6 x USB 2.0 - intern stik 1 x audio - intern stik 1 x højttaler - intern stik 1 x SPI - intern stik 1 x seriel - intern stik
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS
Hardwareovervågning	CPU kernetemperatur, takometer til CPU-blæser, blæserkontrol, systemspænding, temperaturdetektion, CPU kerne-spænding
Hardware egenskaber	2.5Guard, A.I FAN, A.I TP Control, BIOSTAR Hi-Fi AMP, BIOSTAR Hi-Fi Ground, BIOSTAR LED ROCK ZONE, BIOSTAR RGB SYNC, Biostar Smart Update, BIOSTAR Vivid LED DJ, Debug LED, ESD Protection, Moistureproof PCB, Smart Ear, Super Durable Inductor, Super Durable Solid Caps, Super Hyper PWM, Super LAN Surge Protection, overstrømsbeskyttelse, overopvarmningsbeskyttelse, overspændingsbeskyttelse
Diverse
Udstyr inkluderet	IO-skjold, 2 x M.2 ankre
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	BullGuard, Drivers & Utilities
Overensstemmelsesstandarder	HDCP
Bredde	24.4 cm
Dybde	24.4 cm

The item is known under the following item numbers in our system

EAN:	4712960687349
SKU:	B760MX2-E Pro D4

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
