GIGABYTE Z790 AORUS MASTER X Motherboard- Supports Intel 13th Gen CPUs, 20+1+2 phases VRM, up to 8266MHz DDR5 (OC), 1x PCIe 5.0 + 4x PCIe 4.0 M2, 10GbE LAN, Wi-Fi 7, USB 3.2 Gen 2x2, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, 192 GB, DDR5-SDRAM

Item no.: [20465546] | Manufacturer: Gigabyte Technology | Model no.: Z790AORUSMASTERX | EAN: 4719331857585

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 392,04

Incl. VAT 490,05

Total incl. delivery 505,05

Notify me when the item is in stock again

Read further specifications and description

Introducing the AORUS Z790 X motherboard, a powerful platform with DDR5 memory and upgraded DIY innovations, built for high performance.

Produktbeskrivelse	Gigabyte Z790 AORUS MASTER X - 1.0 - bundkort - udvidet ATX - LGA1700 sokkel - Z790
Produkttype	Bundkort - udvidet ATX
Chipsættype	Intel Z790
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse	192 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 5 x M.2
USB / FireWire porte	2 x USB-C Gen 2x2 + 1 x USB-C 3.2 Gen 1 + 7 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (5.1-kanal)
LAN	10 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)

Generelt
Produkttype	Bundkort - udvidet ATX
Chipsættype	Intel Z790
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse	192 GB
Teknologi	DDR5
Bus Clock	5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.), 7900 MHz (O.C.), 7950 MHz (O.C.), 8200 MHz (O.C.), 8266 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type	HD Audio (5.1-kanal)
Audio codec	Realtek ALC1220-VB
Overensstemmelsesstandarder	High Definition Audio, DTS:X Ultra
LAN
Netværk controller	Qualcomm QCNCM865
Netværks interfaces	10 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 2 x M.2 socket (2280/22.110 M.2 Key M-åbning) 1 x M.2 socket (2280/25.110 M.2 Key M-åbning) 2 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

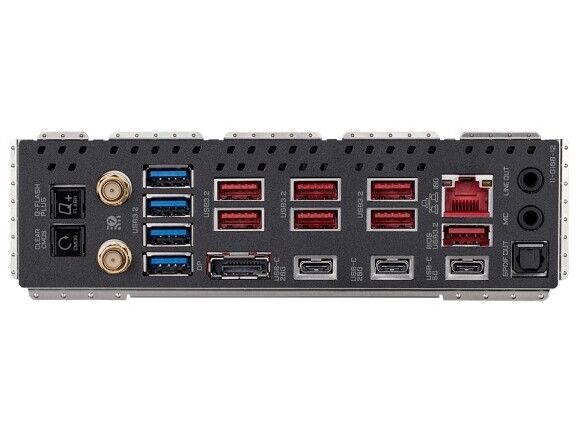

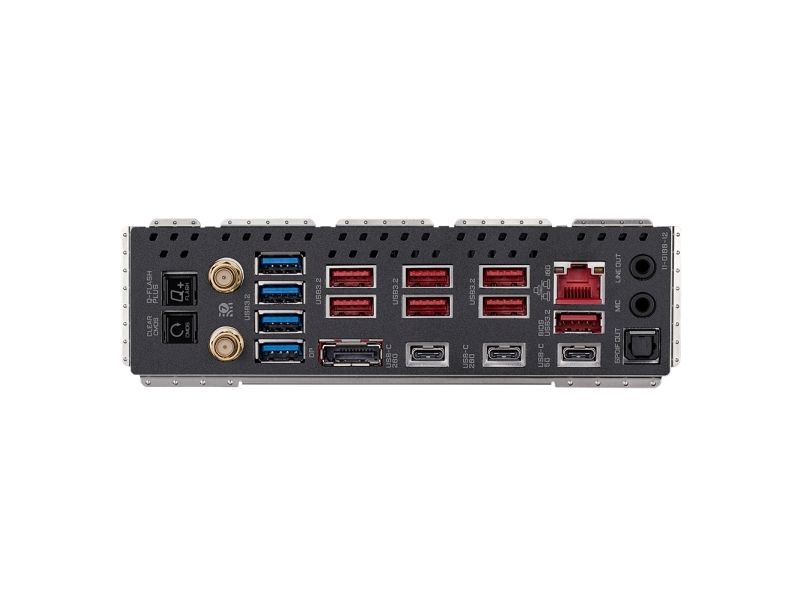

Interface	1 x LAN (10Gigabit Ethernet) 1 x DisplayPort 1 x mikrofon - mini-jack 1 x audio linje-ud - mini-jack 1 x SPDIF-ud - mini-jack 4 x USB 3.2 Gen 1 7 x USB 3.2 Gen 2 2 x USB-C 3.2 Gen2x2 2 x antenne 1 x USB-C 3.2 Gen 1
Interne interfaces	4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x USB-C Gen 2x2 - intern stik 1 x audio - intern stik 2 x Thunderbolt - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardwareovervågning	Systemspænding, vandkølings-flowrate, blæserfejlvarsel, blæserkontrol, støjdetektion, blæserhastighedsdetektion
Hardware egenskaber	Q-Flash, Ultra Durable, 2x Copper PCB, GIGABYTE Direct to BIOS, 8 Layer PCB, Q-Flash Plus, RGB FUSION, ESS 9118 SABRE HiFi DAC, NanoCarbon Baseplate, DIY Friendly Design, GIGABYTE Smart Fan 6, 20+1+2 Phase Power Design, aluminiumsbagplade, M.2 EZ Latch, PCIe EZ Latch, Fins-Array med NanoCarbon Coating, M.2 Thermal Guard XL, GIGABYTE PerfDrive, M.2 Thermal Guard Ext.
Diverse
Med software	Norton Internet Security, GIGABYTE Control Center
Bredde	30.5 cm
Dybde	26 cm

The item is known under the following item numbers in our system

EAN:	4719331857585

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
