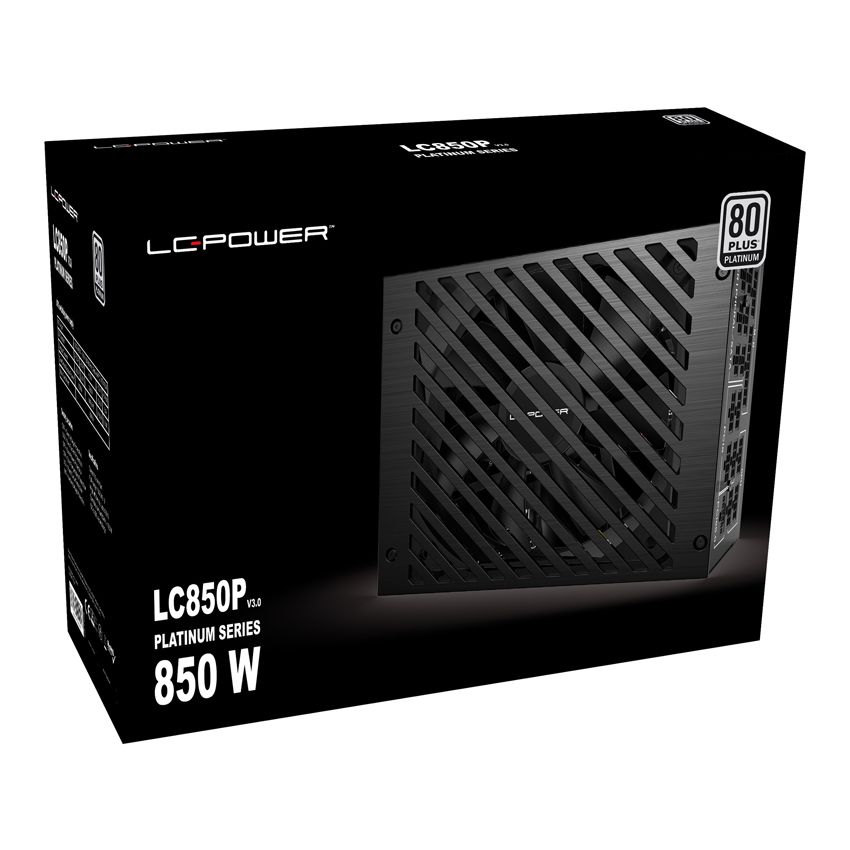

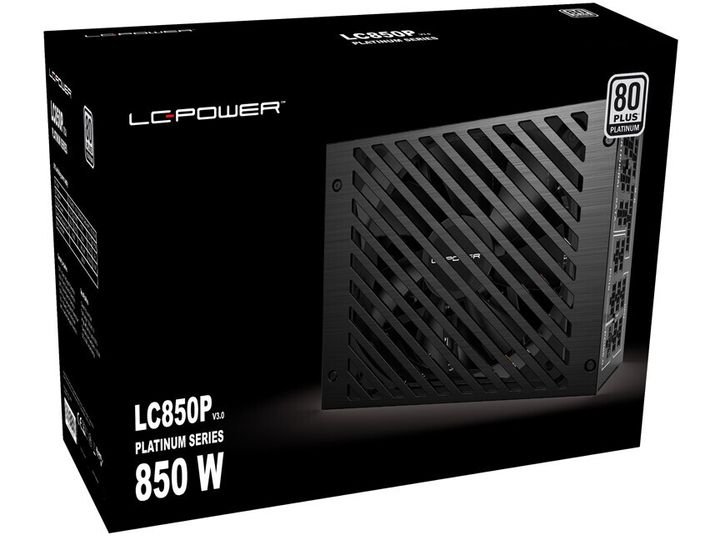

LC-Power LC850P V3.0, 850 W, 100 - 240 V, 50/60 Hz, 10 A, Active, 100 W
Item no.: [20467093] | Manufacturer: LC Power | Model no.: LC850PV3.0 | EAN: 4260070120213
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
116,35
Incl. VAT 145,44
Total incl. delivery
160,44
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
The LC Power Platinum Series LC850P V3.0 power supply offers robust performance with 850 watts of output, suitable for high-demand systems. Built to comply with ATX12V 3.0 standards, this power supply ensures stable voltages across all output buses including +3.3V, +5V, and +12V. Efficiency is a feature, achieving 92% at 50% load, certified by 80 PLUS Platinum, making it a responsible choice for energy-conscious users. The fully modular design simplifies cable management, allowing for a clean and organized build while enhancing airflow. With multiple safety protections including overcurrent and short-circuit protection, the LC850P V3.0 safeguards both your hardware and your investment.
Produktbeskrivelse
LC Power Platinum Series LC850P V3.0 - strømforsyning - 850 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0
80 PLUS certificering
80 PLUS Platinum
Vægt
2.92 kg
Indgangspænding
AC 110-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.4 A +5VSB - 3 A
Output-stikforbindelser

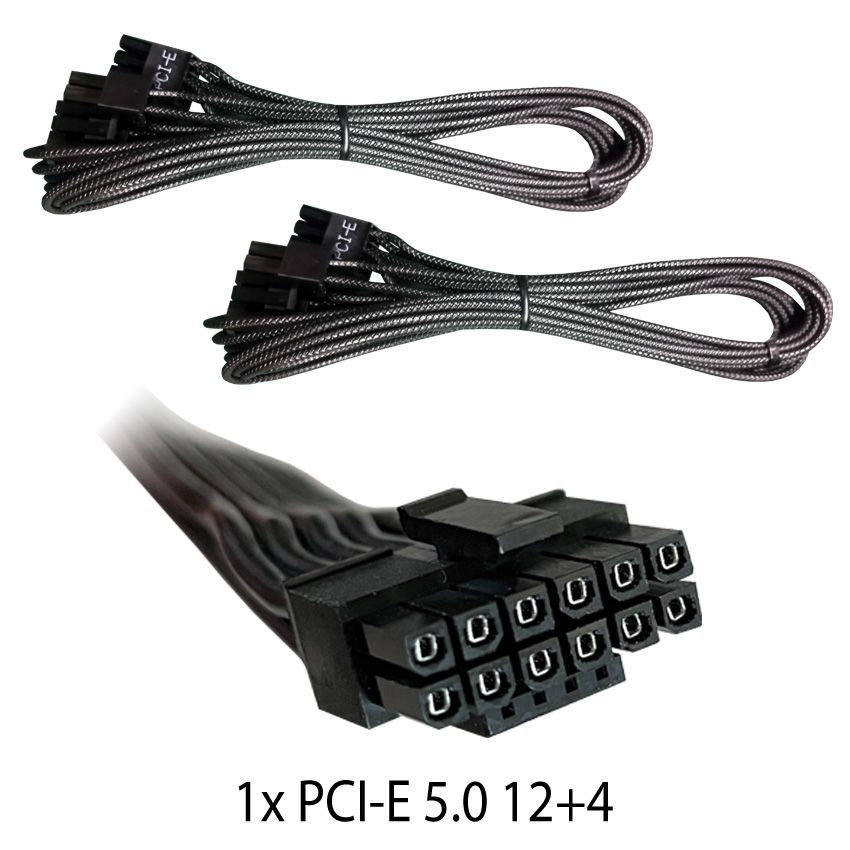

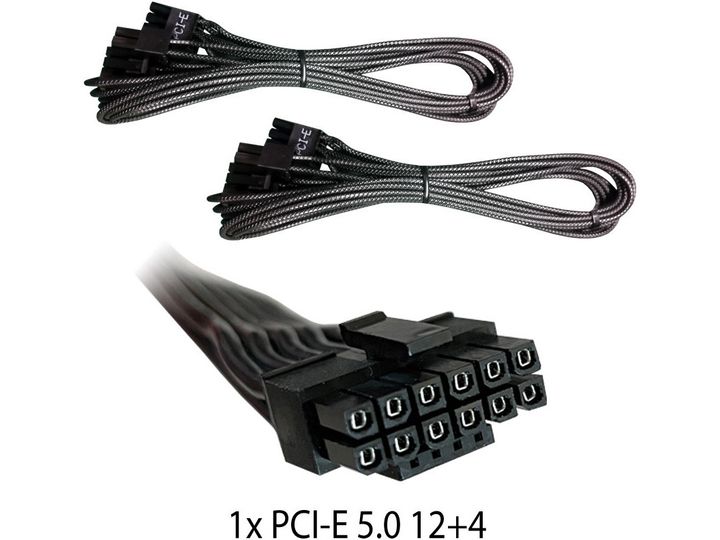

1 x 4-pin intern strøm (12 V) 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 10 x 15 pin Serial ATA strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin 5 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
15 cm x 18 cm x 8.6 cm
Producentgaranti
3 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.0
PSU formfaktor
ATX
Farve
Sort
Strømenhed
Indgangspænding
AC 110-240 V
Detaljer om strømudgangskonnektorer
1 x 4-pin intern strøm (12 V) 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 10 x 15 pin Serial ATA strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin 5 x 4-PIN intern strøm
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.4 A +5VSB - 3 A
Effektivitet
92% at 50% Load
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Kølesystem
135 mm ventilator
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, kortslutnings beskyttelse, fuld modulær, beskyttelse mod underspænding, DC-DC teknologi
Overensstemmelsesstandarder
TUV
Producentgaranti
Service & Support
Begrænset garanti - 3 år
Mål og vægt
Bredde
15 cm
Dybde
18 cm
Højde
8.6 cm
Vægt
2.92 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
31 cm
Dybde ved forsendelse
22.5 cm
Højde ved forsendelse
11.5 cm
Vægt ved forsendelse
3.25 kg
