Item no.: [20489097] | Manufacturer: ATGBICS | Model no.: 0231A085-C
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
30,22
Incl. VAT 37,78
Total incl. delivery
52,78
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

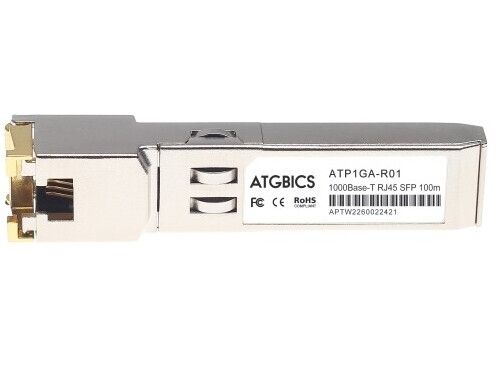

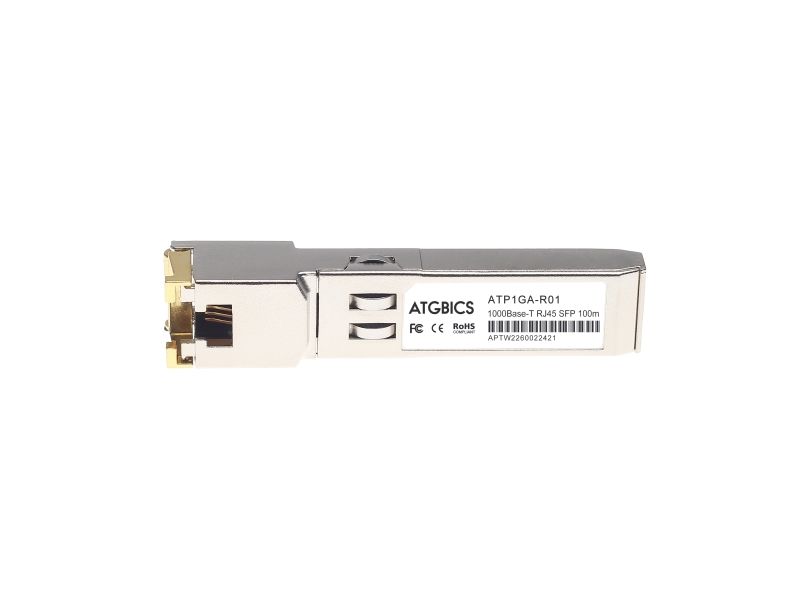

ATGBICS Huawei compatible 0231A085 SFP 10/100/1000Base-T form factor network transceiver supports a distance of up to 100m over a copper connection via an RJ45 connector. This product operates within a commercial temperature range. Our product meets the specification of Huawei 0231A085 and we proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all MSA (Multi-Source Agreement) and IEEE standards & protocols.
SFP transceiver type
Copper
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
Fiber optic connector
RJ-45
SFP transceiver standard
TX
Maximum transfer distance
100 m
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Copper ethernet cabling technology
1000BASE
Auto MDI/MDI-X
Yes
Digital Diagnostics Monitoring (DDM)
No
Product colour
Silver
Housing material
Metal
Plug and Play
Yes
Hot-Plug support
Yes
Hot-swap
Yes
Easy to install
Yes
Brand compatibility
Huawei
Input voltage
3.3 V
Maximum voltage
4 V
Power consumption (typical)
1.3 W
Compliance certificates
TÜV mark, UKCA, UL, US FDA, REACH, Federal Communications Commission (FCC), RoHS, CE
Certification
CE, FCC, RoHS, REACH
Doesn't contain
Lead
Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 85%
Width
13.4 mm
Depth
56.5 mm
Height
8.5 mm
Weight
20 g
Quantity per pack
1 pc(s)
Package type
Box
Country of origin
China
Sustainability compliance
Yes
