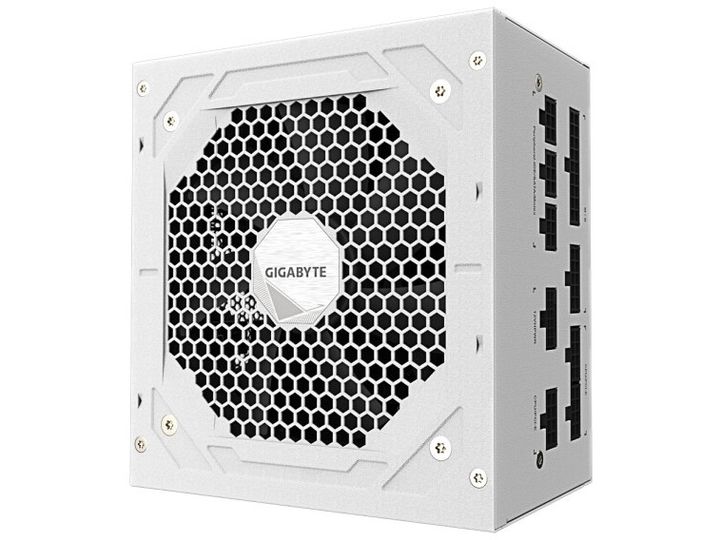

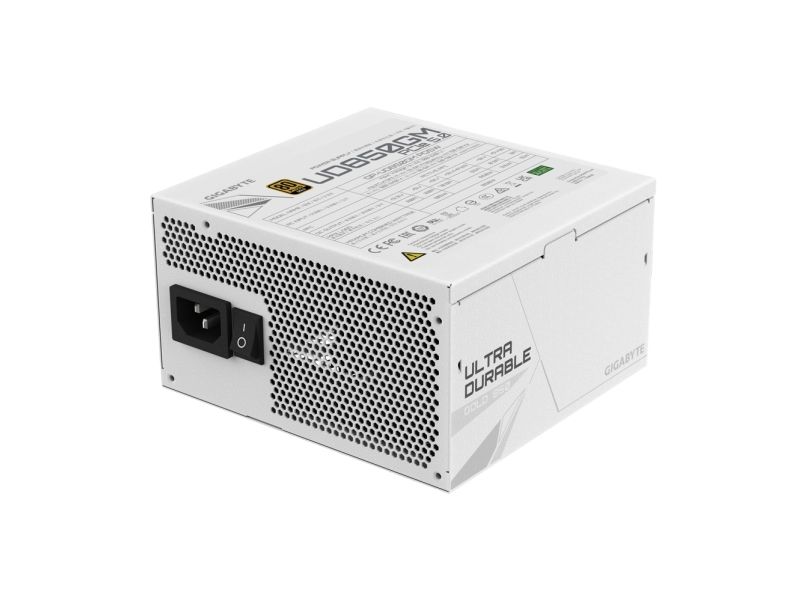

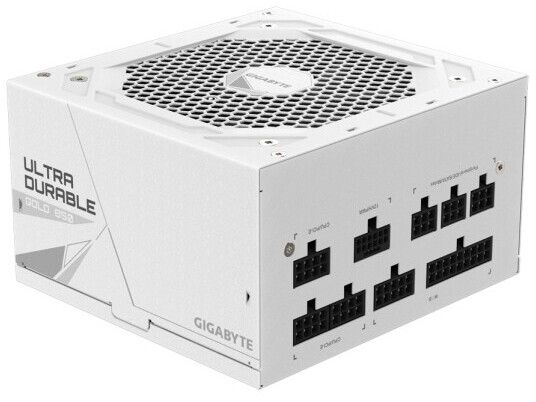

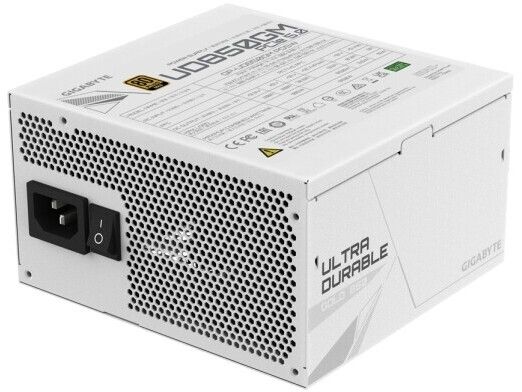

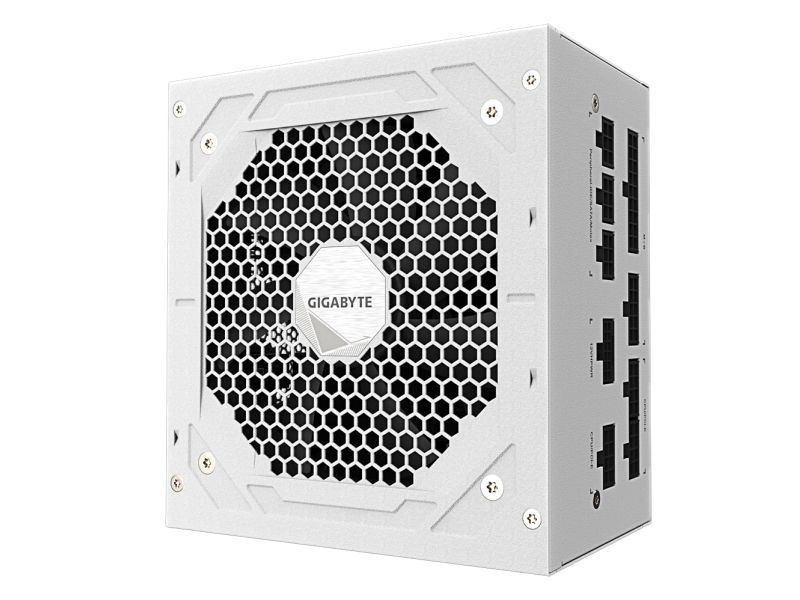

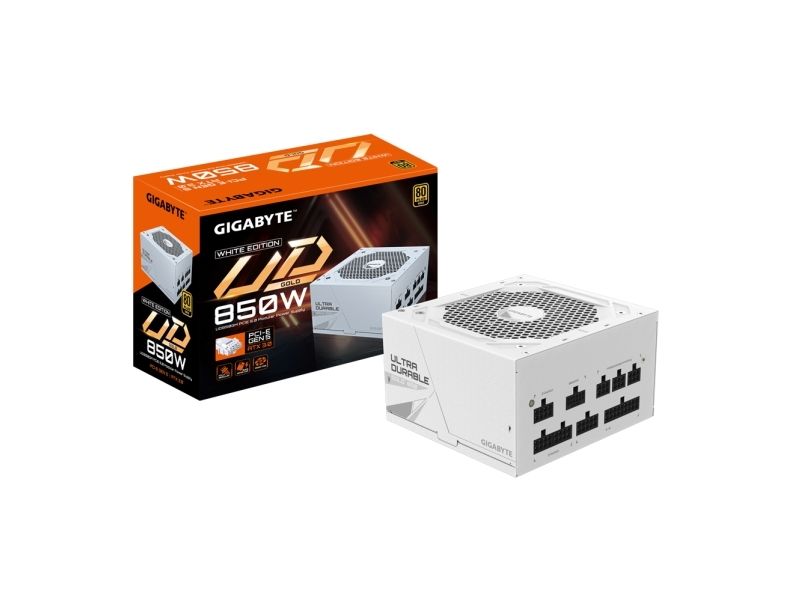

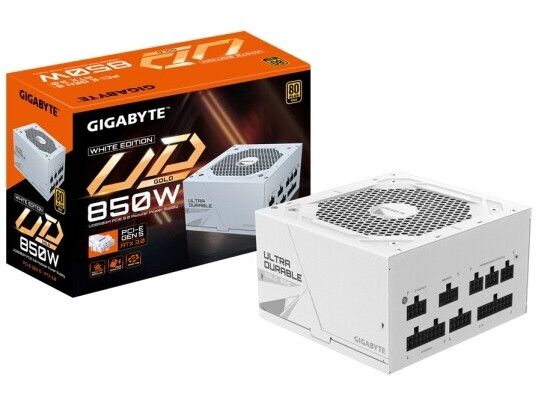

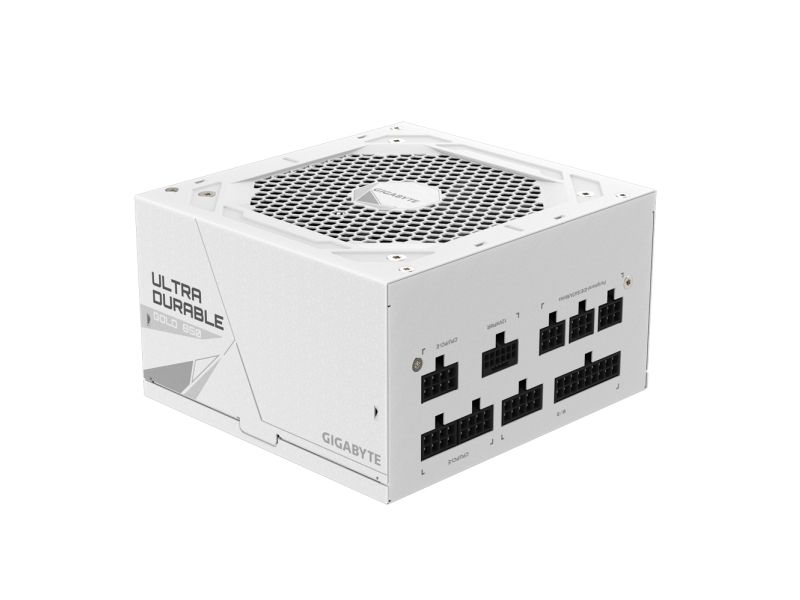

GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.0 compatible, EU Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 105 W

Item no.: [20498705] | Manufacturer: Gigabyte Technology | Model no.: GP-UD850GM PG5W | EAN: 4719331553470

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 120,13

Incl. VAT 150,16

Total incl. delivery 165,16

Notify me when the item is in stock again

Read further specifications and description

Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.

Produktbeskrivelse	Gigabyte UD850GM PG5W - strømforsyning - 850 watt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 3.0
80 PLUS certificering	80 PLUS Gold
Indgangspænding	AC 100-240 V
Udgangspænding	+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet	850 watt

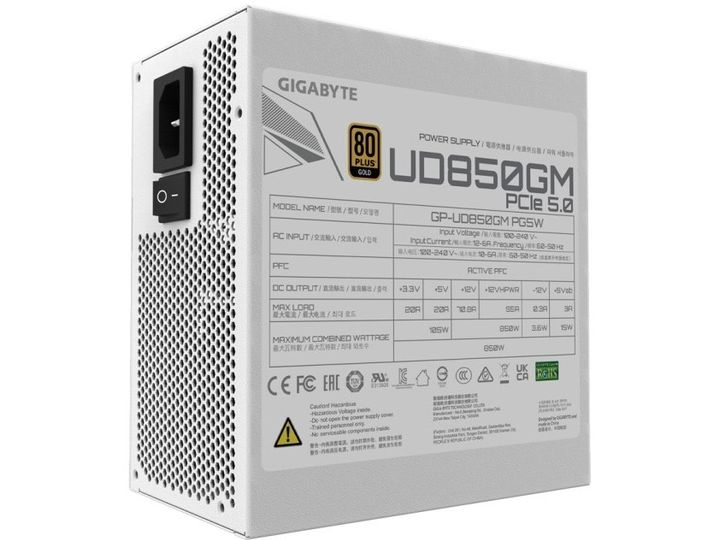

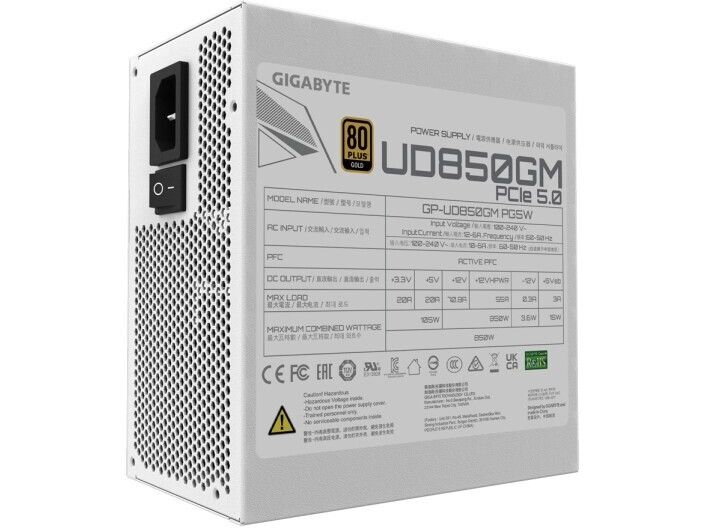

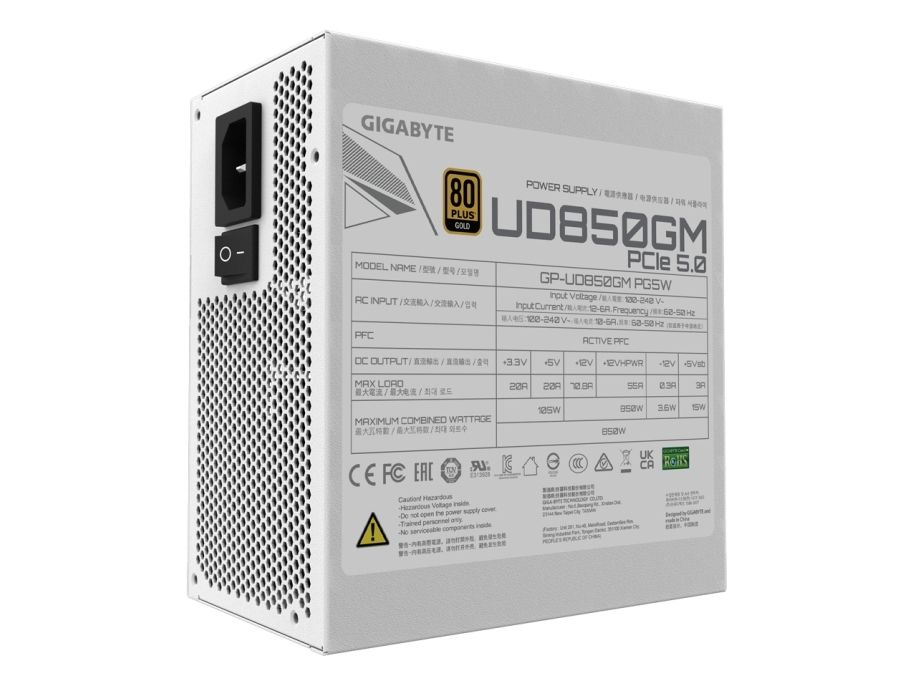

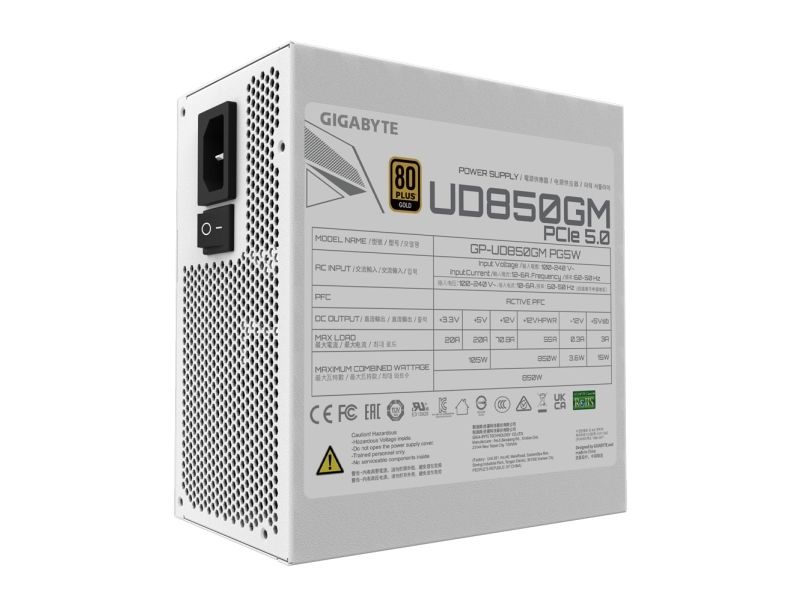

Output Current	+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.3 A +5VSB - 3 A +12VHPWR - 55 A

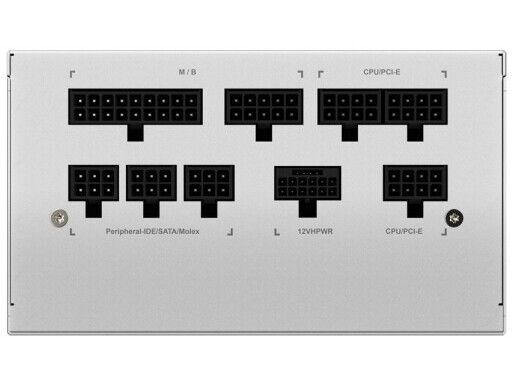

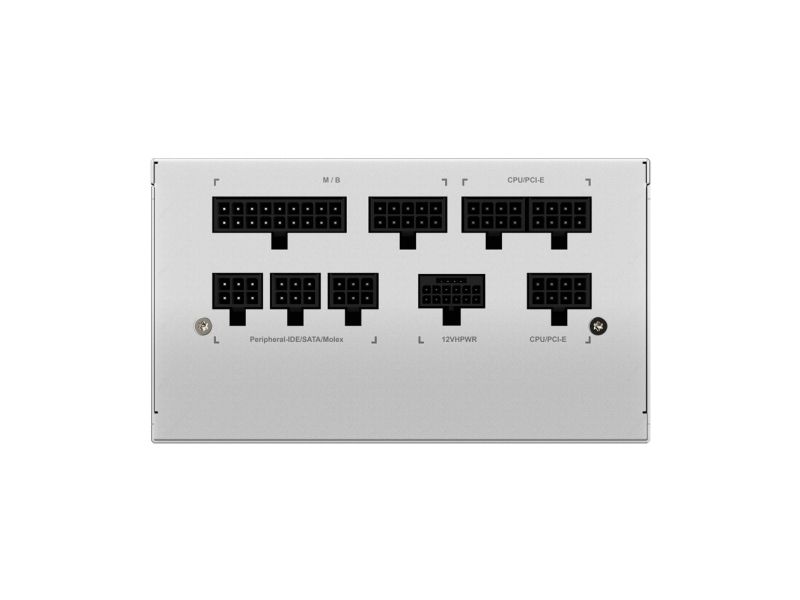

Output-stikforbindelser	1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm
Modulær Kabel Administration	Ja

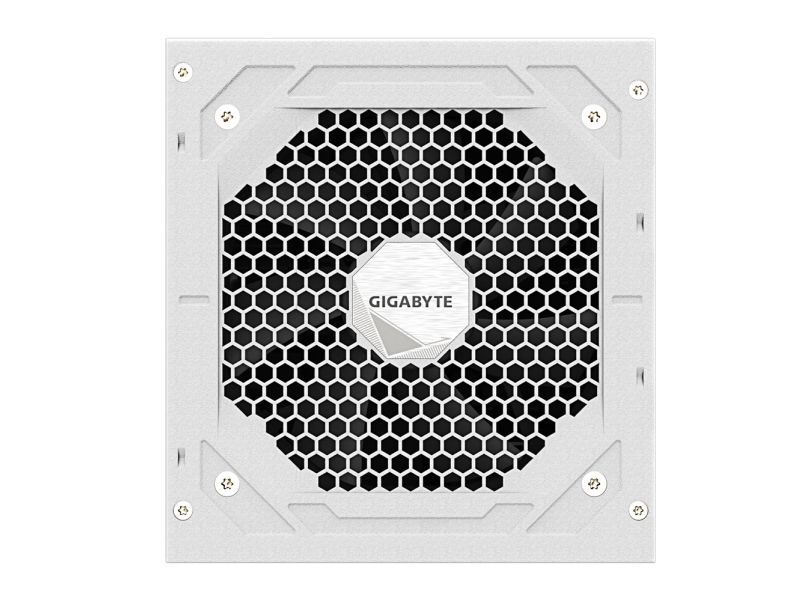

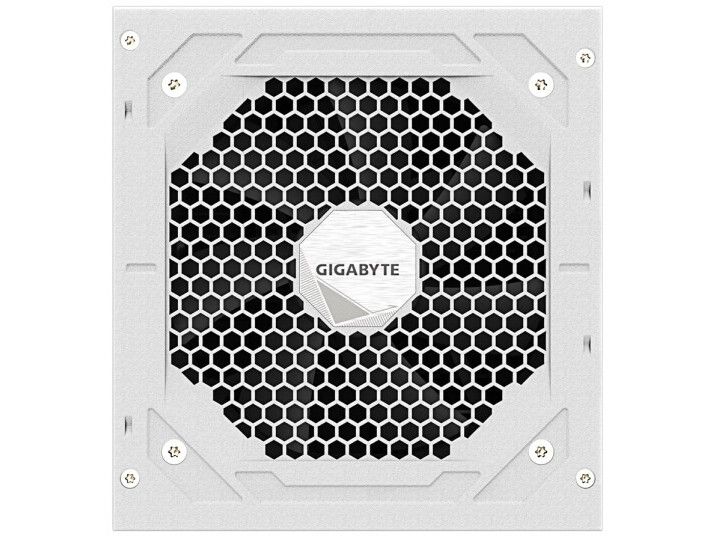

Kølesystem	120 mm ventilator
Dimensioner (B x D x H)	15 cm x 14 cm x 8.6 cm
Producentgaranti	5 års garanti

Generelt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 3.0
PSU formfaktor	ATX
Strømenhed
Indgangspænding	AC 100-240 V
Nødvendig frekvens	50 - 60 Hz
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 1 x 16-pin PCI Express-strøm 4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm
Udgangspænding	+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet	850 watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.3 A +5VSB - 3 A +12VHPWR - 55 A
Effektivitet	90%
Modulær Kabel Administration	Ja
80 PLUS certificering	80 PLUS Gold
Diverse
Medfølgende ledninger	AC-strømkabel Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 61 cm Strøm 8 pin EPS12V med aftagelig 4 pin ATX12V sektion modulært kabel 80 cm 16-pin 12VHPWR-strømkabel 70 cm 2 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 75 cm 2 x strøm 15 pin SATA-kabel 1.05 m 4 pin internt strømkabel 89 cm
MTBF (forventet tid mellem fejl)	100,000 timer
Kølesystem	120 mm ventilator
Egenskaber	Beskyttelse mod overstrøm, beskyttelse mod overophedning, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, hydraulisk lejekøleblæser, High Quality Capacitor, fuld modulær
Overensstemmelsesstandarder	FCC, UKCA, RoHS, cRUus, CCC, EAC, TUV SUD
Producentgaranti
Service & Support	Begrænset garanti - 5 år
Mål og vægt
Bredde	15 cm
Dybde	14 cm
Højde	8.6 cm
