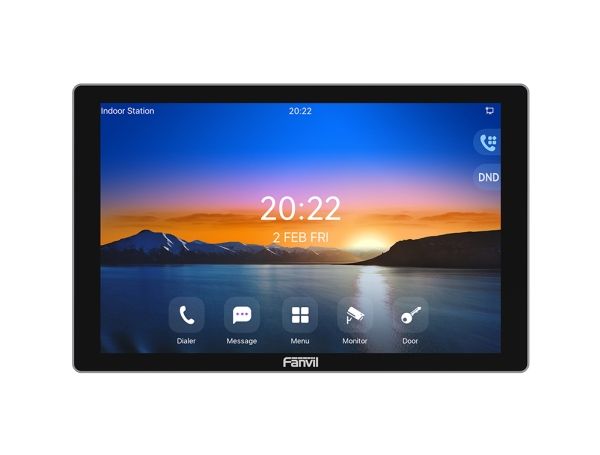

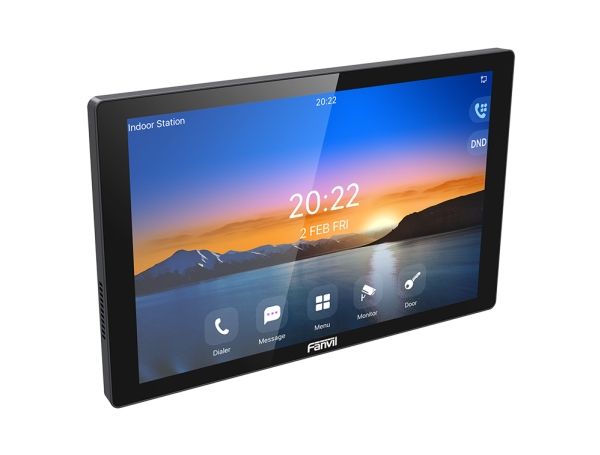

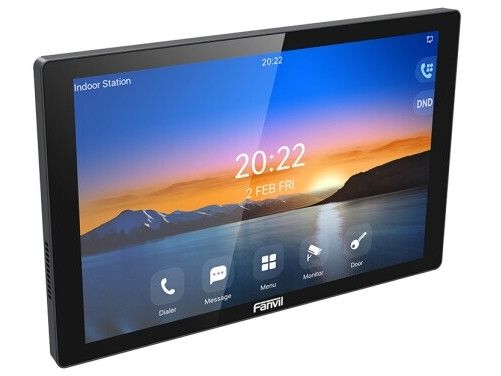

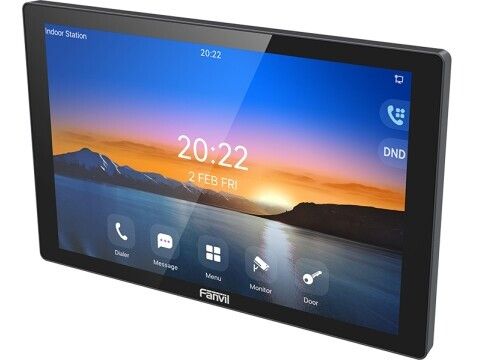

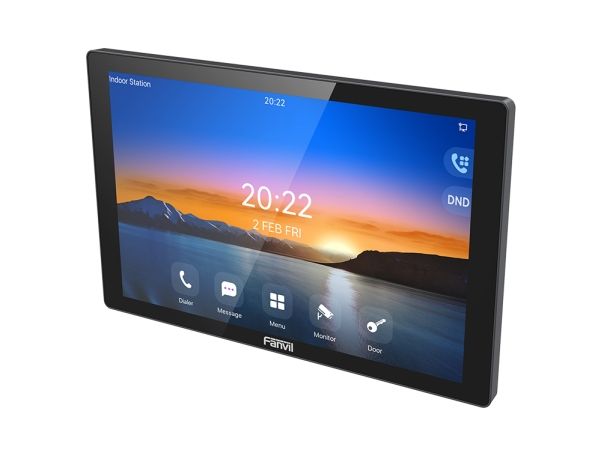

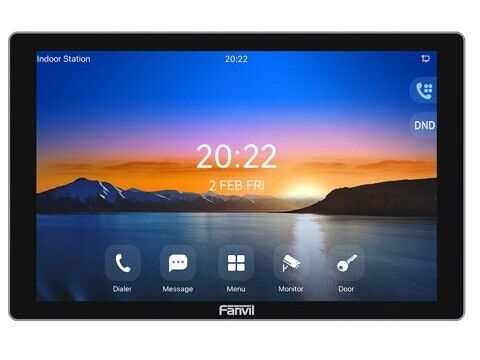

The i506W is a 10.1-inch touch screen indoor station, featuring a stylish design and intuitive UI. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.
Connectivity technology
Wired & Wireless
Colour
Yes
Speakerphone
Yes
Number of displays supported
1
Video codecs
H.264, H.265
Display diagonal
25.6 cm (10.1")
Display technology
IPS
Display resolution
1280 x 800 pixels
Touchscreen
Yes
Touchscreen type
Capacitive
Maximum video resolution
1920 x 1080 pixels
Supported video modes
720p, 1080p
Built-in speaker(s)
Yes
Number of speakers
1
Speaker power
2 W
Voice codecs
G.722, OPUS
Product colour
Black
Indoor unit housing material
ABS
Proper use
Indoor
RS-485 ports
1
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Ethernet LAN (RJ-45) ports
1
Wi-Fi
Yes
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.1x
Operating system installed
Android
Operating system version
9
Indoor unit power type
DC/PoE
AC adapter output voltage
12 V
AC adapter output current
1 A
Power consumption (typical)
5.5 W
Power consumption (max)
6.6 W
Operating temperature (T-T)
10 - 50 °C
Storage temperature (T-T)
40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Width
157 mm
Depth
248 mm
Height
25.6 mm
Indoor unit included
Yes
Outdoor unit included
No
