Supermicro MBD-X13SEM-F, Intel, LGA 4677 (Socket E), Intel® Xeon®, DDR5-SDRAM, 2.05 TB, DIMM

Item no.: [20535203] | Manufacturer: SUPER MICRO Computer | Model no.: MBD-X13SEM-F-B | EAN: 0672042519255

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 726,69

Incl. VAT 908,36

Total incl. delivery 923,36

Read further specifications and description

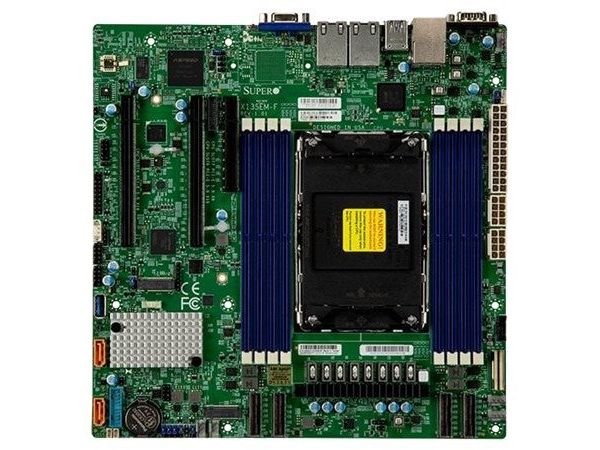

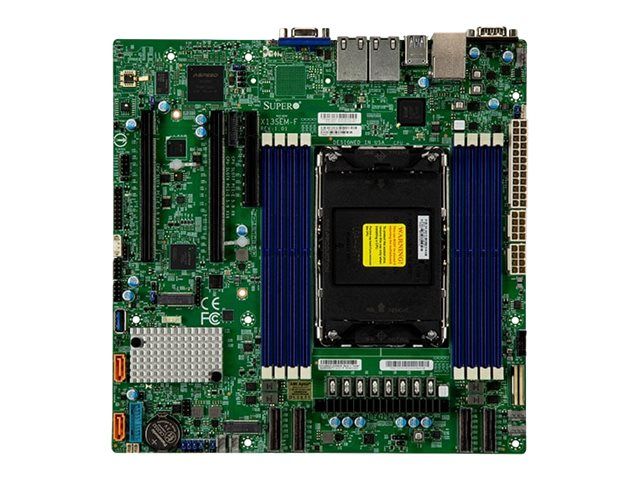

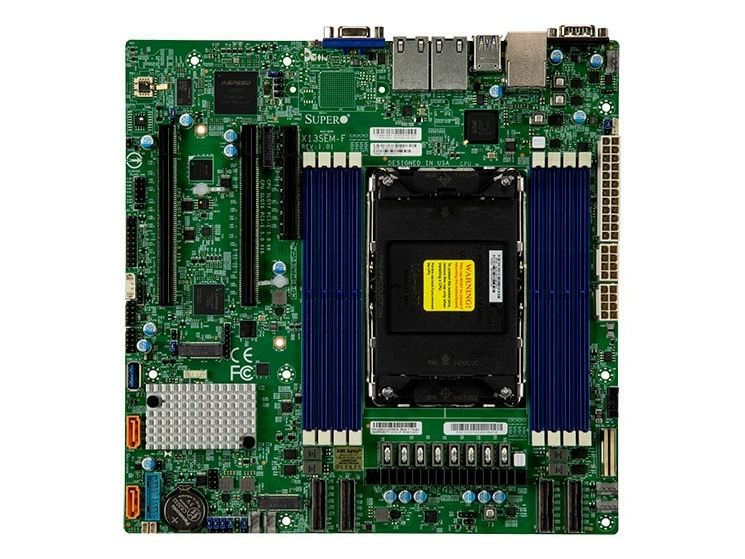

Supermicro X13SEM-F server motherboard micro ATX LGA4677 Intel C741 USB 3.2 Gen 1 2x Gigabit LAN onboard graphics (MBD-X13SEM-F-B)

Produktbeskrivelse	SUPERMICRO X13SEM-F - bundkort - micro ATX - LGA4677 Socket-E - Intel C741
Produkttype	Bundkort - micro ATX
Chipsættype	Intel C741
Processor-socket	1 x LGA4677 Socket-E
Kompatible processorer	Xeon Scalable (understøtter 4. Generation Intel Xeon Scalable, understøtter CPU'er med op til 60 kerner, Maximum TDP 350 Watt)
Max RAM-størrelse	2 TB
RAM understøttet	8 DIMM åbninger - DDR5, ECC, 3DS-registreret, registreret
Lagringsporte	10 x SATA-600, 8 x NVMe port, 2 x M.2
USB / FireWire porte	2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (3 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Grafik	ASPEED AST2600
LAN	2 x Gigabit Ethernet
Producentgaranti	3 års garanti

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	Intel C741
Processor-socket	LGA4677 Socket-E
Max antal processorer	1
Kompatible processorer	Xeon Scalable (understøtter 4. Generation Intel Xeon Scalable, understøtter CPU'er med op til 60 kerner, Maximum TDP 350 Watt)
Understøttet RAM
Maks. størrelse	2 TB
Teknologi	DDR5
Bus Clock	4800 MHz, 4400 MHz, 4000 MHz
Understøttet RAM-integritetskon	ECC
Registreret eller buffer	3DS-registreret, registreret
Grafik
Grafik controller	ASPEED AST2600
LAN
Netværk controller	Intel I350
Netværks interfaces	2 x Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 8 x DIMM 288-pins (1.1 V) 2 x PCIe 5.0 x16 1 x PCIe 5.0 x8 2 x M.2 socket (2280/22.110 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 1 x SlimSAS - 8 enheder PCIe 5.0 -stikforbindelser: 8 x NVMe PCIe 4.0 -stikforbindelser: 2 x M.2 SATA-600 -stikforbindelser: 2 x SATA DOM
Interface	2 x LAN (Gigabit Ethernet) 1 x IPMI 2 x USB 2.0 2 x USB 3.2 Gen 1 1 x VGA 1 x seriel
Interne interfaces	4 x USB 2.0 - intern stik 1 x USB 3.2 Gen 1 - Type A 2 x USB 3.2 Gen 1 - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, ACPI 6,4 support, SMBIOS 3,5 support, UEFI 2.8 support, genoprettelse af strømafbrud (genoprettelse af AC-tab), PnP support
Hardwareovervågning	Systemspænding, CPU kerne-spænding, CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber	Trusted Platform Module (TPM), chassis intrusion styring, Node Manager-support
Diverse
Udstyr inkluderet	CPU-bærer (MCC), CPU-bærer (XCC), IO-skjold
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	SuperDoctor 5
Bredde	24.38 cm
Dybde	24.38 cm
Pakketype	En gros
Producentgaranti
Service & Support	Begrænset garanti - reservedele - 1 år Begrænset garanti - arbejde - 3 år

The item is known under the following item numbers in our system

EAN:	0672042519255
UPC:	672042519255
SKU:	MBD-X13SEM-F-B
