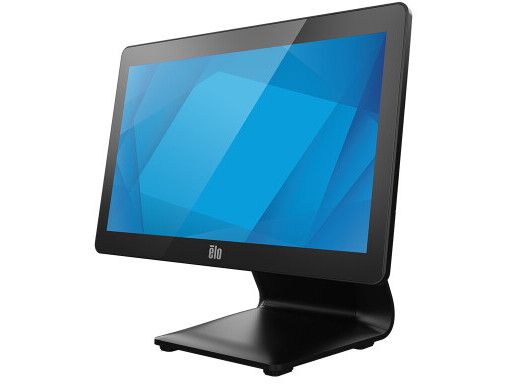

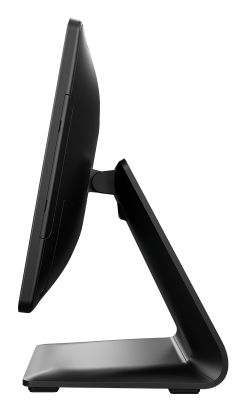

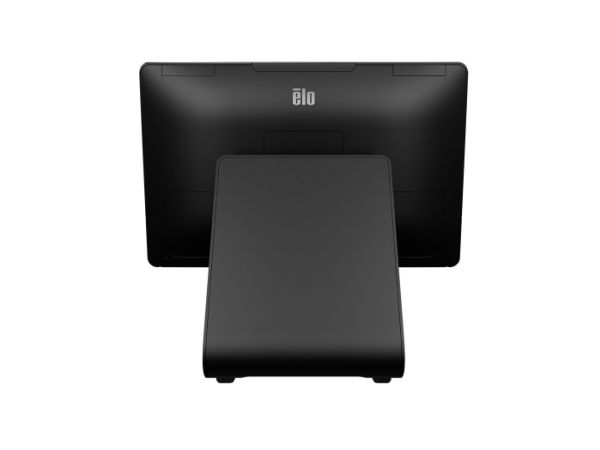

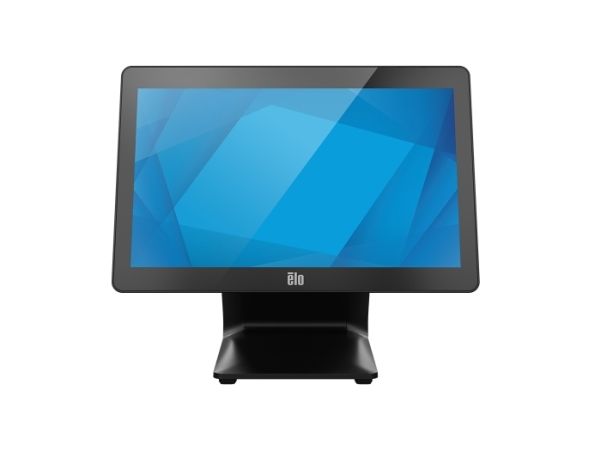

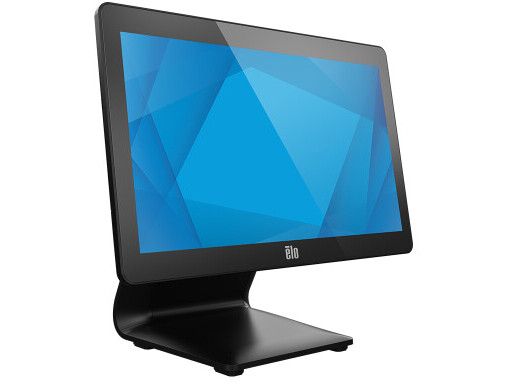

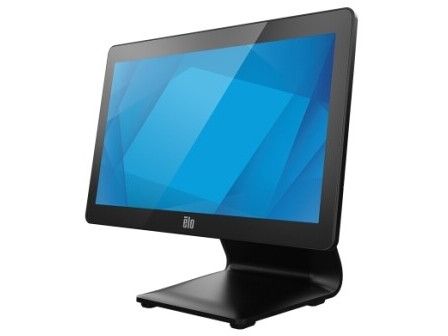

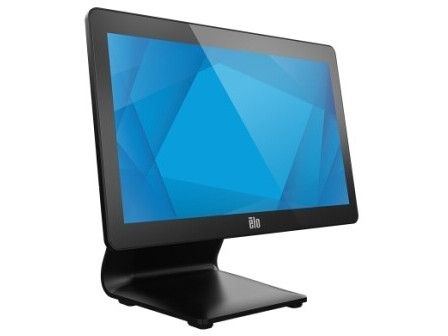

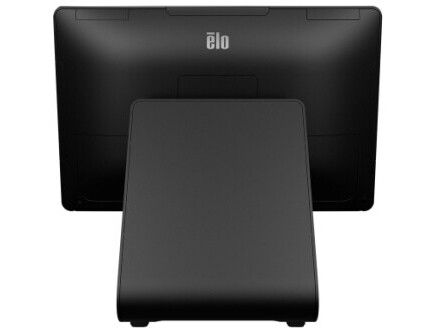

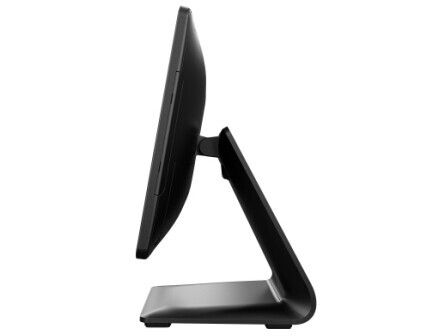

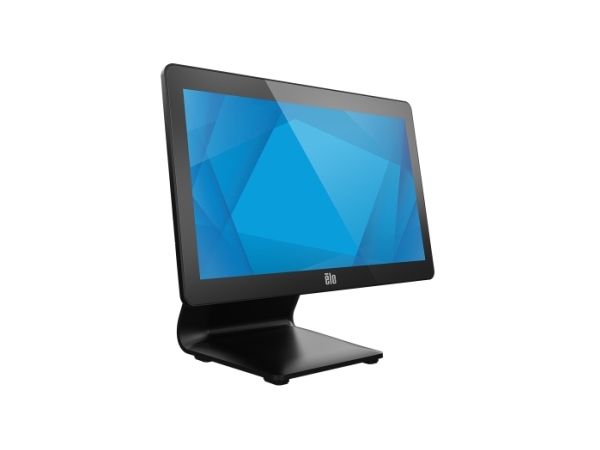

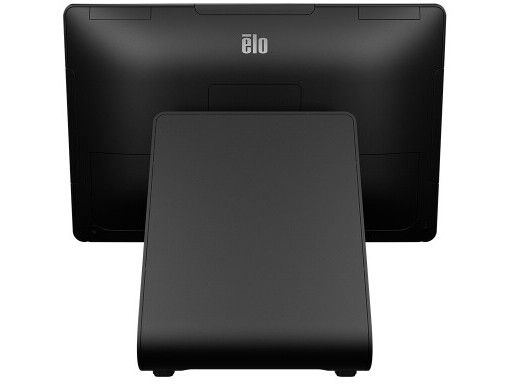

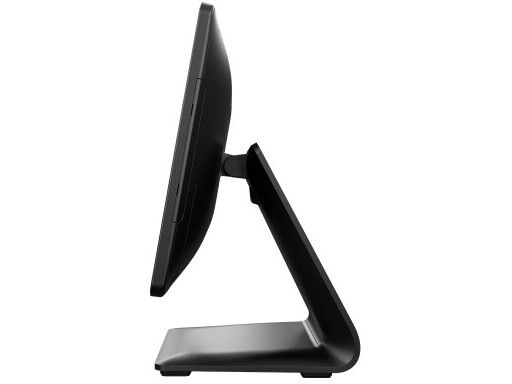

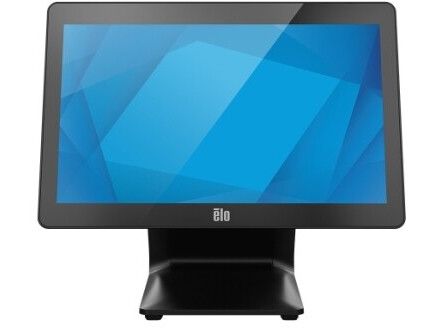

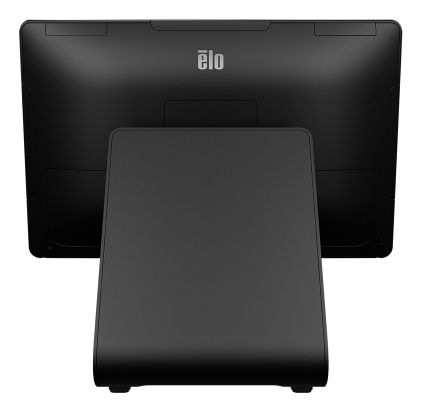

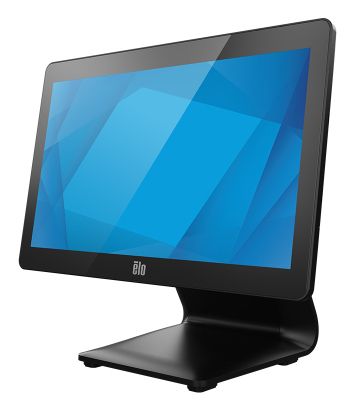

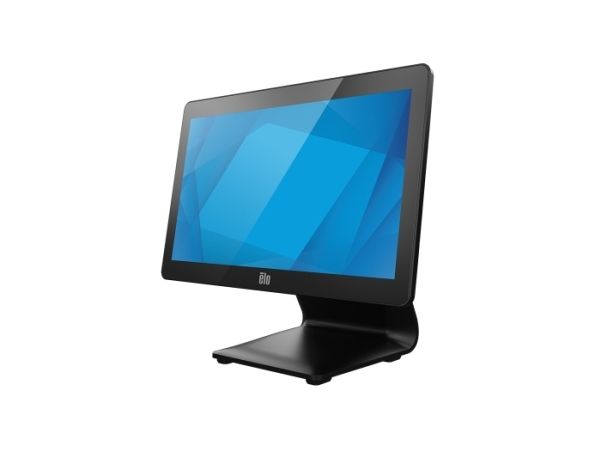

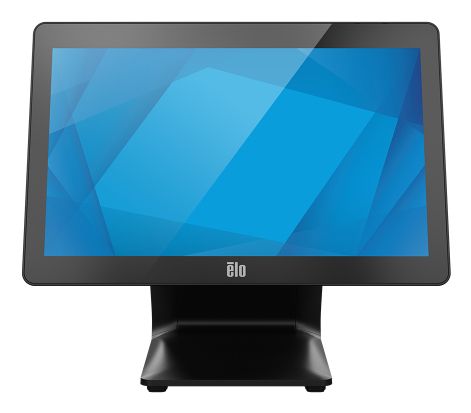

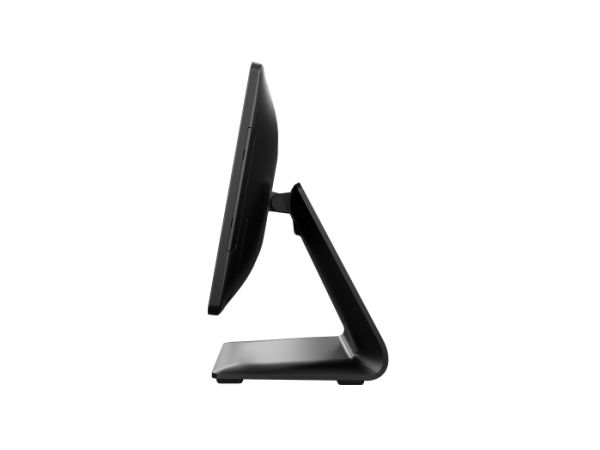

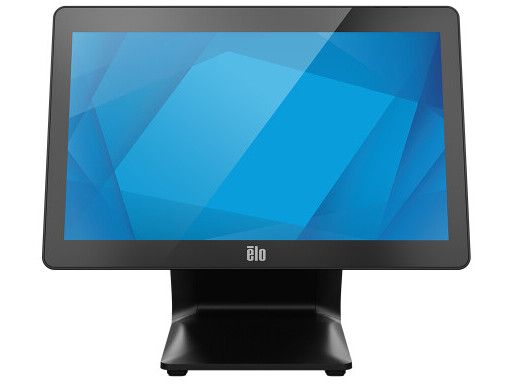

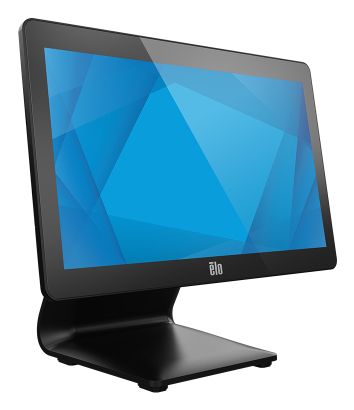

Elo Touch Solutions I-Series E705229, 39.6 cm (15.6"), Full HD, Intel® Celeron®, 8 GB, 128 GB, Black

Item no.: [20541233] | Manufacturer: Elo TouchSystems | Model no.: E705229 | EAN: 0843173154060

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 1.837,25

Incl. VAT 2.296,56

Total incl. delivery 2.311,56

Read further specifications and description

Completely redesigned
I-Series 3 with Intel.

Brilliant and beautiful,
interactive platform.

- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF

Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.

Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.

Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2

Produktbeskrivelse	Elo I-Series 3 - alt-i-én Celeron 7305L 1.1 GHz - 8 GB - SSD 128 GB - LED 15.6"
Type	Personal computer - alt-i-én
Lokalisering	Region: Global
Processor	Intel Celeron 7305L / 1.1 GHz (5-core)
Cachehukommelse	8 MB
Cache pr. processor	8 MB
RAM	8 GB (installeret) / 32 GB (maks.) - DDR5 SDRAM
Harddisk	SSD 128 GB - PCI Express - M.2 - NVM Express (NVMe)
Optisk lagring	Intet optisk drev
Monitor	15.6" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 16:9 - touchscreen
Grafik controller	Intel UHD Graphics
Lydudgang	Stereo
Netværk	802.11a, Wi-Fi 5, 802.11b/g/n, 1GbE, Bluetooth 5.2, Wi-Fi 6
Effekt	(50/60 Hz)
Med OS	Intet operativt system
Farve	Sort
Dimensioner (B x D x H)	38.41 cm x 19.75 cm x 33.84 cm
Vægt	6.4 kg
Miljømæssige standarder	ENERGY STAR kvalificeret
Producentgaranti	Begrænset garanti - 3 år

Generelt
Type	Personal computer
Produktmodel	Alt-i-én
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Farve	Sort
Lokalisering	Region: Global
Processor / Chipset
CPU	Intel Celeron 7305L
Clock-frekvens	1.1 GHz
Antal kerner	5-core
Antal CPU'er	1
Maks. antal CPU'er	1
Cachehukommelse
Installeret størrelse	8 MB
Cache pr. processor	8 MB
RAM
Installeret størrelse	8 GB (installeret) / 32 GB (maks.)
Teknologi	DDR5 SDRAM
Effektiv hukommelseshastighed	4800 MHz
Vurderet hukommelseshastighed	4800 MHz
Model	SO DIMM 262-PIN
Holdere	2 (Total) / 1 (ubrugt)
Konfigureringsegenskaber	1 x 8 GB
Harddisk
Type	SSD - M.2
Kapacitet	1 x 128 GB
Grænsefladetype	PCI Express
SSD-udholdenhed	80 TB
Egenskaber	NVM Express (NVMe)
Optisk lagring
Type	Intet optisk drev
Monitor
Monitortype	LED
Berøringsskærm	Ja (10-punkts multi-touch)
Diagonal størrelse	15.6"
Standard opløsning	1920 x 1080 (Full HD)
V-sync hastighed ved maks. opløsning	60 Hz
Widescreen-skærm	Ja
Billedformatforhold	16:9
Vandret synsvinkel	+85 / -85
Lodret synsvinkel	+85 / -85
Responstid	25 ms
Billedklarhed	350 cd/m²
Billedkontrastforhold	1000:1
Monitor-egenskaber	TouchPro Pro Projected Capacitive (PCAP) teknologi, 16.2 million colors, blændfri, Zero-Bezel Design
Grafik controller
Grafik-processor	Intel UHD Graphics
Lydudgang
Lydudgangsmodus	Stereo
Højttalere inkluderet	2 x højre/venstre kanal
Netværk
Trådløs LAN understøttelse	Ja
Dataforbindelsesprotokol	IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Ekspansion / Konnektivitet
Interface	1 x hovedtelefoner/mikrofon 1 x LAN (Gigabit Ethernet) 4 x USB 3.0 4 x USB 2.0 - micro-USB 1 x PoweredUSB (24 V) 2 x PoweredUSB (12 V) 1 x seriel - RJ-50 (drevet) 1 x kontantskuffe (12V/24 V) 1 x DisplayPort/USB-C 3.0 (27 Watt opladning)
Diverse
Udstyr inkluderet	Monteringsskrue, kabelbinder, stander
Medfølgende ledninger	RJ-50 til DB-9 kabel
Tyveri/Indtrængningsbeskyttelse	Sikkerhedslåseåbning (kabellåse solgt separat)
Sikkerhedsåbningstype	Kensington-sikkerhedsåbning
VESA-monteringsinterface	75 x 75 mm, VESA
Overensstemmelsesstandarder	cUL, UL, TUV, RCM, UKCA, CB, Argentina S-Mark, ANATEL, VCCI, MIC, Mexico NOM, CoC
Effekt
Enhedstype	Strømforsyningsadapter
Nødvendig spænding	AC 100/240 V (50/60 Hz)
Strømforsyning	180 watt
Strømforbrug ved drift	34 watt
Operativsystem / Programmer
Med OS	Intet operativt system
Bæredygtighedsoplysninger
ENERGY STAR-certificeret	Ja
ENERGY STAR version	8.0
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Mål og vægt
Bredde	38.41 cm
Dybde	19.75 cm
Højde	33.84 cm
Vægt	6.4 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse	49.7 cm
Dybde ved forsendelse	34.5 cm
Højde ved forsendelse	48.7 cm
Vægt ved forsendelse	8.9 kg
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	35 °C
Fugtighedsgrad ved brug	20 - 80 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	0843173154060
SKU:	E705229

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
