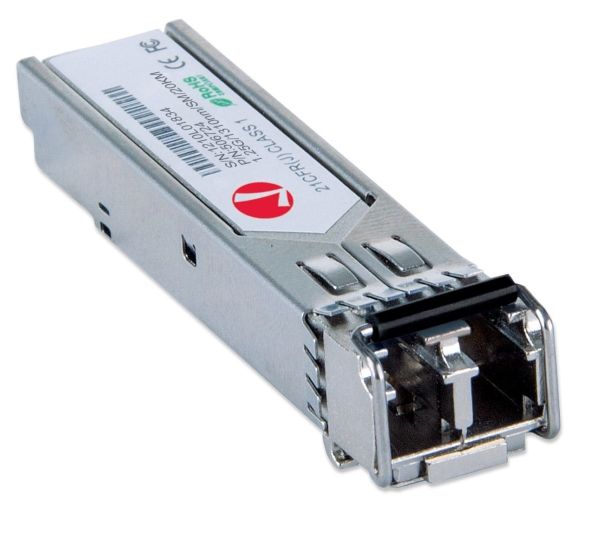

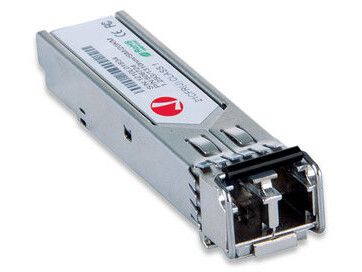

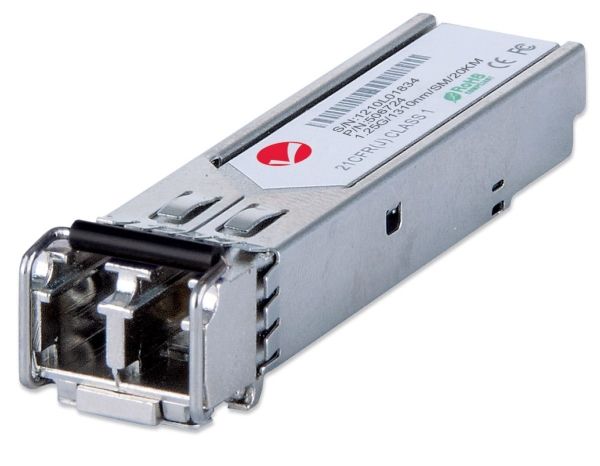

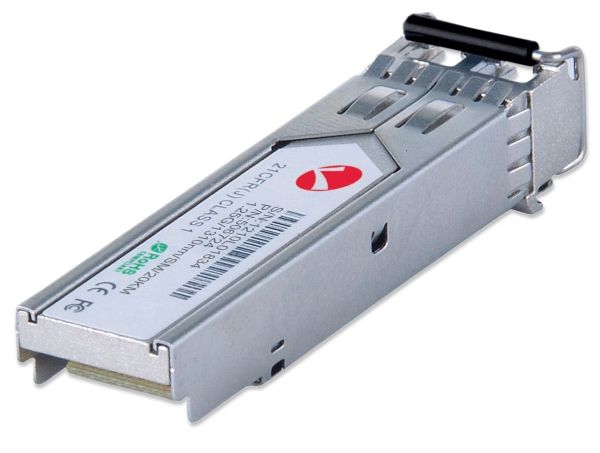

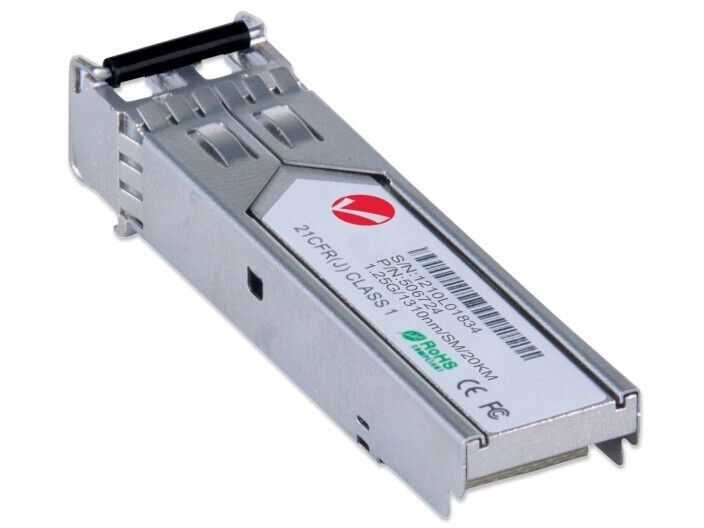

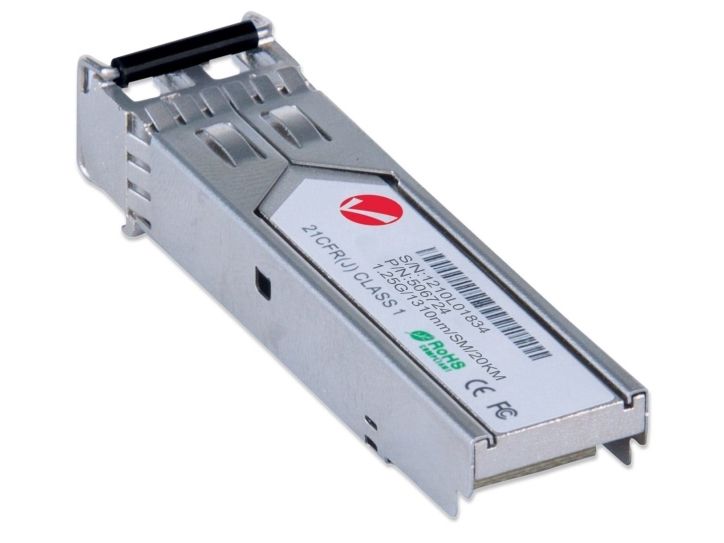

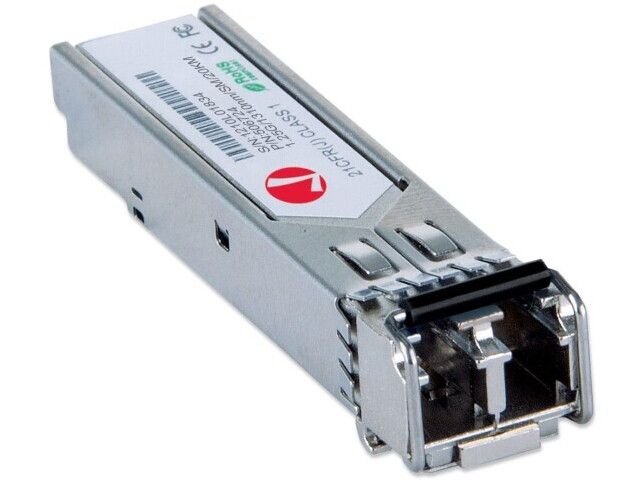

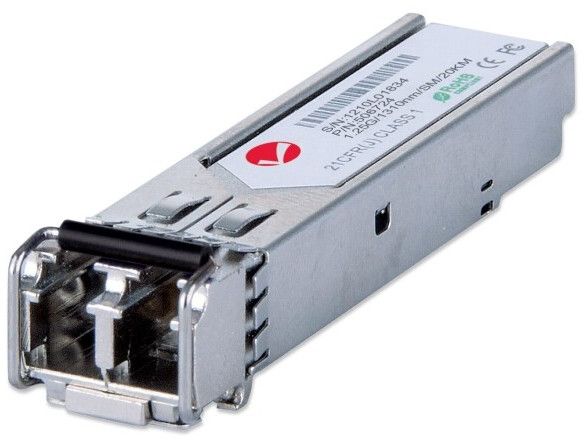

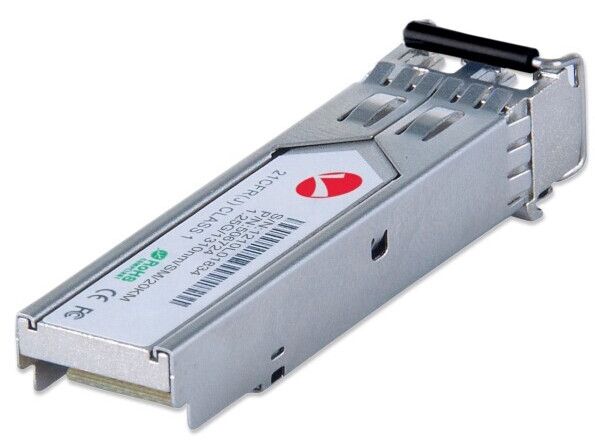

The new Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceiver provides the best combination of performance and affordability. This mini-GBIC (Gigabit Interface Converter) module provides a metal housing to reduce electromagnetic interference and increases durability.
Small Size for High-Density Fibre Connections The transceiver is available as a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room.
Multi-Vendor Compatible Compatibility in your network is everything, and the Intellinet SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other MSA-compliant, SFP-enabled switch. And since the Intellinet SFP transceiver module is set to broadcast the vendor on GLC-LH-SM, compatibility to your Cisco gear is provided.
Hot-Pluggable No need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy for you to make adjustments to your network that allow your business to keep pace with the changing demands of the market.
SFP transceiver type
Fiber optic
Maximum data transfer rate
1000 Mbit/s
Interface type
mini-GBIC
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
LX
Maximum transfer distance
20000 m
Wavelength
1310 nm
Tx power (min)
8 dBmW
Tx power (max)
3 dBmW
Link budget
8 dB
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3z
Duplex system
Full, Half
Product colour
Aluminium
Hot-Plug support
Yes
Input voltage
3.3 V
Power consumption (typical)
1 W
Compliance certificates
CE, RoHS, Federal Communications Commission (FCC)
Certification
FCC Class A, CE, RoHS, IEC-60825
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
10 - 85%
Width
13 mm
Depth
55 mm
Height
12 mm
Weight
62 g
Quantity per pack
1 pc(s)
Harmonized System (HS) code
85369010
