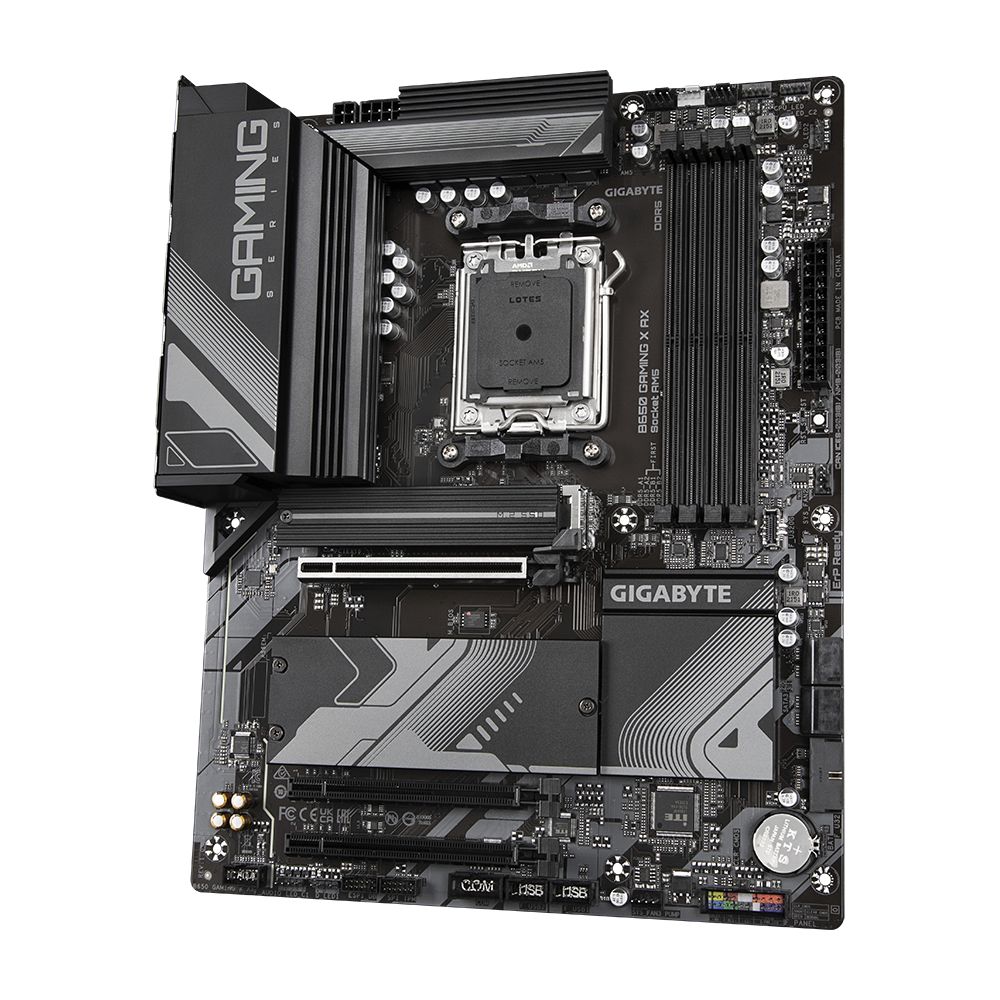

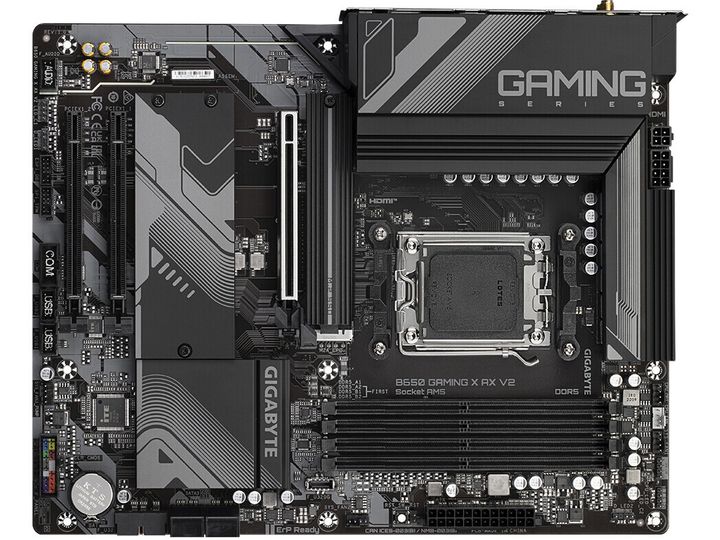

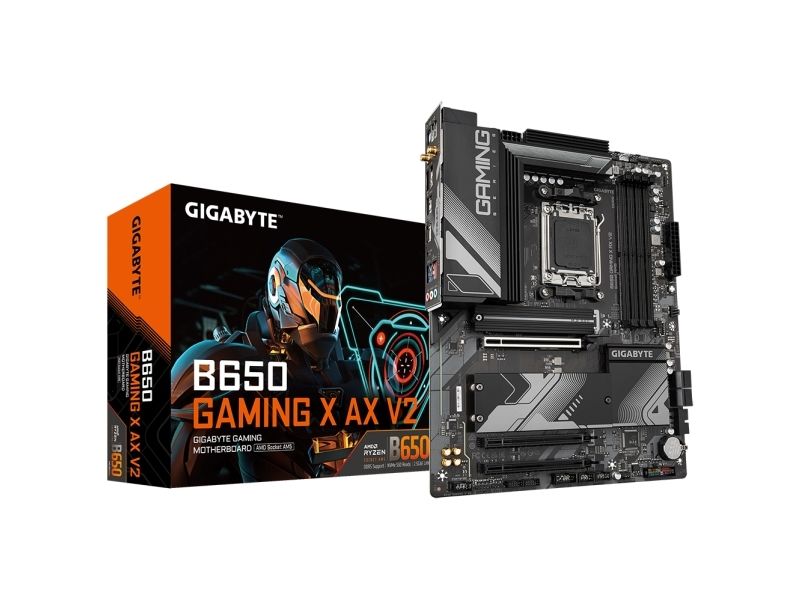

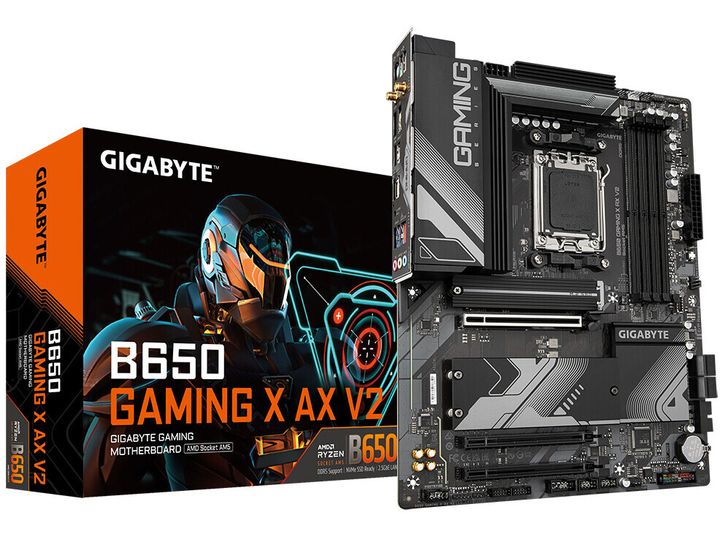

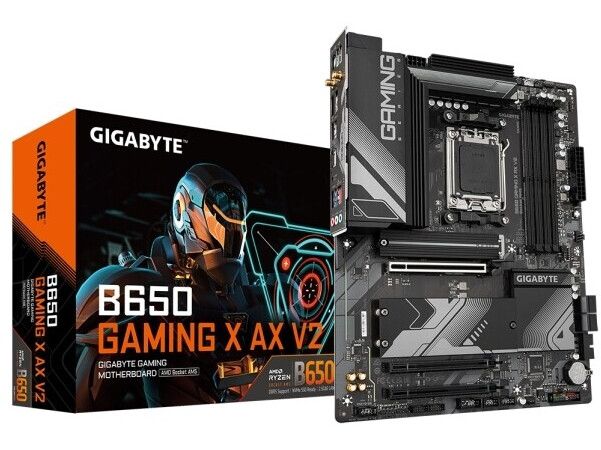

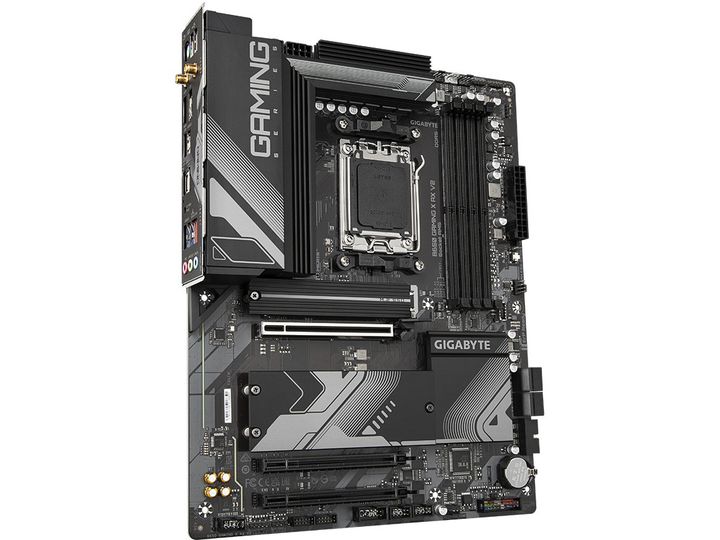

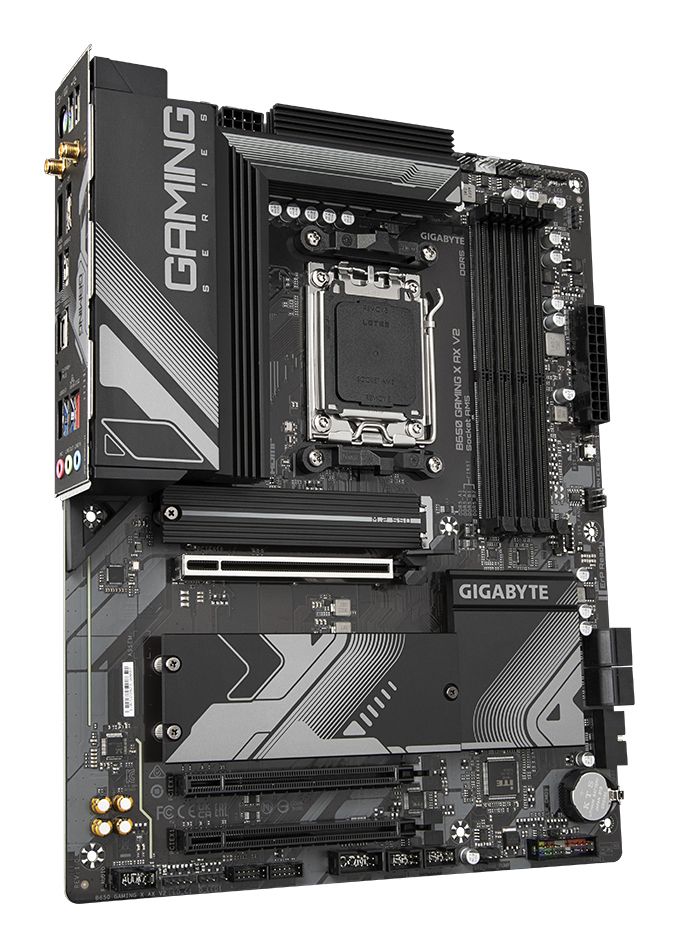

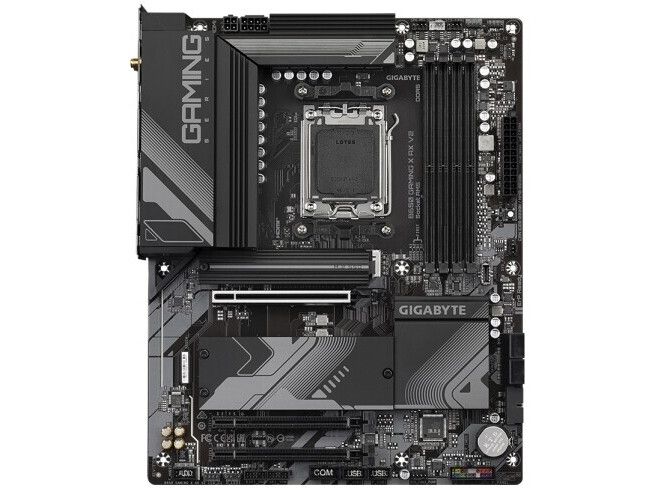

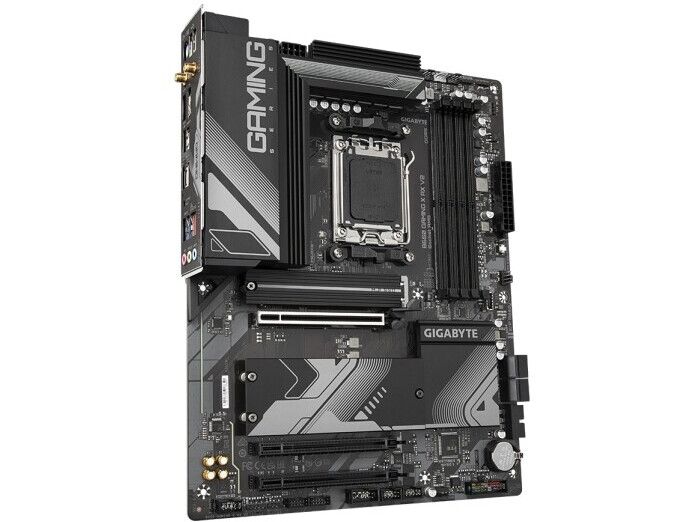

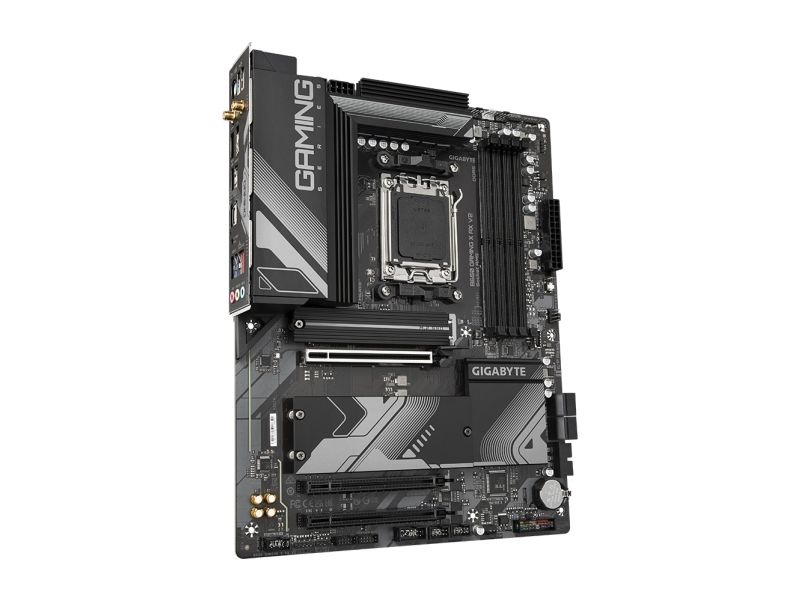

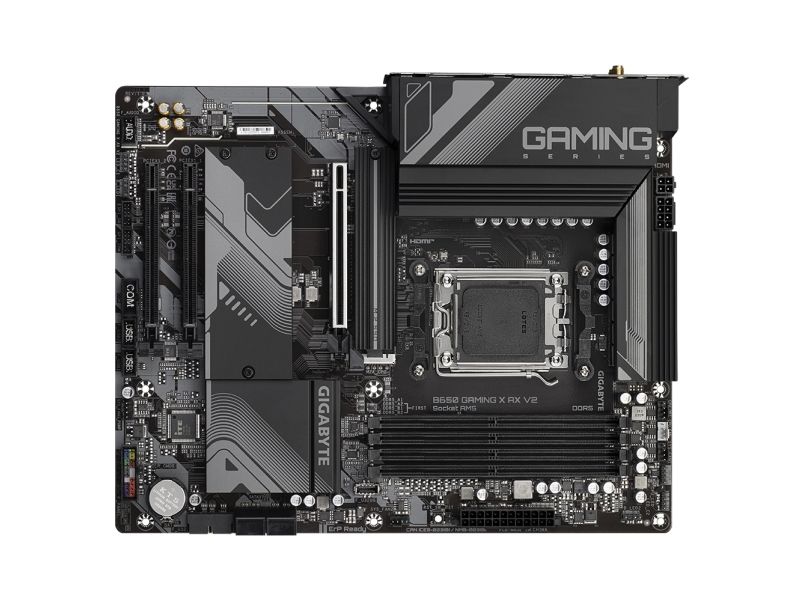

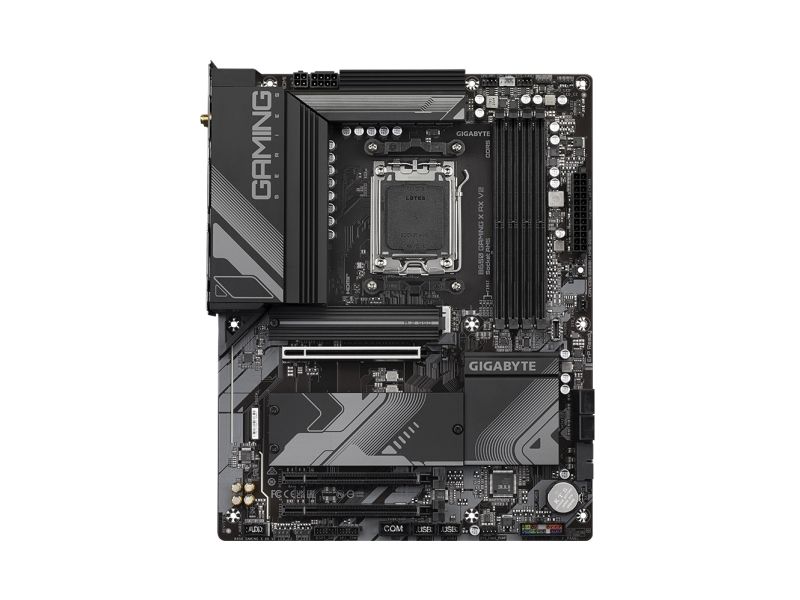

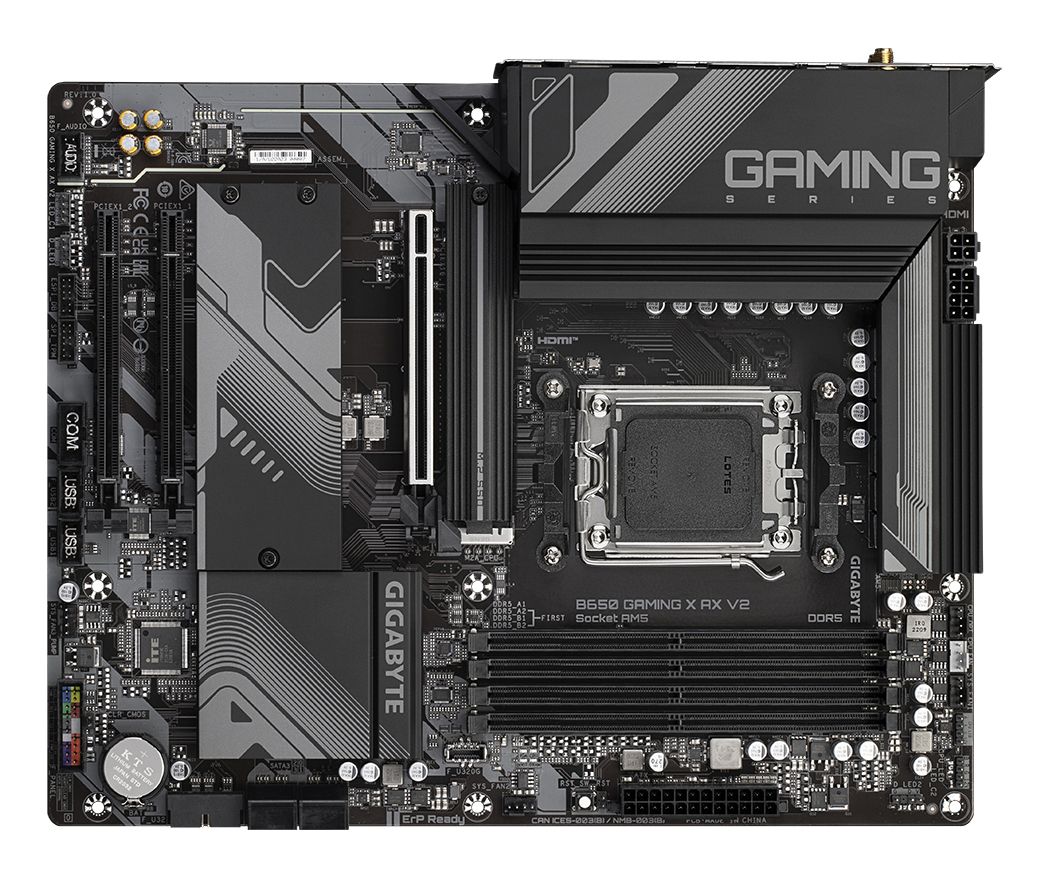

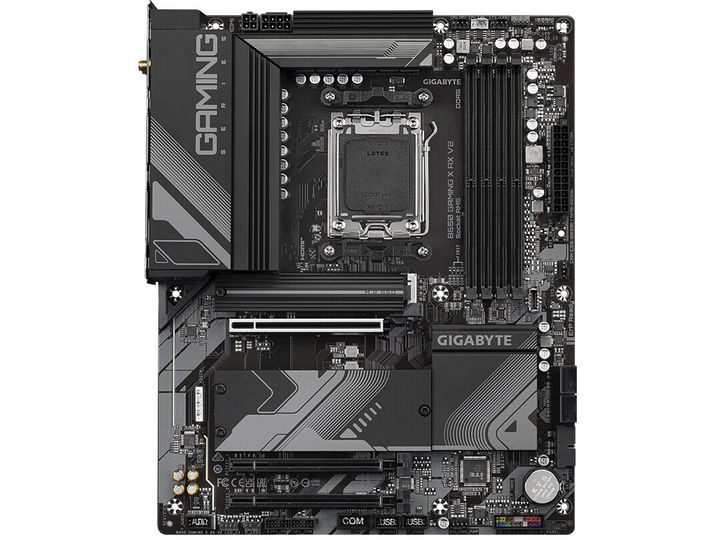

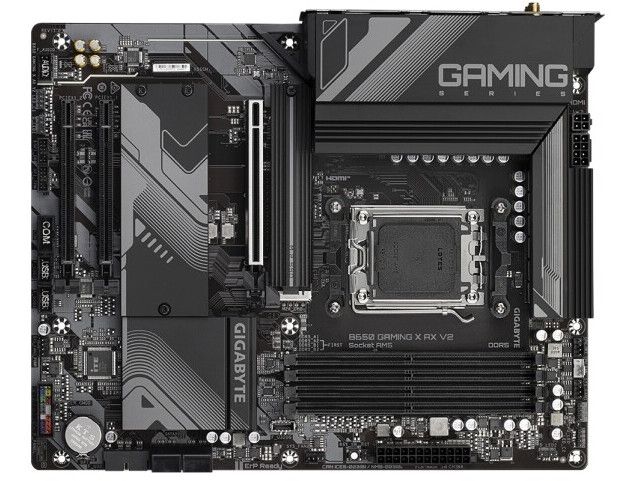

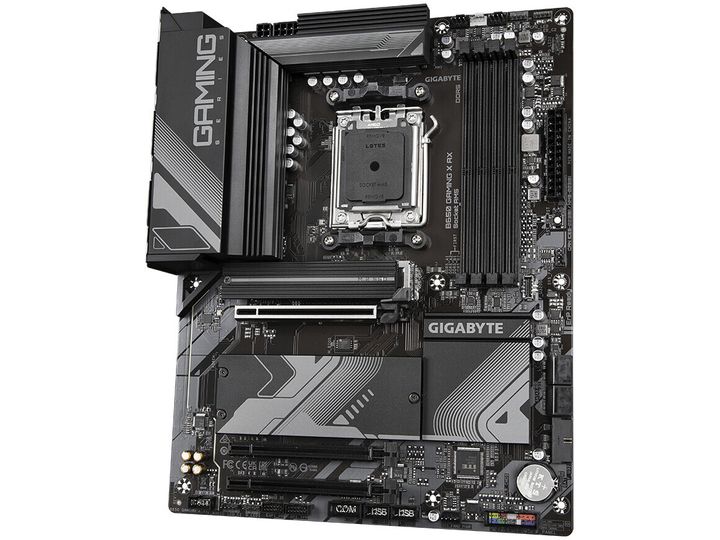

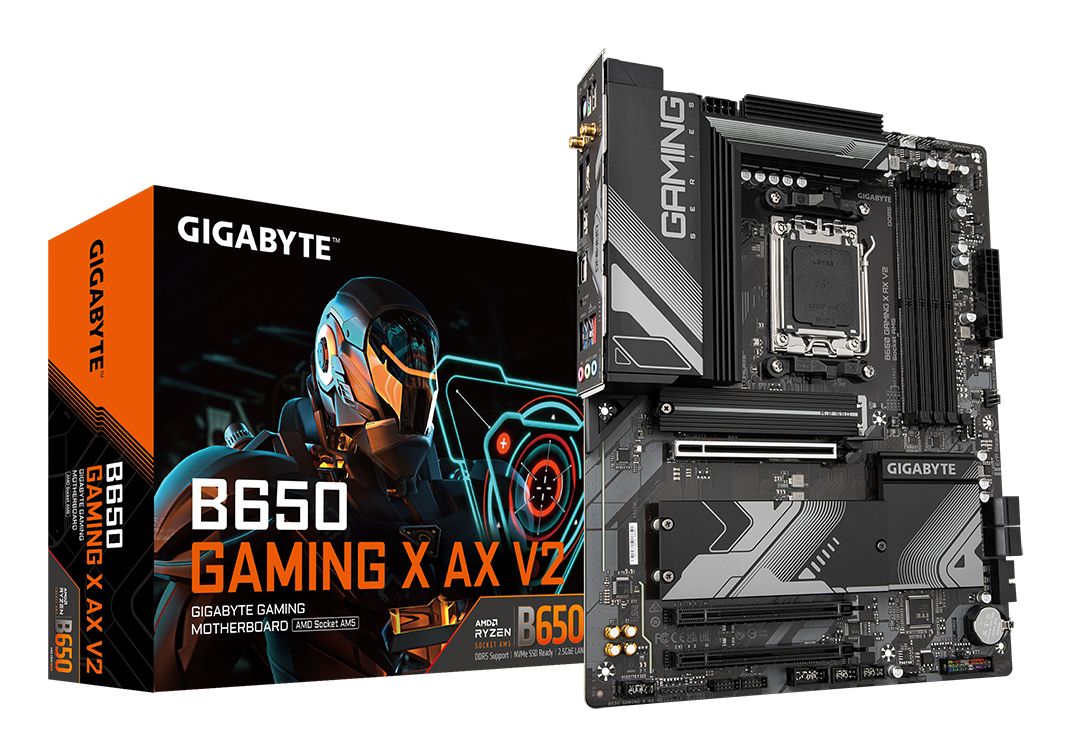

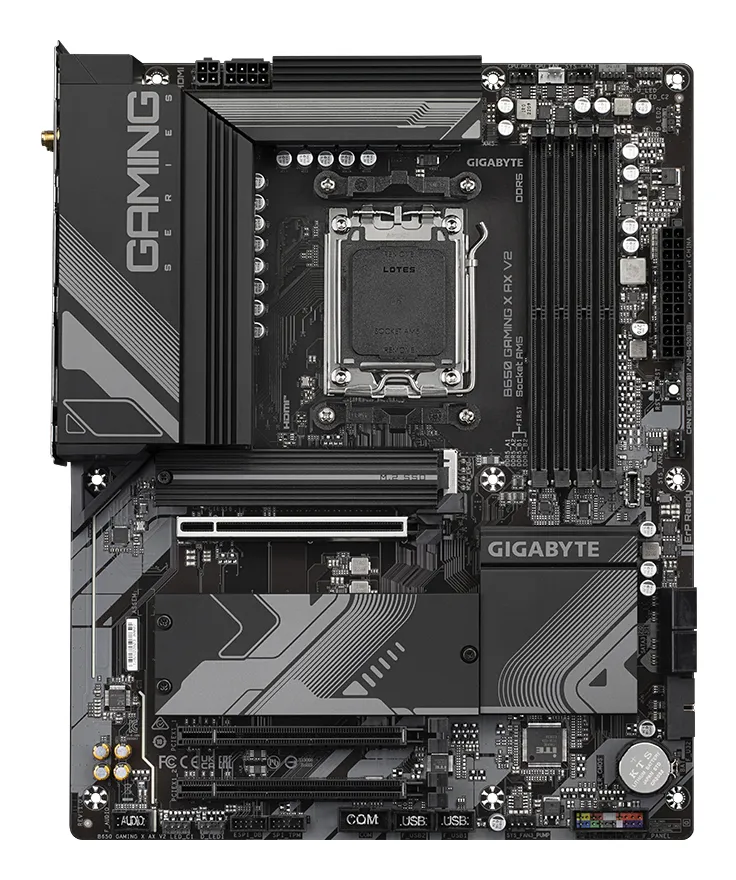

GIGABYTE B650 GAMING X AX V2 Motherboard, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB

Item no.: [20565189] | Manufacturer: Gigabyte Technology | Model no.: B650 GAMING X AX V2 | EAN: 4719331860073

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 1 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 119,03

Incl. VAT 148,79

Total incl. delivery 163,79

Read further specifications and description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Produktbeskrivelse	Gigabyte B650 GAMING X AX V2 - 1.X - bundkort - ATX - Socket AM5 - AMD B650
Produkttype	Bundkort - ATX
Chipsættype	AMD B650
Processor-socket	1 x Socket AM5
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000 Series)
Max RAM-størrelse	192 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 3 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2

Generelt
Produkttype	Bundkort - ATX
Chipsættype	AMD B650
Processor-socket	Socket AM5
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 7000/8000 Series)
Understøttet RAM
Maks. størrelse	192 GB
Teknologi	DDR5
Bus Clock	4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-kanaler)
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	AMD RZ616 (MT7922A22M)
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 (x1 modus) 3 x M.2 socket (2280/25.110 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -stikforbindelser: 3 x M.2 - RAID 0 / RAID 1 / RAID 10

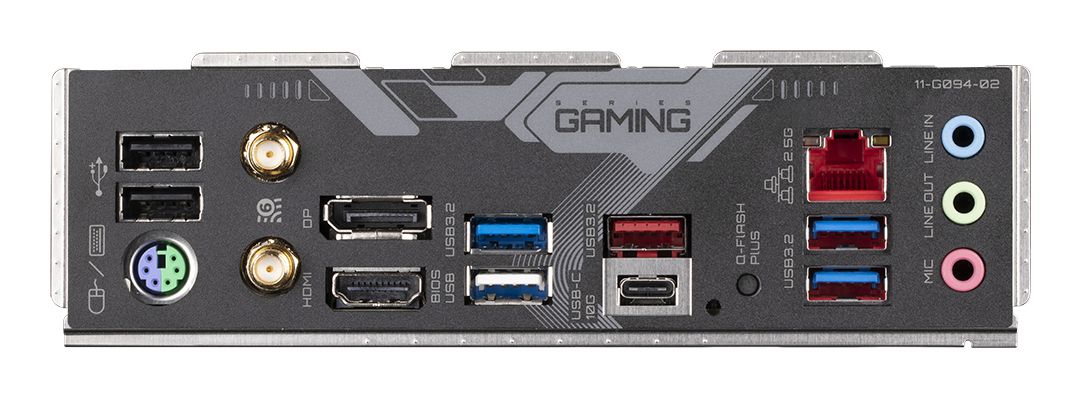

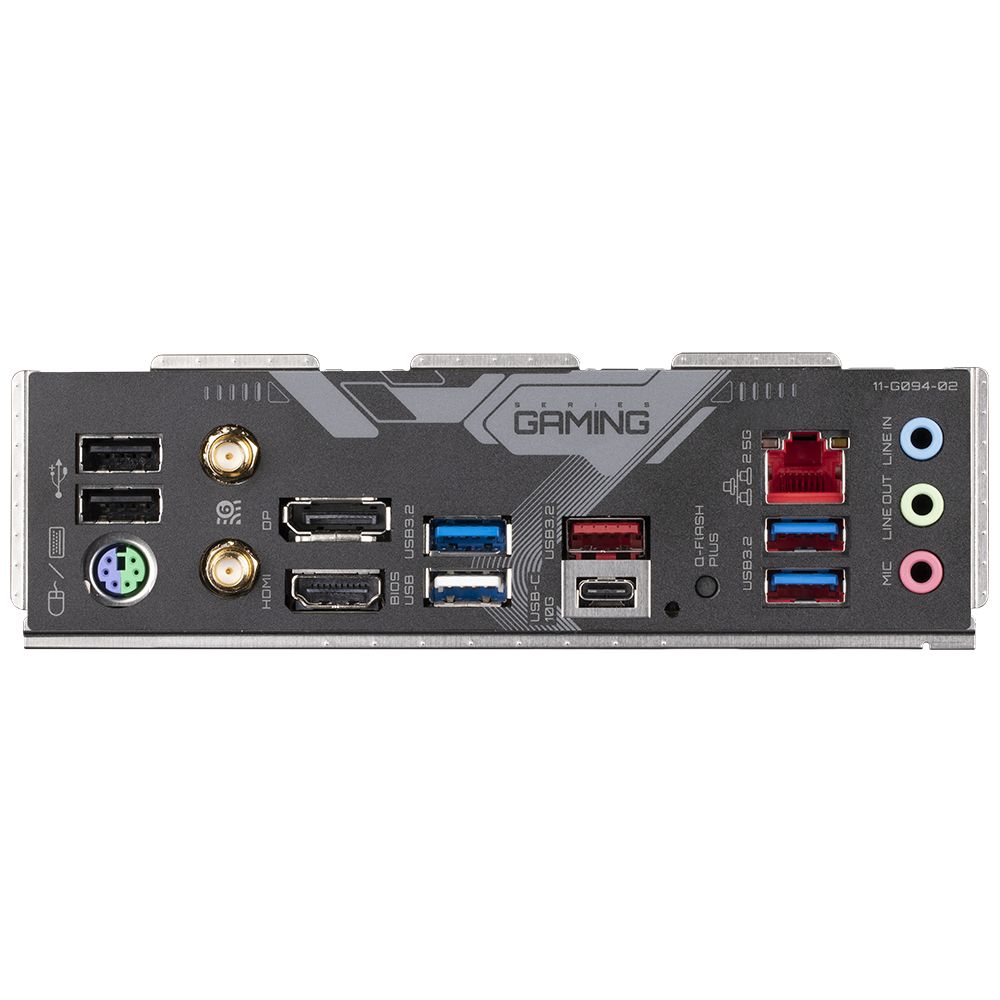

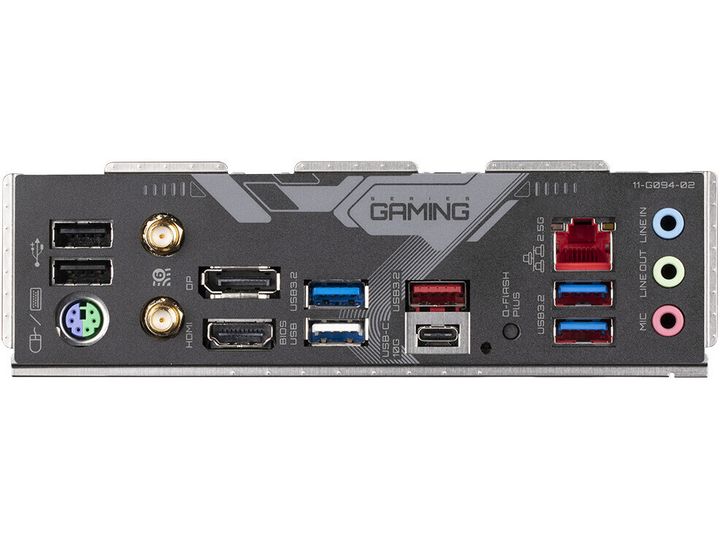

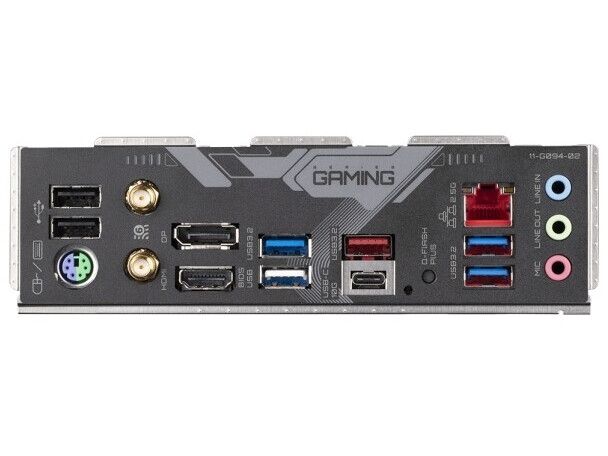

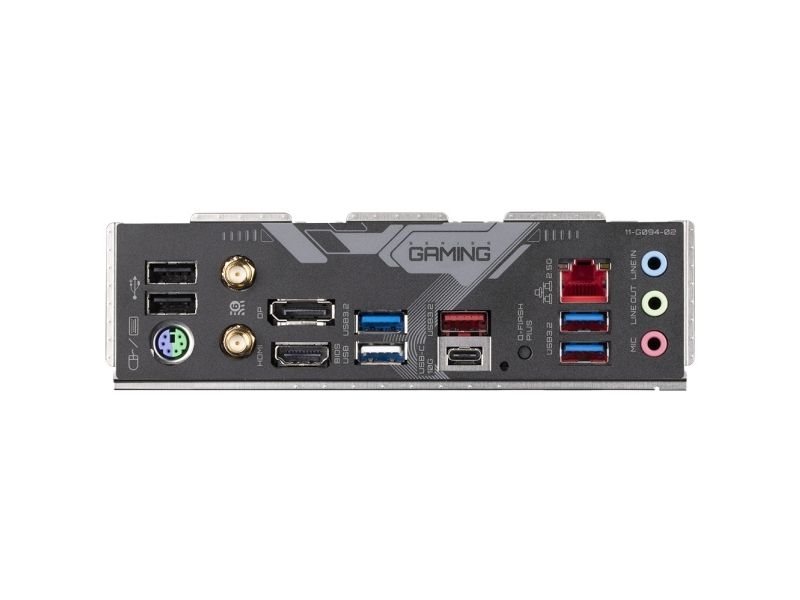

Interface	1 x HDMI 1 x DisplayPort 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 3 x USB 2.0 1 x PS/2-tastatur/mus 1 x LAN (2.5Gigabit Ethernet) 3 x USB 3.2 Gen 1 2 x antenne
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C Gen 2x2 - intern stik 1 x audio - intern stik 1 x SPI - intern stik 1 x seriel - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support
Hardwareovervågning	Blæserfejlvarsel, blæserkontrol, systemspænding, temperaturdetektion, vandkølings-flowrate, blæserhastighedsdetektion
Hardware egenskaber	Q-Flash Plus, Q-Flash, 8+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, 60 A Power Stage, Audio Noise Guard, Dr.MOS MOSFET, Enlarged Heatsink Armor, GIGABYTE Smart Fan 6, High-end Audio Capacitors, M.2 Thermal Guard, MultiKey, PCIe EZ Latch, præmonteret I/O-skjold, RGB FUSION
Diverse
Udstyr inkluderet	1 x M.2 skrue, 2 antenner
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Overensstemmelsesstandarder	DisplayPort 1.4, HDCP 2.3
Bredde	30.5 cm
Dybde	24.4 cm

The item is known under the following item numbers in our system

EAN:	4719331860073
EAN:	4719331849849

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
