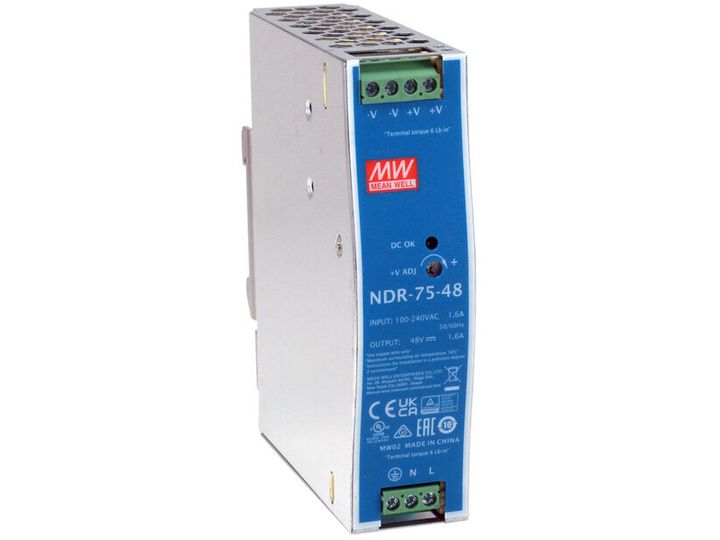

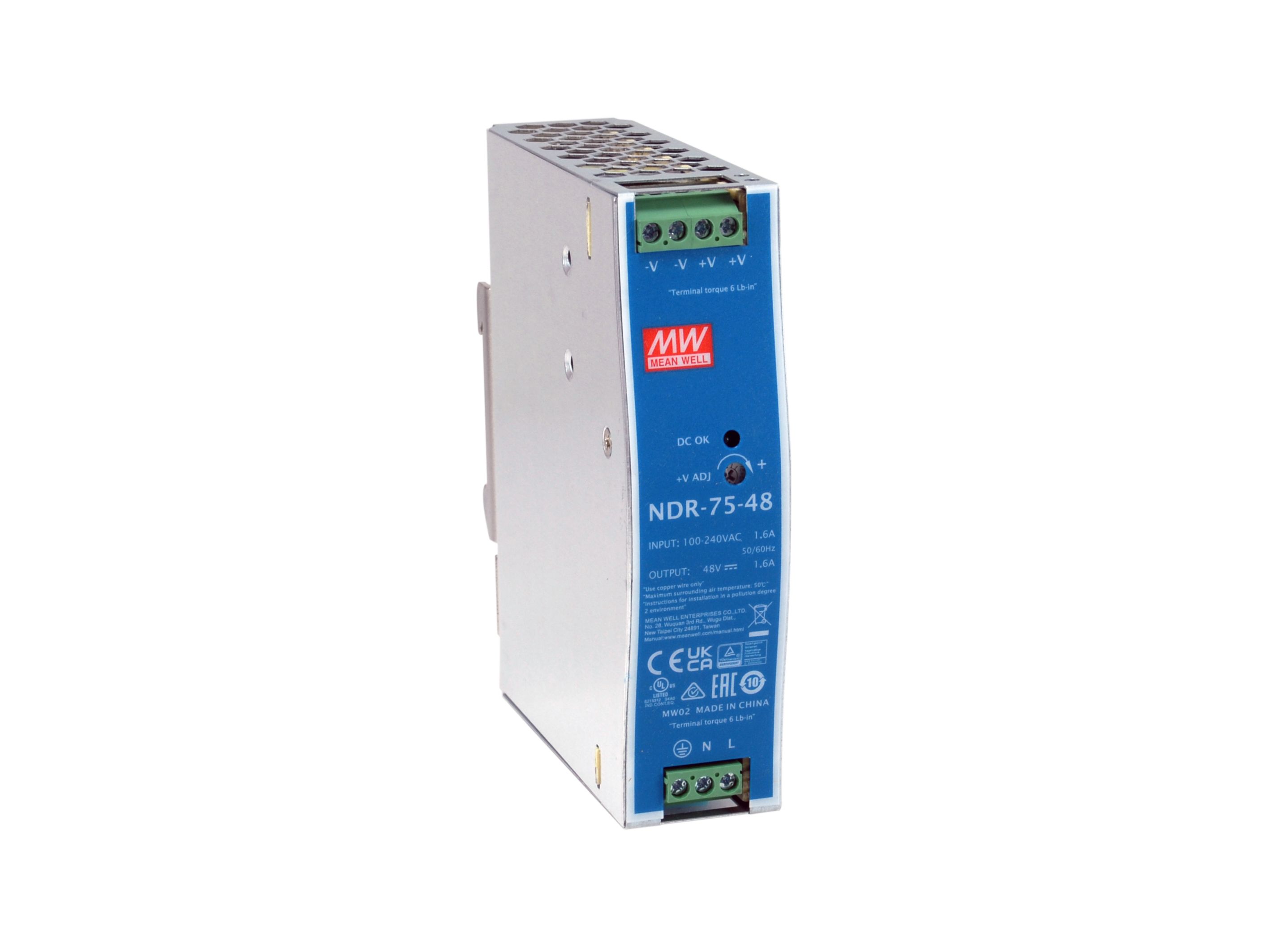

LevelOne 48V DC Industrial Power Supply, 75W, DIN-Rail,-20 ~ +70 ?, 75 W, 90 -264 V, 76.8 W, 47 - 63 Hz, 1.45 A, 16 ms
Item no.: [20658270] | Manufacturer: Level One | Model no.: POW-4822 | EAN: 4015867236598
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
66,01
Incl. VAT 82,51
Total incl. delivery
97,51
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
The POW-4822 should be able to accept a wide range of input voltages, typically from 90V AC to 264V AC, allowing it to operate in various industrial environments.
DIN-rail Mounting to fit standard DIN-rail mounting systems commonly used in industrial cabinets, allowing for easy installation and space-saving.
It's essential for the power supply to have high energy efficiency, reducing power losses and operating costs while minimizing heat generation.
Total power
75 W
AC input voltage
90 -264 V
Peak power
76.8 W
AC input frequency
47 - 63 Hz
Input current
1.45 A
Hold time
16 ms
Power protection features
Overload, Over voltage, Short circuit
Mean time between failures (MTBF)
486200 h
Product colour
Blue, Silver
Operating temperature (T-T)
20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Safety
EN 55032 (CISPR32) Class A EN 61000-3-2,-3,EACTPTC020,CNS13438 Class A EN 61000-4-2,3,4,5,6,8,11 EN 61204-3 EN 55035 EN 61000-6-2 (EN 50082-2)
Width
32 mm
Depth
102 mm
Height
125.2 mm
Weight
430 g
Package width
53 mm
Package depth
132 mm
Package height
147 mm
Package weight
500 g
Package type
Box
Master (outer) cases per pallet
20 pc(s)
Master (outer) case width
282 mm
Master (outer) case length
313 mm
Master (outer) case height
393 mm
Master (outer) case gross weight
16.8 kg
Harmonized System (HS) code
8504403090
Country of origin
China
Voltage tolerance
1%
Output voltage note
48V
