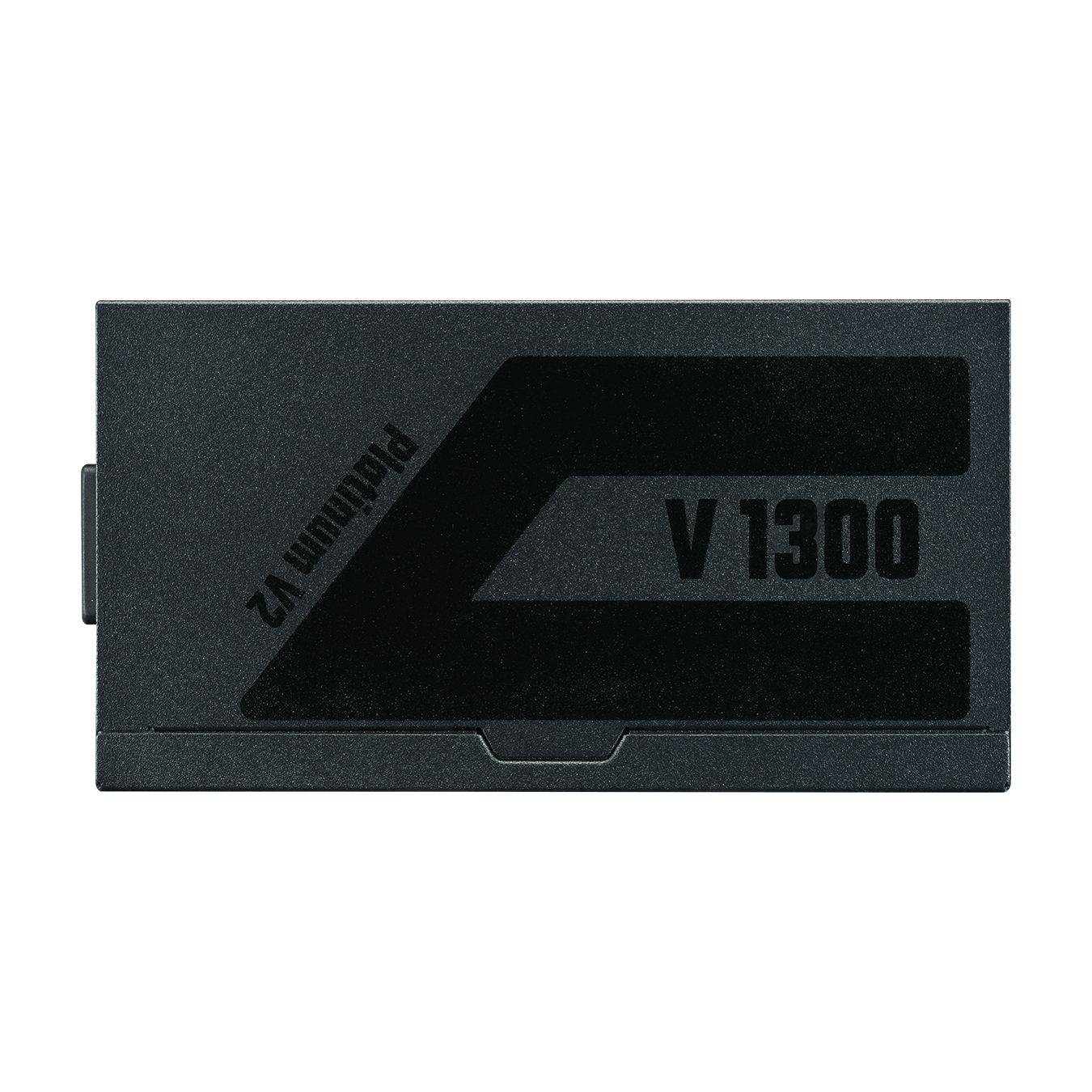

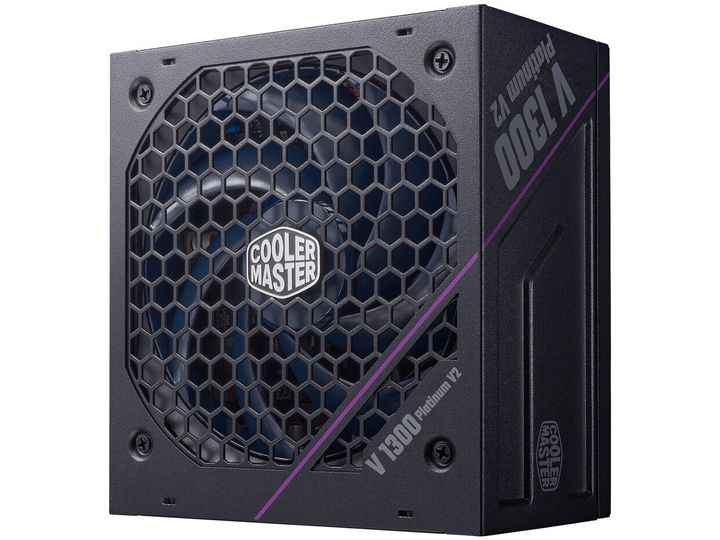

QUIETLY SUPREME V Platinum V2 delivers silent operation, featuring an ultra-quiet Mobius fan, a protective conformal coating heatsink, smart thermal control, zero-RPM fan mode, fully modular cabling, and 80 Plus Platinum efficiency, backed by a 12-year warranty.

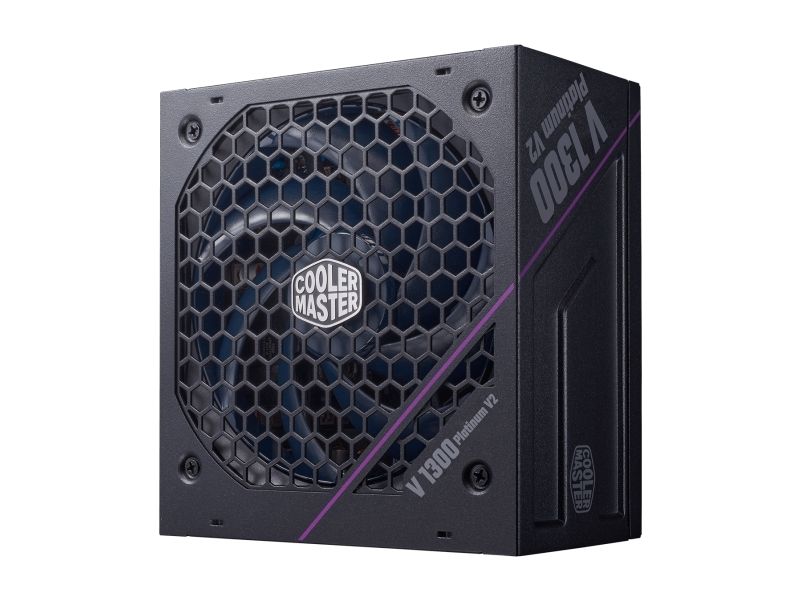

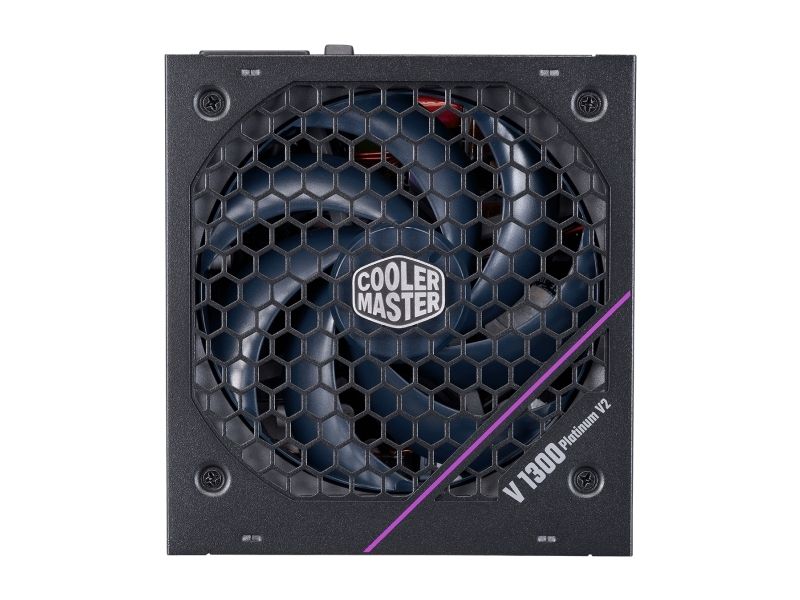

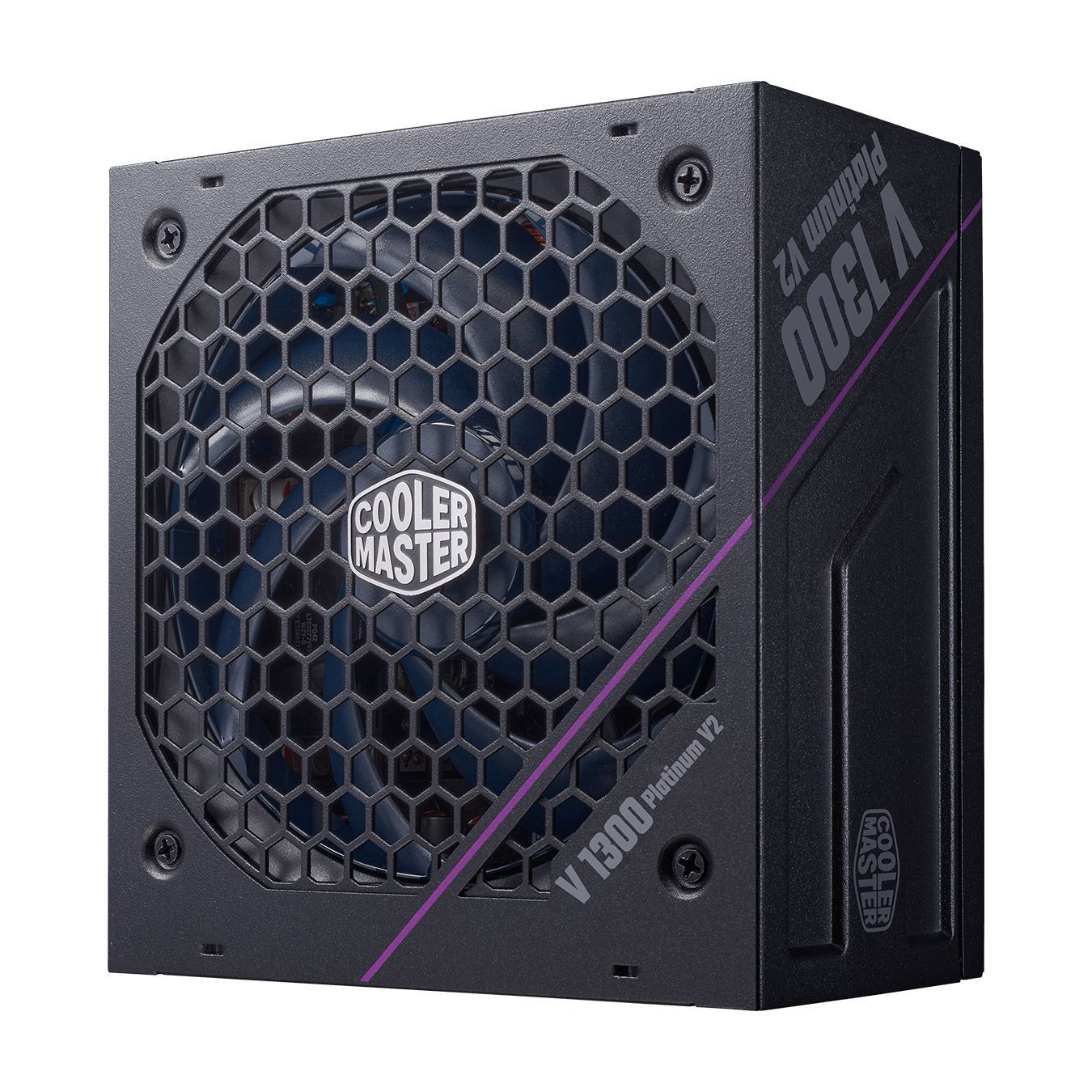

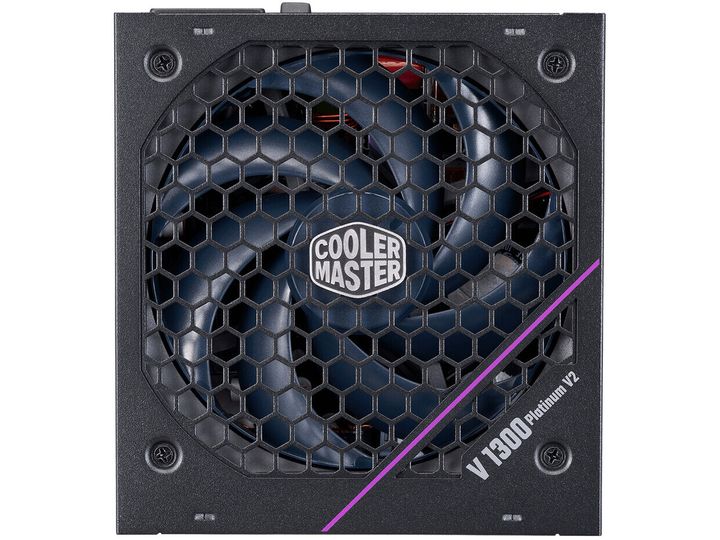

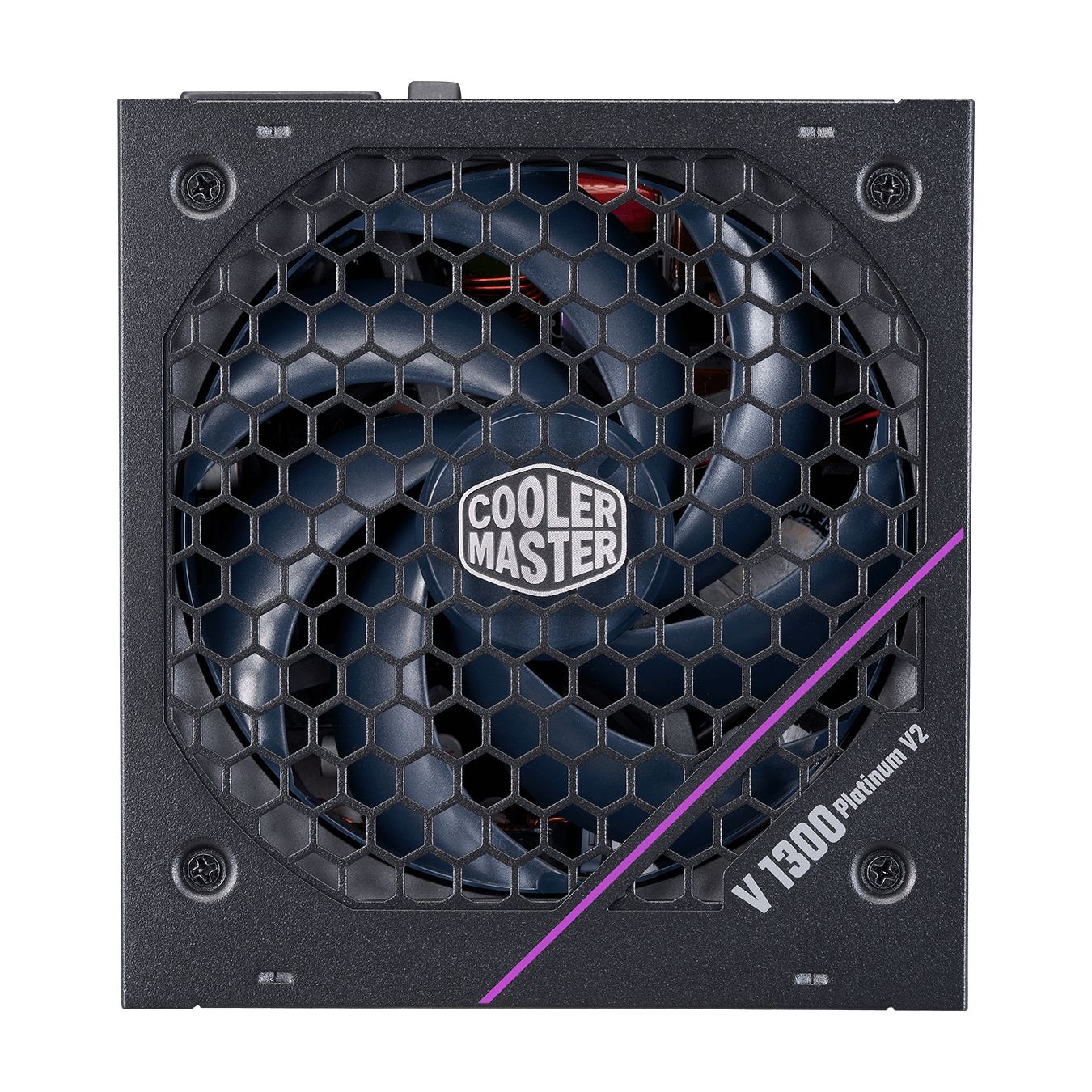

MOBIUS FAN ENHANCES THERMAL PERFORMANCE AND A LONGER LIFESPAN An ultra-quiet Mobius fan featuring high-performance oil reflow, an innovative ring blade design, and accelerated pressure air vents provides improved noise levels and advanced thermal performance.
OIL FLOWS BACK TO THE SEALED BEARING, ENSURING CONSTANT LUBRICATION. A loop dynamic bearing with a thick oil coating ensures stable performance, prolongs the fan's lifespan, and effectively reduces noise.
SILENT FAN PERFORMANCE WITH A ZERO SPEED MODE A quieter, speedier fan features lower noise level output and improved airflow thanks to a higher RPM.
*All performance stats confirmed in 25°C ambient temperature testing.

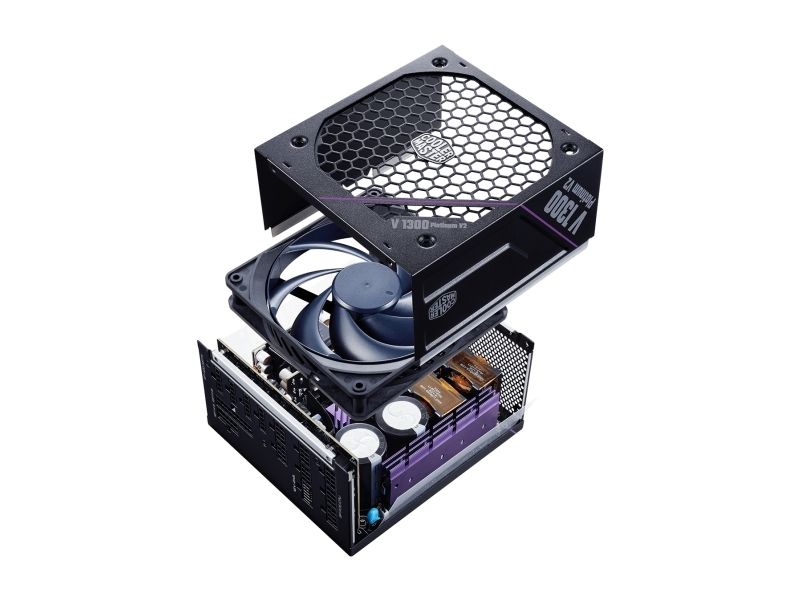

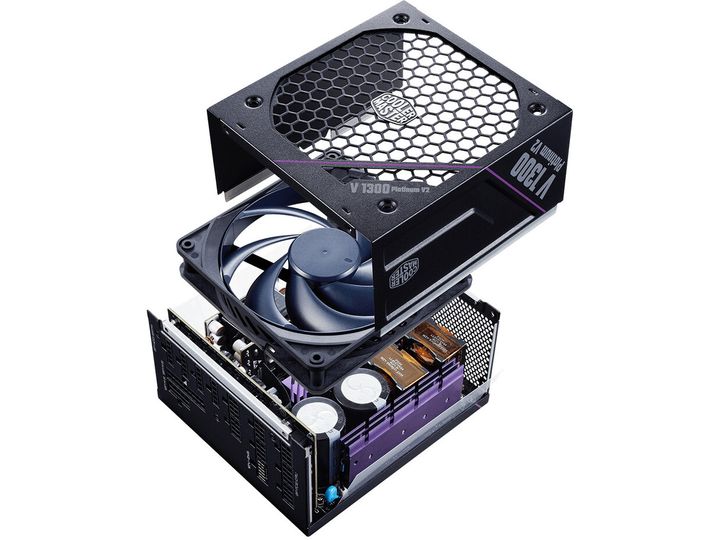

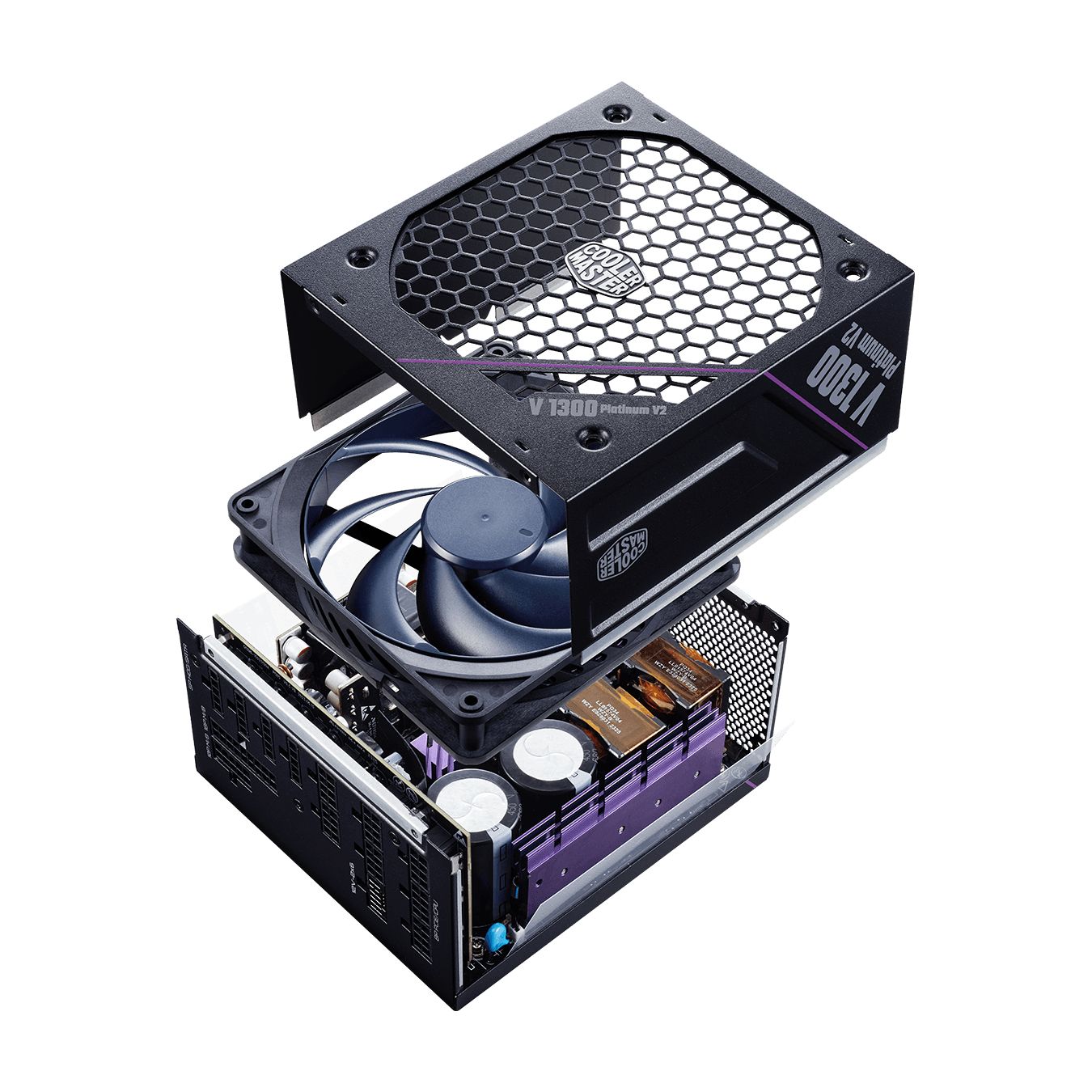

ADVANCED HEAT DISSIPATION Purple anodic-coated heat sink with bevel cut lowers average temperatures, compared to traditional heat sinks. Bevel cuts bring out the heat source more effectively, and after concentrating the flow field, benefiting the heat dissipation.
CERTIFIED EFFICIENCY An interleaved PFC decreases power loss and improves efficiency by inimizing current, reducing interference, and reducing output capacitor ripple current.

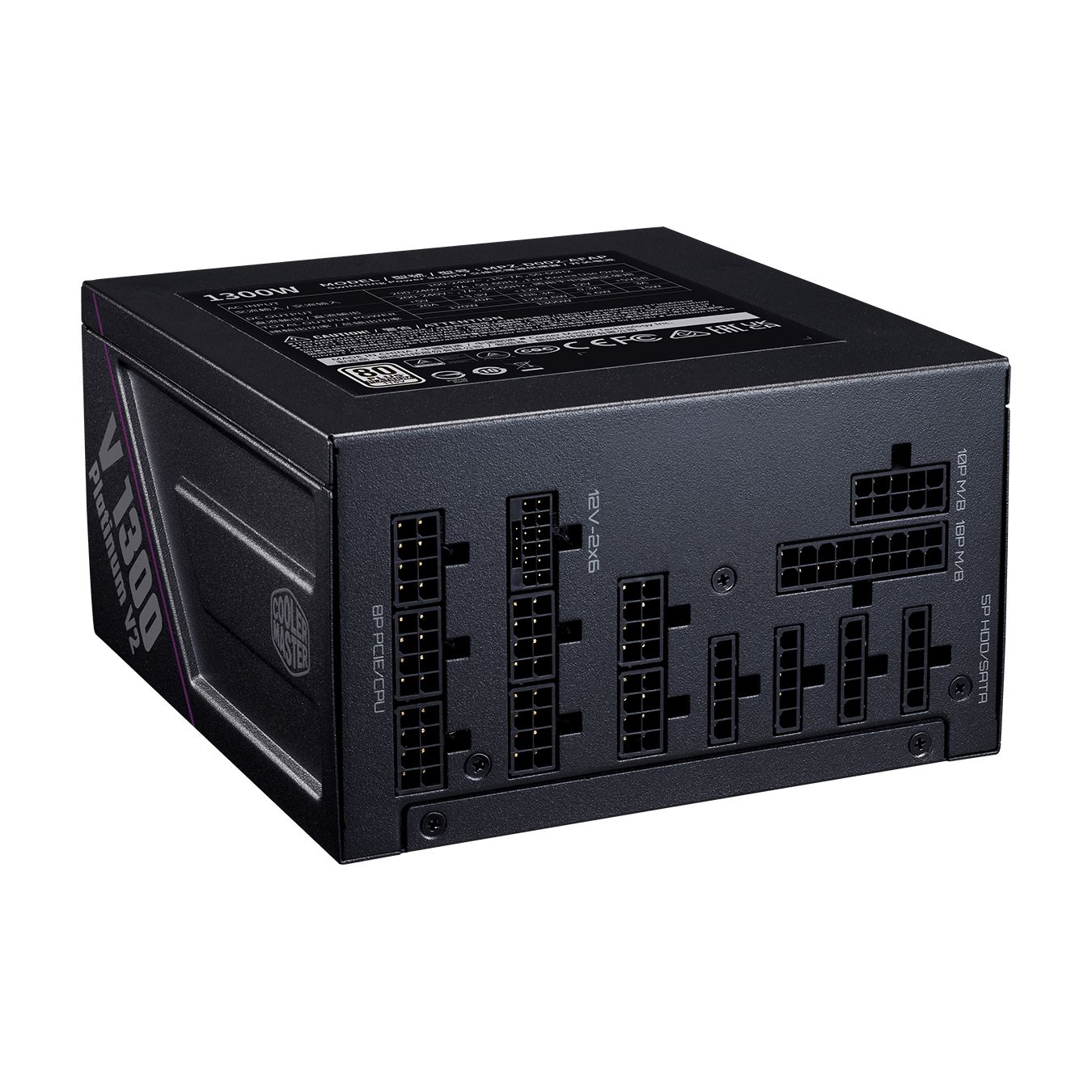

FULLY MODULAR CABLING A modular cable management design reduces clutter, increases airflow, and improves overall efficiency as well as thermal performance.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
80 PLUS certificering
80 PLUS Platinum
Vægt
3.66 kg
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1300 Watt
Output Current
+3.3V +5V +12V -12V - 0.3 A +5VSB - 3 A

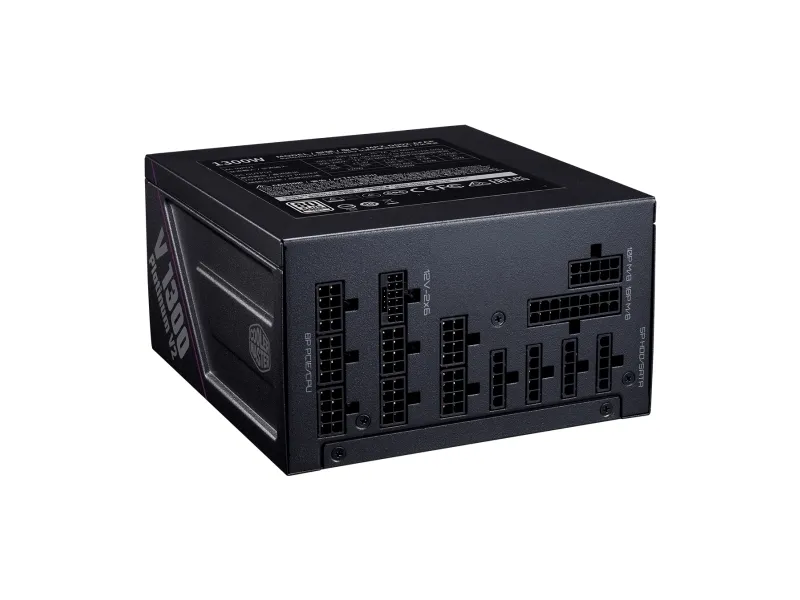

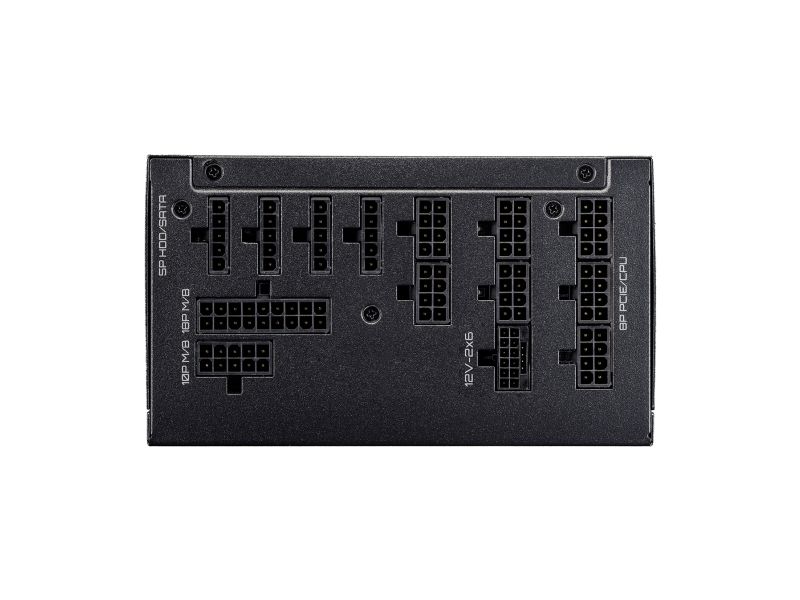

Output-stikforbindelser

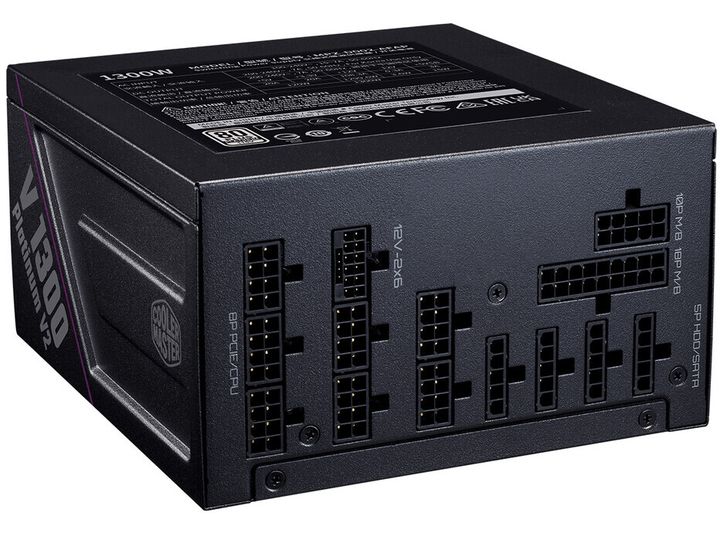

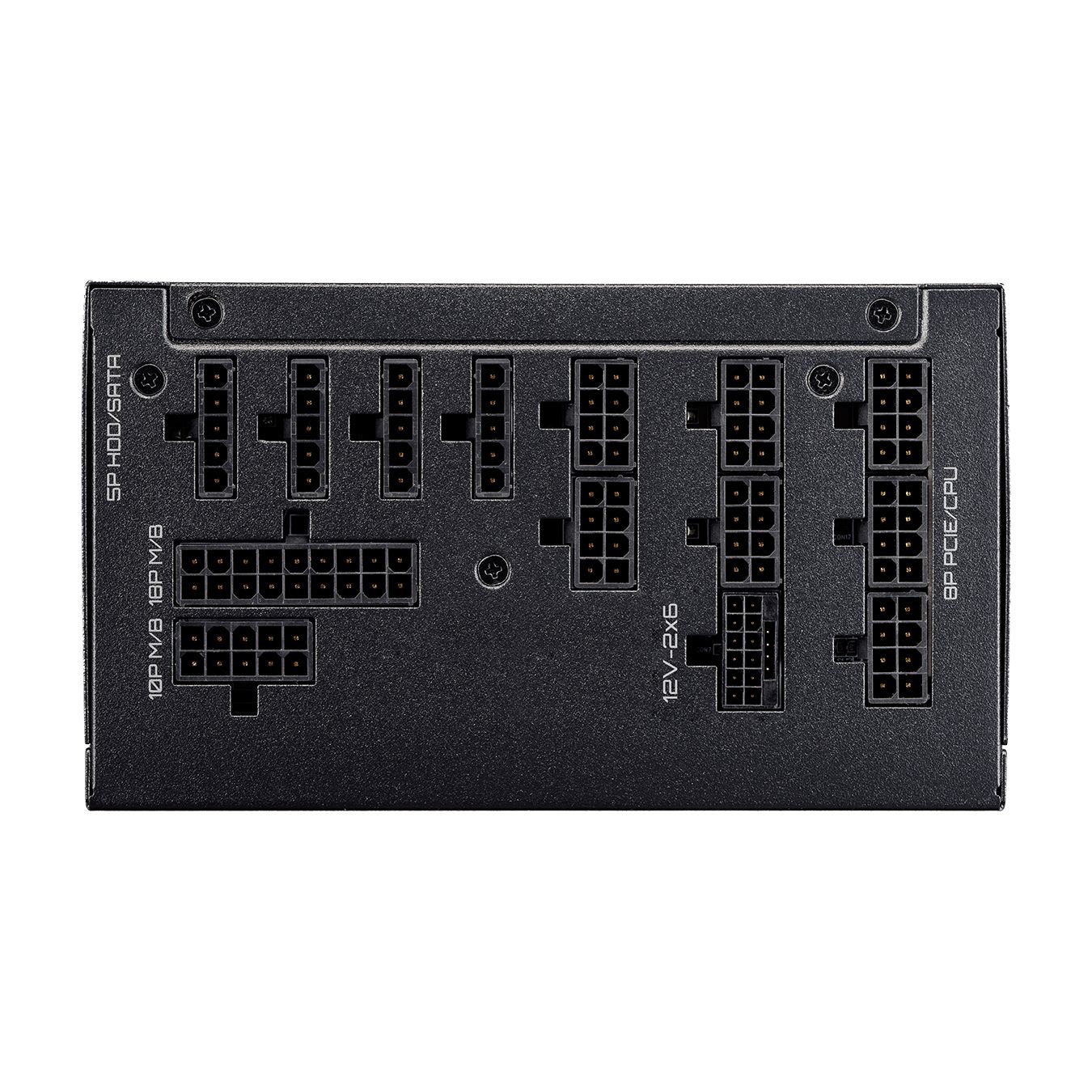

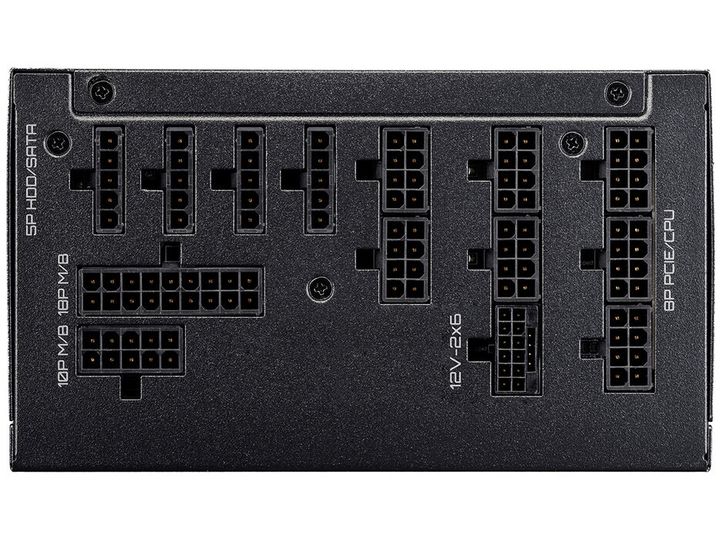

1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 5 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 16 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x strøm 8 pin EPS12 V 1 x 12VHPWR
Modulær Kabel Administration
Ja
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Producentgaranti
12 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 5 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 16 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x strøm 8 pin EPS12 V 1 x 12VHPWR
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1300 Watt
Output Current
+3.3V +5V +12V -12V - 0.3 A +5VSB - 3 A
Effektivitet
92%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Medfølgende ledninger

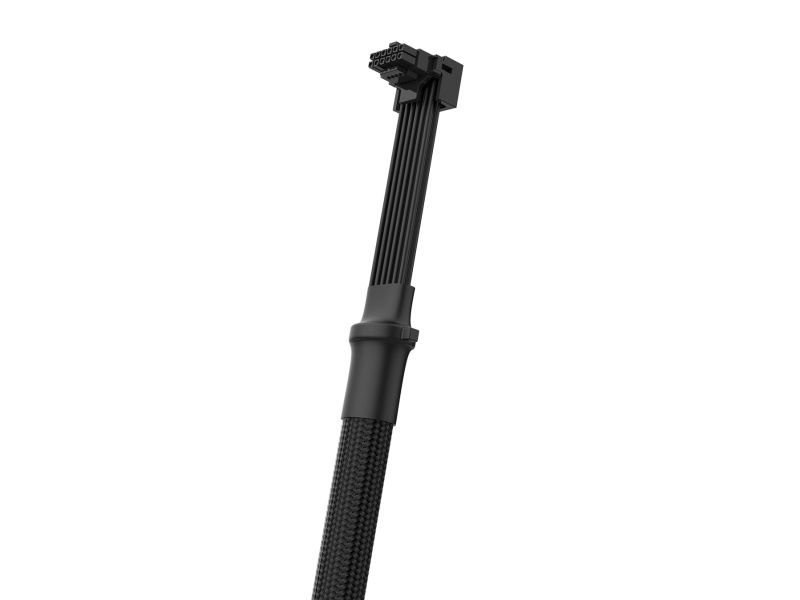

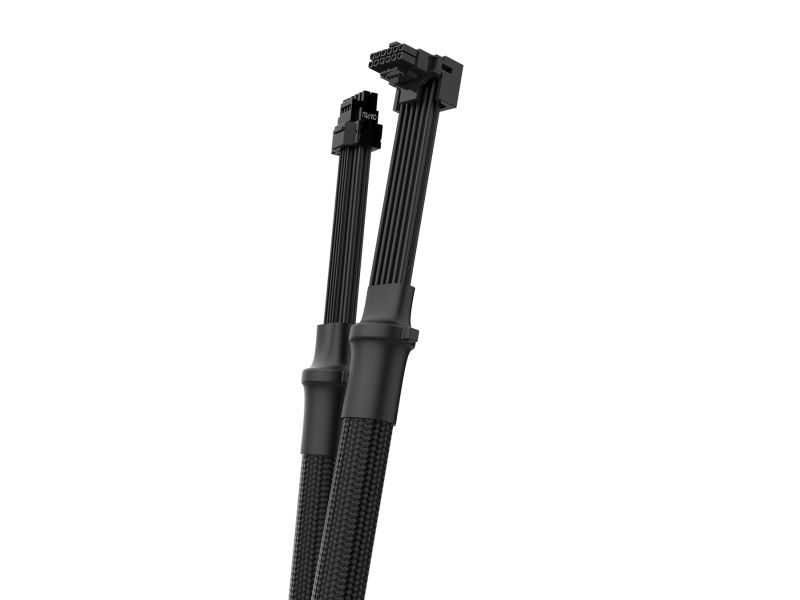

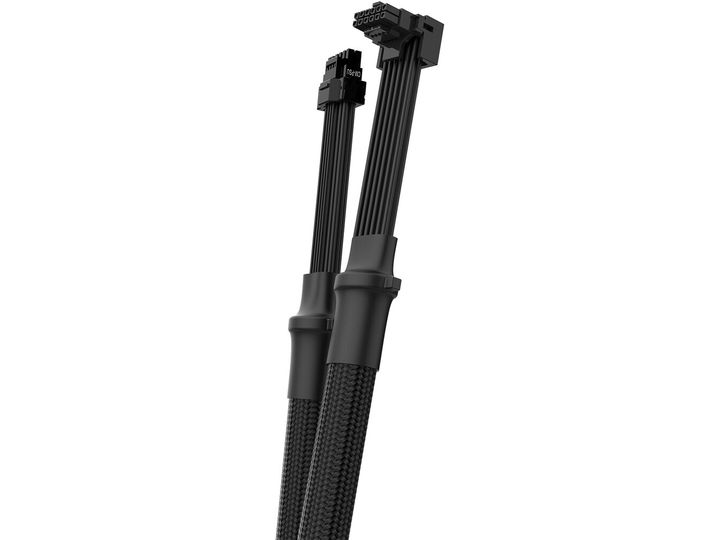

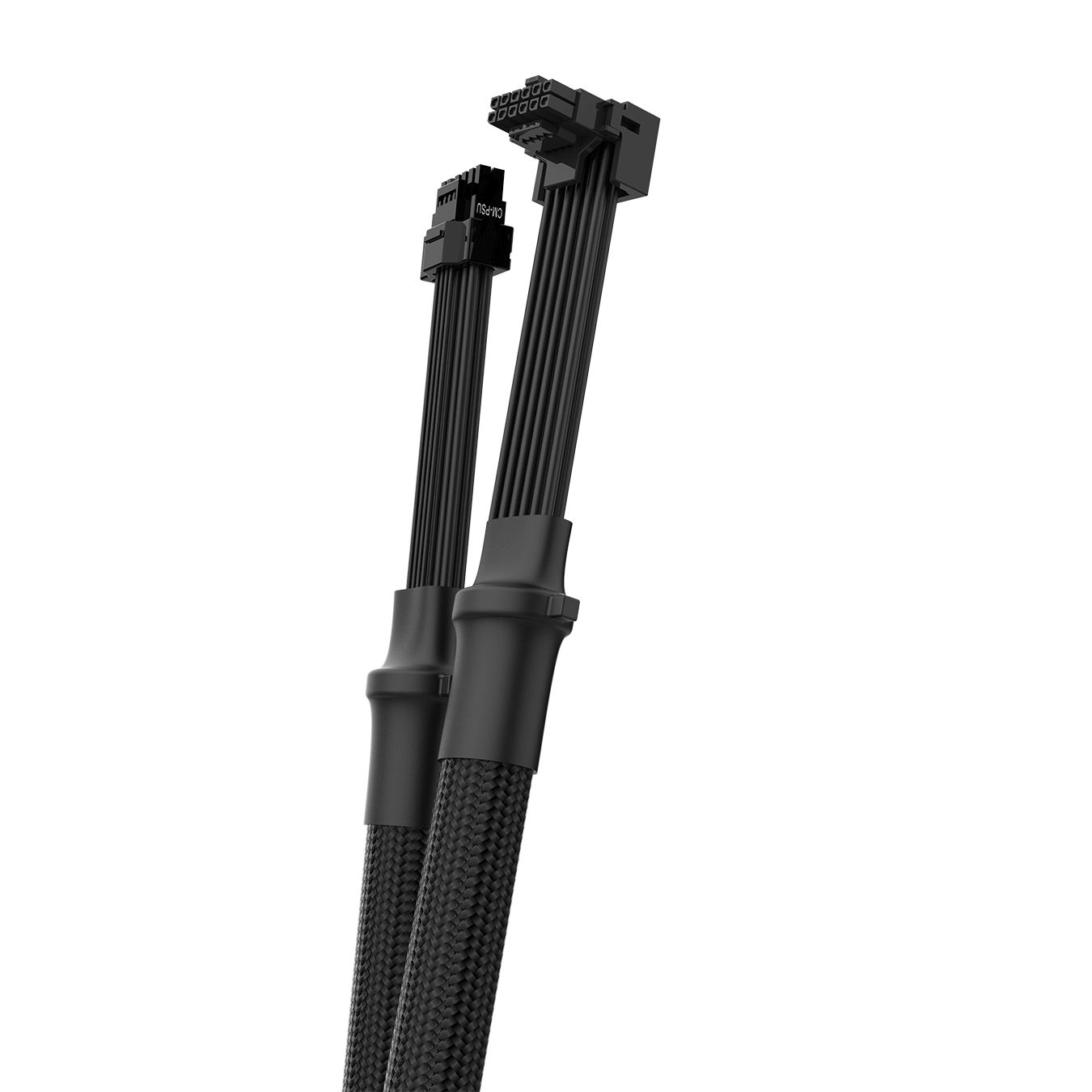

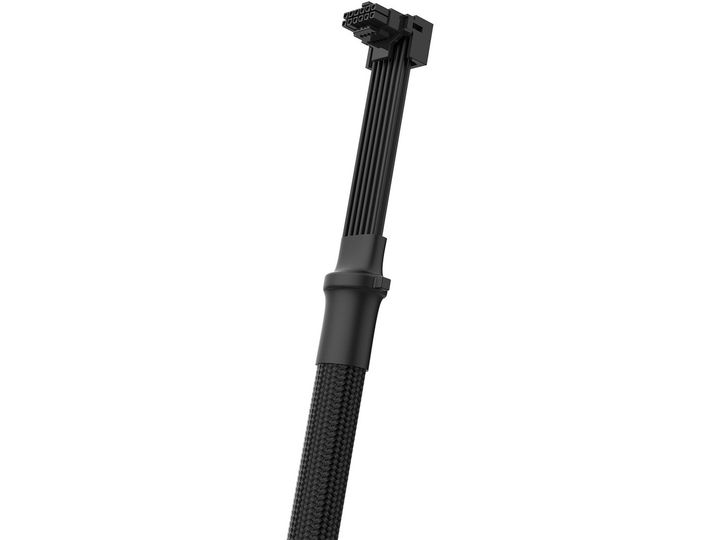

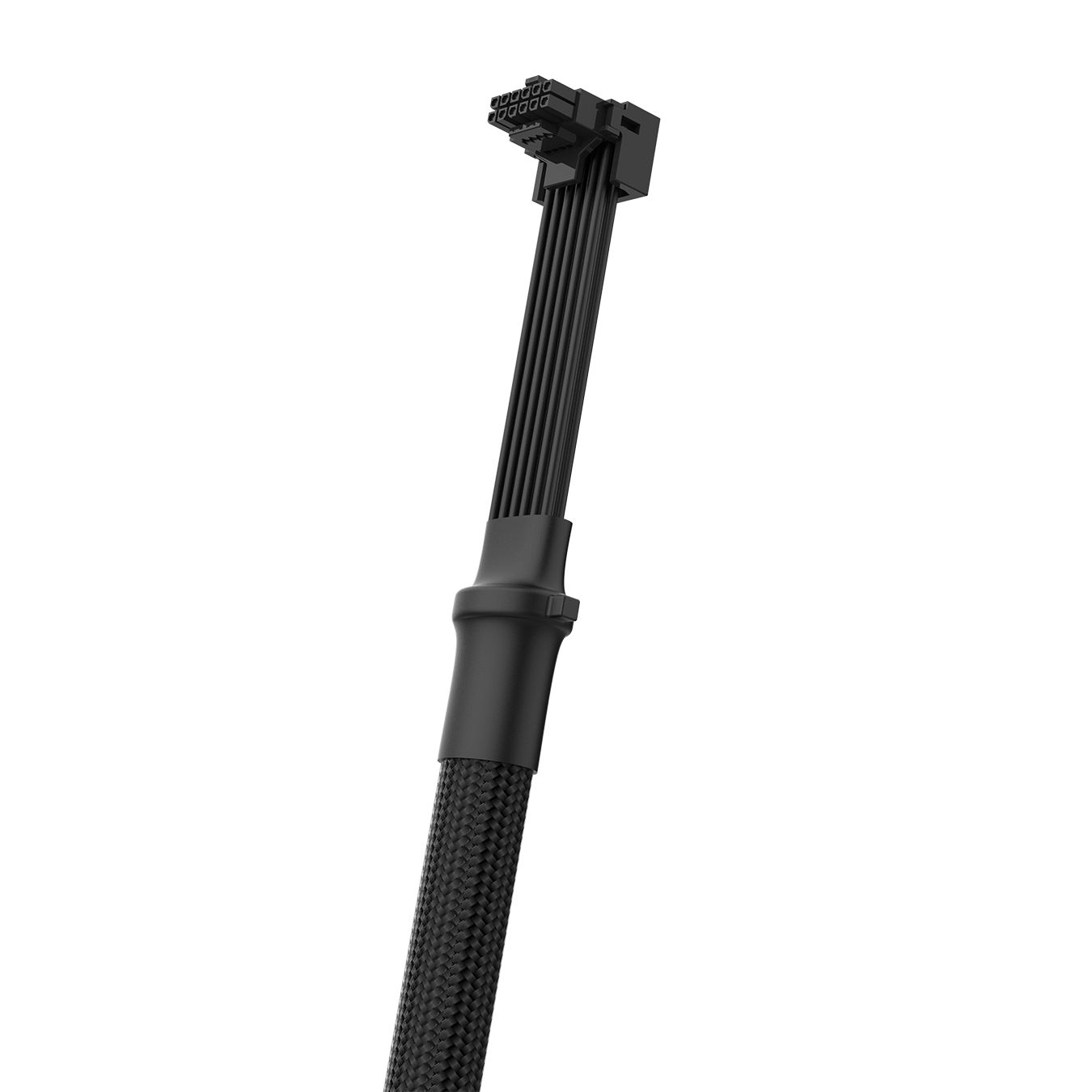

AC-strømkabel Strøm 24 pin ATX modulært kabel 65 cm Strøm 8 pin EPS12V med aftagelig 4 pin ATX12V sektion modulært kabel 65 cm Strøm 8 pin EPS12V modulært kabel 65 cm 4 x 15 pin Serial ATA strøm modulært kabel 86 cm 4 pin strøm modulært kabel 86 cm 5 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 55 cm 16-pin 12VHPWR til 2x8 pin PCI Express strøm modulær kabel 65 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, spændings- og tilstrømningsbeskyttelse, Zero RPM-blæsermodus, LDB-leje køleblæser, fuld modulær, conformal coated
