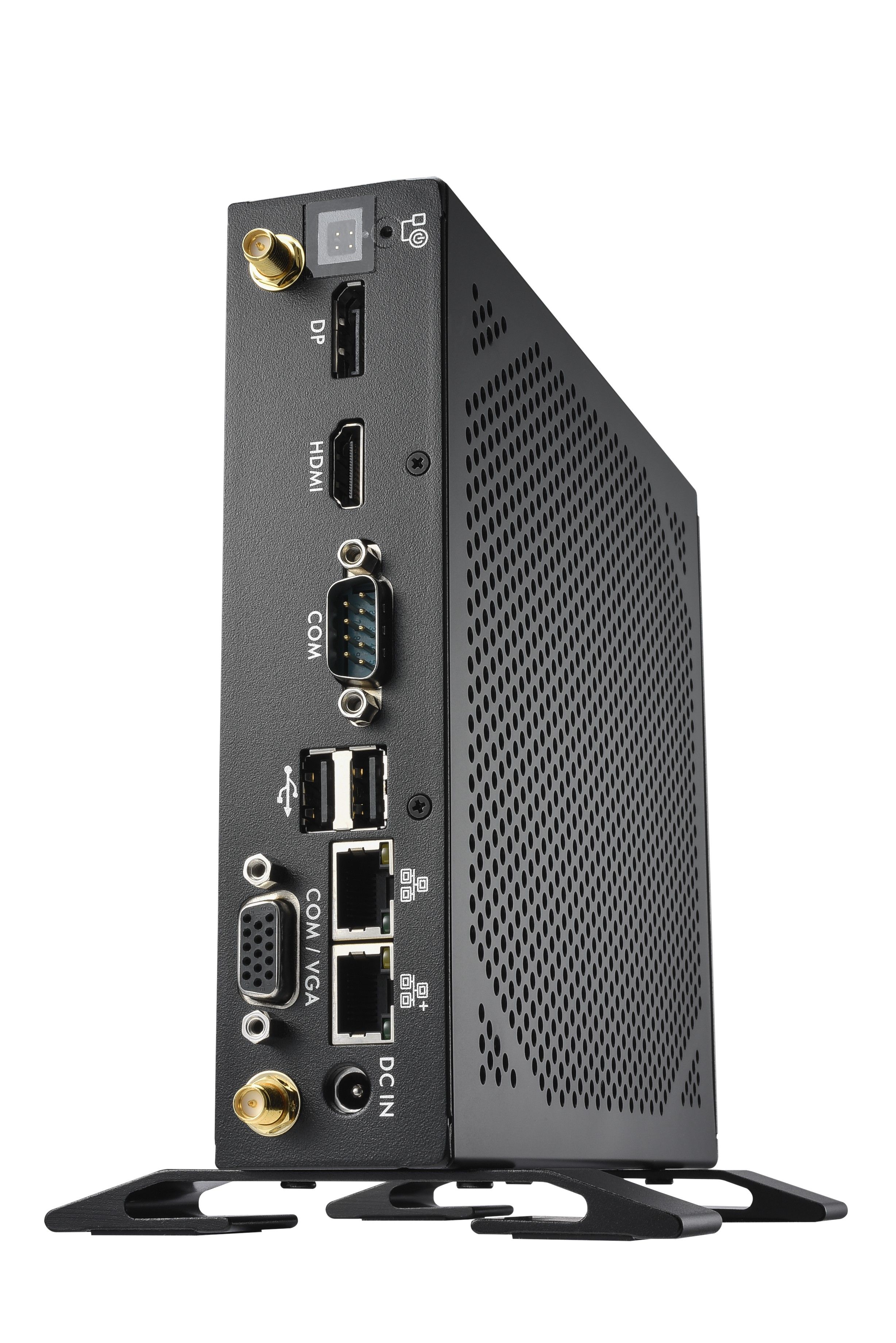

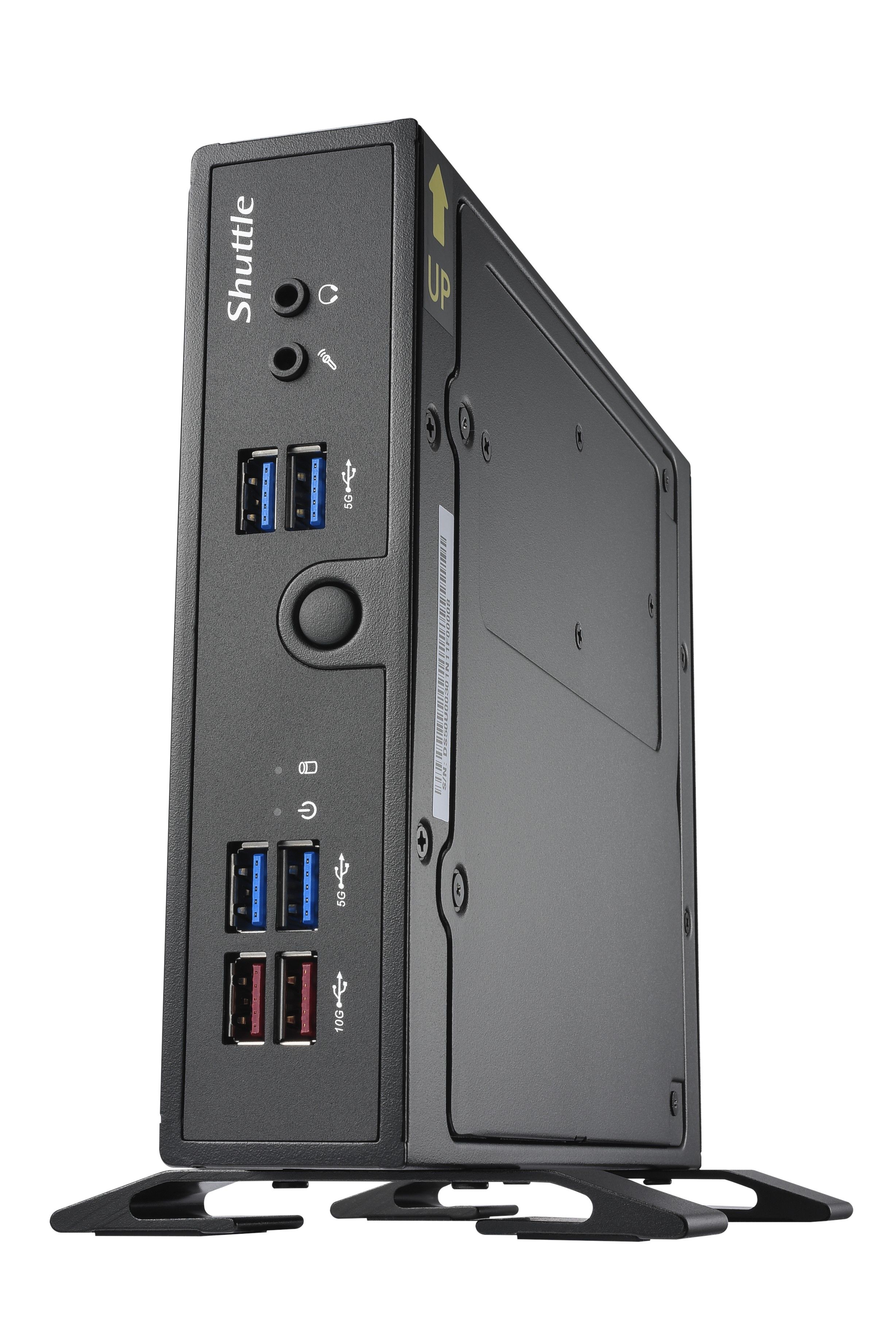

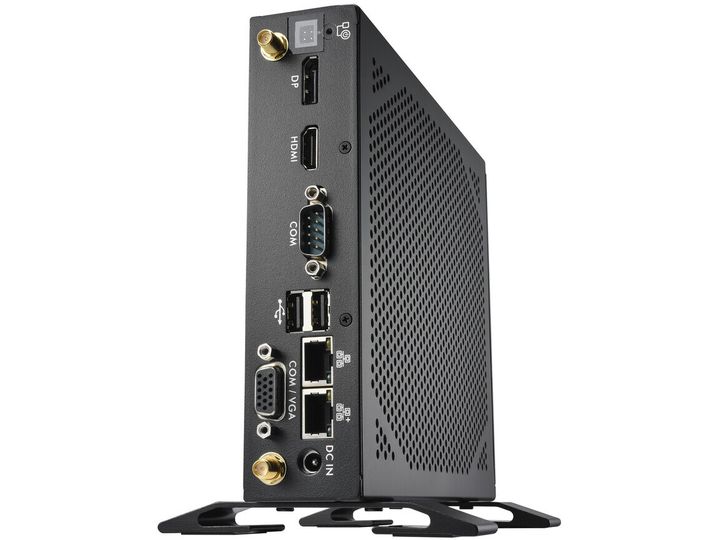

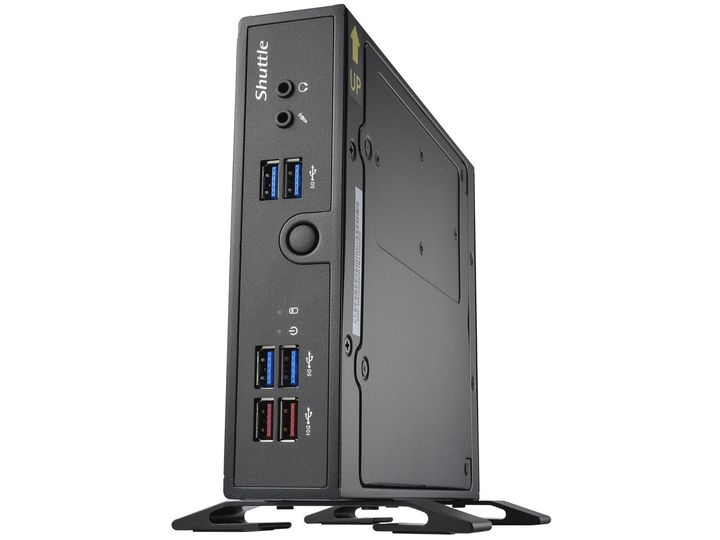

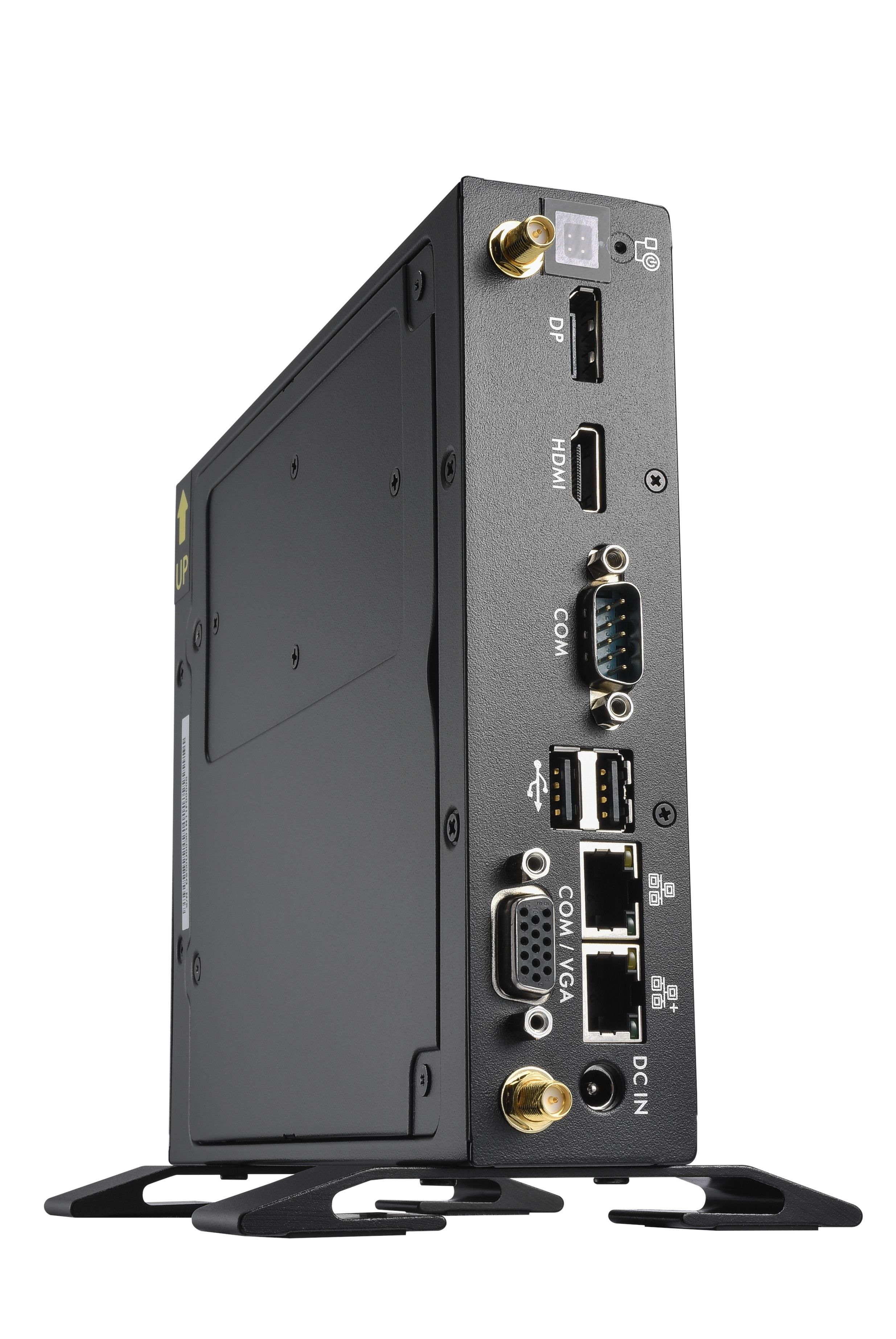

Shuttle XPC slim Barebone DS50U7, i7-1355U, 2x LAN (1x 2.5Gbit ,1x 1Gbit), 1xCOM,1xHDMI,1xDP, 1x VGA, fanless, 24/7 permanent operation, 1.3L sized PC, Mini PC barebone, DDR5-SDRAM, PCI Express, Serial ATA III, Ethernet LAN, 90 W
Item no.: [20694769] | Manufacturer: Shuttle Computer Group | Model no.: DS50U7 | EAN: 0887993006178
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
743,09
Incl. VAT 928,86
Total incl. delivery
943,86
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

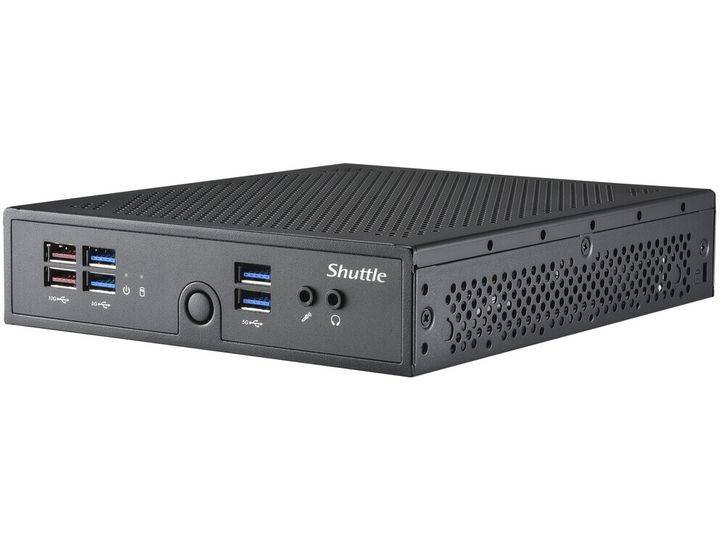

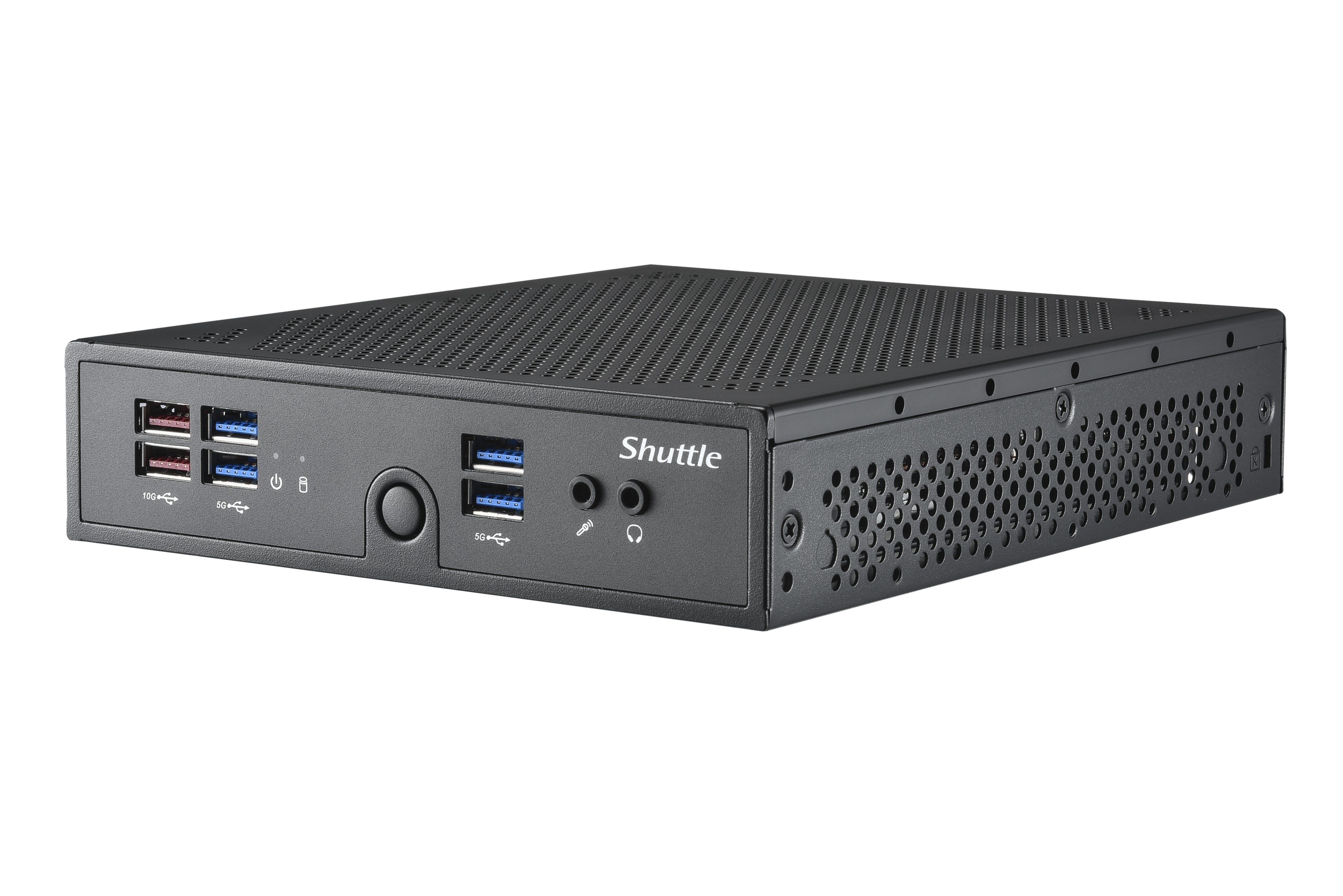

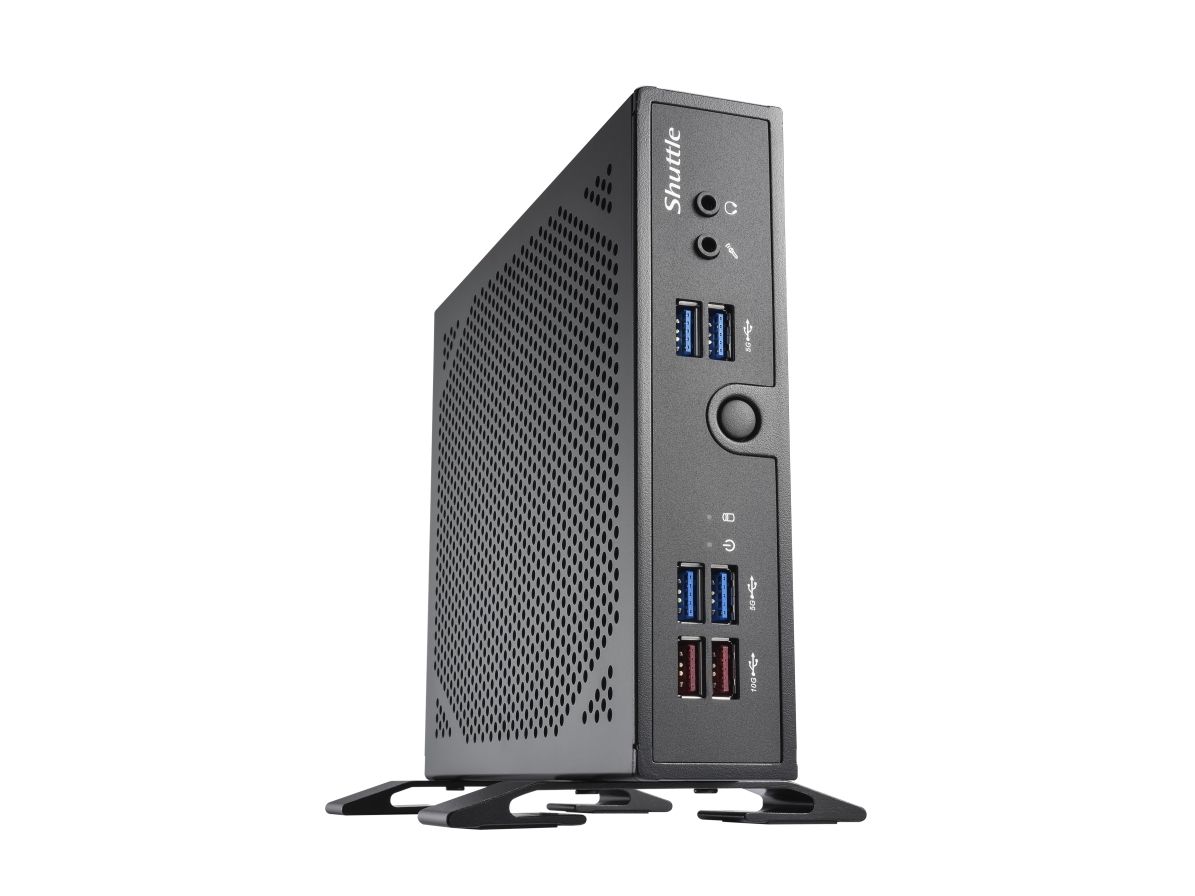

The Shuttle XPC slim DS50U7 redefines efficiency and compactness in the realm of desktops and servers. Designed to fit into the smallest of spaces, this ultra small form factor PC does not skimp on power or performance. At its heart lies a 10-core Intel Core i7 processor, complemented by Intel Iris Xe Graphics, making it capable of handling demanding applications and multitasking with ease.
Despite its compact size, the DS50U7 offers a wide range of connectivity options, including multiple USB ports, dual Ethernet ports, and a variety of video interfaces, ensuring that you stay connected to all your essential devices. Furthermore, its expandability through M.2 card slots and an internal bay, alongside robust security features, makes it a reliable choice for both business and personal use. Whether you're looking to maximize your workspace efficiency or need a powerful solution for home entertainment, the Shuttle XPC slim DS50U7 is designed to meet your needs.
Ikke bufferet, dobbelt kanal hukommelses arkitektur
Harddisk
Type
Ingen HDD
Controller for lagring
Type
1 x SATA
Optisk lagring
Type
Intet optisk drev
Monitor
Monitortype
Ingen.
Grafik controller
Grafik-processor
Intel Iris Xe Graphics
Video-interfaces
VGA, HDMI, DisplayPort
Maks. antal understøttede monitorer
3
Lydudgang
Overensstemmelsesstandarder
High Definition Audio
Netværk
Ethernet Ports
1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet
Dataforbindelsesprotokol
Ethernet, Gigabit Ethernet, Fast Ethernet
Ekspansion / Konnektivitet
Båse
1 (total) / 1 (fri) x intern 2.5"
Holdere

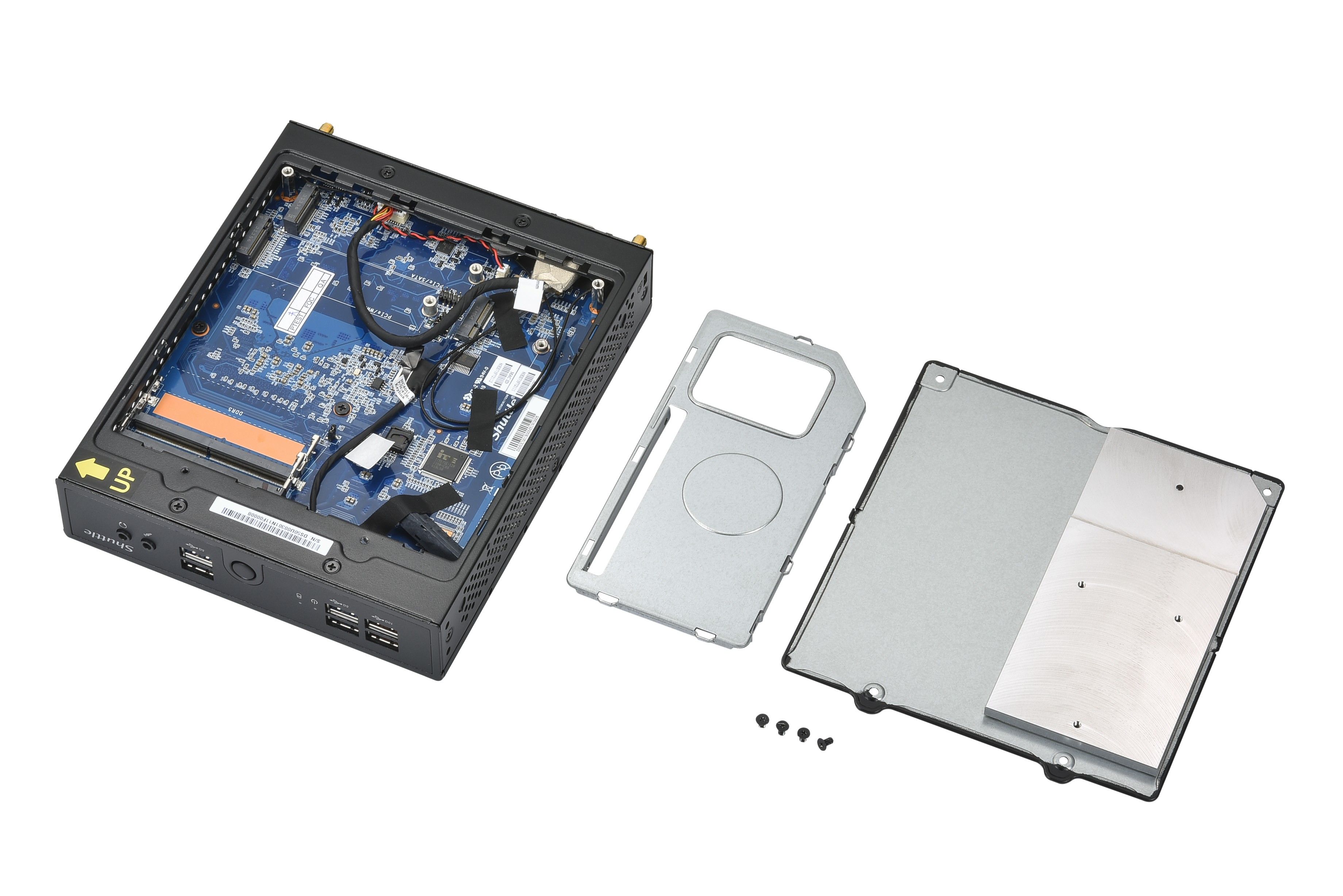

2 (total) / 2 (fri) x M.2 Card 1 (total) / 1 (fri) x M.2 Card (til trådløst modul)
Interface

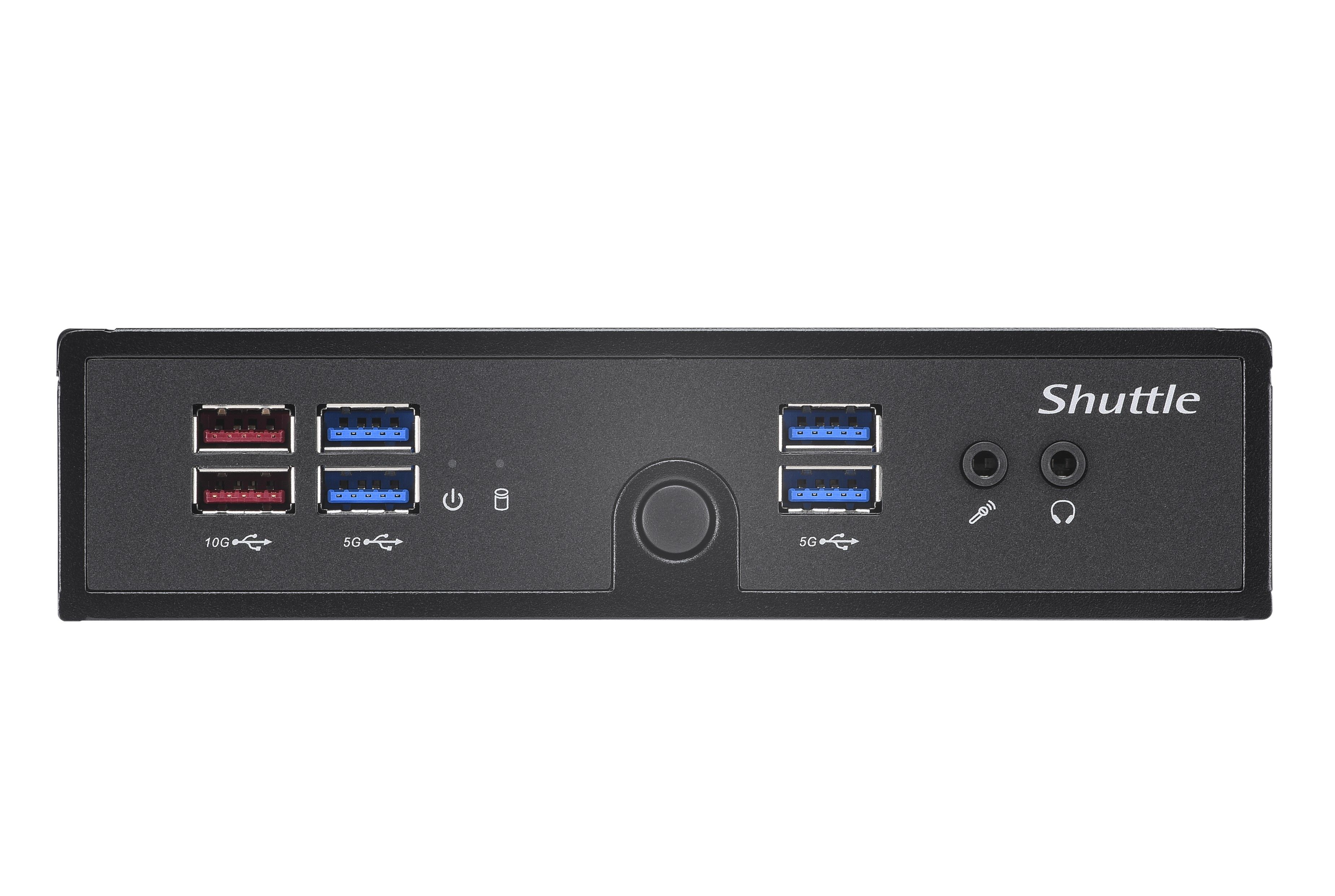

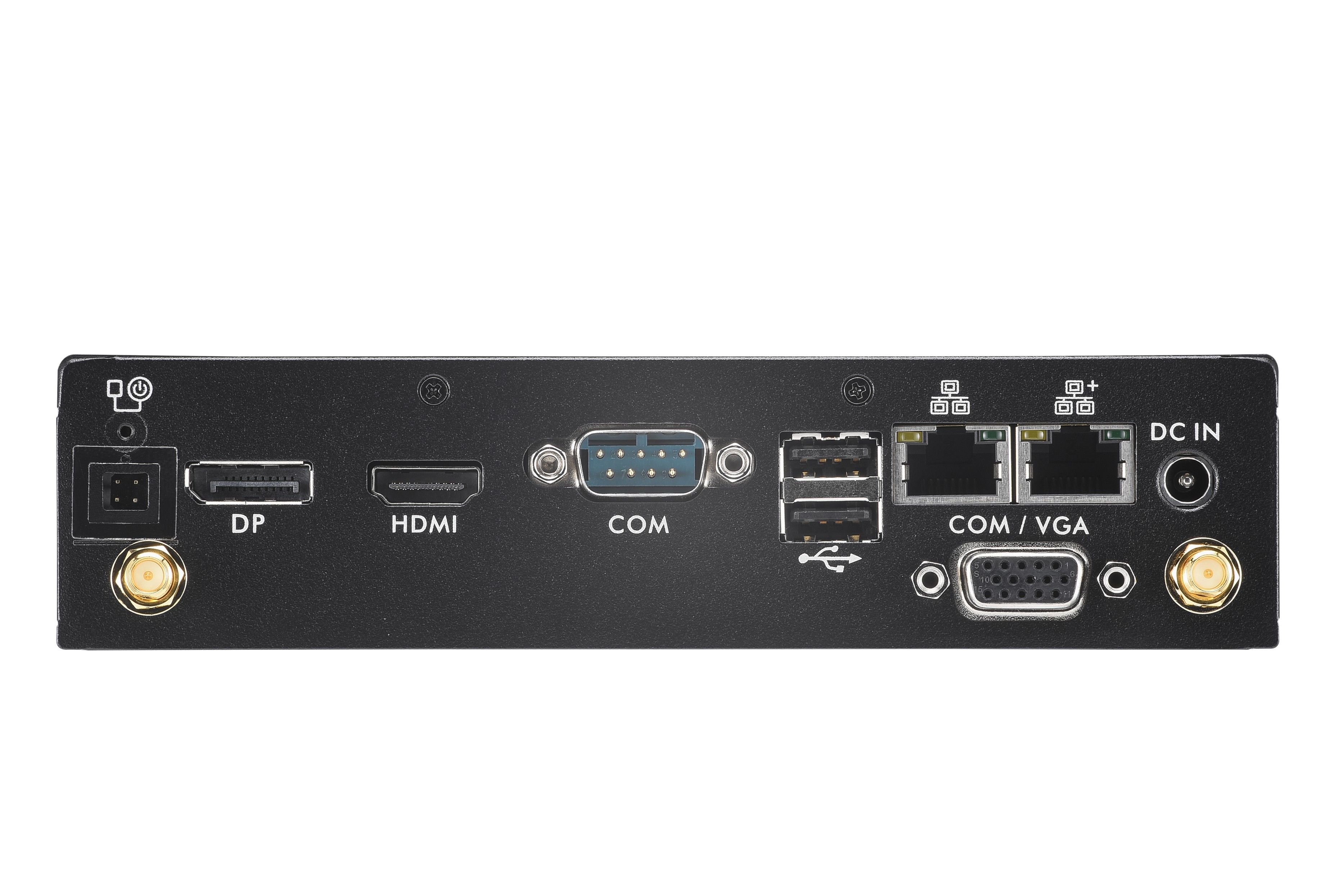

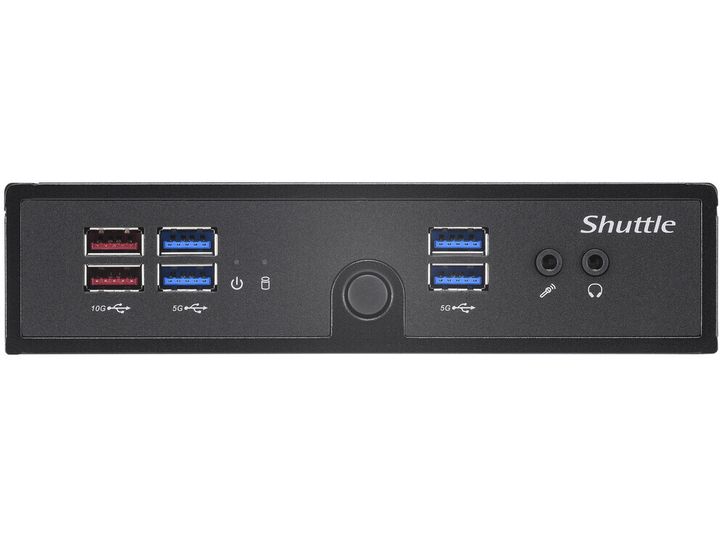

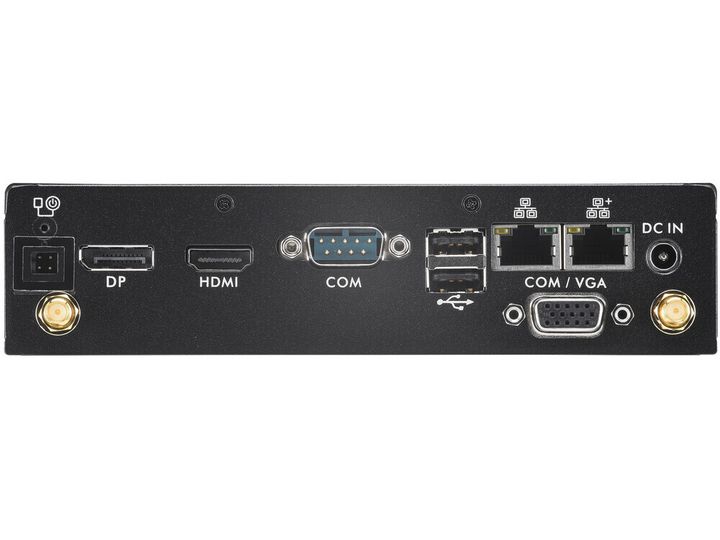

1 x mikrofon - mini-jack 1 x audio linje-ud/hovedtelefoner - mini-jack 1 x DisplayPort 1 x HDMI 1 x VGA 2 x USB 3.1 Gen 2 4 x USB 3.1 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x LAN (2.5Gigabit Ethernet) 1 x seriel
Diverse
Udstyr inkluderet
VESA monteringssæt, skruesæt
Tyveri/Indtrængningsbeskyttelse
Sikkerhedslåseåbning (kabellåse solgt separat)
Sikkerhedsåbningstype
Kensington-sikkerhedsåbning

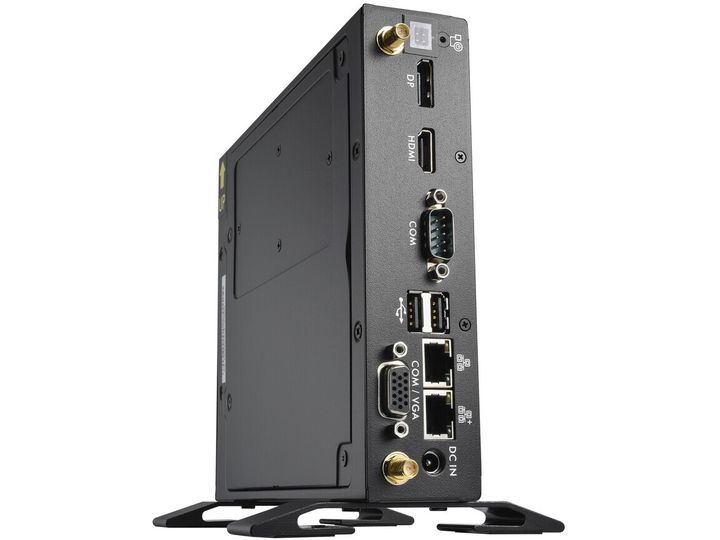

VESA-monteringsinterface
100 x 100 mm, 75 x 75 mm
Overensstemmelsesstandarder
BSMI, FCC, RCM, VCCI, RoHS
Effekt
Enhedstype
Strømforsyningsadapter
Nødvendig spænding
AC 100-240 V (50/60 Hz)
Strømforsyning
90 watt
Operativsystem / Programmer
Med OS
Intet operativt system
Mål og vægt
Bredde
20 cm
Dybde
16.5 cm
Højde
3.95 cm
Vægt
1.6 kg
Mål & vægt (forsendelse)
Vægt ved forsendelse
2.3 kg
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
10 - 90 % (ikke-kondenserende)
