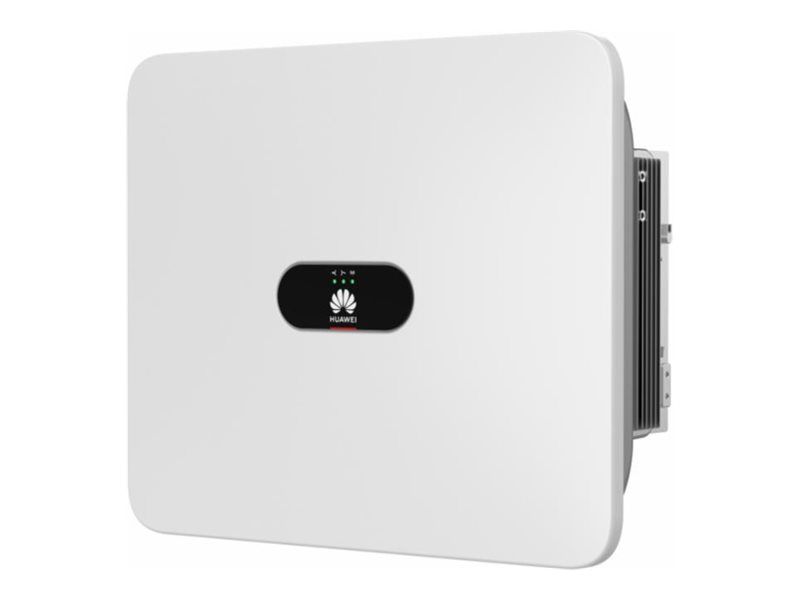

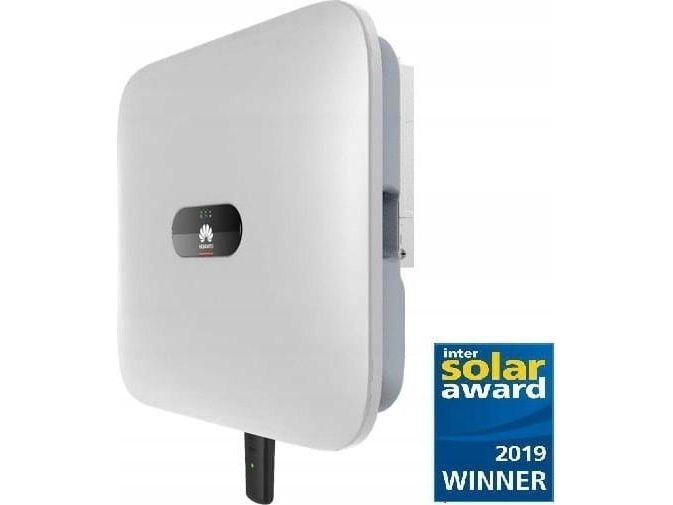

The Huawei SUN2000-17KTL-M5 is a robust DC to AC power inverter designed for a wide range of operational environments. It operates effectively in temperatures as low as -25°C and up to 60°C, making it suitable for various climates. With an efficiency rating of 98.4%, it converts DC power to AC, ensuring performance in energy management. This inverter also features protective mechanisms such as short-circuit protection, overcurrent protection, and anti-islanding protection, providing peace of mind and reliability for users.
Equipped with two MPP trackers, the inverter maximizes energy harvest from solar panels, boosting efficiency further. The external form factor and 17,000 watts power provision make it a solution for residential, commercial, and industrial applications. Noise-free air cooling technology enhances its performance and sustainability, ensuring long-term functioning without disturbing the surroundings. With multiple compliance standards, including IP66 and EN/IEC 62109, users can trust in its durability and safety across various installations.
Produktbeskrivelse
Huawei SUN2000-17KTL-M5 - DC til AC inverter - 17000 Watt - 18700 VA
Enhedstype
DC til AC inverter - ekstern
Vægt
21 kg
Indgangskabler
Tre faser
Udgangspænding
AC 220/230/239.6/380/400/415 V
Strømkapacitet
17000 Watt / 18700 VA
Input-stik
4
Output-stikforbindelser
Power 3-pole + N + PE
Netværk
RS-485
Dimensioner (B x D x H)
54.6 cm x 22.8 cm x 46 cm
Generelt
Enhedstype
DC til AC inverter - ekstern
Strømenhed
Med frekvens
50/60 Hz
Indgangskabler
Tre faser
Input-stik
4
Detaljer om strømudgangskonnektorer
Power 3-pole + N + PE
Udgangspænding
AC 220/230/239.6/380/400/415 V 50/60 Hz
Max. elektrisk strøm
28.6 A
Strømkapacitet
17000 Watt / 18700 VA
Overspændingsafledning
Ja
Effektivitet
98.4%
Strømfaktor (PF)
0.8
Netværk
Grænseflade til fjernstyring
RS-485
Ekspansion / Konnektivitet
Interface
1 x administration (RS-485)
Diverse
Egenskaber
200 V min. opstartsspænding, 600 V maks. inputspænding, luftkøling, 2 MPP trackers, kortslutnings beskyttelse, overspændingsbeskyttelse, anti-islanding-beskyttelse, beskyttelse mod overstrøm, omvendt polaritetsbeskyttelse, strengfejldetektion, reststrømsovervågning, buefejlbeskyttelse, krusekontrol, integreret PID-gendannelse
Overensstemmelsesstandarder
IP66, EN/IEC 62109-1, EN/IEC 62109-2, G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, C10/11, ABNT, VFR 2019, UNE 217001, UNE 217002, RD 244, TOR D4, IEC 61727, IEC 62116
Miljømæssige parametre
Min. driftstemperatur
-25 °C
Maks. driftstemperatur
60 °C
Fugtighedsgrad ved brug
0 - 100% RH
Mål og vægt
Bredde
54.6 cm
Dybde
22.8 cm
Højde
46 cm
Vægt
21 kg
