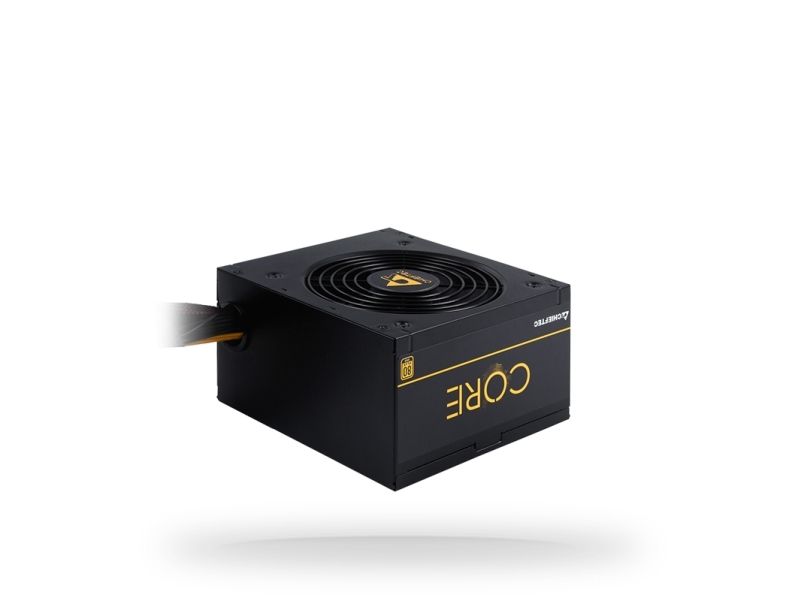

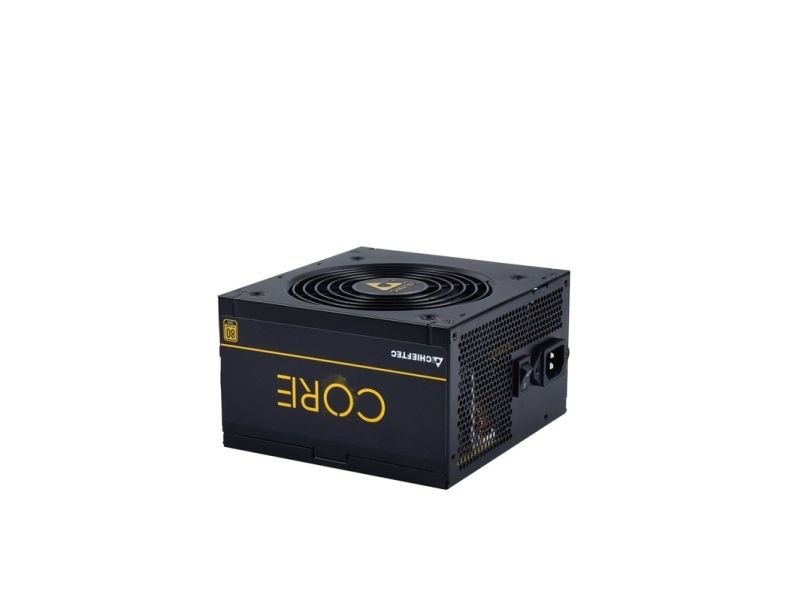

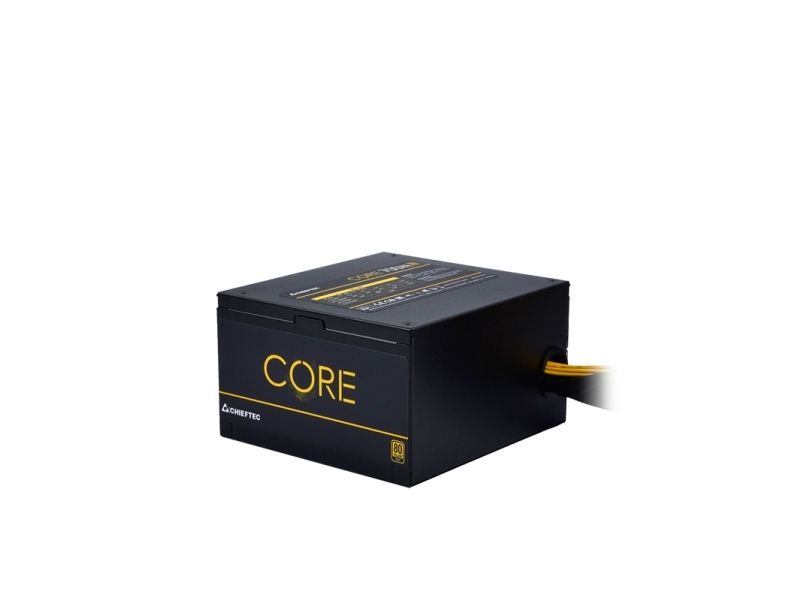

Chieftec Core BBS-700S, 700 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 3.6 W

Item no.: [20763457] | Manufacturer: Chieftec | Model no.: CKBBS-700S | EAN: 0753263076144

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 1 in stock

The current price is valid as long as the local stock lasts

EUR 80,54

ex. VAT 64,43

Total incl. delivery 95,54

Read further specifications and description

With the Core Series, Chieftec has brought an 80 PLUS Gold certified PSU to market, offering the best possible value for money. The goal of the Core Series power-supplies is to deliver a no-nonsense package of performance, efficiency and reliability. This product is ideal for customers who want top-tier power output at the most attractive price.

Produktbeskrivelse	Chieftec Core Series BBS-700S - strømforsyning - 700 watt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.3/ EPS12V/ PS/2
80 PLUS certificering	80 PLUS Gold
Vægt	1.72 kg
Indgangspænding	AC 100-240 V
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	700 watt
Output Current	+5V - 22 A +3.3V - 22 A +12V - 58 A +5VSB - 2.5 A -12V - 0.3 A
Output-stikforbindelser	1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 3 x 4-PIN intern strøm 6 x 15 pin Serial ATA strøm 1 x 4-PIN mini-strømforsyningsforbinder
Kølesystem	120 mm ventilator
Dimensioner (B x D x H)	15 cm x 14 cm x 8.6 cm
Producentgaranti	2 års garanti

Generelt
Enhedstype	Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse	ATX12V 2.3/ EPS12V/ PS/2
PSU formfaktor	ATX
Strømenhed
Indgangspænding	AC 100-240 V
Nødvendig frekvens	47 - 63 Hz
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 3 x 4-PIN intern strøm 6 x 15 pin Serial ATA strøm 1 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	700 watt
Output Current	+5V - 22 A +3.3V - 22 A +12V - 58 A +5VSB - 2.5 A -12V - 0.3 A
Strømfaktor (PF)	0.9
80 PLUS certificering	80 PLUS Gold
Diverse
Kølesystem	120 mm ventilator
Egenskaber	Ikke-modulær, overspændingsbeskyttelse, kortslutnings beskyttelse, overbelastningsbeskyttelse
Overensstemmelsesstandarder	RoHS, CB, EAC, TUV Rheinland, ErP Ready
Producentgaranti
Service & Support	Begrænset garanti - 2 år
Mål og vægt
Bredde	15 cm
Dybde	14 cm
Højde	8.6 cm
Vægt	1.72 kg
Mål & vægt (forsendelse)
Vægt ved forsendelse	2.13 kg

The item is known under the following item numbers in our system

EAN:	0753263076144
UPC:	753263076144
SKU:	CKBBS-700S

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
