The item is in a remote warehouse, delivery time is 3-5 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
60,26
Incl. VAT 75,33
Total incl. delivery
90,33
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

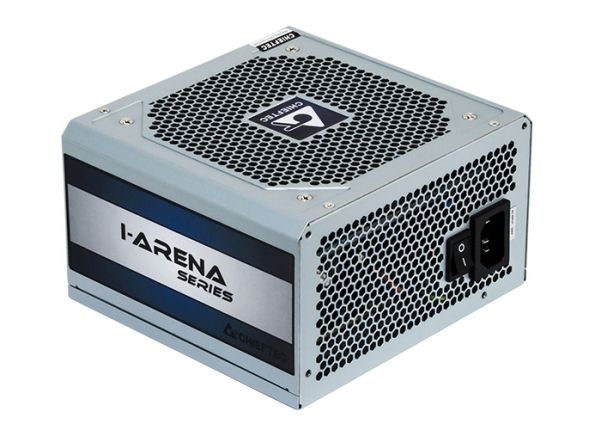

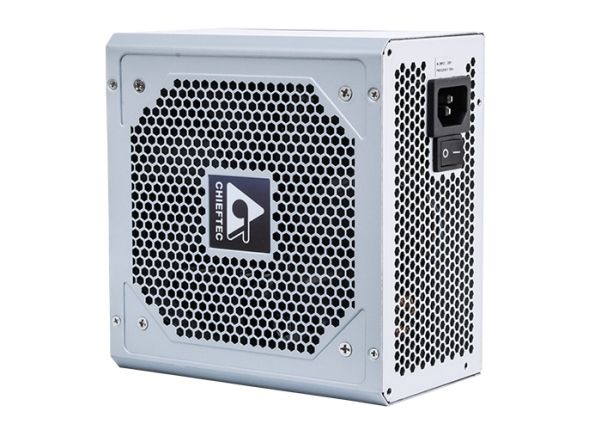

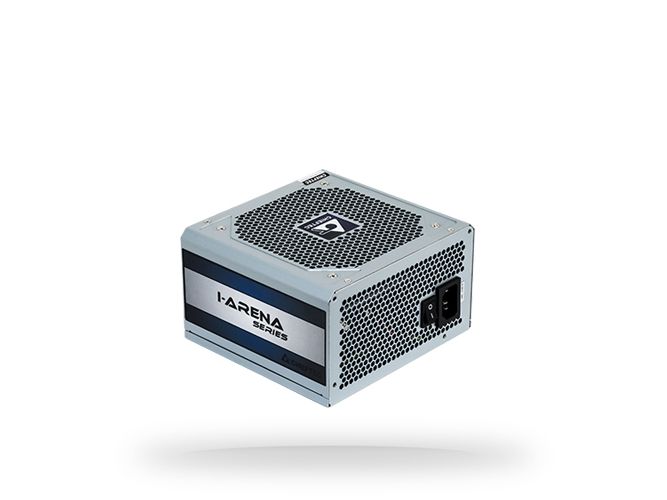

Chieftec GPC-600S. Total power: 600 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 87 mm
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ PS/2
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 watt
Output Current
+5V - 22 A +3.3V - 22 A +12V1 - 45 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX 1 x effekt ATX12V 4-pin stik 6 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Kølesystem
120 mm ventilator
Farve
Sølv
Dimensioner (B x D x H)
15 cm x 14 cm x 8.7 cm
Producentgaranti
2 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ PS/2
PSU formfaktor
ATX
Farve
Sølv
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 1 x effekt ATX12V 4-pin stik 6 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 watt
Output Current
+5V - 22 A +3.3V - 22 A +12V1 - 45 A -12V - 0.3 A +5VSB - 2.5 A
Strømfaktor (PF)
0.9
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, blæserhastighedsstyring
Overensstemmelsesstandarder
TUV, CB, RoHS, ERP
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.7 cm
The item is known under the following item numbers in our system
EAN:
4710713234154
SKU:
GPC-600S
SKU:
CKGPC-600S
Why do I find that the same product is available on different item numbers?
Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries.
We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
