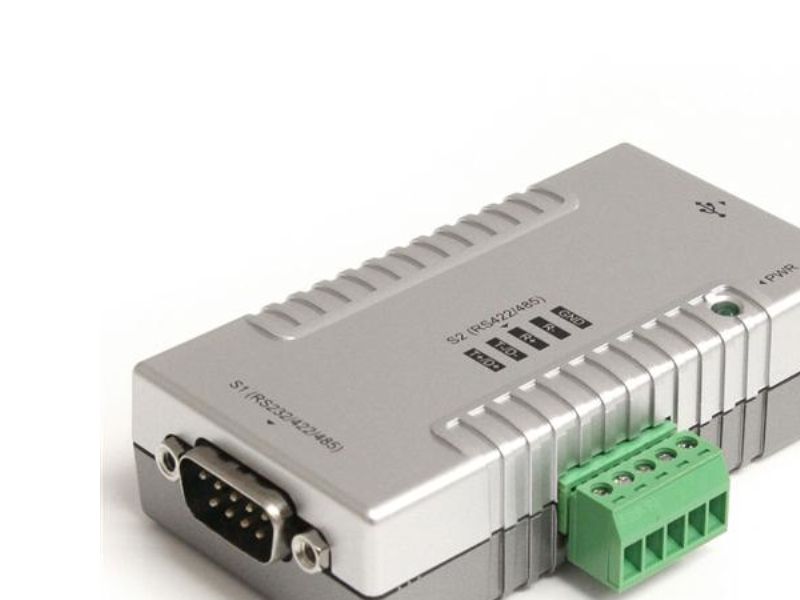

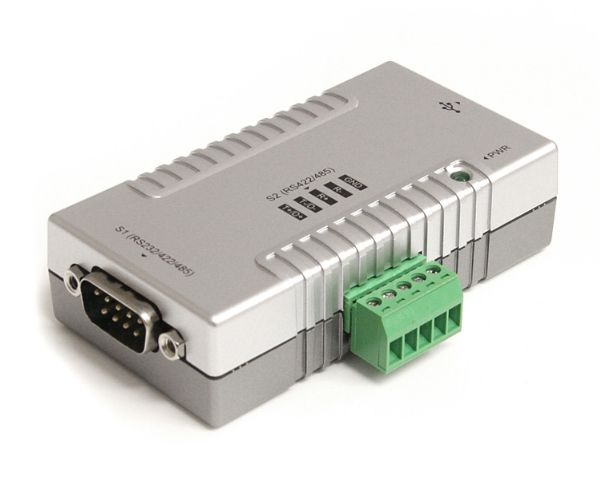

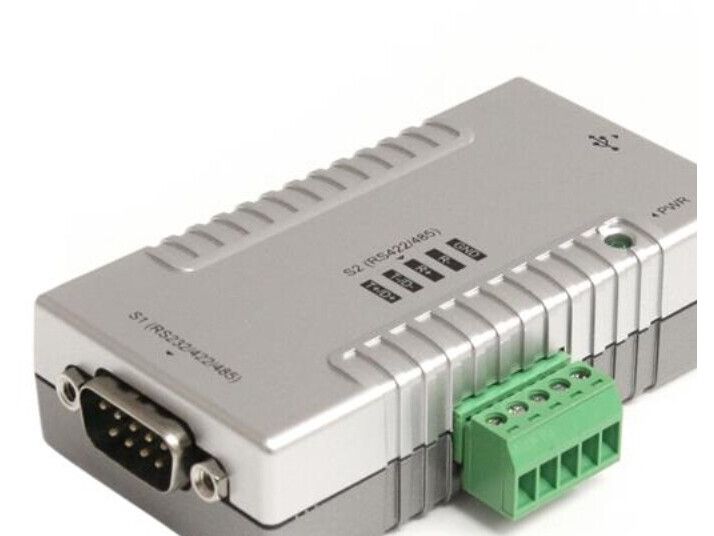

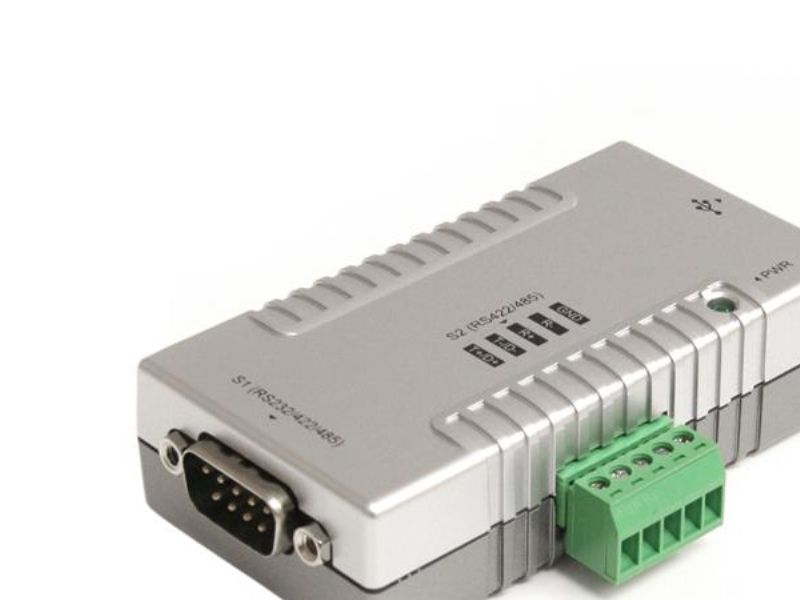

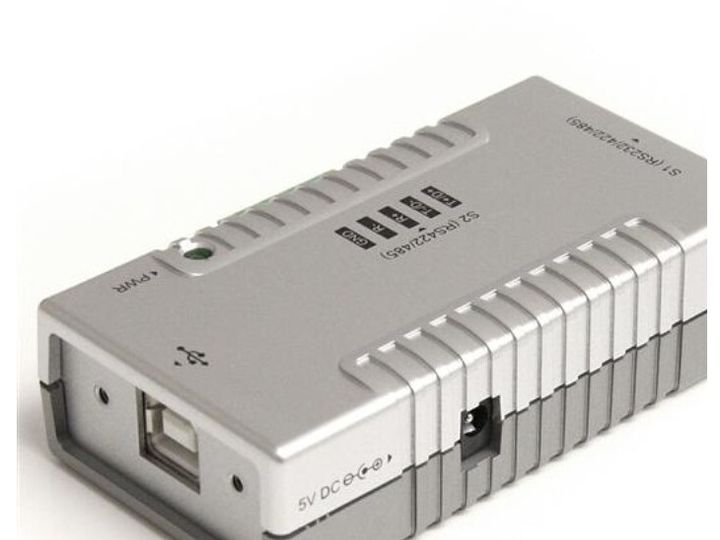

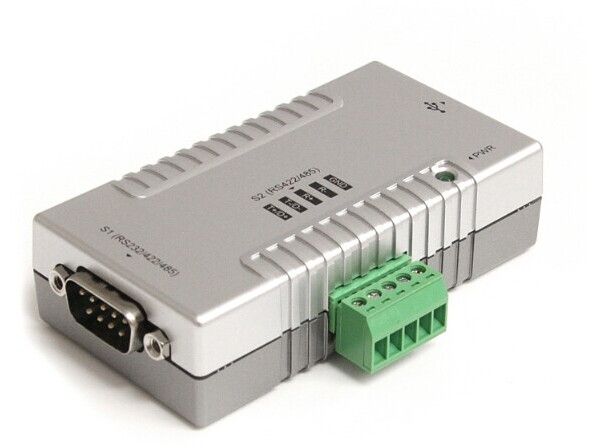

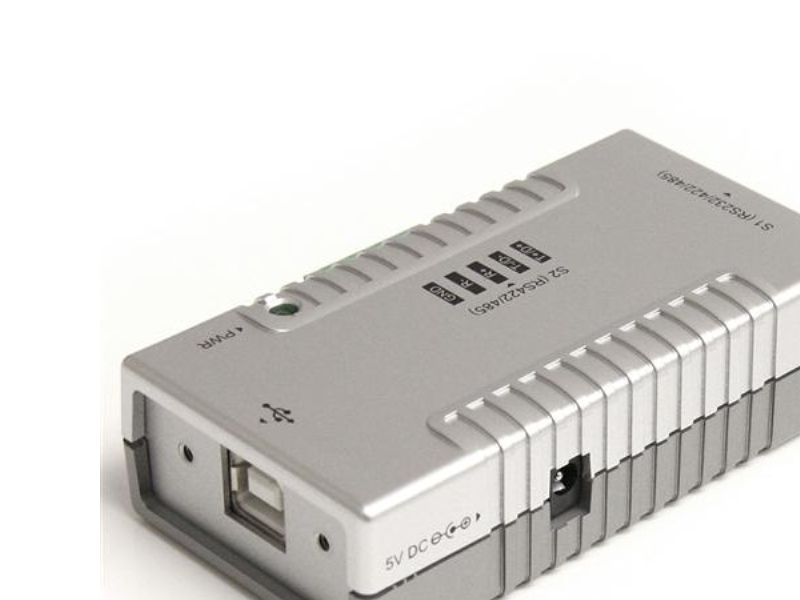

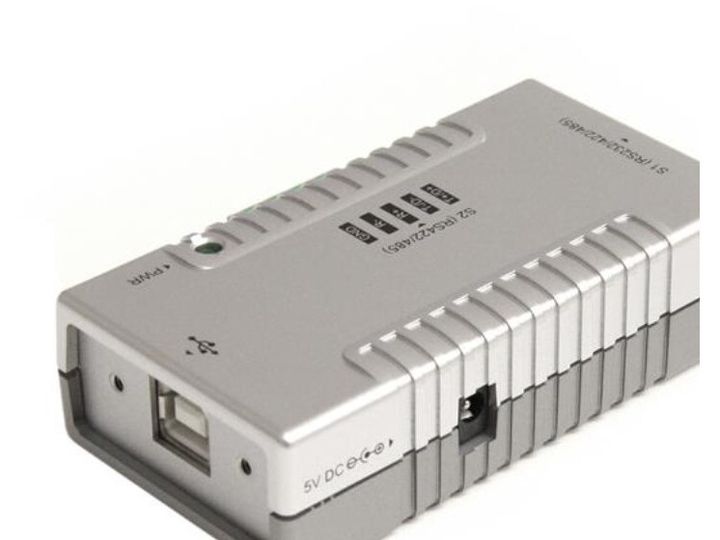

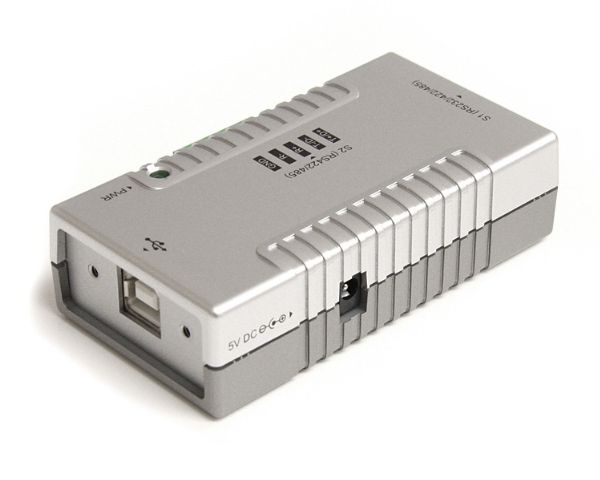

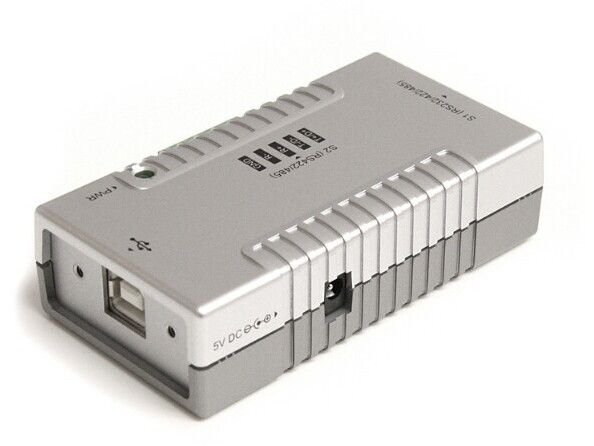

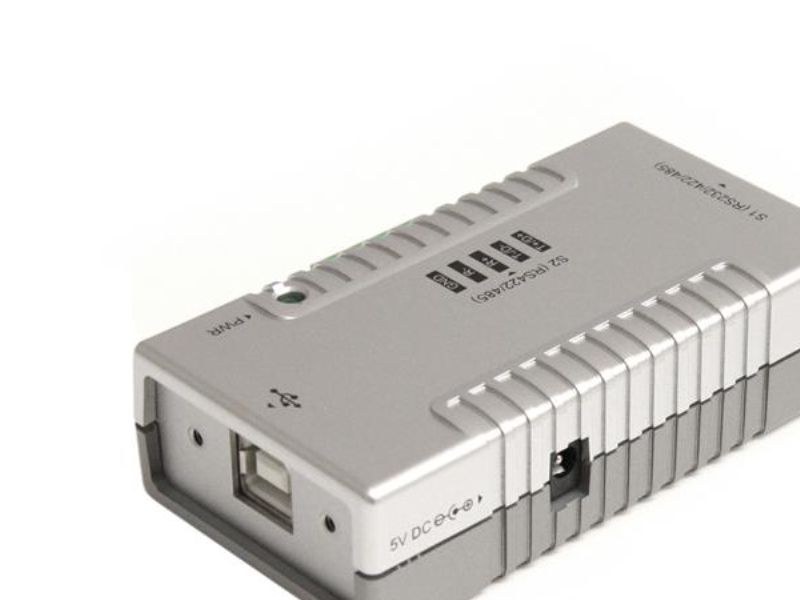

Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB. The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations. For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Produktbeskrivelse
Startech USB to Serial Adapter - 2 Port - RS232 RS422 RS485 - COM Port Retention - FTDI USB to Serial Adapter - USB Serial (ICUSB2324852) - seriel adapter - USB 2.0 - 2 porte
Enhedstype
Seriel adapter
Model
Ekstern
Grænseflade (bus) type
USB 2.0
Dimensioner (B x D x H)
4.4 cm x 8.2 cm x 2.3 cm
Vægt
300 g
Antal porte
2 porte
Dataforbindelsesprotokol
RS-232, RS-422, RS-485
Dataoverførselshastighed
921.6 Kbps
Farve
Grå
Systemkrav
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x eller nyere, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Producentgaranti
2 års garanti
Generelt
Enhedstype
Seriel adapter - 2 porte
Model
Ekstern
Grænseflade (bus) type
USB 2.0
Netværk
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
RS-232, RS-422, RS-485
Dataoverførselshastighed
921.6 Kbps
Statusindikatorer
Strøm
Egenskaber
Strøm fra USB, til vægmontering
Ekspansion / Konnektivitet
Interface

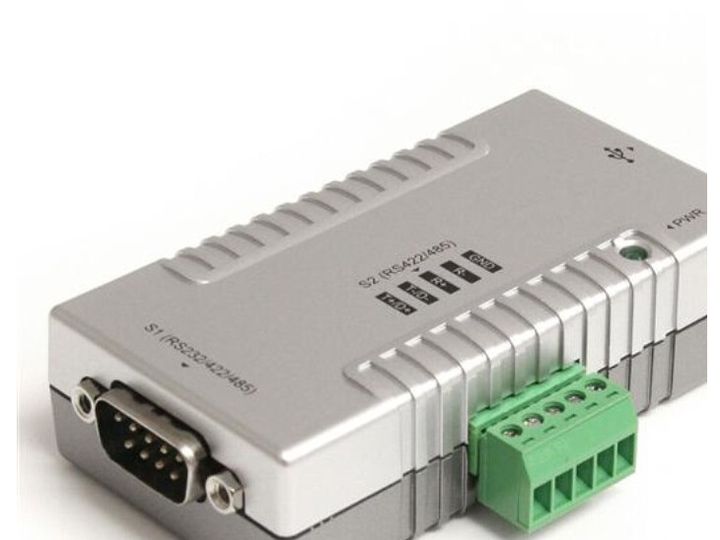

1 x RS-232/422/485 - 9-pin D-Sub (DB-9) - han 1 x RS-422/485 - terminalblok
Diverse
Overensstemmelsesstandarder
FCC, RoHS
Farve
Grå
Programmer / Systemkrav
OS nødvendig
Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Linux 2.4.x eller nyere, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Mål og vægt
Bredde
4.4 cm
Dybde
8.2 cm
Højde
2.3 cm
Vægt
300 g
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
55 °C
Fugtighedsgrad ved brug
5 - 95%
