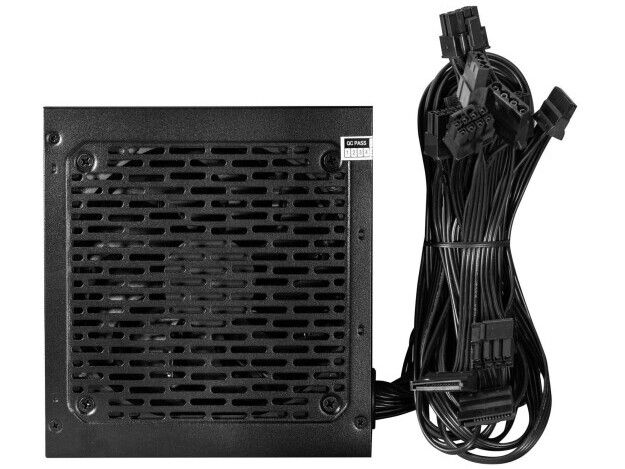

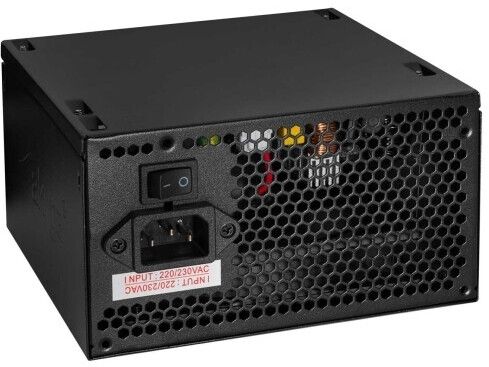

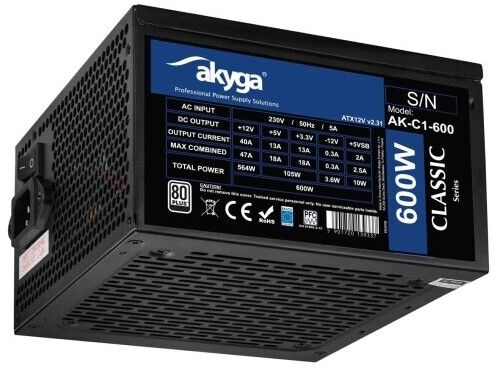

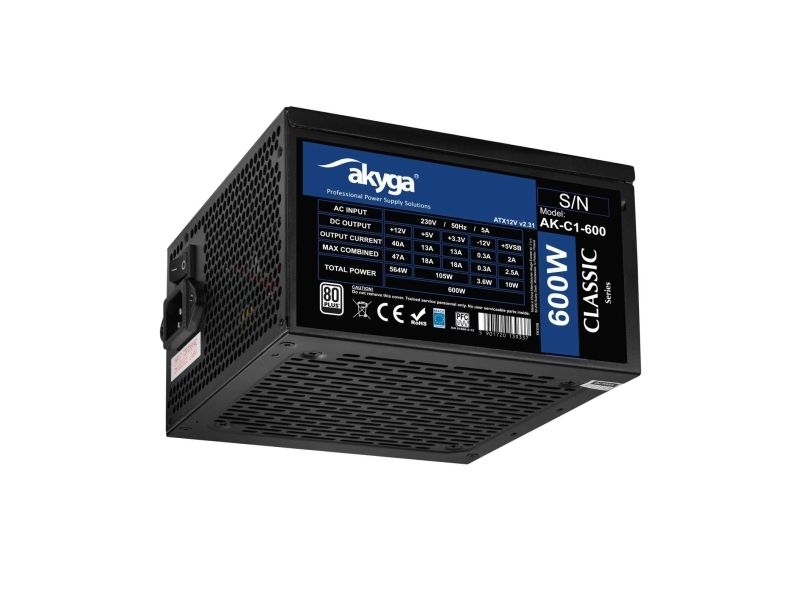

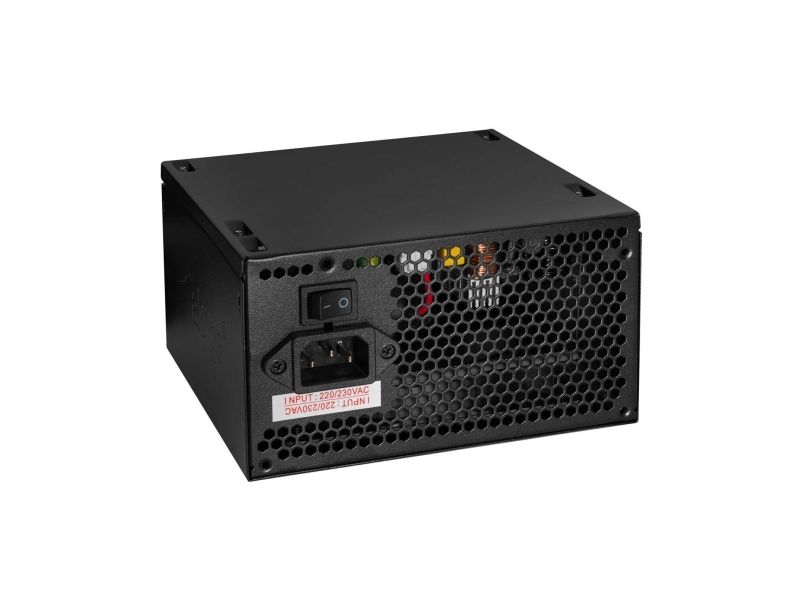

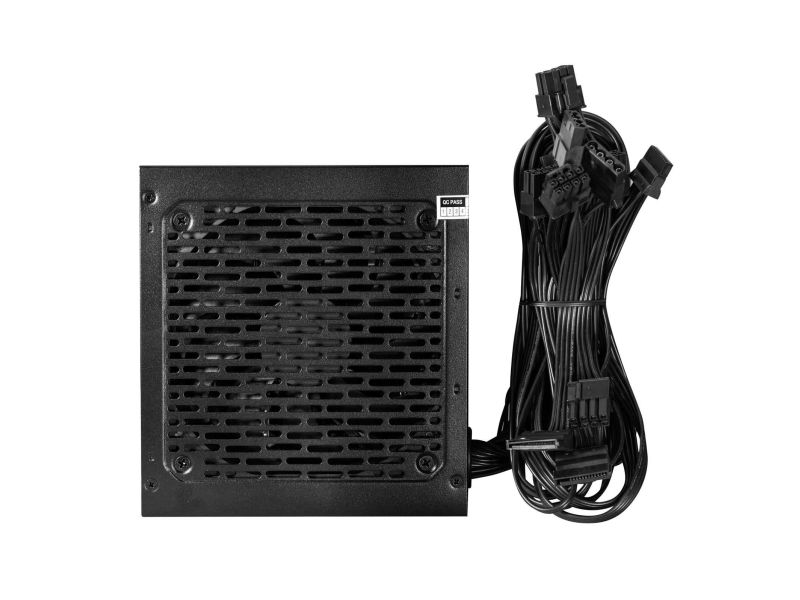

Akyga Classic Series AK-C1-600 is a 600 watt internal ATX power supply designed to provide stable power for desktops and entry-level servers. The semi-modular cabling and detachable sections help simplify installation and reduce case clutter while multiple PCI Express and SATA connectors support common component configurations. Built with active Power Factor Correction and 80 PLUS efficiency, the unit balances energy use and thermal output and uses a 120 mm fan for quiet cooling. Galvanized steel housing, a mechanical switch, and a full protection suite including overvoltage, overcurrent, overpower, high temperature, and short-circuit protections help safeguard connected components, and the EcoBox package supports more compact shipping and storage. The supply is compatible with AC 230 V, 50 Hz input and operates across a practical temperature range to suit typical desktop environments.
Produktbeskrivelse
Akyga Classic Series AK-C1-600 - strømforsyning - 600 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
80 PLUS certificering
80 PLUS
Vægt
1.32 kg
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
600 watt
Output Current
+3.3V - 13 A +5V - 13 A +12V - 40 A -12V - 0.3 A +5VSB - 2 A
Output-stikforbindelser

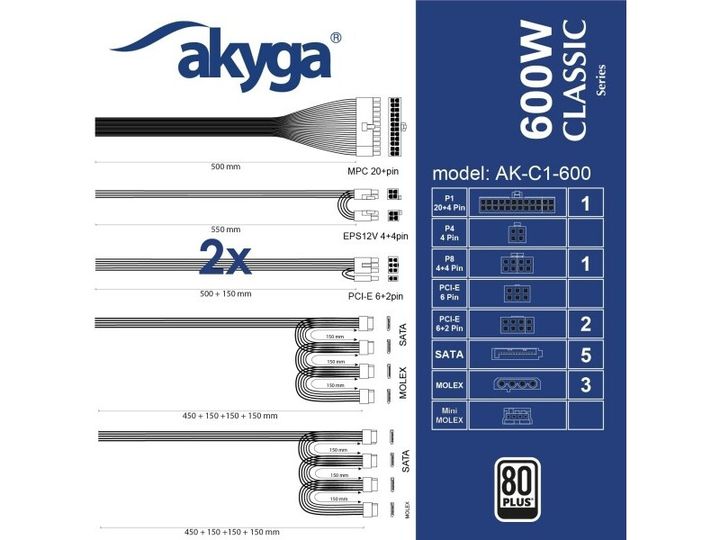

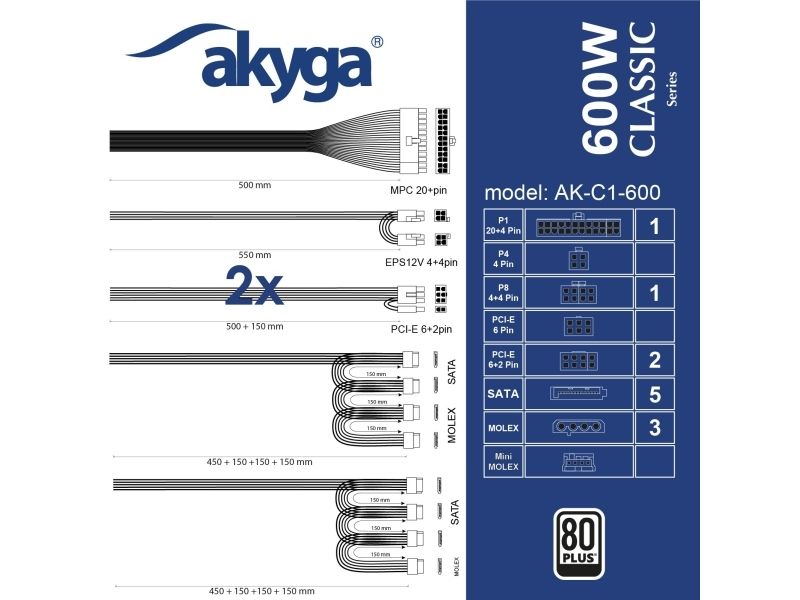

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x power 8 pin cpu med aftagelig 4 pin 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 5 x 15 pin Serial ATA strøm 3 x Molex
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
15 cm x 14.5 cm x 8.5 cm
Producentgaranti
2 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31
PSU formfaktor
ATX
Farve
Sort
Strømenhed
Indgangspænding
AC 230 V
Nødvendig frekvens
50 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x power 8 pin cpu med aftagelig 4 pin 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 5 x 15 pin Serial ATA strøm 3 x Molex
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
600 watt
Output Current
+3.3V - 13 A +5V - 13 A +12V - 40 A -12V - 0.3 A +5VSB - 2 A
Effektivitet
80%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS
Diverse
Medfølgende ledninger

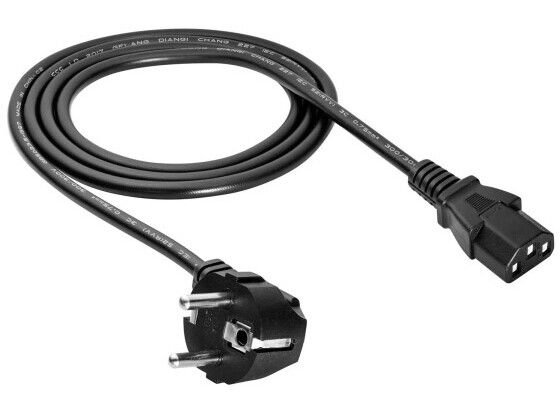

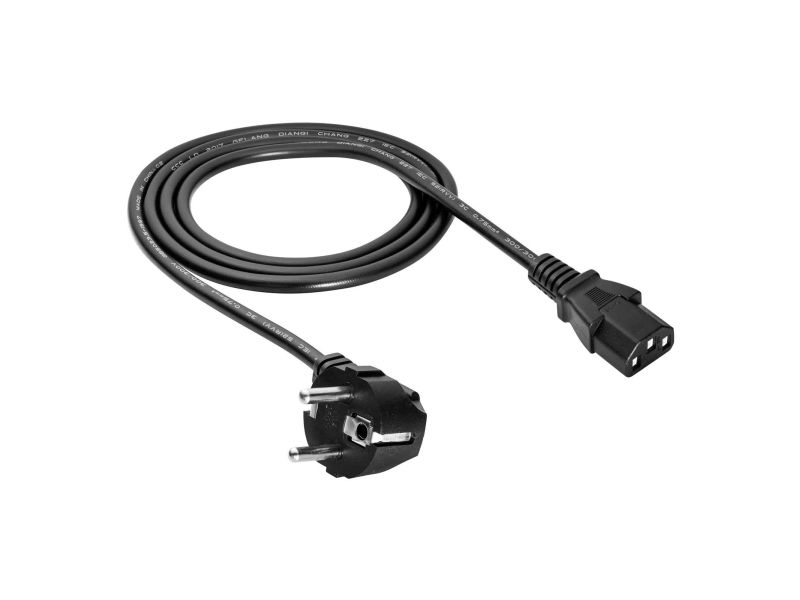

Strømkabel - aftagelig
Kølesystem
120 mm ventilator
Egenskaber
Mekanisk kontakt, jordet ledning, galvaniseret stålhus, EcoBox-pakke, overspændingsbeskyttelse, beskyttelse mod overstrøm, overbelastningsbeskyttelse, høj temperaturbeskyttelse, kortslutnings beskyttelse, semi-modulær
Overensstemmelsesstandarder
RoHS, REACH, WEEE
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
50 °C
Mål og vægt
Bredde
15 cm
Dybde
14.5 cm
Højde
8.5 cm
Vægt
1.32 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
23.5 cm
Dybde ved forsendelse
18 cm
Højde ved forsendelse
10 cm
Vægt ved forsendelse
1.878 kg
