FSP Champ Tower 1K, Double-conversion (Online), 1 kVA, 900 W, Pure sine, 120 V, 300 V
Item no.: [20842878] | Manufacturer: FSP Group | Model no.: PPF8001328 | EAN: 4713224529832
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
189,62
Incl. VAT 237,03
Total incl. delivery
252,03
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

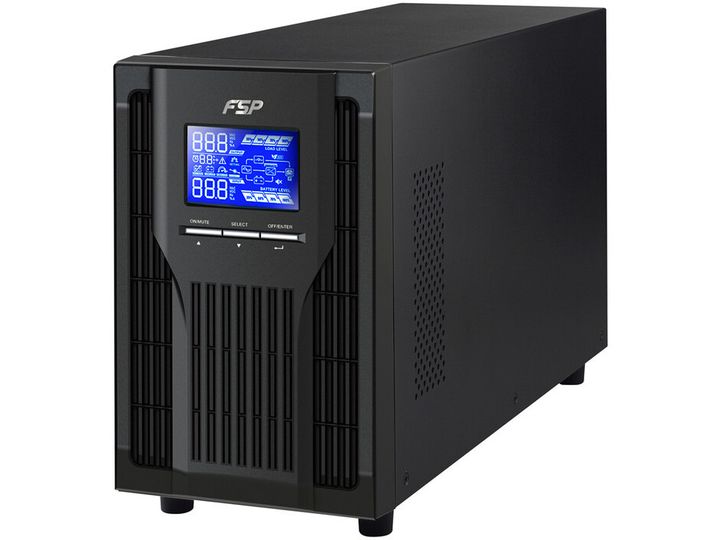

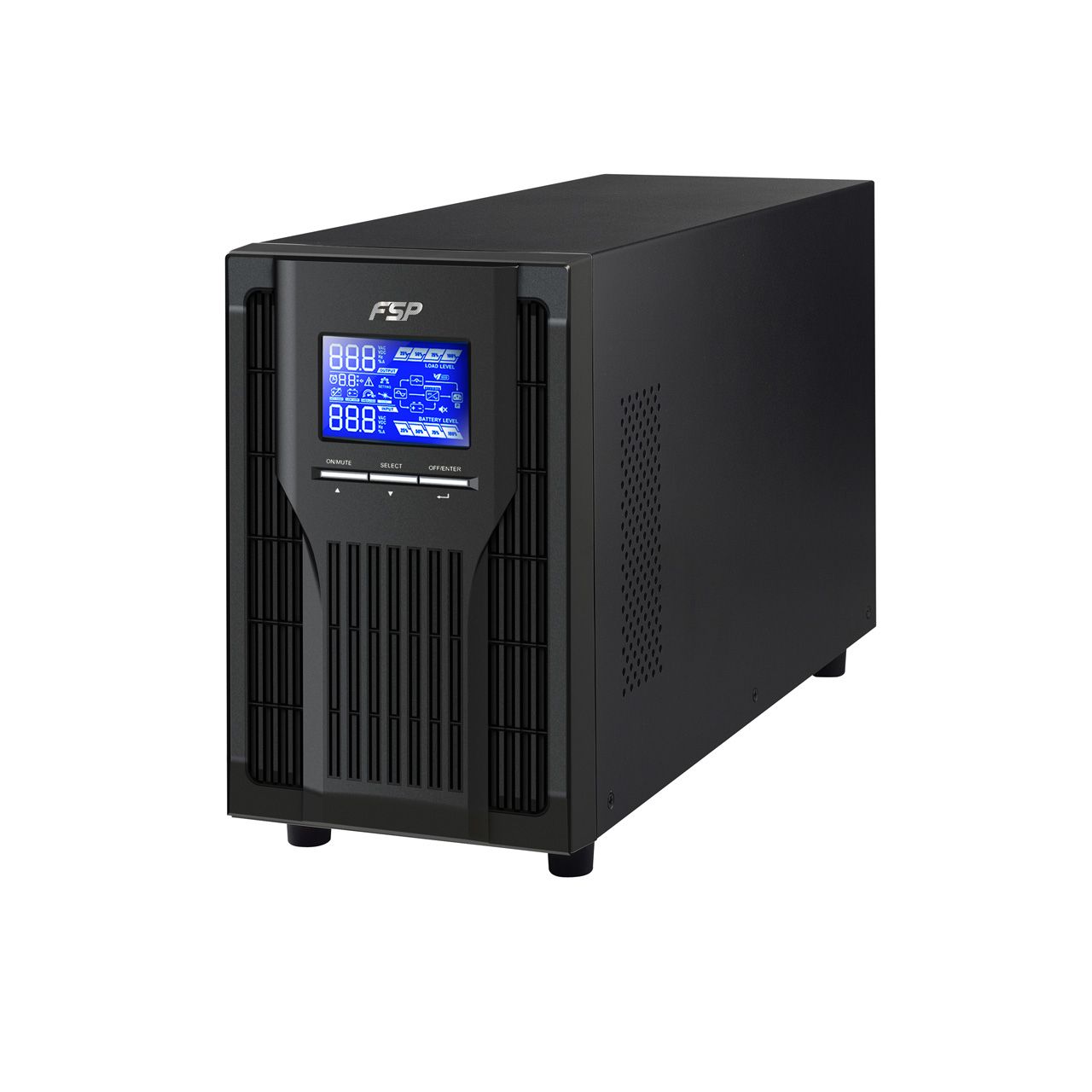

FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It's designed in small cabinet with microprocessor controller. Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Produktbeskrivelse
FSP Champ Tower Series 1k - UPS - 900 watt - 1000 VA
Enhedstype
UPS - Power Factor Correction (PFC) - ekstern
Vægt
9.8 kg
Indgangskabler
1-faset
Indgangspænding
AC 200/208/220/230/240 V
Udgangspænding
AC 200/208/220/230/240 V ± 1%
Strømkapacitet
900 watt / 1000 VA
Input-stik
1 x strøm IEC 60320 C14
Output-stikforbindelser

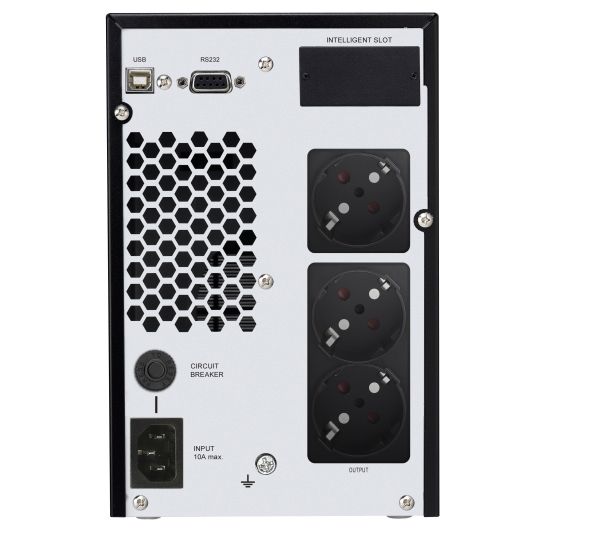

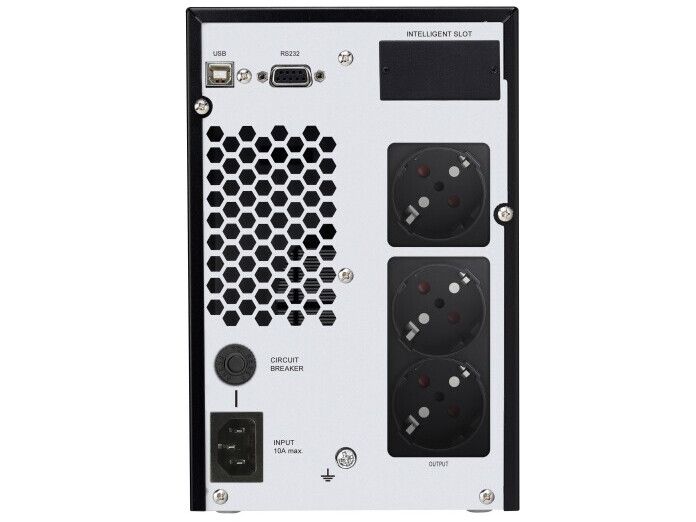

3 x power CEE 7/3
Batteri
- 9 At
Antal batterier
2
Netværk
RS-232, USB
Systemkrav
Microsoft Windows, Solaris, Apple MacOS, Linux
Dimensioner (B x D x H)
14.5 cm x 22 cm x 28.2 cm
Generelt
Enhedstype
UPS - Power Factor Correction (PFC) - ekstern
Strømenhed
UPS-teknologi
On-line
Indgangspænding
AC 200/208/220/230/240 V
Indgangspændingsområde
AC 110 - 300 V / 160 - 280 V
Med frekvens
50/60 Hz ± 0.5%
Indgangskabler
1-faset
Nødvendig frekvens
40 - 70 Hz
Input-stik
1 x strøm IEC 60320 C14
Detaljer om strømudgangskonnektorer
3 x power CEE 7/3
Udgangspænding
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Strømkapacitet
900 watt / 1000 VA
Bølgeform udgang
Ren sinuskurve
Kortslutningsbeskyttelse
Hovedafbryder
Effektivitet
83% Battery mode, 88% AC mode
Strømfaktor (PF)
0.9
Total harmonisk forvrængning (THD)
3 %
Batteri
Antal
2
Forsynet spænding
12 V
Kapacitet
9 At
Genopladningstid
4 timer
Transfertid
0 ms
Netværk
Grænseflade til fjernstyring
RS-232, USB
Ekspansion / Konnektivitet
Interface
1 x administration (RS-232) 1 x administration (USB) - 4 pin USB Type B
