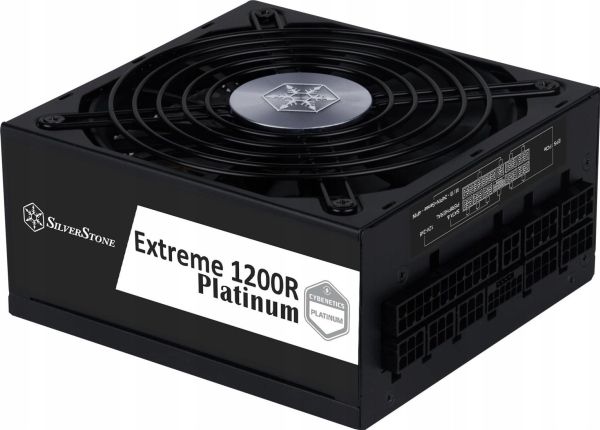

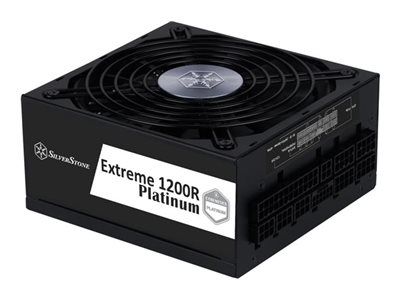

The SilverStone Extreme 1200R Platinum power supply offers robust performance with a power output of 1200 W, designed to meet the needs of both PCs and servers. It is compliant with various standards including TUV Rheinland, RoHS, and FCC, ensuring quality and safety in operation. Featuring active Power Factor Correction (PFC) and an efficiency range of 89% to 91%, this power supply provides reliable energy use while reducing waste.
Equipped with a fully modular design, users can enjoy neat cable management for improved airflow within the system. Enhanced with a 120 mm silent cooling fan utilizing fluid dynamic bearing technology, this model ensures effective heat dissipation while operating quietly. Safety features like overcurrent, overvoltage, and short-circuit protection, along with an MTBF of 100,000 hours, contribute to the longevity and dependability of the SilverStone Extreme 1200R Platinum power supply.
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
SFX12V
Cybenetics-certificering
Cybenetics Platinum
Vægt
2.09 kg
Indgangspænding
AC 90 - 264 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1200 watt
Output Current
+3.3V - 20 A / 0 A +5V - 20 A / 0 A +12V - 100 A / 0 A +5VSB - 3 A / 0 A -12V - 0.3 A / 0 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12 V 2x6 PCIE 5.0 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Farve
Sort
Dimensioner (B x D x H)
12.5 cm x 13 cm x 6.35 cm
Producentgaranti
5 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
SFX12V
PSU formfaktor
SFX
Farve
Sort
Strømenhed
Indgangspænding
AC 90 - 264 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 1 x 12 V 2x6 PCIE 5.0 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1200 watt
Output Current
+3.3V - 20 A / 0 A +5V - 20 A / 0 A +12V - 100 A / 0 A +5VSB - 3 A / 0 A -12V - 0.3 A / 0 A
Effektivitet
89%-91%
Strømfaktor (PF)
0.9
Modulær Kabel Administration
Ja
Cybenetics-certificering
Cybenetics Platinum
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Blyfri maling, fuld modulær, Silent Cooling, køleblæser til flydende dynamisk leje, beskyttelse mod overstrøm, overspændingsbeskyttelse, kortslutnings beskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, beskyttelse mod overophedning, ingen lastdriftbeskyttelse, enkelt 12V skinne
