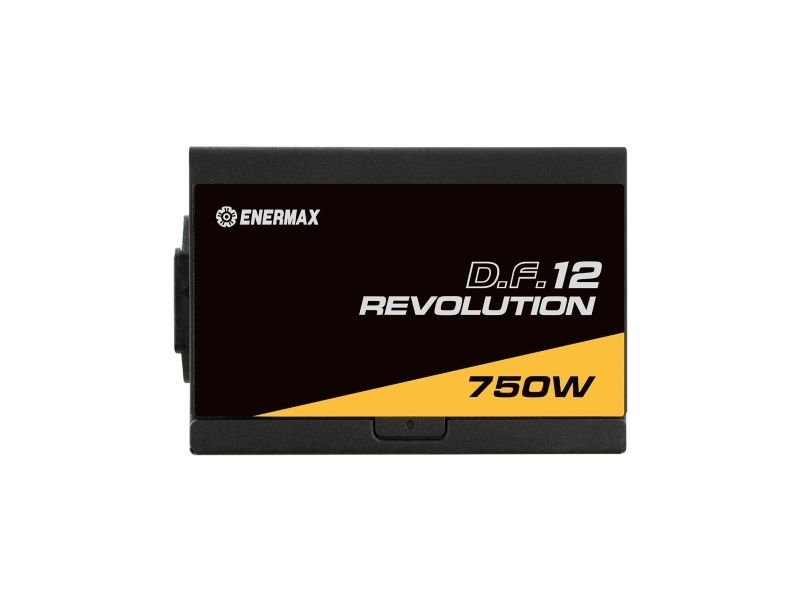

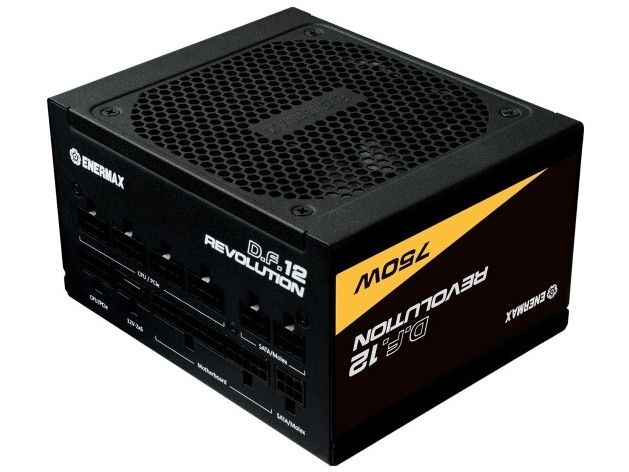

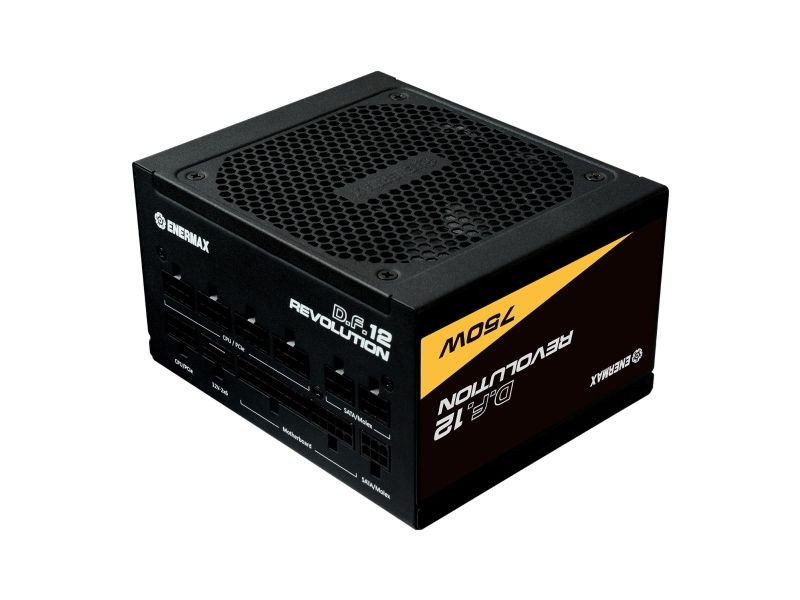

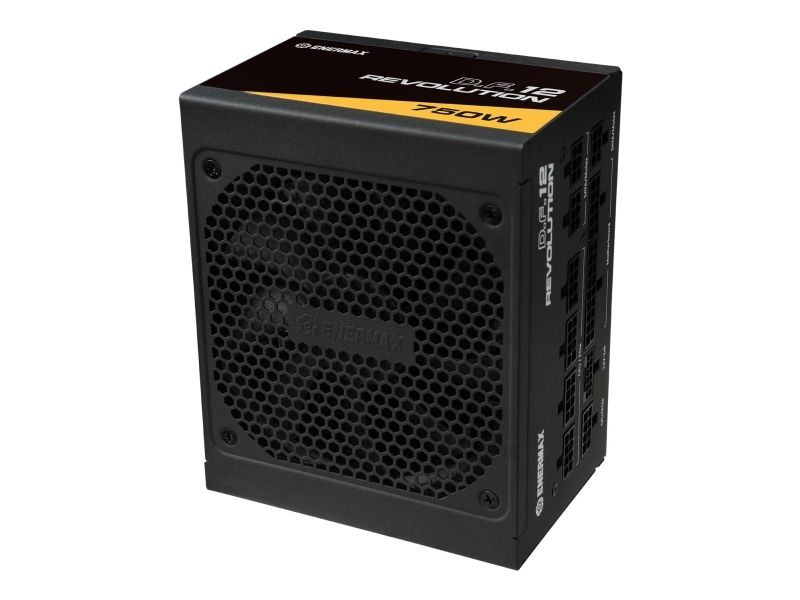

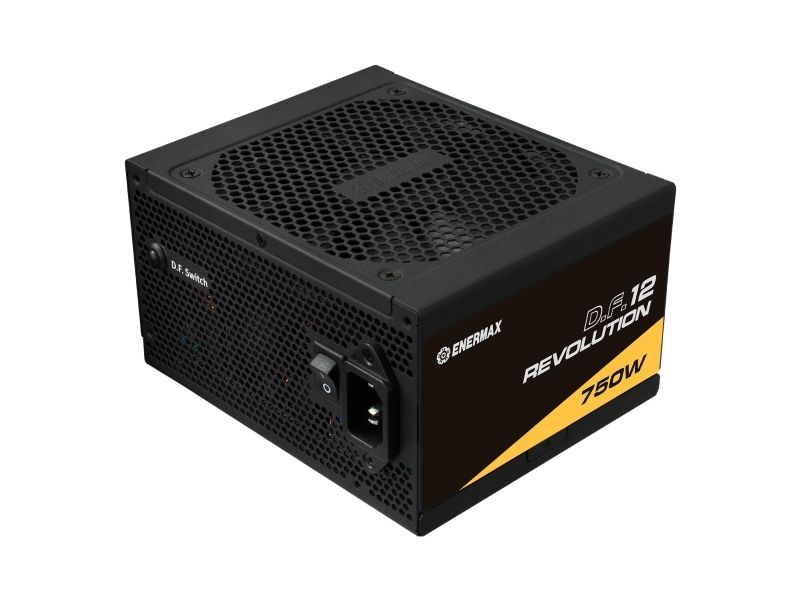

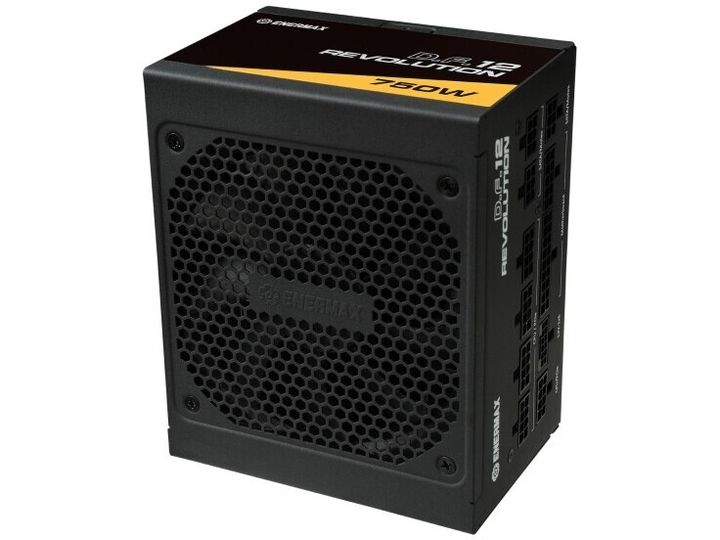

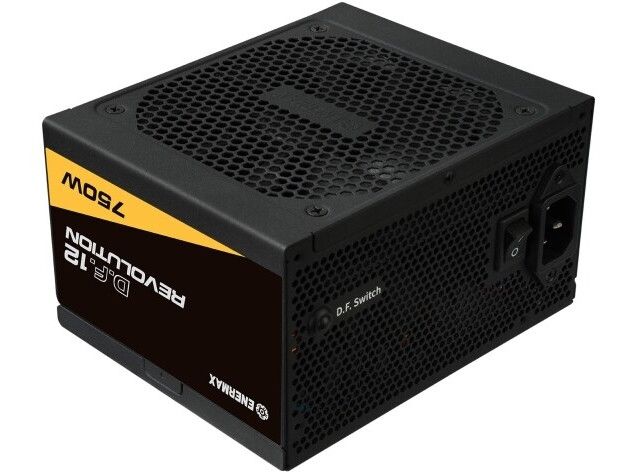

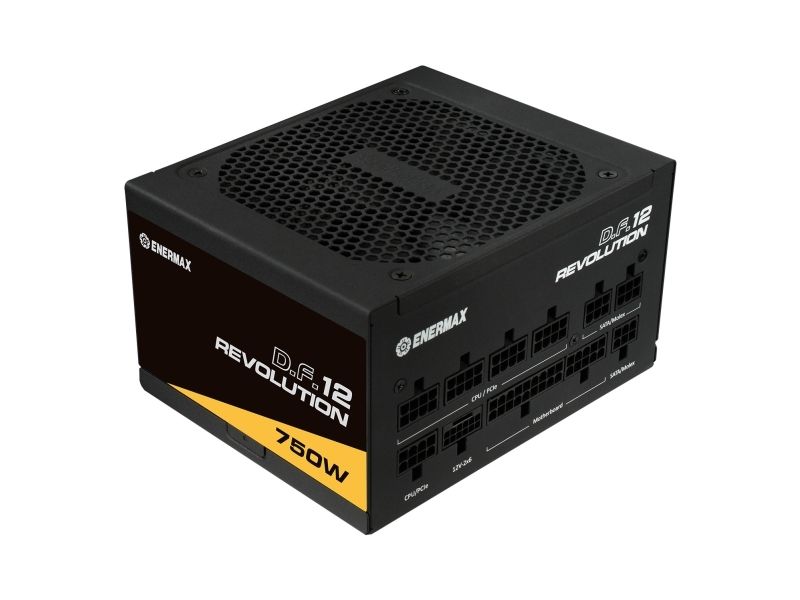

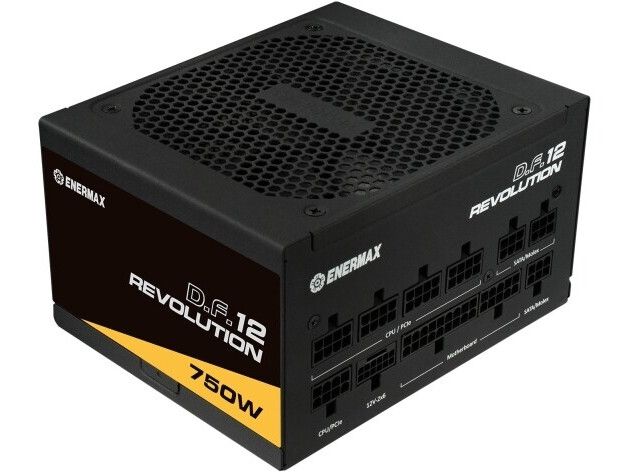

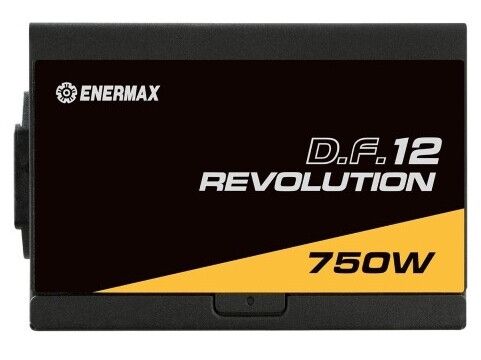

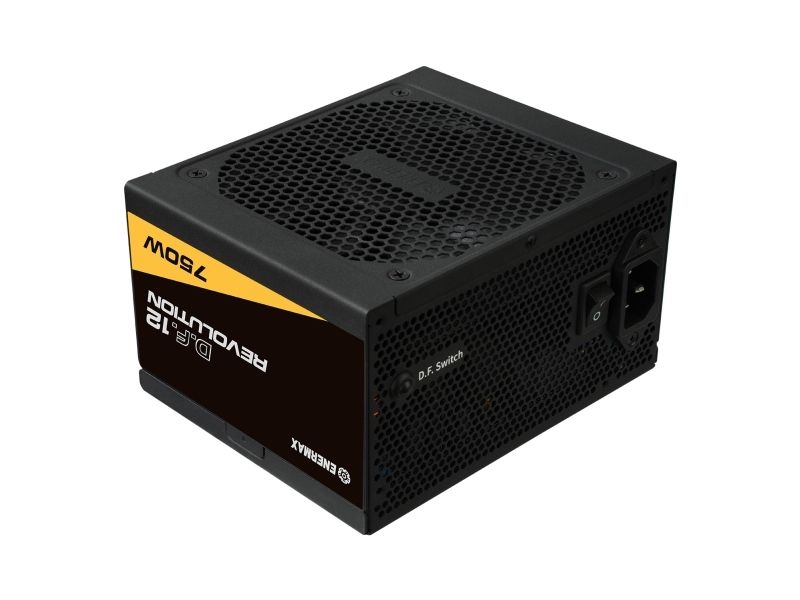

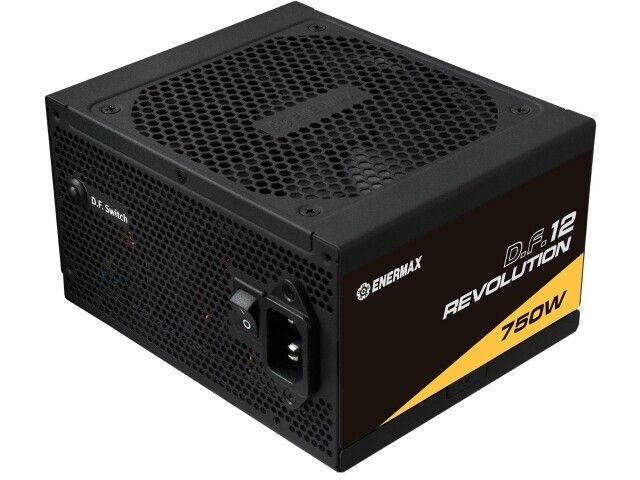

The Enermax Revolution D.F. 12 ETV750G power supply is designed to deliver reliable and efficient power to your system while maintaining modularity. With a total power output of 750 W, it meets the demands of high-performance hardware setups. Its fully modular design allows users to connect only the cables that are needed, creating a clean and organized build, which can enhance airflow and cooling within the case. The unit is equipped with a robust cooling system featuring a 115 mm fan, ensuring optimal performance even during intense usage. Safety features including overheat, overcurrent, overvoltage, overpower, undervoltage, and short-circuit protection help secure your system from potential hazards. With compliance to ATX12V 3.1 and an 80 PLUS Gold certification, this power supply converts power while minimizing energy waste, appealing to environmentally-conscious users.
+3.3V - 20 A +5V - 20 A +12V - 62.4 A -12V - 0.4 A +5VSB - 3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V
Modulær Kabel Administration
Ja
Kølesystem
115 mm ventilator
Dimensioner (B x D x H)
15 cm x 12.2 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.1
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
750 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 62.4 A -12V - 0.4 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger
Strøm 24 pin ATX modulært kabel 60 cm 2 x kraft 8-pins CPU med 4 aftagelige 4-pins 70 cm 16 pin PCI Express strøm med aftagelig 4 pin 60 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 60 cm 2 x strøm 15 pin SATA-kabel 45 m 6 x strøm 15 pin SATA-kabel 15 cm 3 x 4-pin intern strøm modulær kabel 15 cm 4-pin intern strøm modulær kabel 45 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
115 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, fuld modulær, PCIe Gen 5.1 klar
Mål og vægt
Bredde
15 cm
Dybde
12.2 cm
Højde
8.6 cm
Mål & vægt (forsendelse)
Vægt ved forsendelse
2.3 kg
