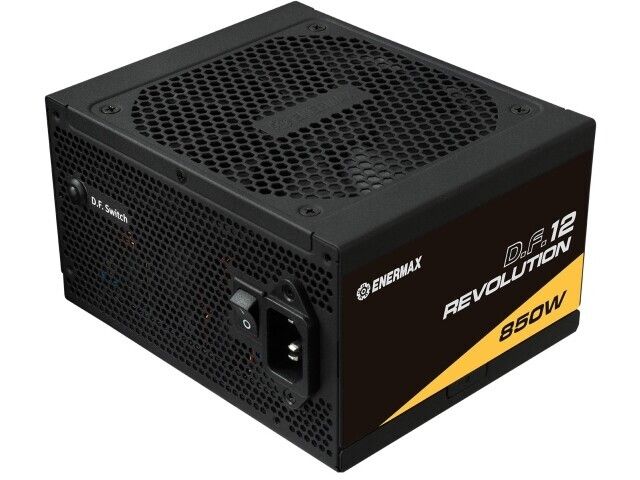

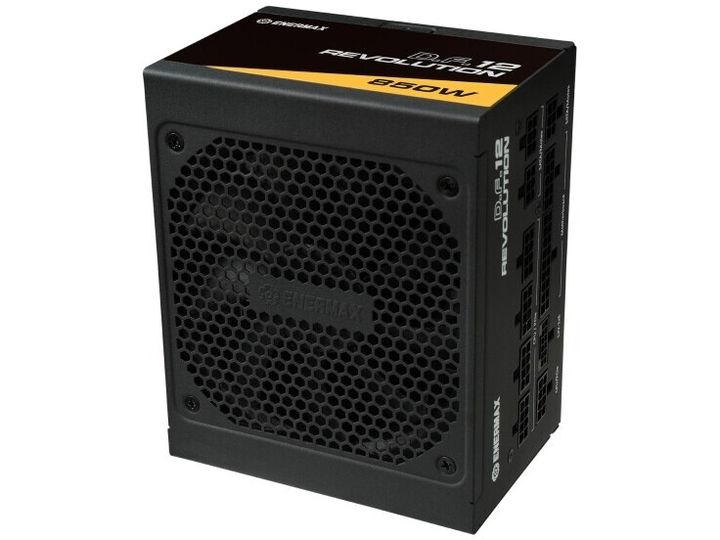

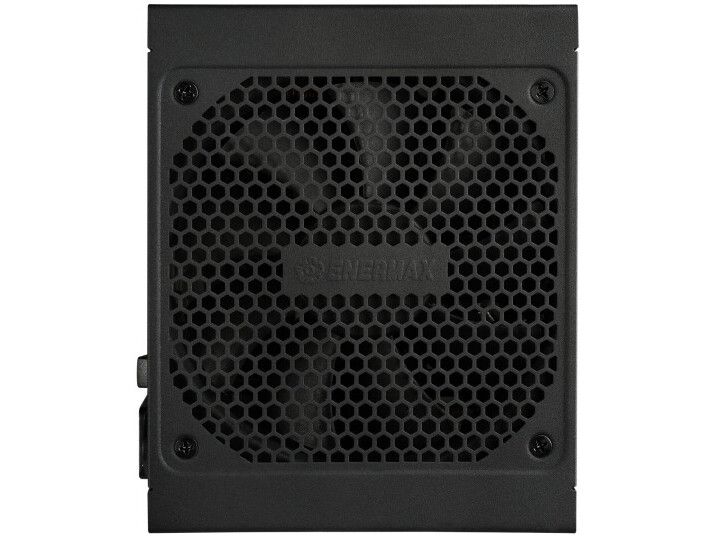

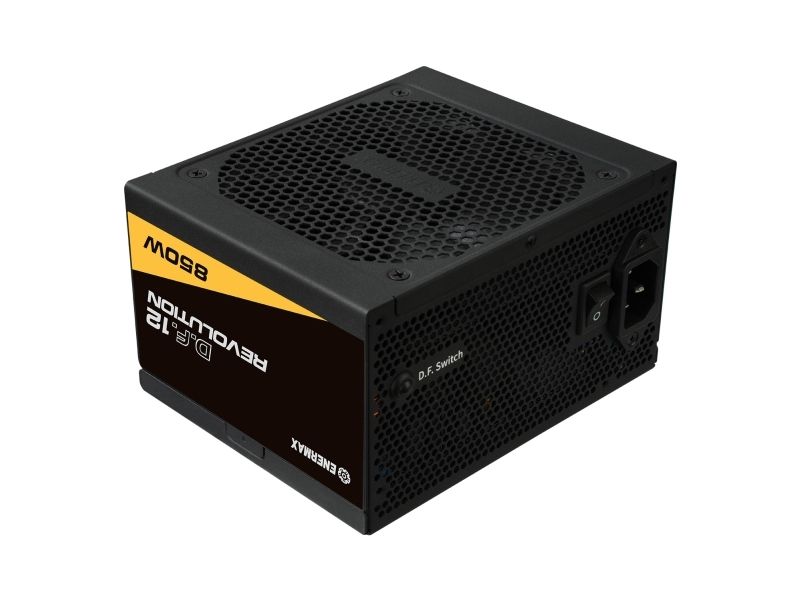

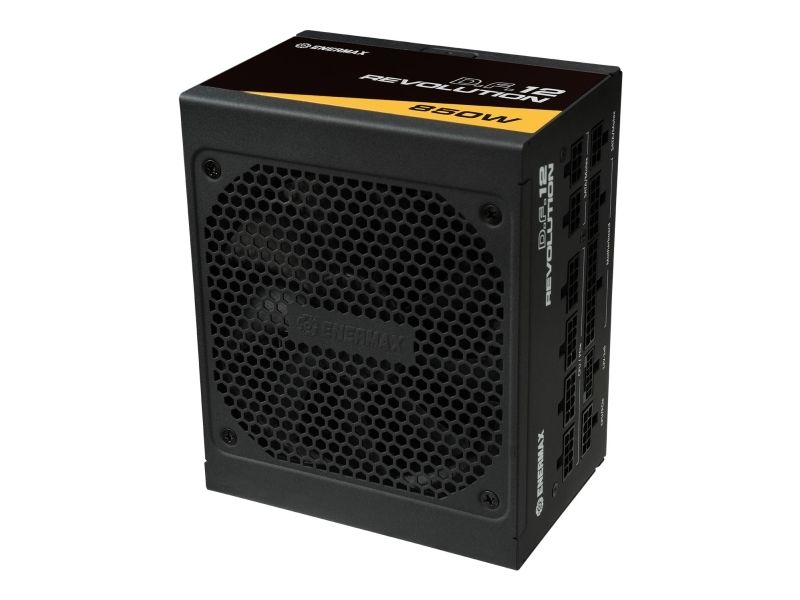

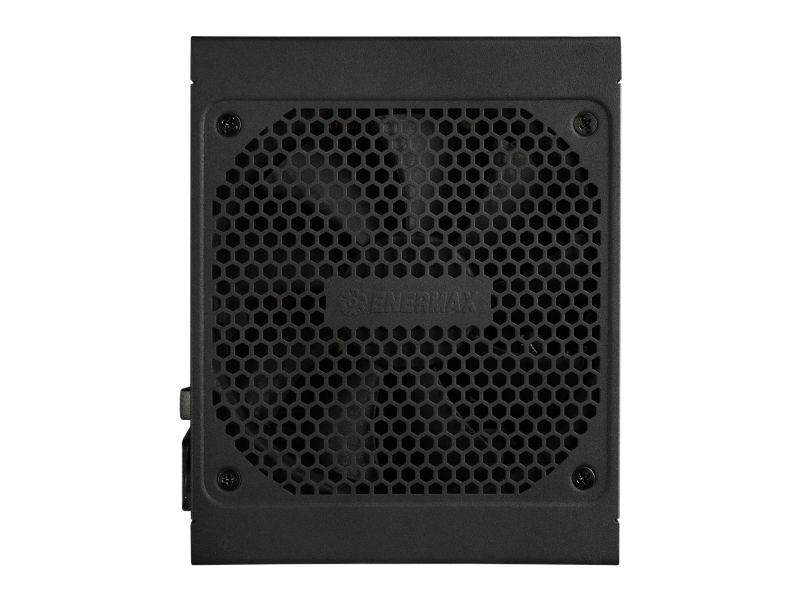

SMALL BUT POWERFUL The Smallest* ATX 3.1 ATX Power Supply in the Market Aligned with the sustainable principle, The REVOLUTION D.F. 12 stands out as one of the smallest PSUs available in the market, boasting a 122mm in-depth, aiming to minimize the material waste of manufacturing and packaging by up to 28.7%. It is equipped with a built-in 115mm PWM fan featuring industrial-grade dual-ball bearings and a 6-pole motor for enhanced durability and efficient cooling.
SMALL SIZE, BIG BENEFITS - Easily fit into your desired smaller PC cases. - More space for effortless cable management. - Keep the extra volume out of the way of airflow.
INTEL ATX 3.1 & 12V-2X6 CONNECTOR READY The REVOLUTION D.F. 12 meets all the Intel ATX 3.1 standards, guaranteeing compatibility with contemporary hardware configurations. The native 12V-2x6 connector effortlessly channels up to 600W power, ensuring top-notch performance from high-end graphics cards.
PREMIUM MESH-SLEEVED CABLES The power supply cables have been upgraded to premium mesh-sleeved cables to bring you better cable routing with their soft and bendable points for remarkable cable management. The included 27 pcs cable comb kit keeps your cables in good management and in good order.
PERFORMANCE EXCELLENCE The REVOLUTION D.F. 12 is 80 PLUS® Gold certified with efficiency over 90% on standard loading. By wasting less energy, it reduces greenhouse gas emissions associated with electricity generation. It also produces less heat, leading to improved reliability and a longer lifespan for electronic components and devices.
The REVOLUTION D.F. 12 is designed to accommodate up to 235% power excursion, which means it can handle more than 2x its rated wattage for a short period of time, catering to your high-end graphics cards requirements and preventing the system from sagging power and possibly crashing the PC.
The REVOLUTION D.F. 12 incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.

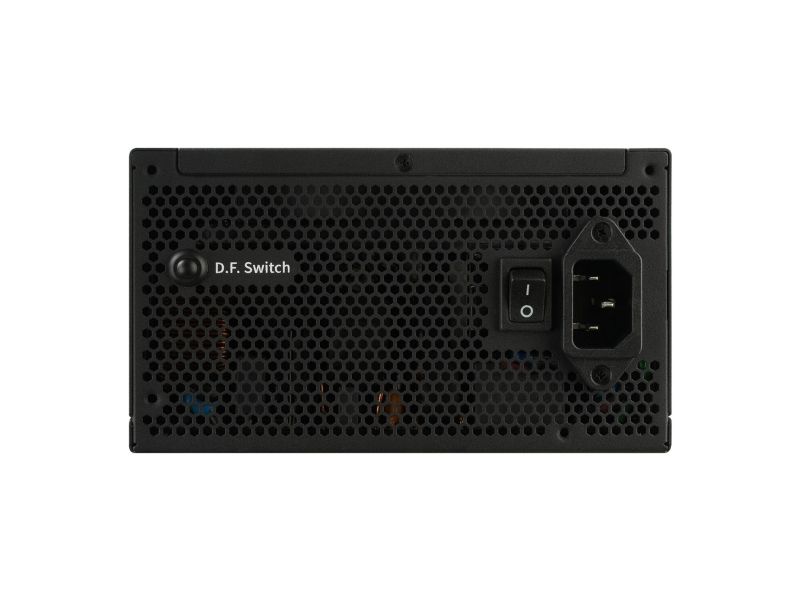

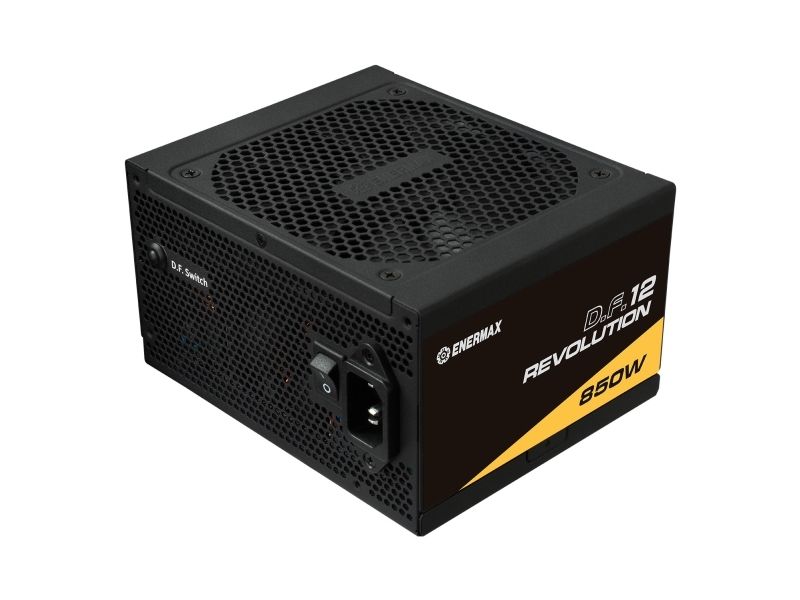

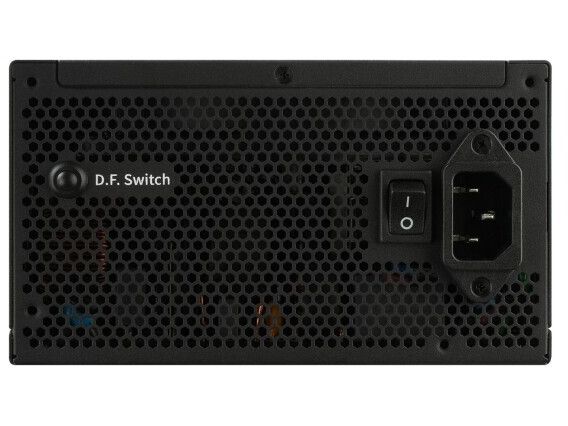

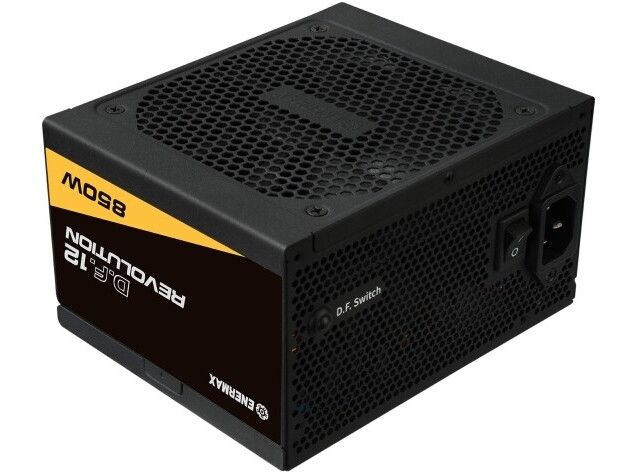

PATENTED DUST-FREE ROTATION (D.F.R.) TECHNOLOGY The power supply fan boasts the ENERMAX’s patented Dust-free Rotation (D.F.R.) self-cleaning technology with a power-on activated switch next to the power switch, enhancing system longevity by minimizing dust accumulation.
+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.4 A +5VSB - 3 A
Output-stikforbindelser

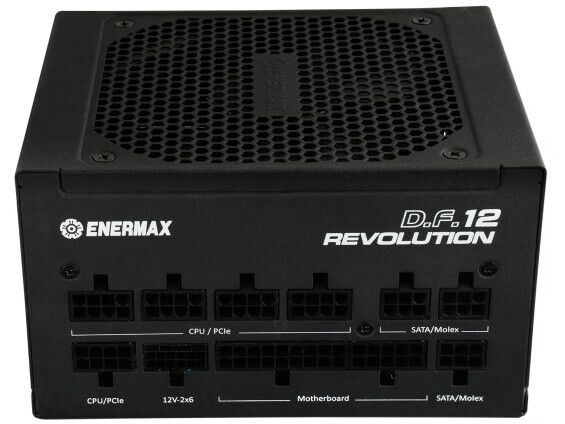

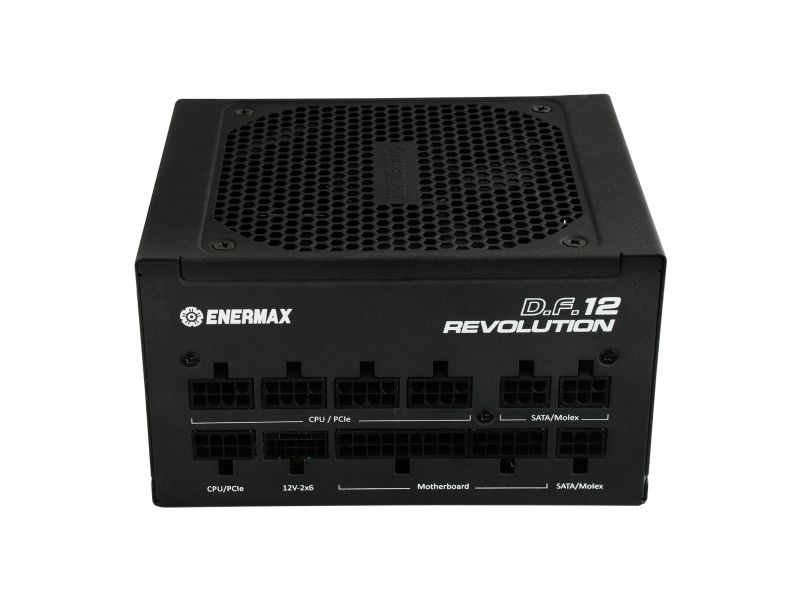

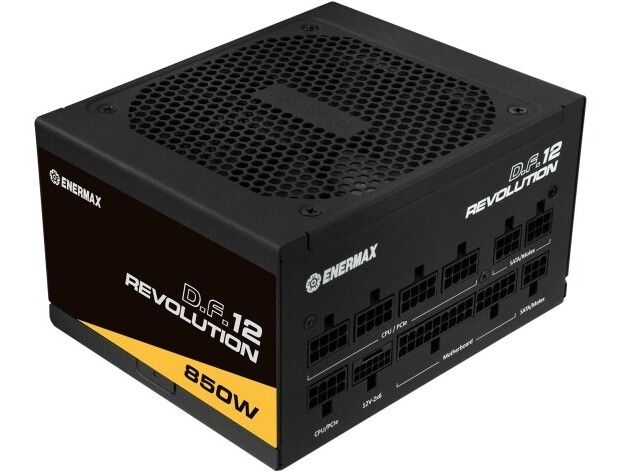

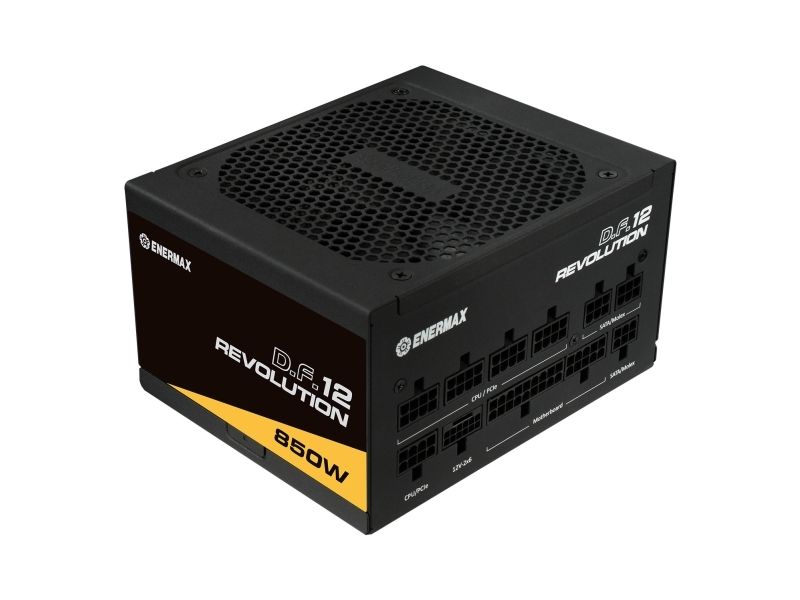

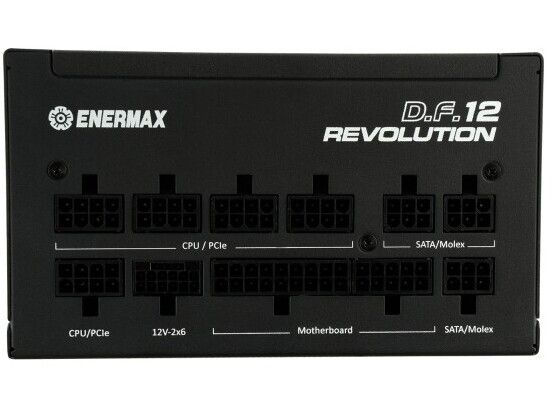

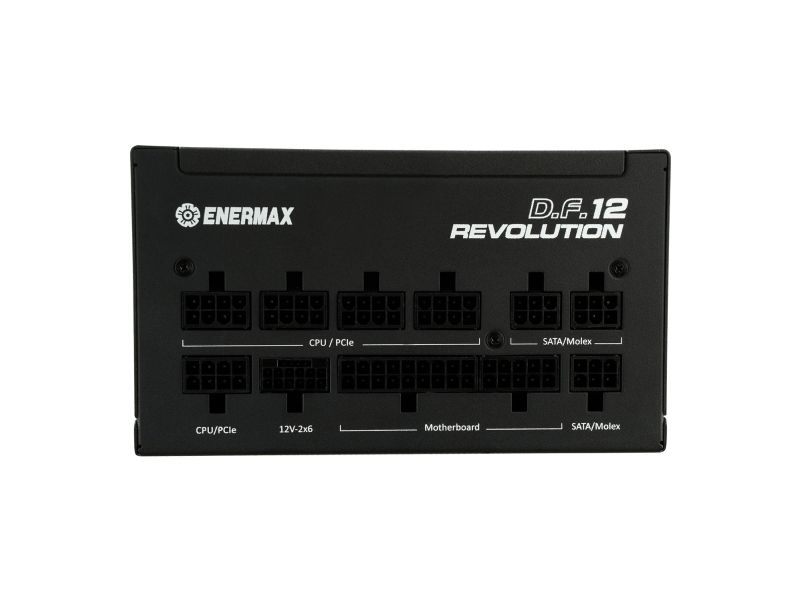

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin - 12 V 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V
Modulær Kabel Administration
Ja
Kølesystem
115 mm ventilator
Dimensioner (B x D x H)
15 cm x 12.2 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.1
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin - 12 V 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.4 A +5VSB - 3 A
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger
Strøm 24 pin ATX modulært kabel 60 cm 2 x kraft 8-pins CPU med 4 aftagelige 4-pins 70 cm 16 pin PCI Express strøm med aftagelig 4 pin 60 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 60 cm 2 x strøm 15 pin SATA-kabel 45 m 6 x strøm 15 pin SATA-kabel 15 cm 3 x 4-pin intern strøm modulær kabel 15 cm 4-pin intern strøm modulær kabel 45 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
115 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, fuld modulær, PCIe Gen 5.1 klar
