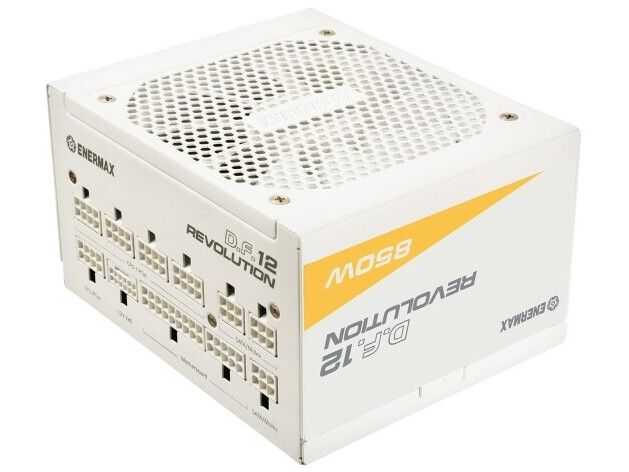

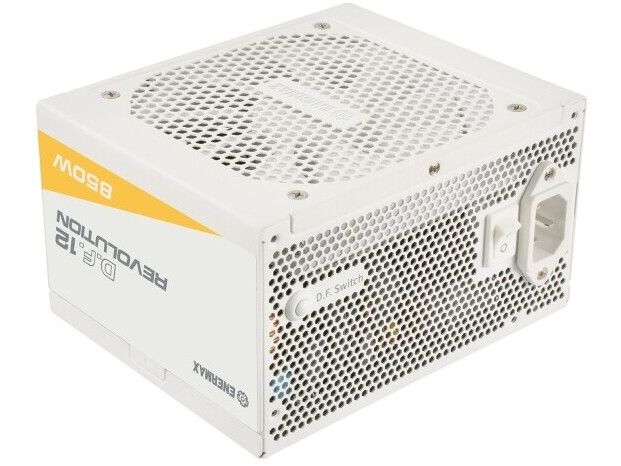

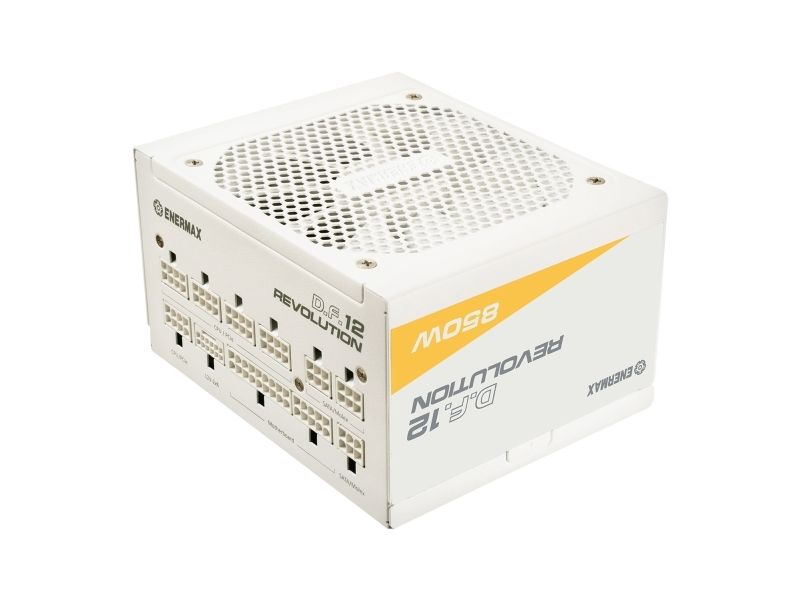

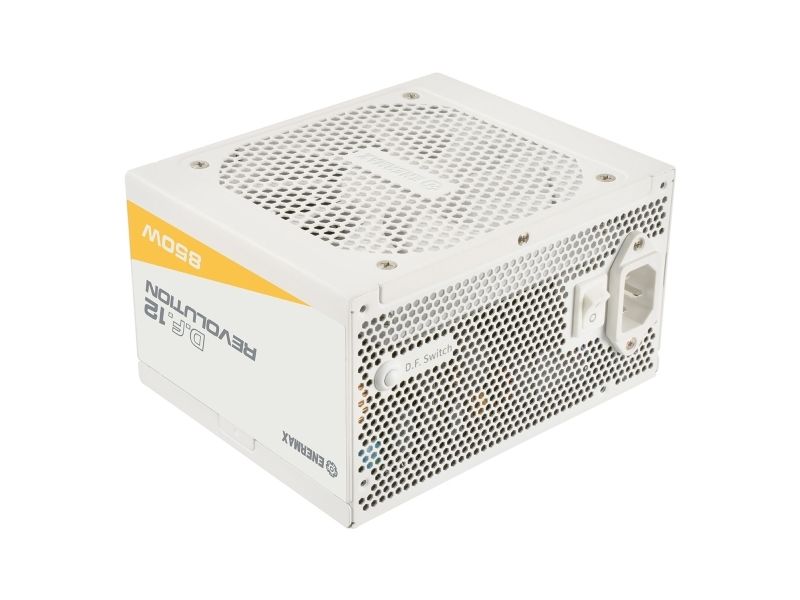

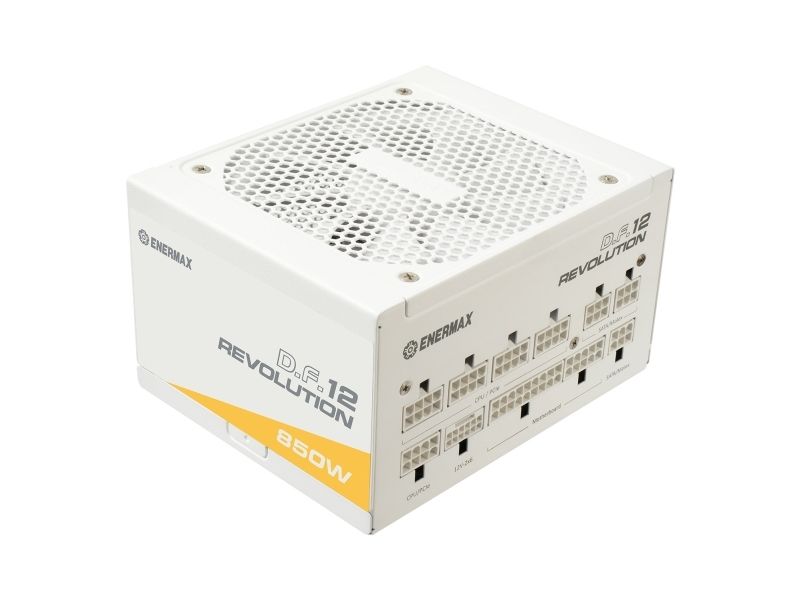

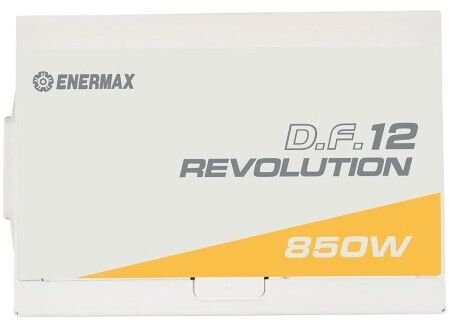

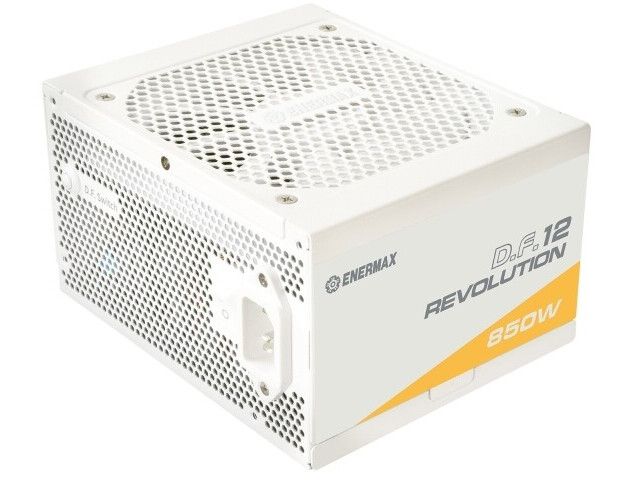

Enermax Revolution D.F.12, 850 W, 100 - 240 V, 50/60 Hz, 10 A, 100 W, 849.6 W

Item no.: [20854488] | Manufacturer: Enermax Technology | Model no.: ETV850G-W | EAN: 4713157728029

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 107,04

Incl. VAT 133,80

Total incl. delivery 148,80

Read further specifications and description

The Enermax Revolution D.F. 12 power supply delivers reliable performance for demanding systems. With a power output of 850 W, this internal supply is designed to support high-performance components while ensuring stability and durability. Equipped with comprehensive protection features such as overcurrent, overvoltage, and short-circuit protection, it safeguards your system against potential issues. The fully modular design allows for flexible cable management, helping to reduce clutter and improve airflow in your setup. Featuring an 80 PLUS Gold certification, this power supply ensures energy efficiency, making it an option for both gamers and professionals.

Produktbeskrivelse	Enermax Revolution D.F. 12 ETV850G-W - strømforsyning - 850 Watt
Enhedstype	Strømforsyning - intern
Specifikationsoverensstemmelse	ATX12V 3.1
80 PLUS certificering	80 PLUS Gold
Indgangspænding	AC 100-240 V
Udgangspænding	+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet	850 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.4 A +5VSB - 3 A

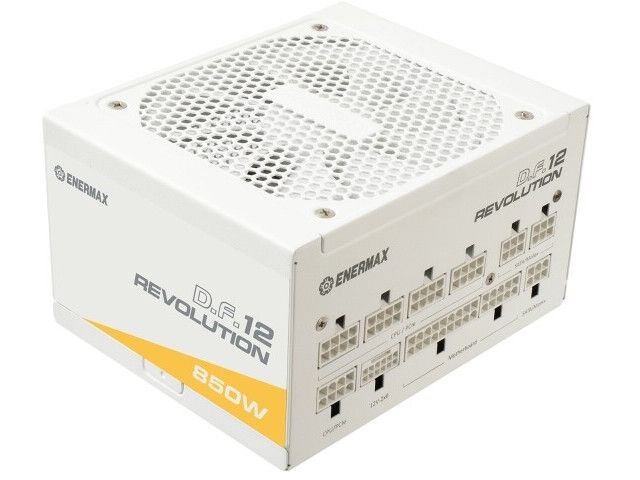

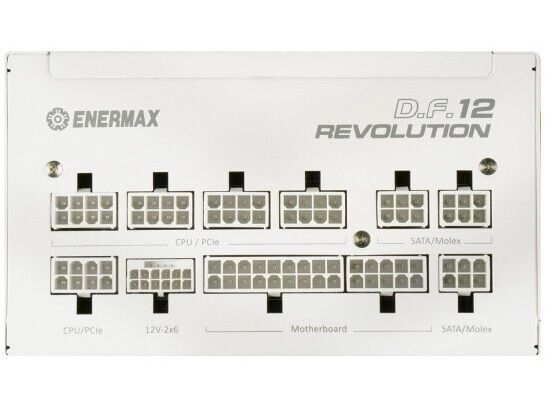

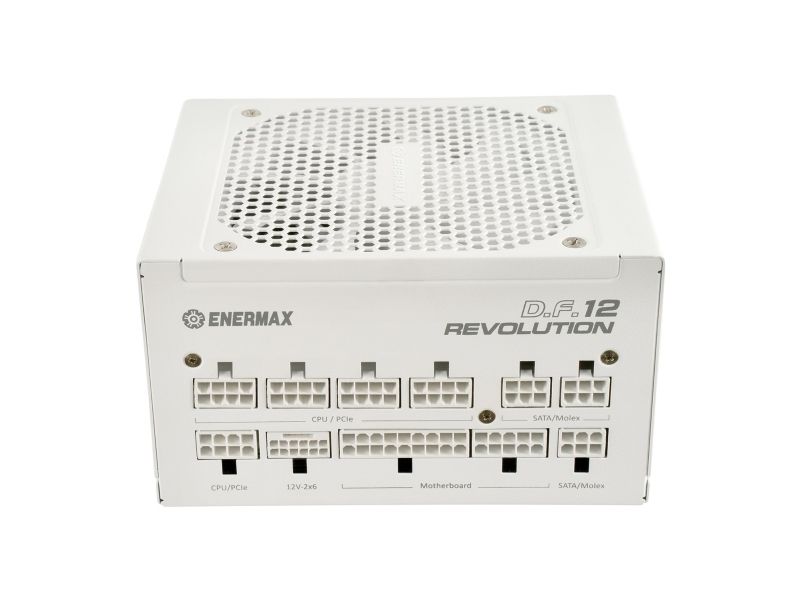

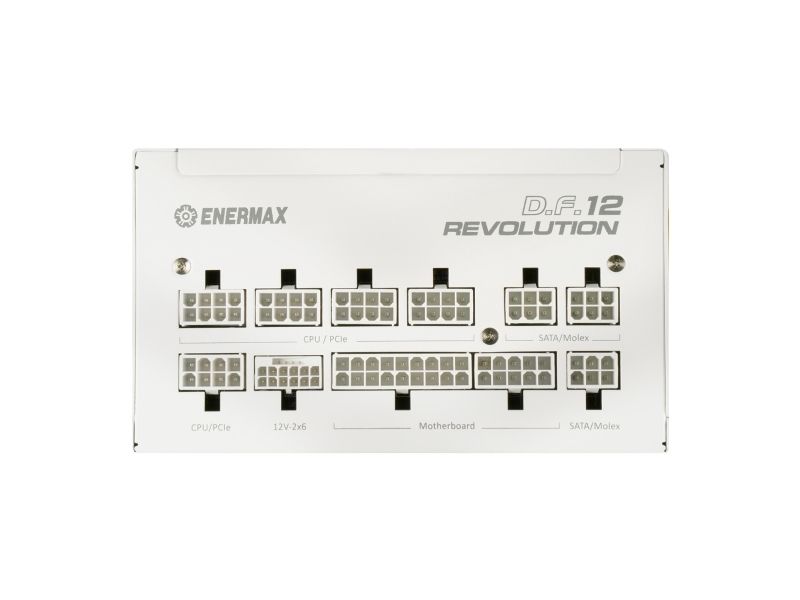

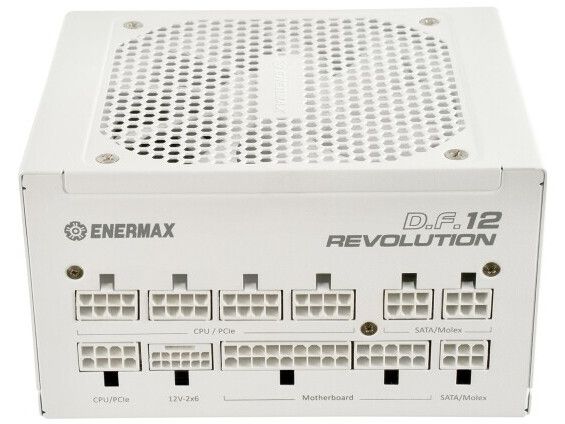

Output-stikforbindelser	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin - 12 V 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V
Modulær Kabel Administration	Ja

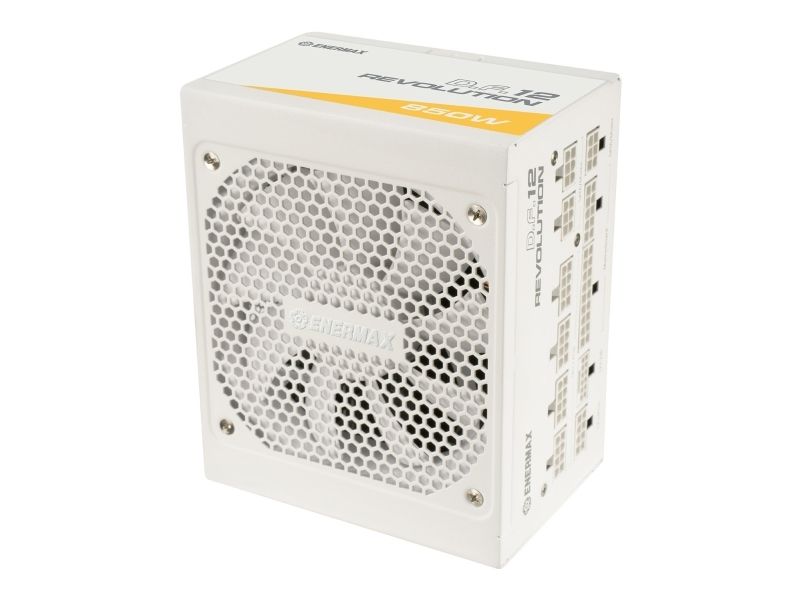

Kølesystem	115 mm ventilator
Farve	Hvid
Dimensioner (B x D x H)	15 cm x 12.2 cm x 8.6 cm

Generelt
Enhedstype	Strømforsyning - intern
Specifikationsoverensstemmelse	ATX12V 3.1
PSU formfaktor	ATX
Farve	Hvid
Strømenhed
Indgangspænding	AC 100-240 V
Nødvendig frekvens	50 - 60 Hz
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin - 12 V 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V
Udgangspænding	+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet	850 Watt
Output Current	+3.3V - 20 A +5V - 20 A +12V - 70.8 A -12V - 0.4 A +5VSB - 3 A
Modulær Kabel Administration	Ja
80 PLUS certificering	80 PLUS Gold
Diverse

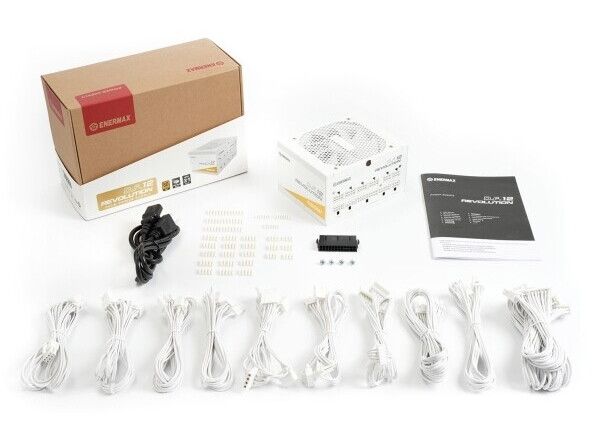

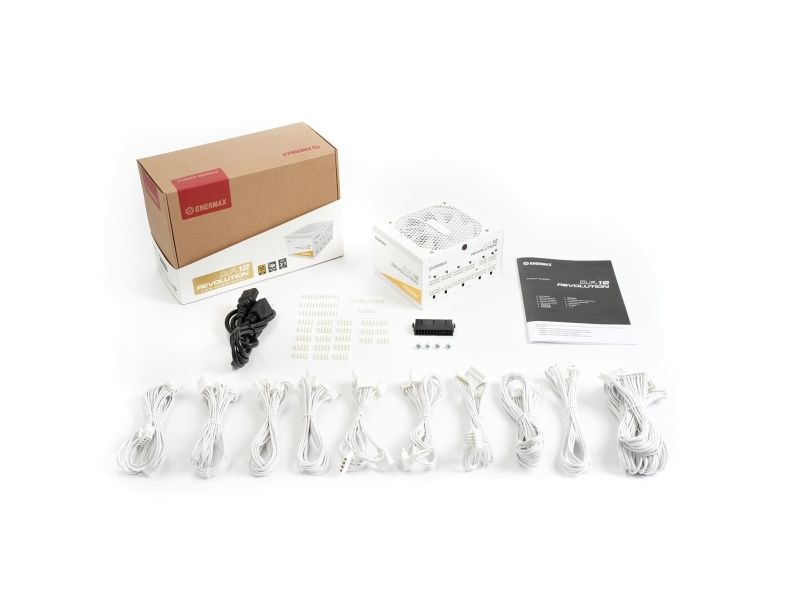

Medfølgende ledninger	Strøm 24 pin ATX modulært kabel 60 cm 2 x kraft 8-pins CPU med 4 aftagelige 4-pins 70 cm 16 pin PCI Express strøm med aftagelig 4 pin 60 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 60 cm 2 x strøm 15 pin SATA-kabel 45 m 6 x strøm 15 pin SATA-kabel 15 cm 3 x 4-pin intern strøm modulær kabel 15 cm 4-pin intern strøm modulær kabel 45 cm
MTBF (forventet tid mellem fejl)	100,000 timer

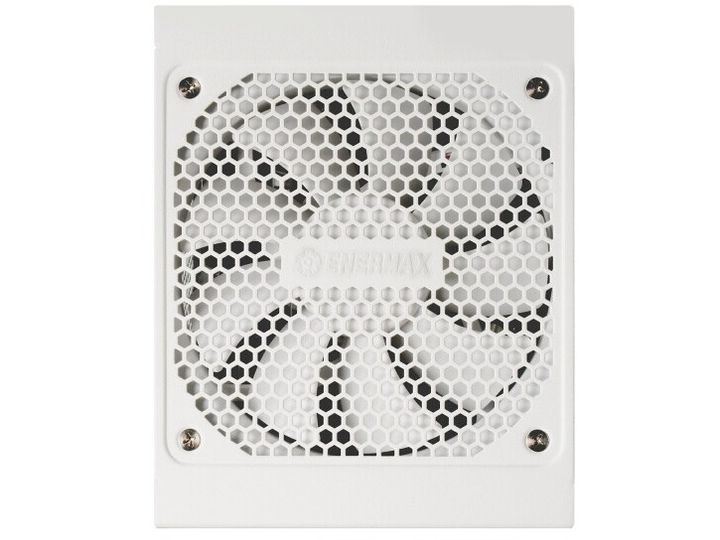

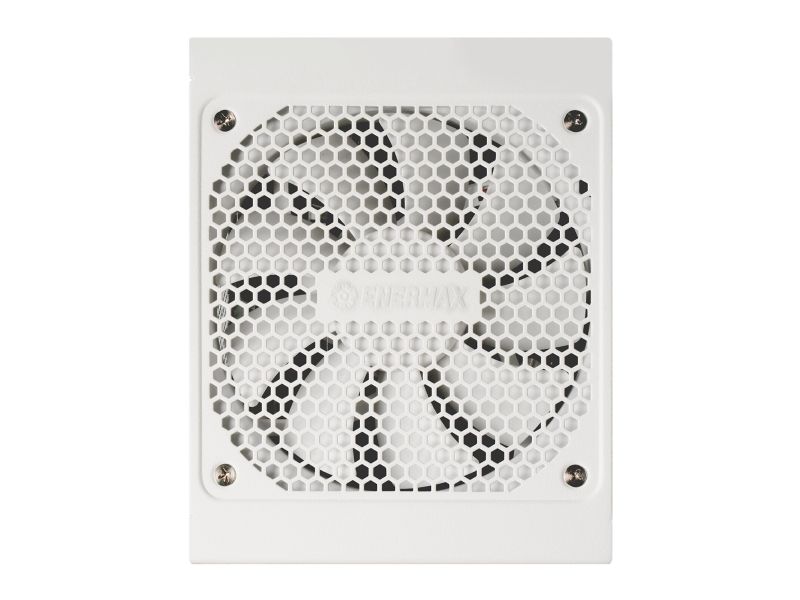

Kølesystem	115 mm ventilator
Egenskaber	Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, fuld modulær, PCIe Gen 5.1 klar
Mål og vægt
Bredde	15 cm
Dybde	12.2 cm
Højde	8.6 cm
Mål & vægt (forsendelse)
Bredde ved forsendelse	18 cm
Dybde ved forsendelse	26 cm
Højde ved forsendelse	11.8 cm
Vægt ved forsendelse	2.3 kg
