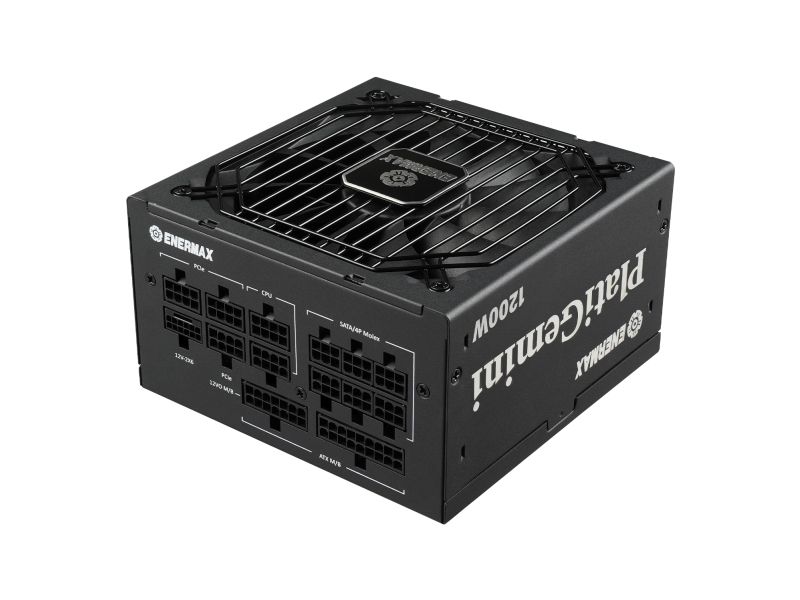

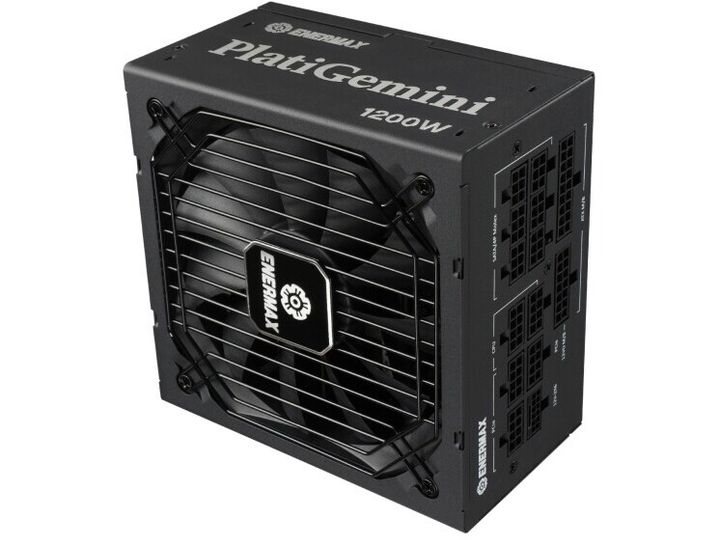

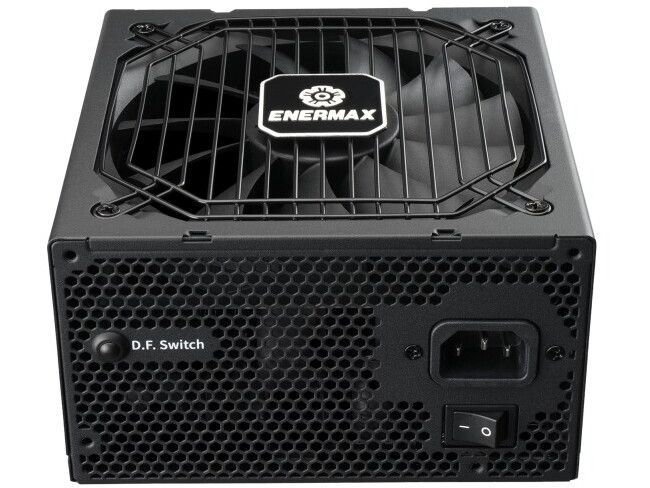

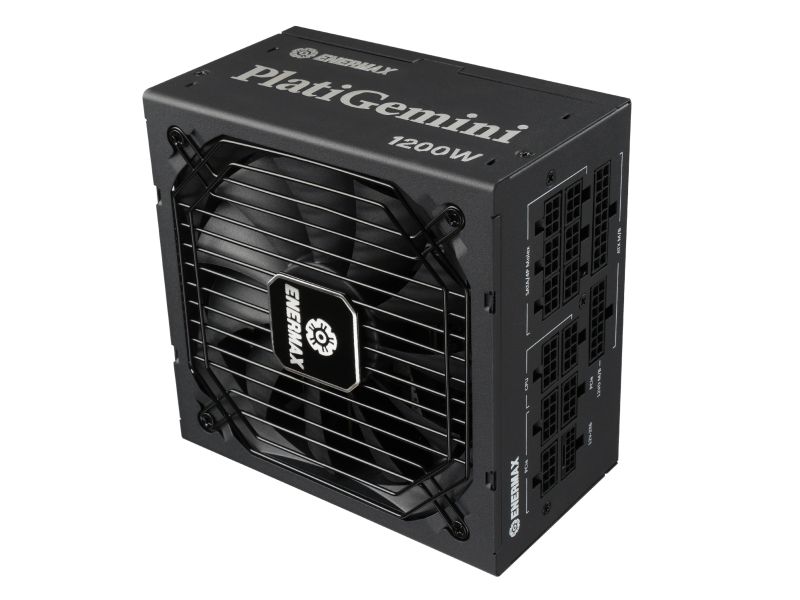

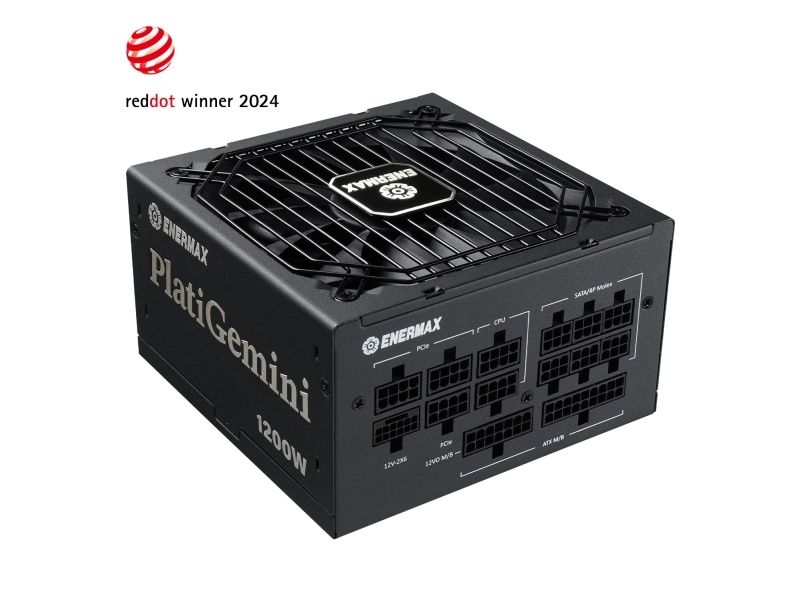

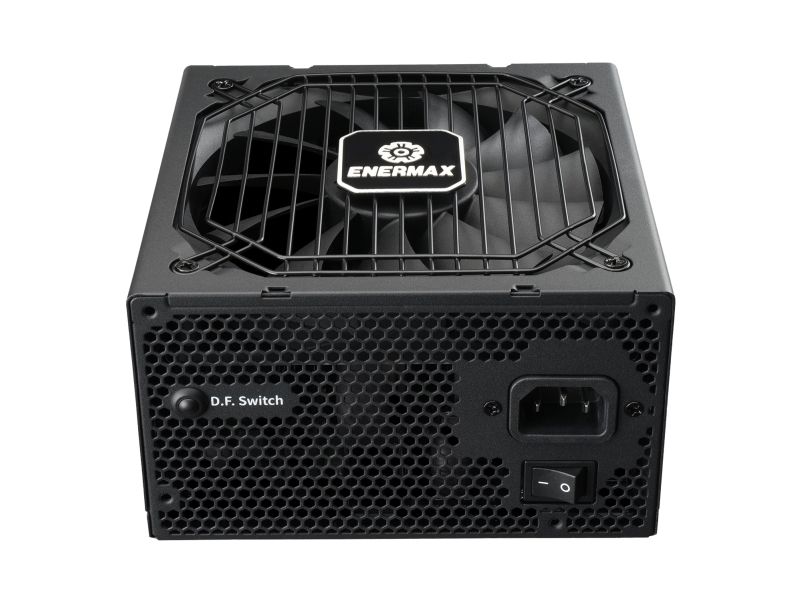

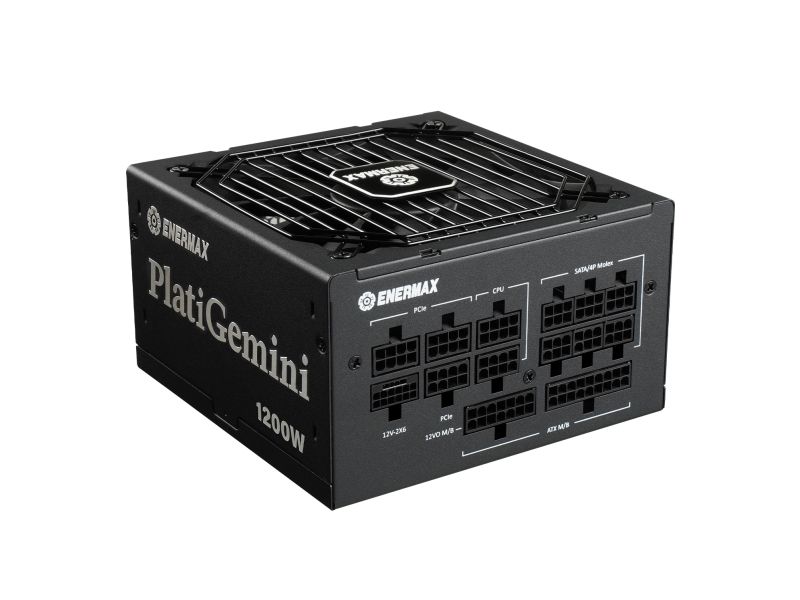

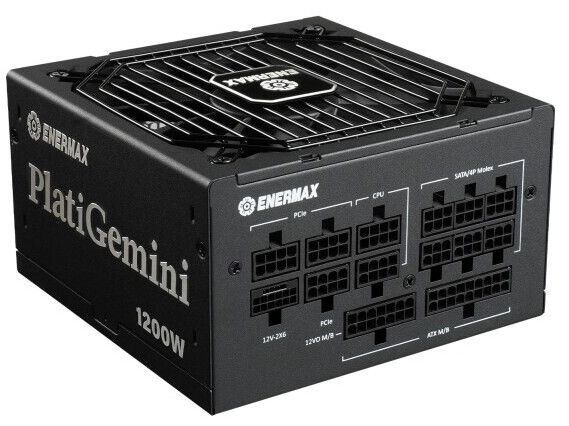

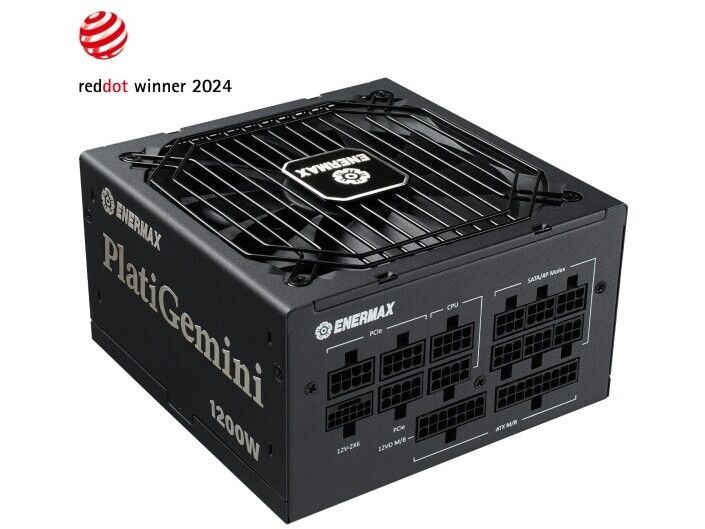

The ENERMAX PlatiGemini EGN1200P power supply is designed for high-performance computing, offering robust power delivery up to 1200 W. This fully modular unit comes equipped with a variety of detachable cables, including 8 pin PCI Express and 24 pin ATX, allowing for customized configurations to suit different system builds. With a high efficiency rating of 80 PLUS Platinum, it ensures lower energy consumption and reduced heat output, making it a choice for users seeking reliability and performance in their setups. In addition to its impressive power capabilities, the ENERMAX PlatiGemini features built-in protections against overheating, overcurrent, and overvoltage, ensuring safe operation under varying loads. The cooling system includes a 135 mm fan, which enhances cooling efficiency while maintaining quiet operation. With an MTBF of 100,000 hours, this power supply is engineered for longevity, making it a dependable component for any demanding PC or server application.
+3.3V - 20 A +5V - 20 A +12V - 100 A -12V - 0.4 A +5VSB - 3 A

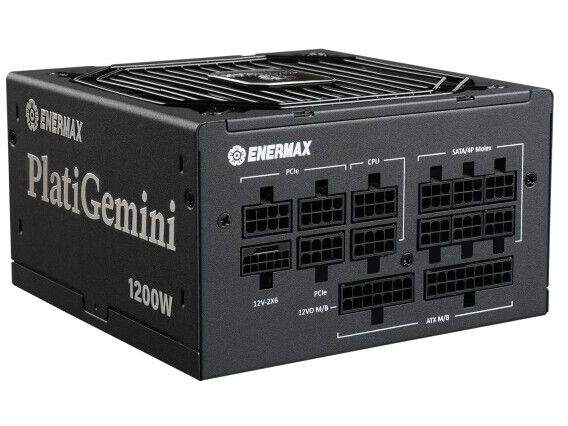

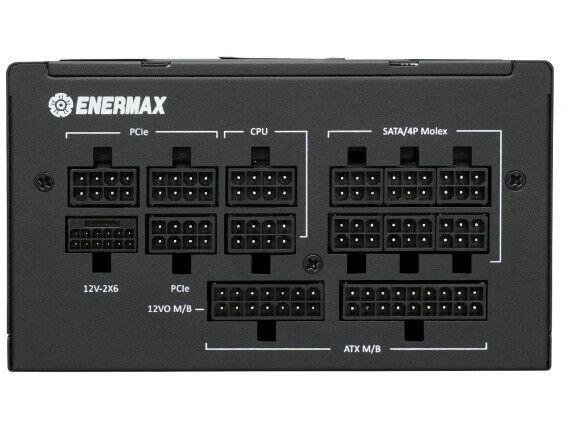

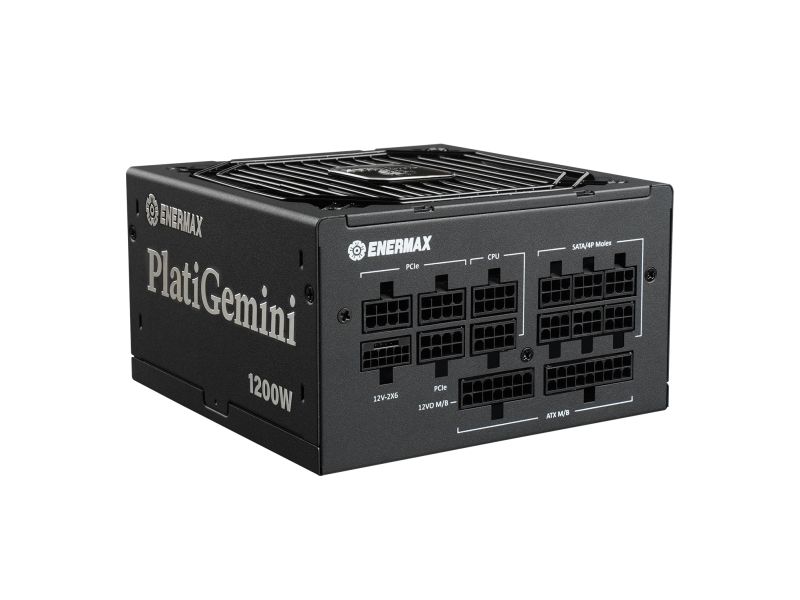

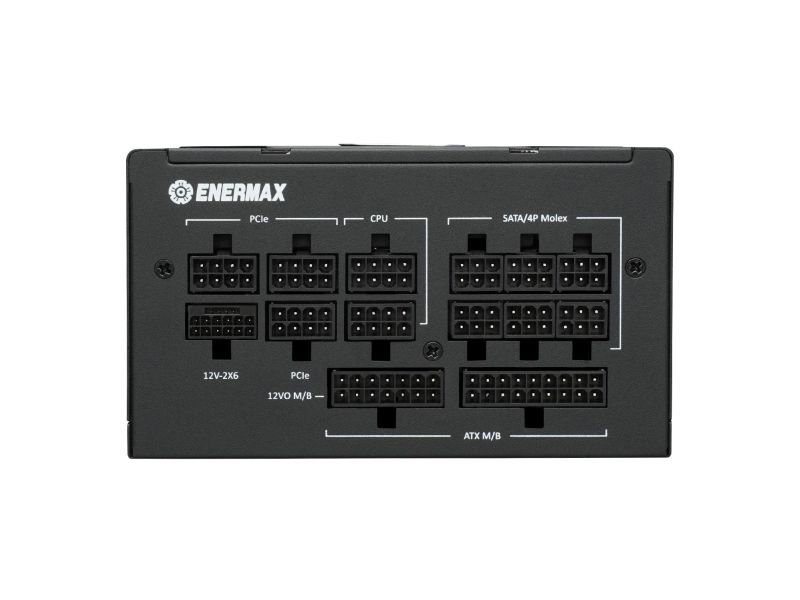

Output-stikforbindelser

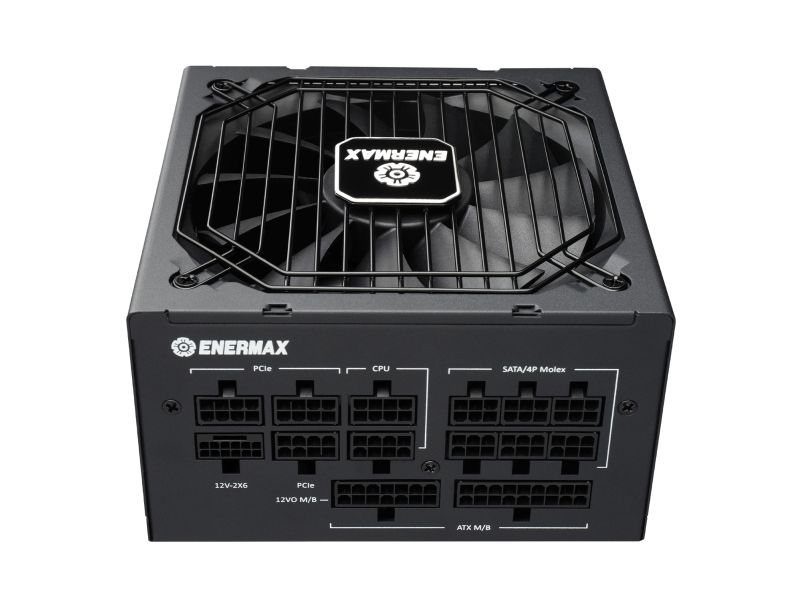

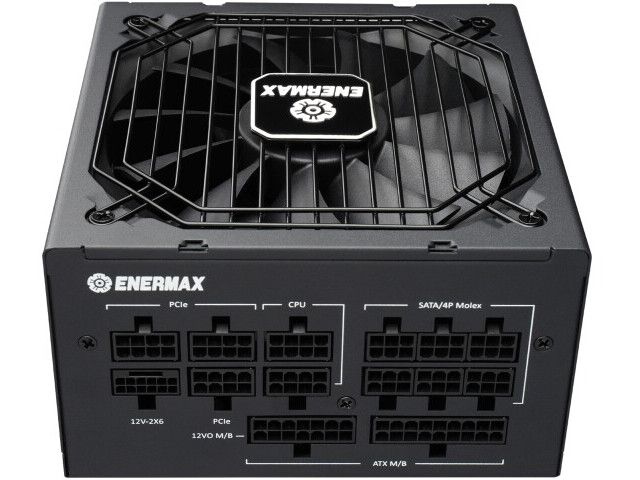

1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin - 12 V 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V 600 W 1 x strøm 10 pin ATX12VO
Modulær Kabel Administration
Ja

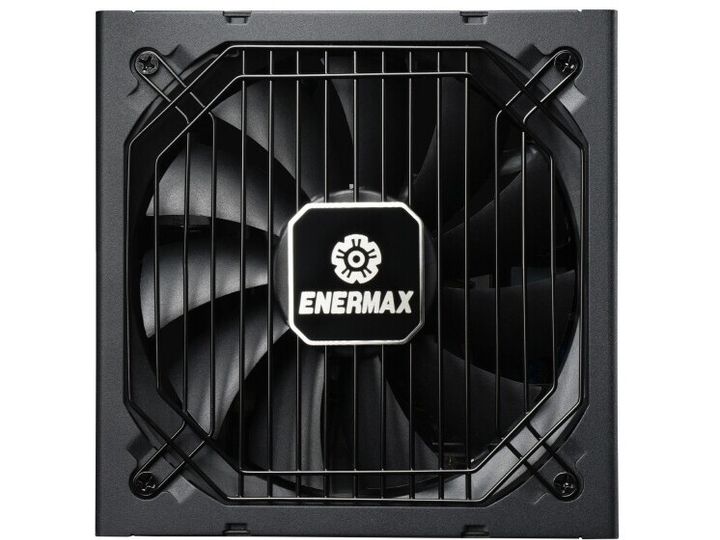

Kølesystem

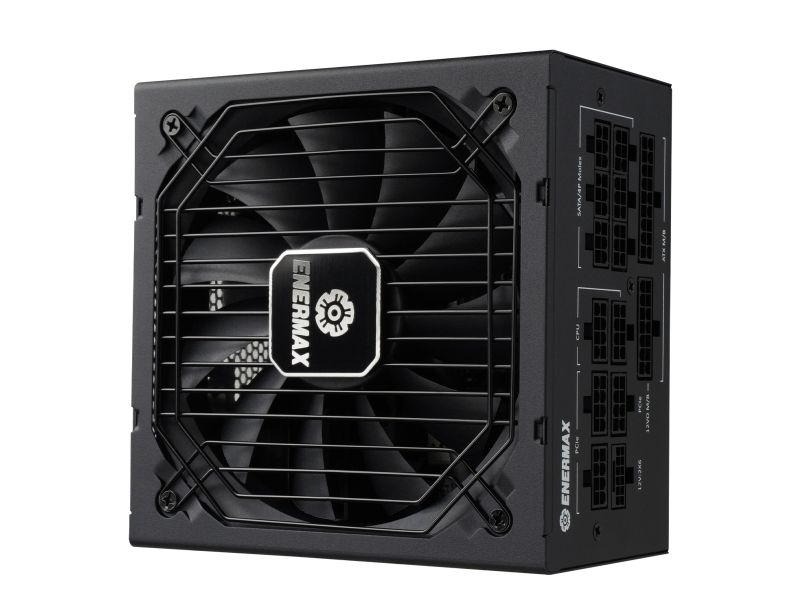

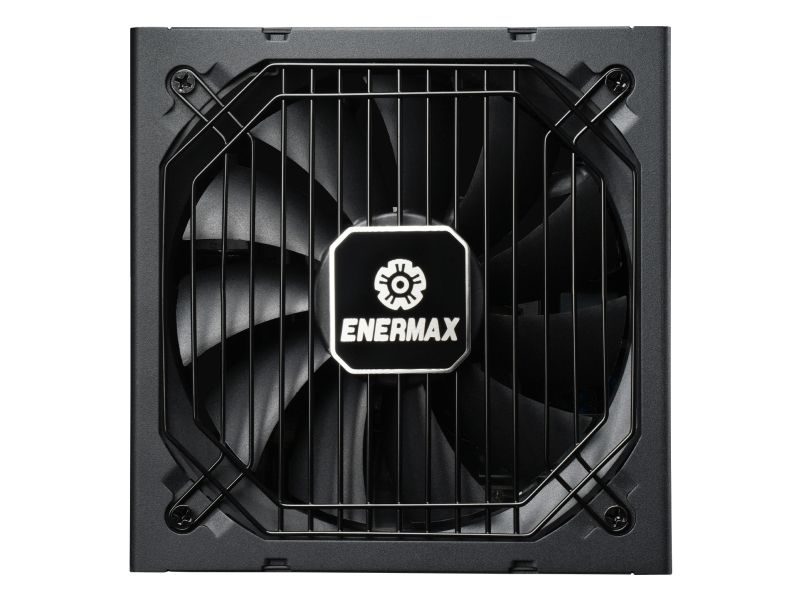

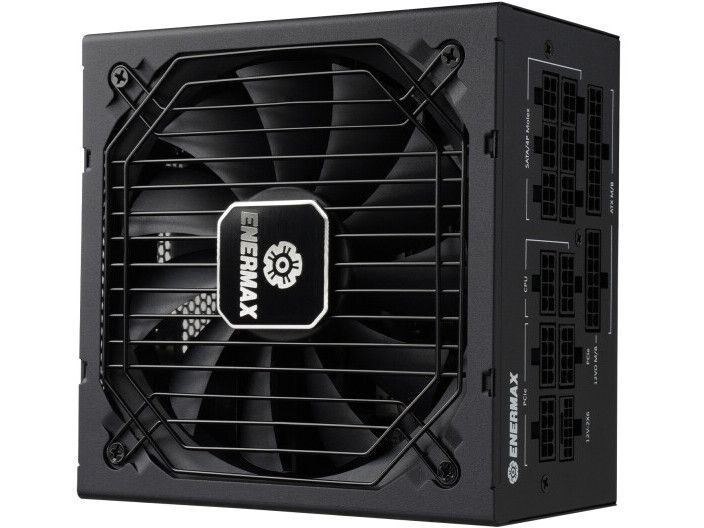

135 mm ventilator
Dimensioner (B x D x H)
15 cm x 16 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x power 8 pin cpu med aftagelig 4 pin - 12 V 3 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 4 x 4-PIN intern strøm 1 x 16 pin PCI Express strøm med aftagelig 4 pin - 12 V 600 W 1 x strøm 10 pin ATX12VO
Udgangspænding
+3.3, +5, ±12 V, -12V, +5Vsb V
Strømkapacitet
1200 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 100 A -12V - 0.4 A +5VSB - 3 A
Effektivitet
92% at 50% Load
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Medfølgende ledninger
Strøm 24 pin ATX modulært kabel 60 cm Kraft 10-pins ATX12VO modulær kabel 60 cm 2 x kraft 8-pins CPU med 4 aftagelige 4-pins 70 cm 16 pin PCI Express strøm med aftagelig 4 pin 60 cm 3 x 8 pin PCI Express strøm med udtrækkelig 2 pin sektion modulærtkabel 60 cm 2 x strøm 15 pin SATA-kabel 45 m 3 x 4-pin intern strøm modulær kabel 15 cm 4-pin intern strøm modulær kabel 45 cm 6 x strøm 15 pin SATA-kabel 15 cm
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
135 mm ventilator
Egenskaber
Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, fuld modulær, PCIe Gen 5.1 klar
