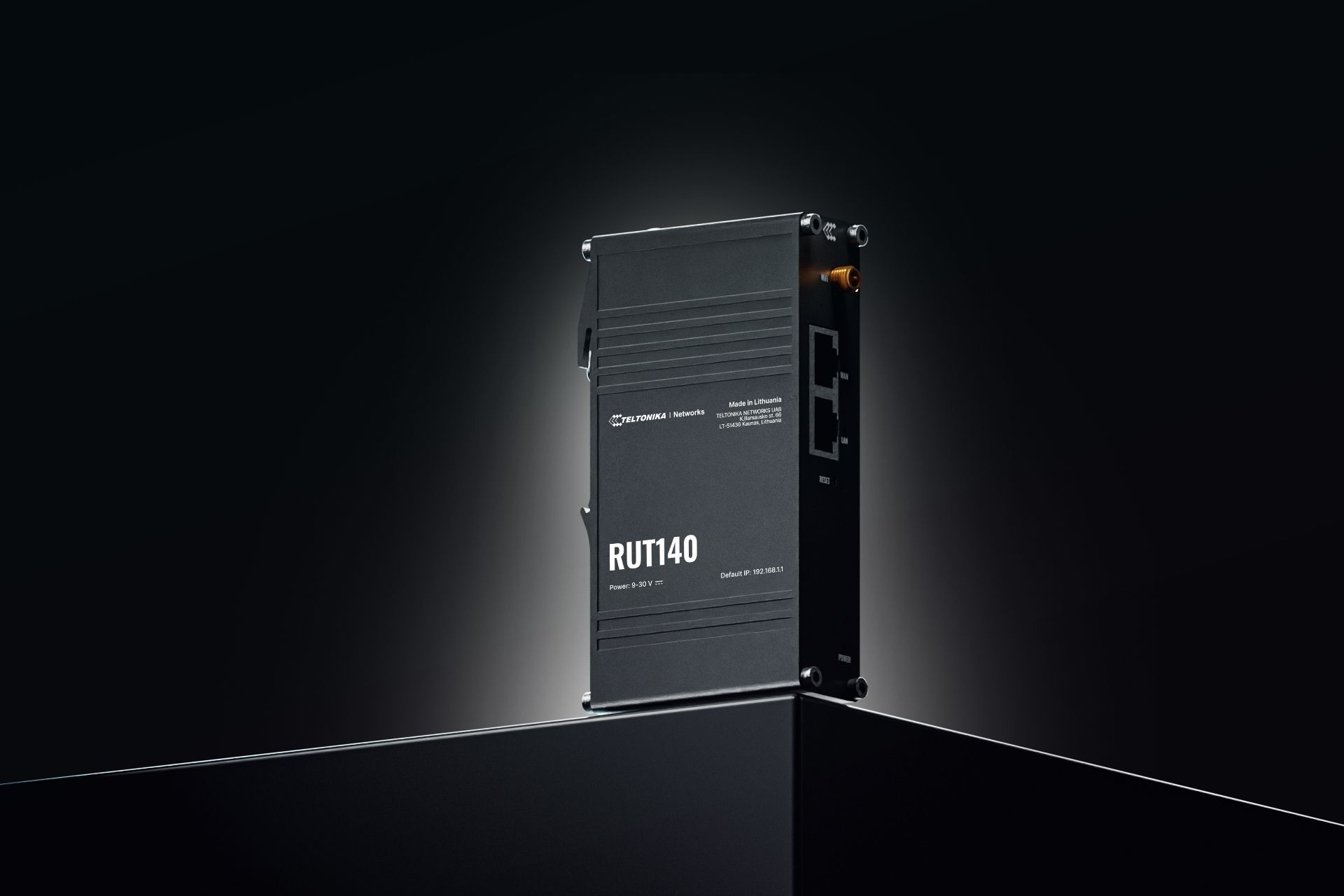

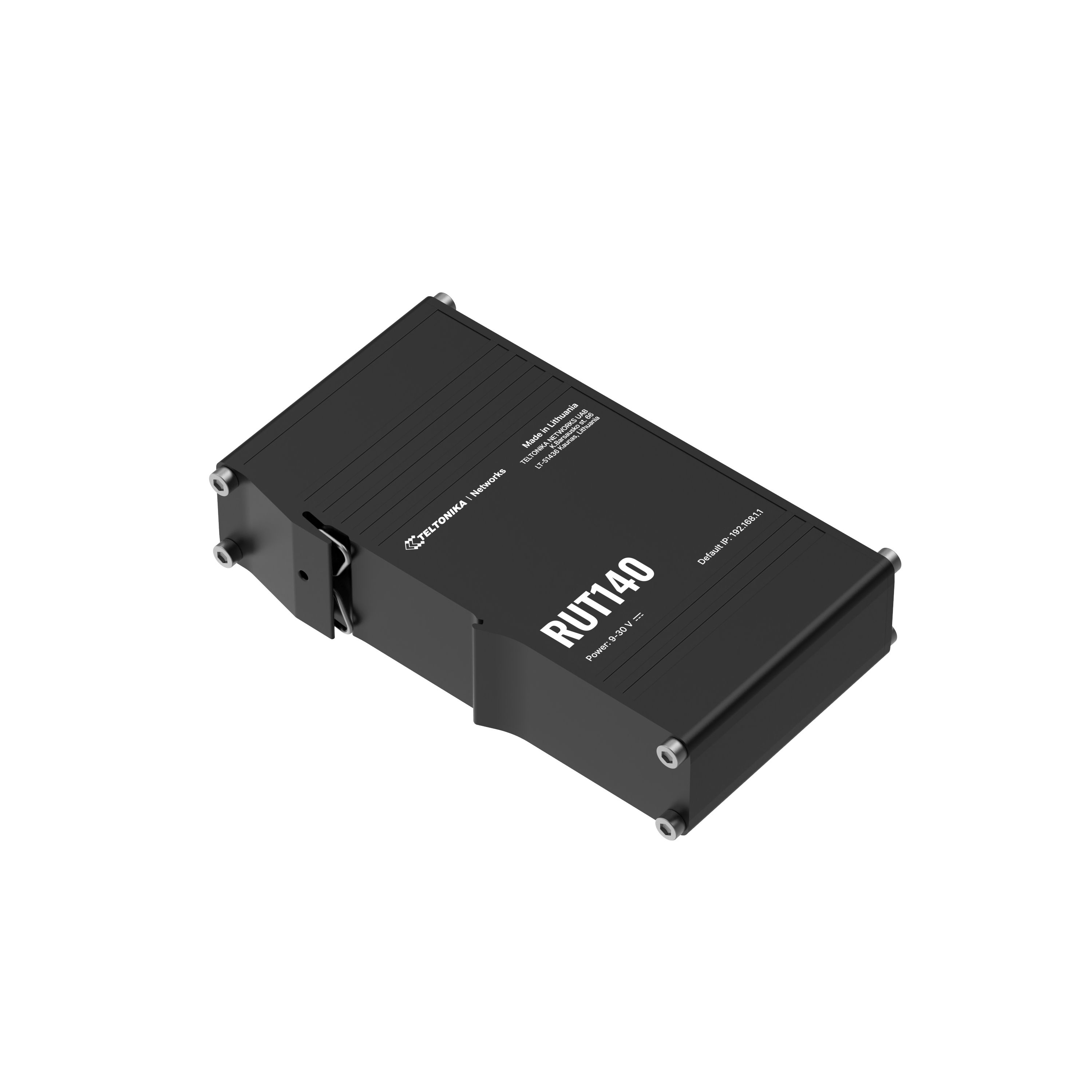

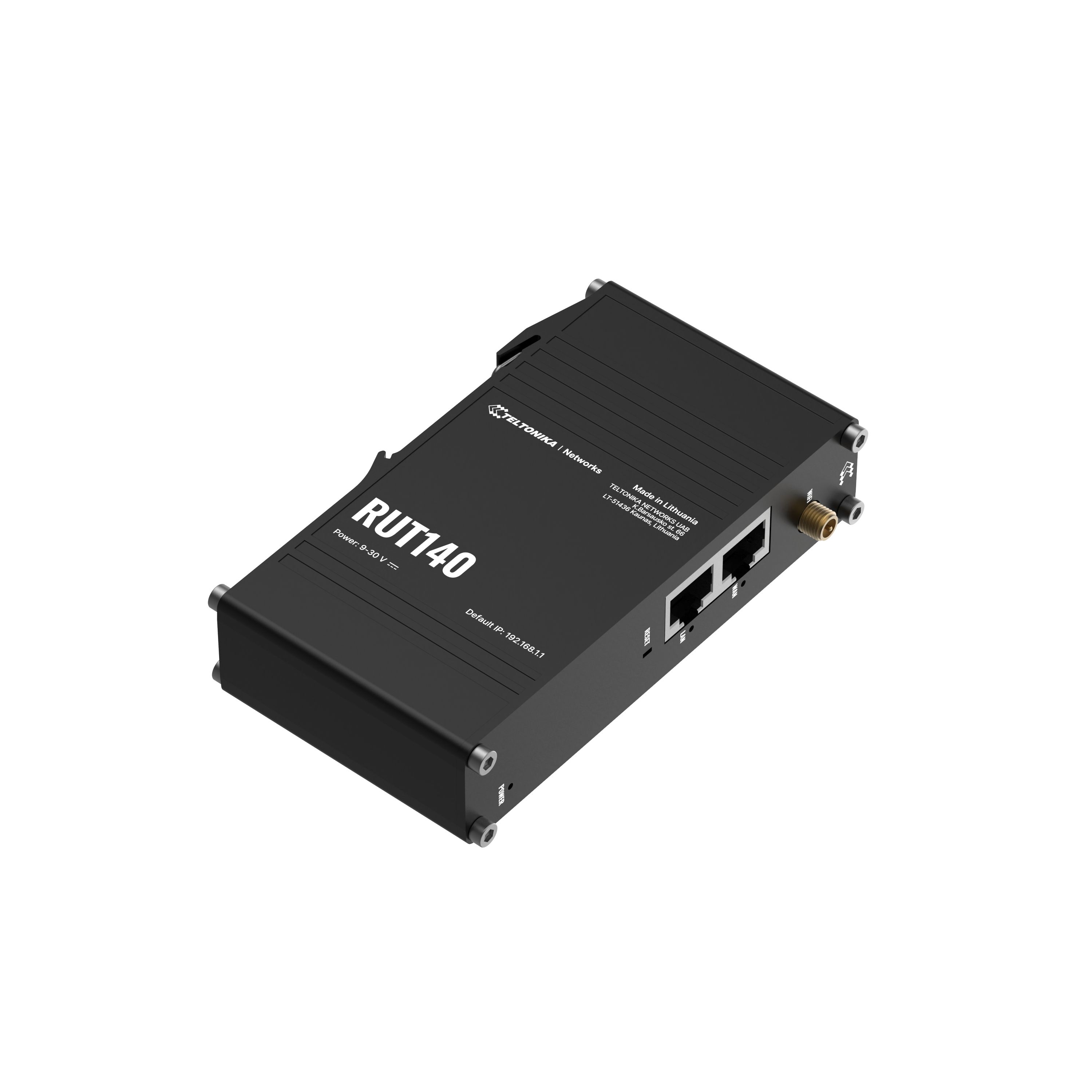

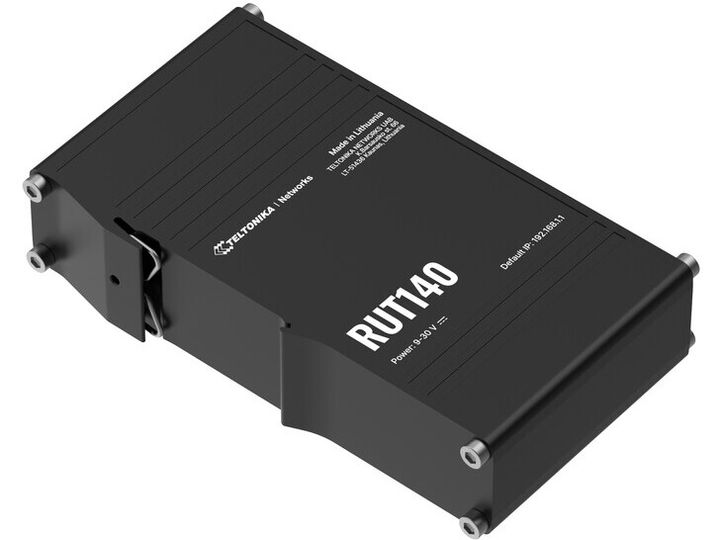

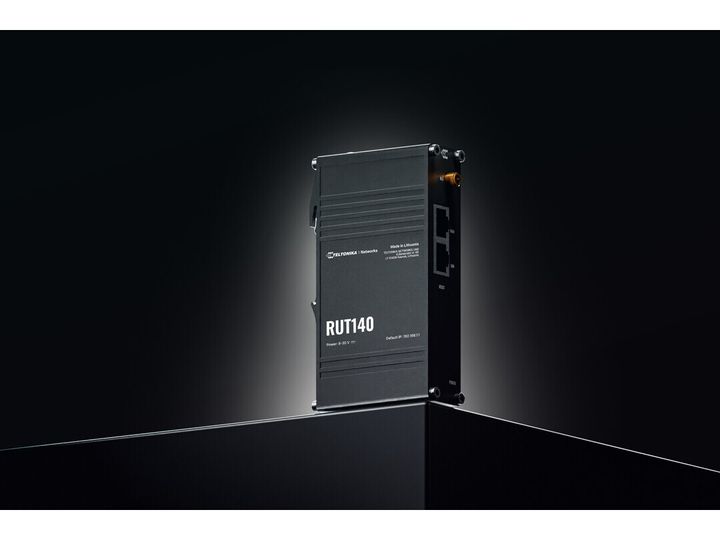

Teltonika Industrial router RUT140 2x RJ45 100Mb/s, IP30, Ethernet WAN, Black

Item no.: [20860774] | Manufacturer: Teltonika | Model no.: RUT140000000 | EAN: 4779051840700

Remote stock (4-5 days)

The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping @price - GLS

12,00

EUR 58,24

Incl. VAT 72,80

Total incl. delivery 87,80

Read further specifications and description

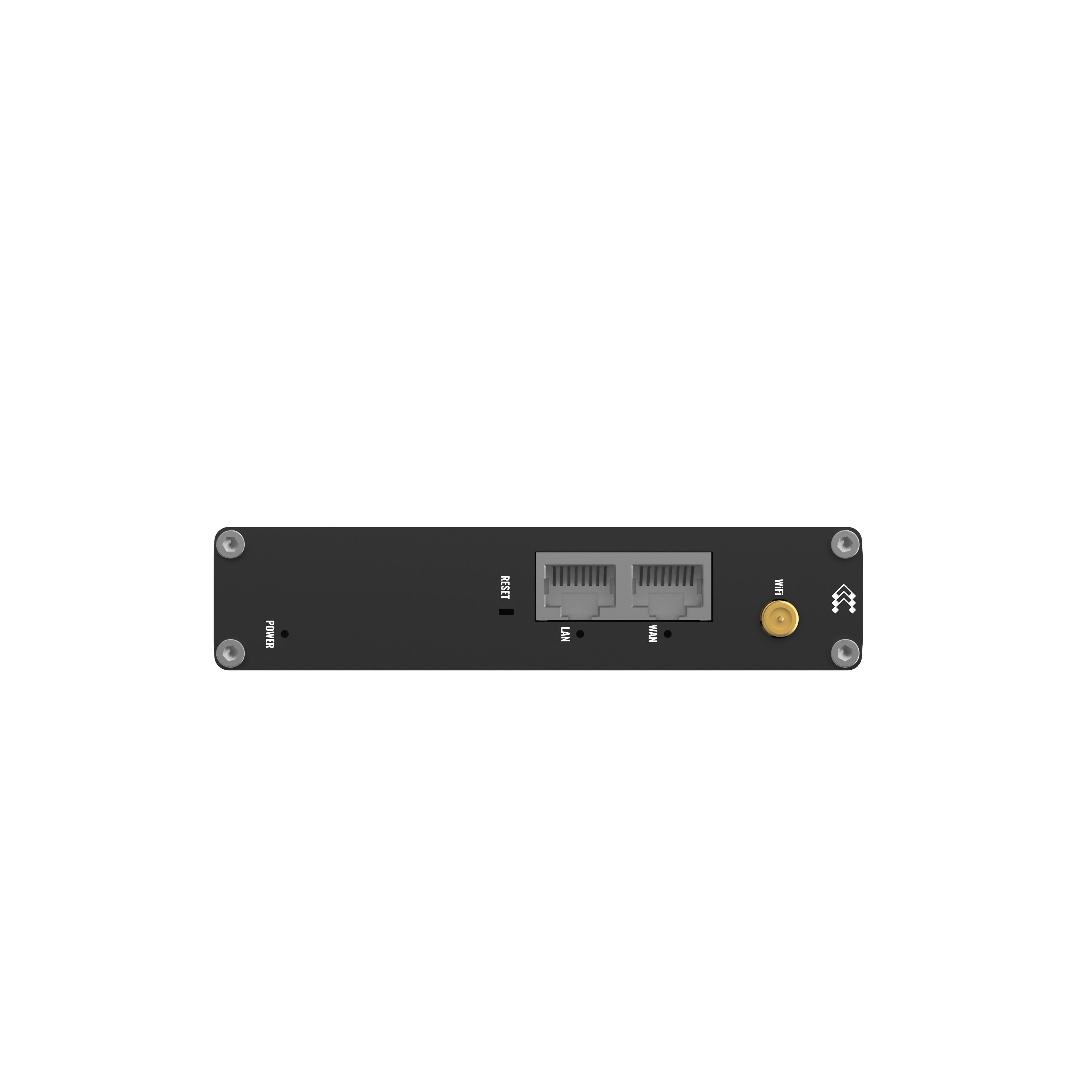

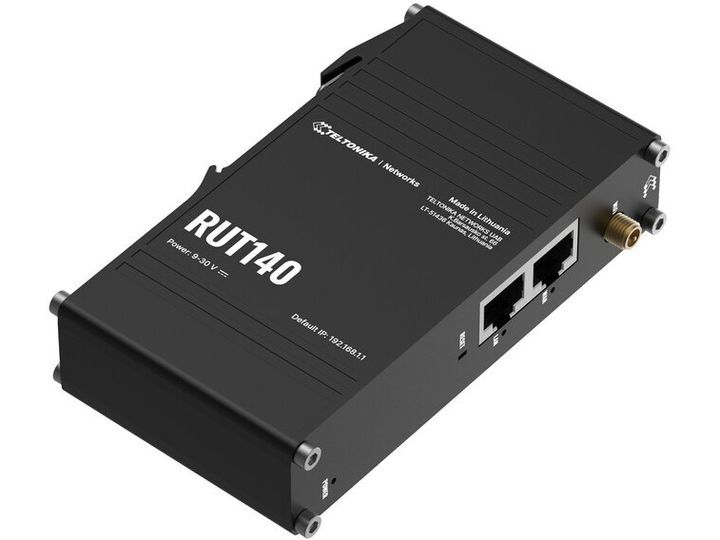

The RUT140 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.

Produktbeskrivelse	Teltonika RUT140 - trådløs router - Wi-Fi - DIN monterbar på skinne
Enhedstype	Trådløs router
Pakningstype	DIN monterbar på skinne
Antal WAN porte	1
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frekvensbånd	2,4 GHz
Kapacitet	Samtidige tilslutninger: op til 50
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, PPTP, L2TP, WireGuard, DDNS
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP
Platform	Clouds of Things, Azure IoT Hub, Cumulocity
Protokol til fjernadministration	HTTP, HTTPS, SMTP, SSH, Telnet, SMPP, SNMP 1, SNMP 2, SNMP 3, SSH-2, TR-069, JSON-RPC
Egenskaber	Tilgangspunkt, drift, stationsdriftstilstand, Auto Cipher-tilstande, klientadskillelse, MAC-adresse-filtrering, auto-uplink (auto MDI/MDI-X), PPP, H.323 Pass-Through, SIP ALG, port fremsendelse, SQM, WMM support, aktivitet, Captive Portal, RADIUS Server, SSHFS support, PSK, DMZ-support, IPSec NAT-T, DDoS Protection, port scan prevention, portbaseret VLAN, mærket VLAN, hvidliste, sort liste, CLI administration, Web Filtering, GRE tunneling, DMVPN, SSTP-klient instanssupport, Modbus-kompatibel, MQTT-support, DLMS support, Teltonika RMS, SNMP fælde, passiv PoE-understøttet, aluminiumskabinet, DNP3 outstation
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.11e
Dimensioner (B x D x H)	11.31 cm x 6.86 cm x 2.5 cm
Vægt	142.3 g

Generelt
Enhedstype	Trådløs router
Pakningstype	DIN monterbar på skinne
Forbindelsesteknologi	Kablet, trådløs
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frekvensbånd	2,4 GHz
Kapacitet	Samtidige tilslutninger: op til 50
Netværks/overføselsprotokol	TCP, UDP, IPv4, IPv6, NTP, DNS, FTP, ARP, PPPoE, DHCP, PPTP, L2TP, WireGuard, DDNS
Routingprotokol	Statisk IP routing, BGP, OSPFv2, RIP-1, RIP-2, EIGRP, NHRP, police-baseret routing (PBR), VRRP
Protokol til fjernadministration	HTTP, HTTPS, SMTP, SSH, Telnet, SMPP, SNMP 1, SNMP 2, SNMP 3, SSH-2, TR-069, JSON-RPC
Krypterings algoritme	WPA2-Enterprise, PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, Opportunistic Wireless Encryption (OWE), AES-CCMP, TKIP, EAP-TLS, PKCS#11, SSL 3.0, TLS, 128-bit AES, 192-bit AES, 256-bit AES, DES, 3DES, IKEv1, IKEv2, AES-GCM
Autentificeringsmetode	Extended Service Set ID (ESSID), RADIUS, X.509 certifikater, TACACS+
Egenskaber	Tilgangspunkt, drift, stationsdriftstilstand, Auto Cipher-tilstande, klientadskillelse, MAC-adresse-filtrering, auto-uplink (auto MDI/MDI-X), PPP, H.323 Pass-Through, SIP ALG, port fremsendelse, SQM, WMM support, aktivitet, Captive Portal, RADIUS Server, SSHFS support, PSK, DMZ-support, IPSec NAT-T, DDoS Protection, port scan prevention, portbaseret VLAN, mærket VLAN, hvidliste, sort liste, CLI administration, Web Filtering, GRE tunneling, DMVPN, SSTP-klient instanssupport, Modbus-kompatibel, MQTT-support, DLMS support, Teltonika RMS, SNMP fælde, passiv PoE-understøttet, aluminiumskabinet, DNP3 outstation
Overensstemmelsesstandarder	IEEE 802.11s, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k, IEEE 802.3, IEEE 802.3u, IEEE 802.3az, UPnP, IEEE 802.11e, IP30, RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE
Processor	1 x MediaTek MIPS 24Kec 580 MHz
RAM	128 MB DDR2 SDRAM
Flashhukommelse	16 MB
Statusindikatorer	WAN, LAN, strøm
Internet of Things (IoT)
Internet of Things (IoT) kompatibel	Ja
Platform	Clouds of Things, Azure IoT Hub, Cumulocity
Ekspansion / Konnektivitet

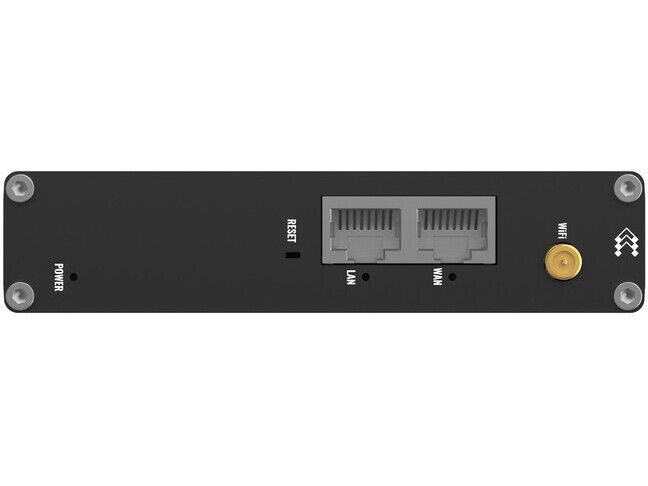

Interface	LAN: 1 x 10Base-T/100Base-TX - RJ-45 WAN: 1 x 10Base-T/100Base-TX - RJ-45 Antenne: 1 x RP-SMA - Wi-Fi
Antenne
Antenne	Aftagelig eksternt
Antal antenner	1
Diverse

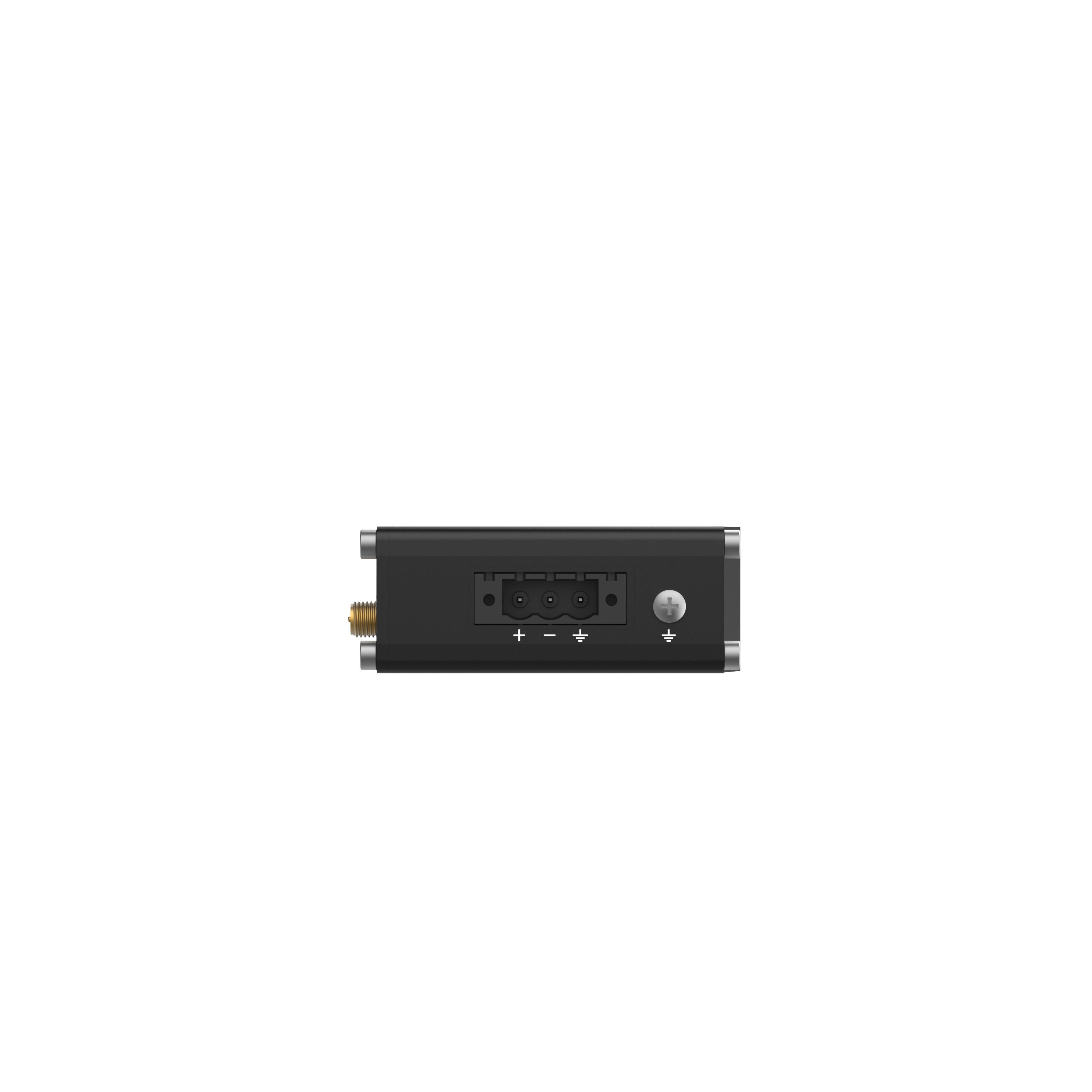

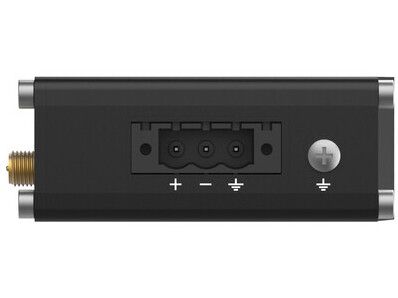

Udstyr inkluderet	3-pins strømterminalblok
Programmer / Systemkrav
Med OS	RutOS
Mål og vægt
Bredde	11.31 cm
Dybde	6.86 cm
Højde	2.5 cm
Vægt	142.3 g
Miljømæssige parametre
Min. driftstemperatur	-40 °C
Maks. driftstemperatur	75 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)
