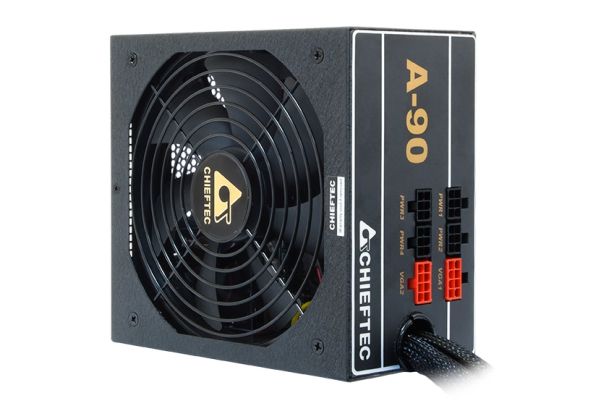

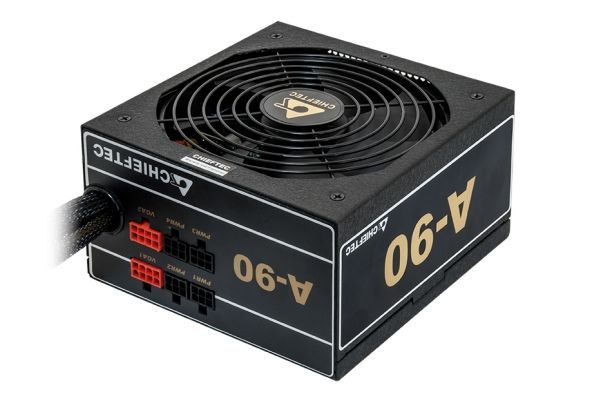

Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
Total power
650 W
AC input voltage
200 - 240 V
AC input frequency
47 - 63 Hz
Input current
5 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+5V)
120 W
Max output current (+3.3V)
20 A
Max output current (+12V1)
53 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Number of SATA power connectors
6
PCI Express power connectors (6+2 pin)
2
CPU power connector (4+4 pin)
Yes
Floppy drive power connector
1
Cabling type
Semi-Modular
Purpose
PC
Power supply unit (PSU) form factor
PS/2
ATX version
2.3
Mean time between failures (MTBF)
100000 h
Product colour
Black
Fan diameter
14 cm
Compliance certificates
RoHS
Width
150 mm
Depth
160 mm
Height
87 mm
Harmonized System (HS) code
84733020
