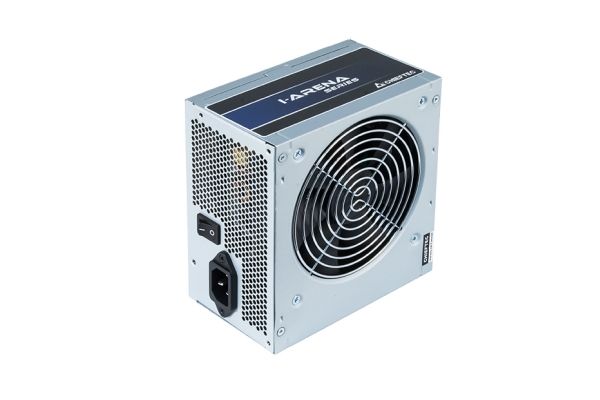

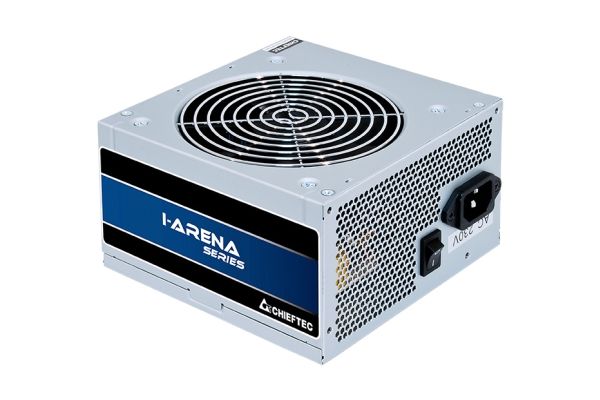

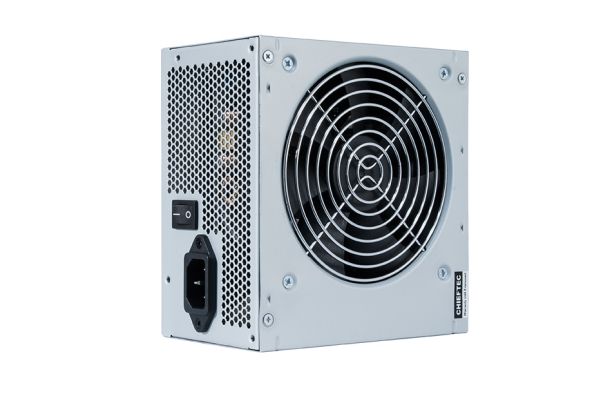

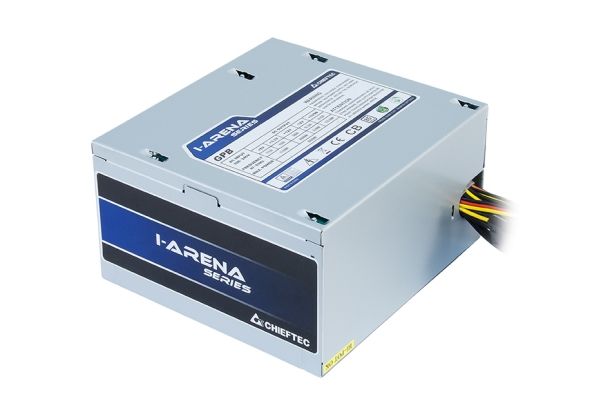

High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Total power
500 W
AC input voltage
200 - 240 V
AC input frequency
47 - 63 Hz
Input current
4 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
456 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
18 A
Max output current (+12V1)
38 A
Max output current (+5V)
17 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Efficiency
85%
Power protection features
Over voltage, Overload, Short circuit, Under voltage
Motherboard power connector
20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)
3
Number of SATA power connectors
5
PCI Express power connectors (6+2 pin)
1
Cabling type
Non-Modular
Purpose
PC
Power supply unit (PSU) form factor
PS/2
ATX version
2.3
Product colour
Silver
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Compliance certificates
RoHS
Width
140 mm
Depth
150 mm
Height
87 mm
Manual
Yes
Package type
Box
Harmonized System (HS) code
84733020
Warranty card
Yes
The item is known under the following item numbers in our system
EAN:
4710713233645
SKU:
CKGPB-500S
