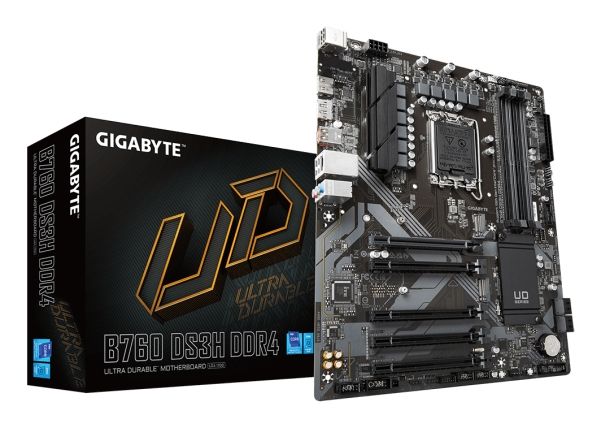

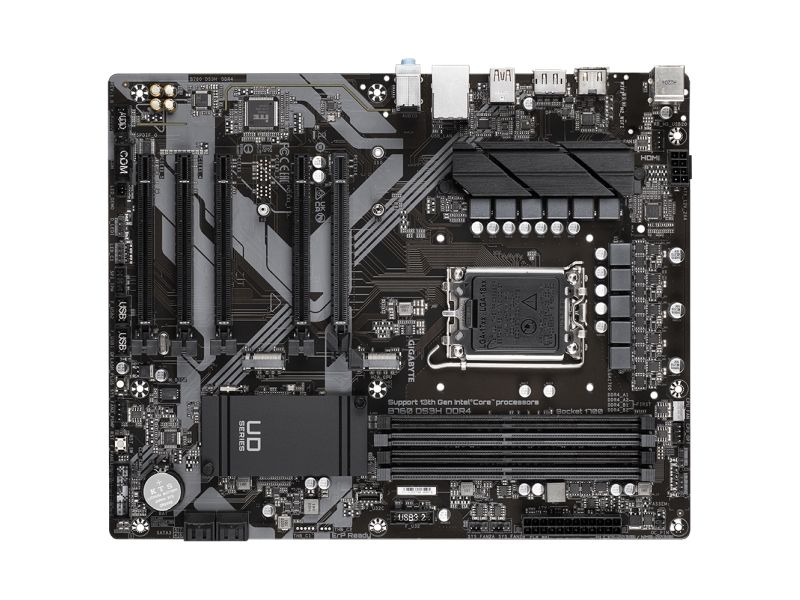

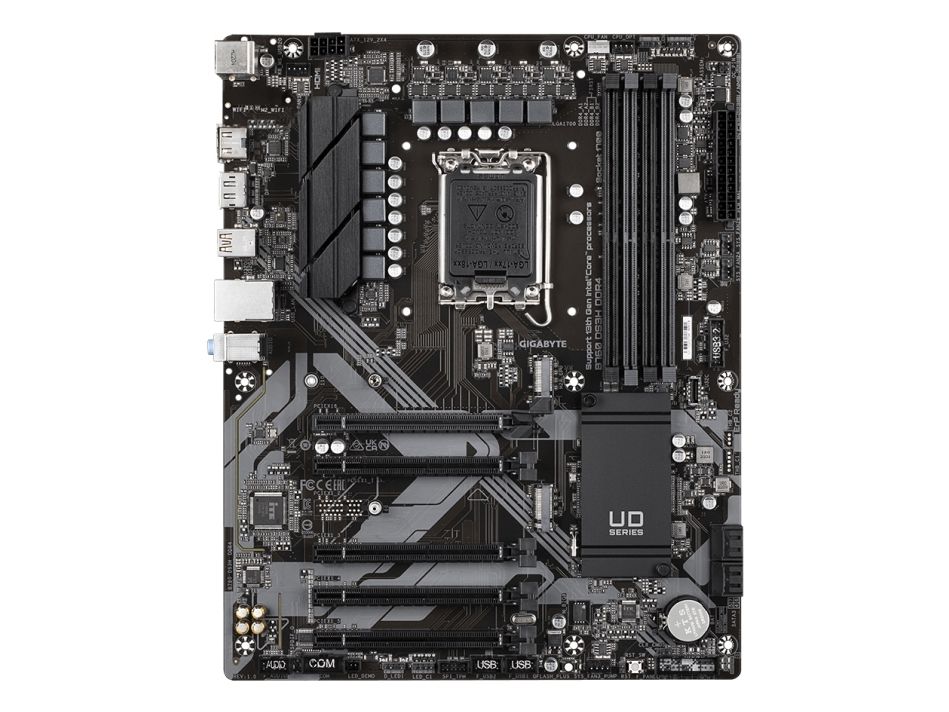

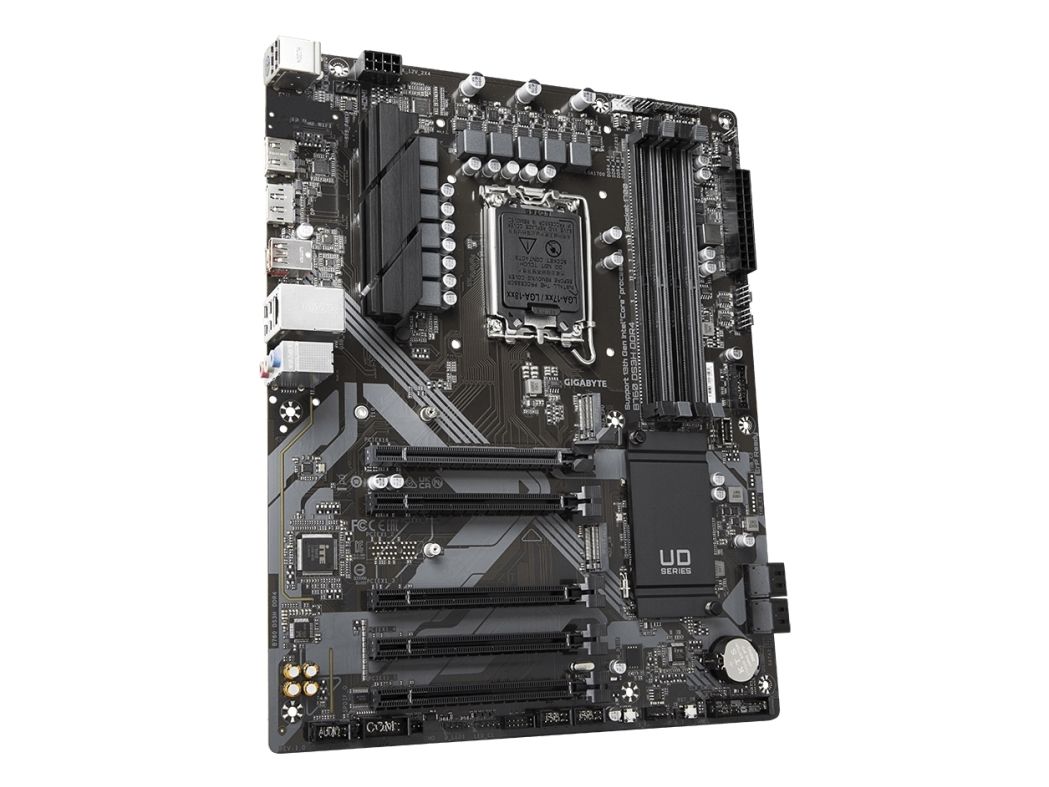

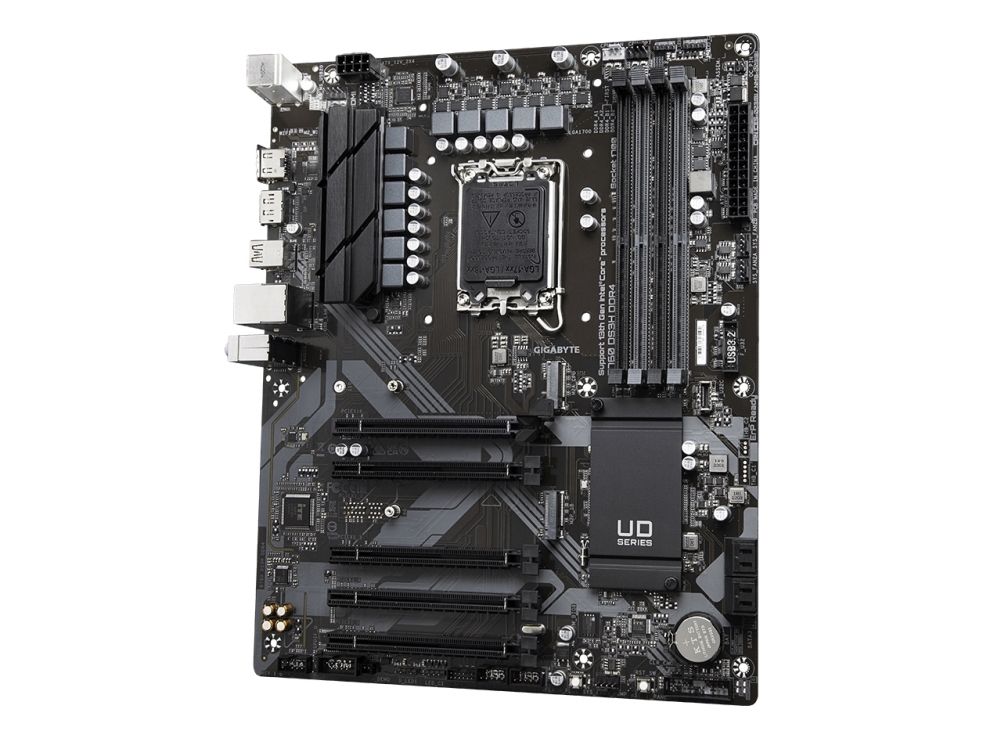

MB B760 S1700 ATX B760 DS3H DDR4 GIGABYTE

Item no.: [20941410] | Manufacturer: Gigabyte Technology | Model no.: GGB760_DS3H_DDR4 | EAN: 4719331850746

In stock

In stock, order before 3 PM and we ship today (weekdays) More info

There are 1 in stock

The current price is valid as long as the local stock lasts

Shipping @price - GLS

12,00

EUR 98,28

Incl. VAT 122,85

Total incl. delivery 137,85

Read further specifications and description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Produktbeskrivelse	Gigabyte B760 DS3H DDR4 - 1.0 - bundkort - ATX - LGA1700 sokkel - B760
Produkttype	Bundkort - ATX
Chipsættype	Intel B760
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger - DDR4, ECC (drift i ikke-ECC tilstand), ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	Gigabit Ethernet

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel B760
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse	128 GB
Teknologi	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)
Understøttet RAM-integritetskon	ECC (drift i ikke-ECC tilstand), ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type	HD Audio (8-kanaler)
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværks interfaces	Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 4 x PCIe 3.0 x16 (x1 modus) 1 x M.2 socket (2280/22.110 M.2 Key M-åbning) 1 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 2 x M.2

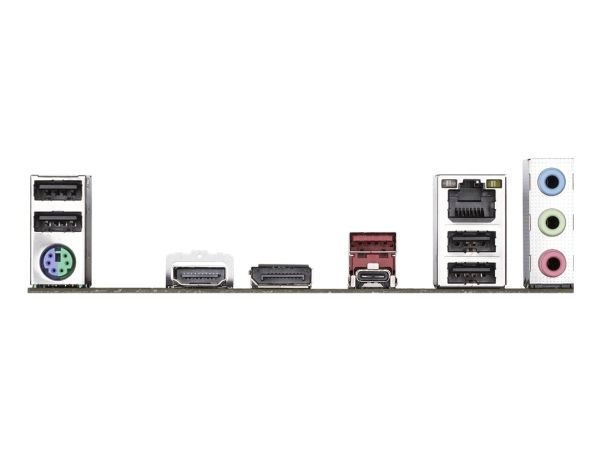

Interface	1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x LAN (Gigabit Ethernet) 1 x PS/2-tastatur/mus
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 1 - intern stik 1 x audio - intern stik 1 x SPDIF ud - intern stik 1 x SPI - intern stik 1 x seriel - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	PnP 1.0a support, DMI 2.7 support, WfM 2.0 understøttet, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardwareovervågning	Systemspænding, chassis temperatur, blæserkontrol, vandkølings-flowrate, blæserhastighedsdetektion, blæserfejlvarsel
Hardware egenskaber	Water Pump Header, Q-Flash Plus, Q-Flash, Solid Pin Power Connectors, 8+2+1 Phase Power Design, 6 Layer PCB, MultiKey, GIGABYTE Smart Fan 6, DIY Friendly Design, Ultra Durable, PCIe EZ Latch
Diverse
Med software	Norton Internet Security
Bredde	30.5 cm
Dybde	24.4 cm
Pakkedetaljer	Boks
