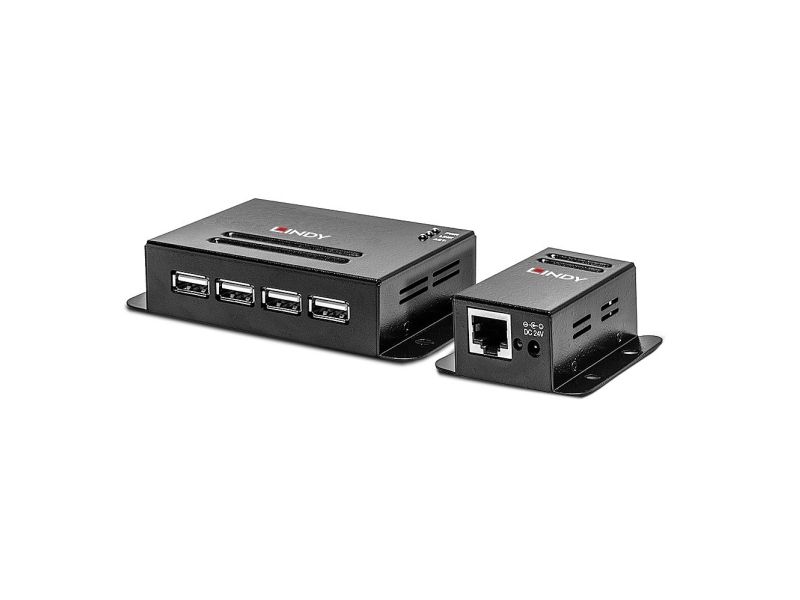

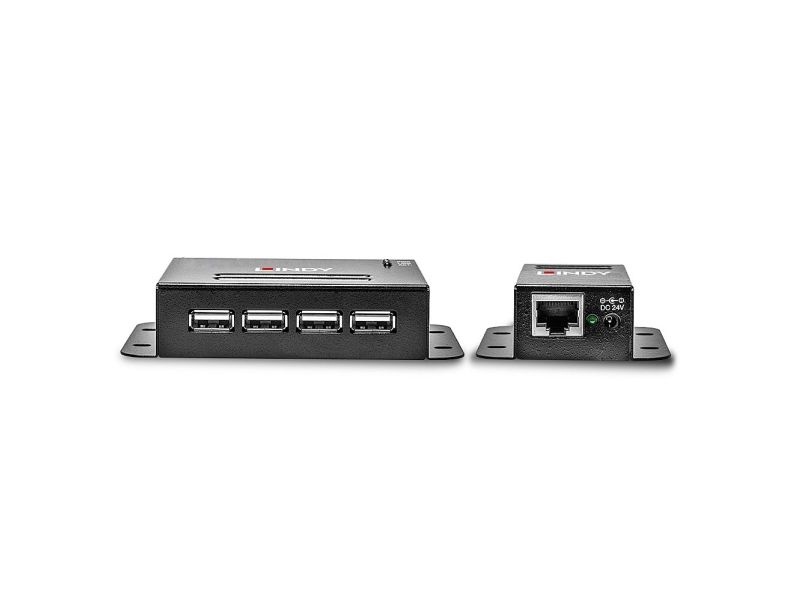

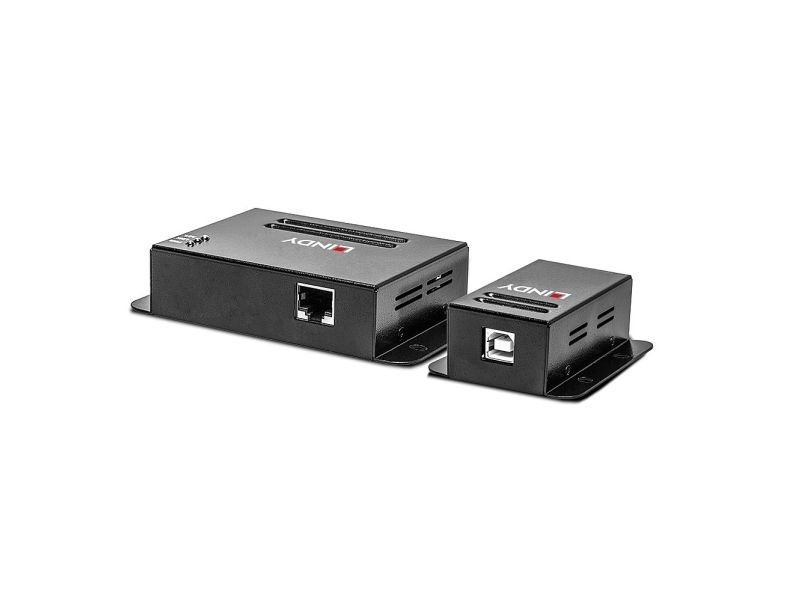

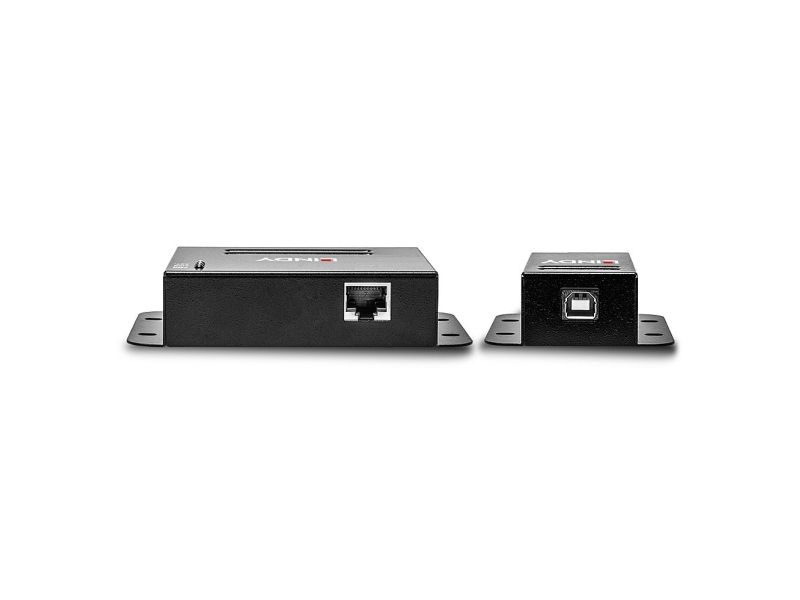

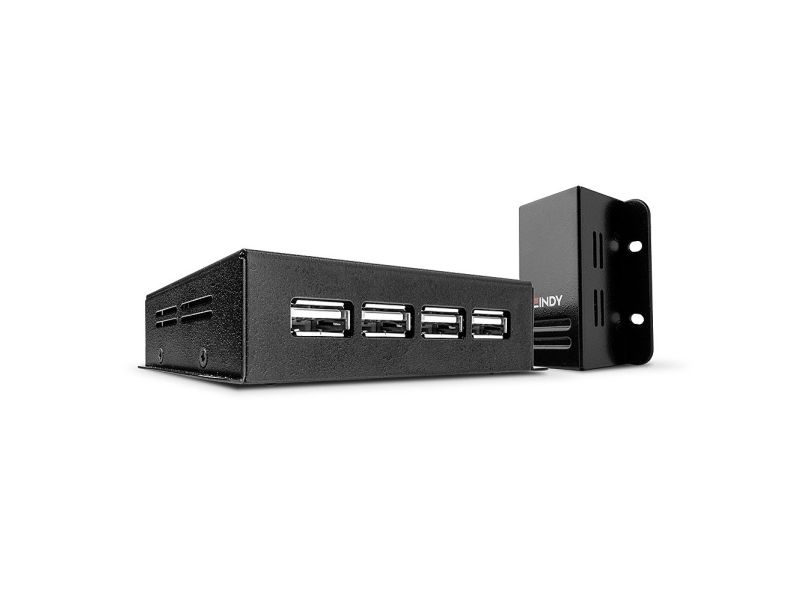

This Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between four USB peripheral devices and the host computer by up to 50m.
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Type
Network transmitter & receiver
Maximum transfer distance
50 m
Data transfer rate
480 Mbit/s
Cable types supported
Cat5, Cat5e, Cat6
Chipset (transmitter)
NS1021
Plug and Play
Yes
Ethernet LAN (RJ-45) ports
2
RJ-45 ports quantity (transmitter)
1
RJ-45 ports quantity (receiver)
1
USB 2.0 ports quantity
5
DC-in jack
Yes
Contact material
Phosphor bronze
Connector contacts plating
Gold
Connector material
Gold
Product colour
Black
Housing material
Metal
LED indicators
Yes
Certification
CE, UKCA, FCC, RoHS, REACH
External power adapter
Yes
Output voltage
24 V
Output current
0.5 A
Power over Ethernet (PoE)
Yes
Power note
3.5/1.35mm DC
Included power plug types
AU, EU, UK, US
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
20 - 80 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 90%
Weight
415 g
Transmitter width
6 cm
Transmitter depth
6.7 cm
Transmitter height
2.3 cm
Receiver width
11 cm
Receiver depth
6.4 cm
Receiver height
2.3 cm
Cables included
USB Type-A to USB Type-B
Manual
Yes
Package type
Box
Package width
215 mm
Package depth
155 mm
Package height
50 mm
Package volume
600 cm³
Harmonized System (HS) code
85176990
