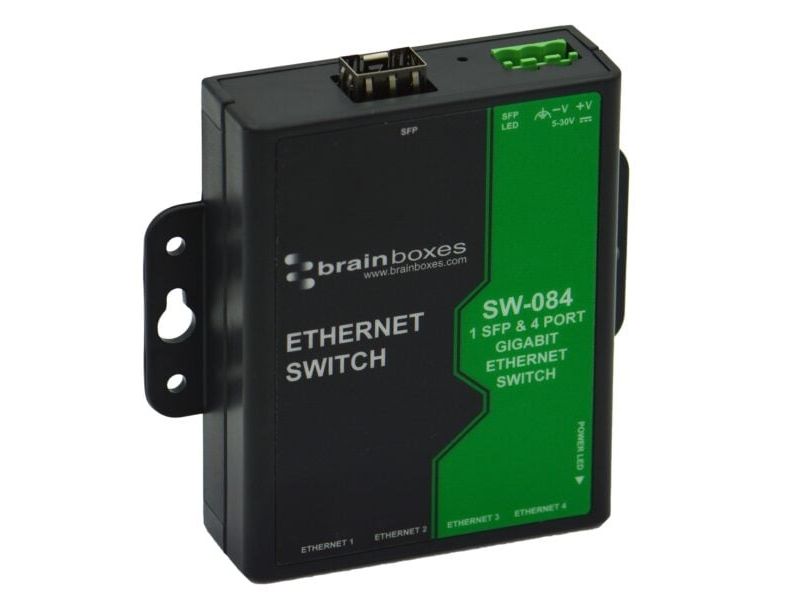

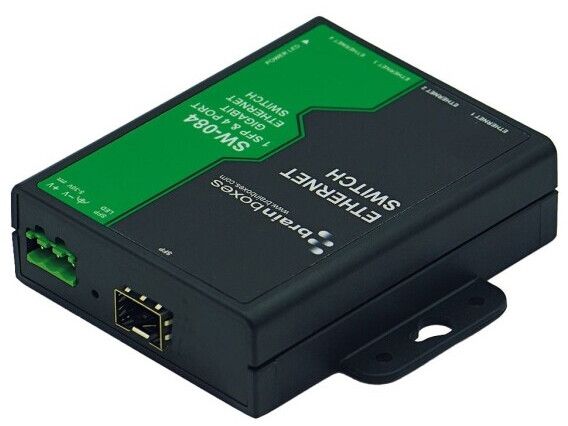

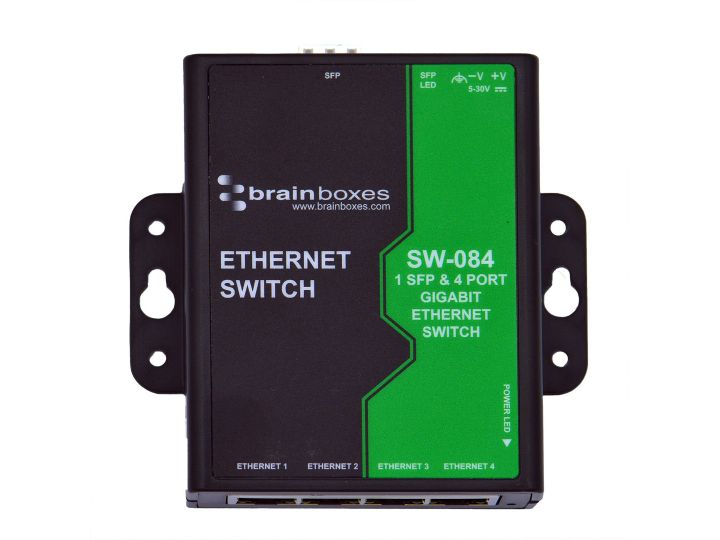

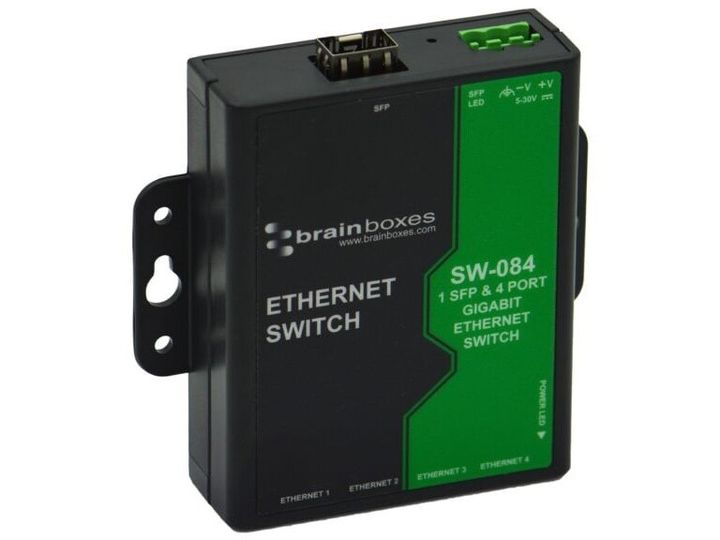

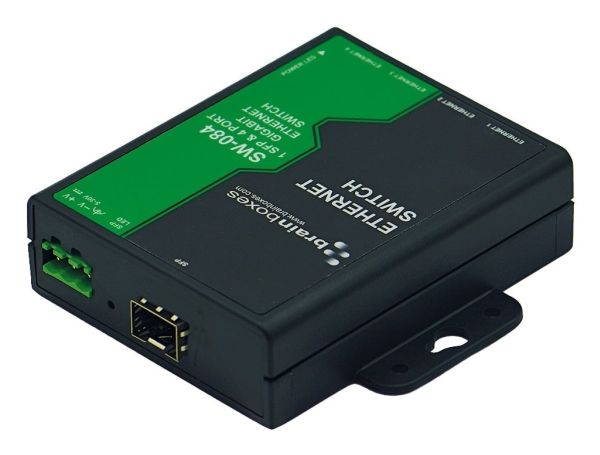

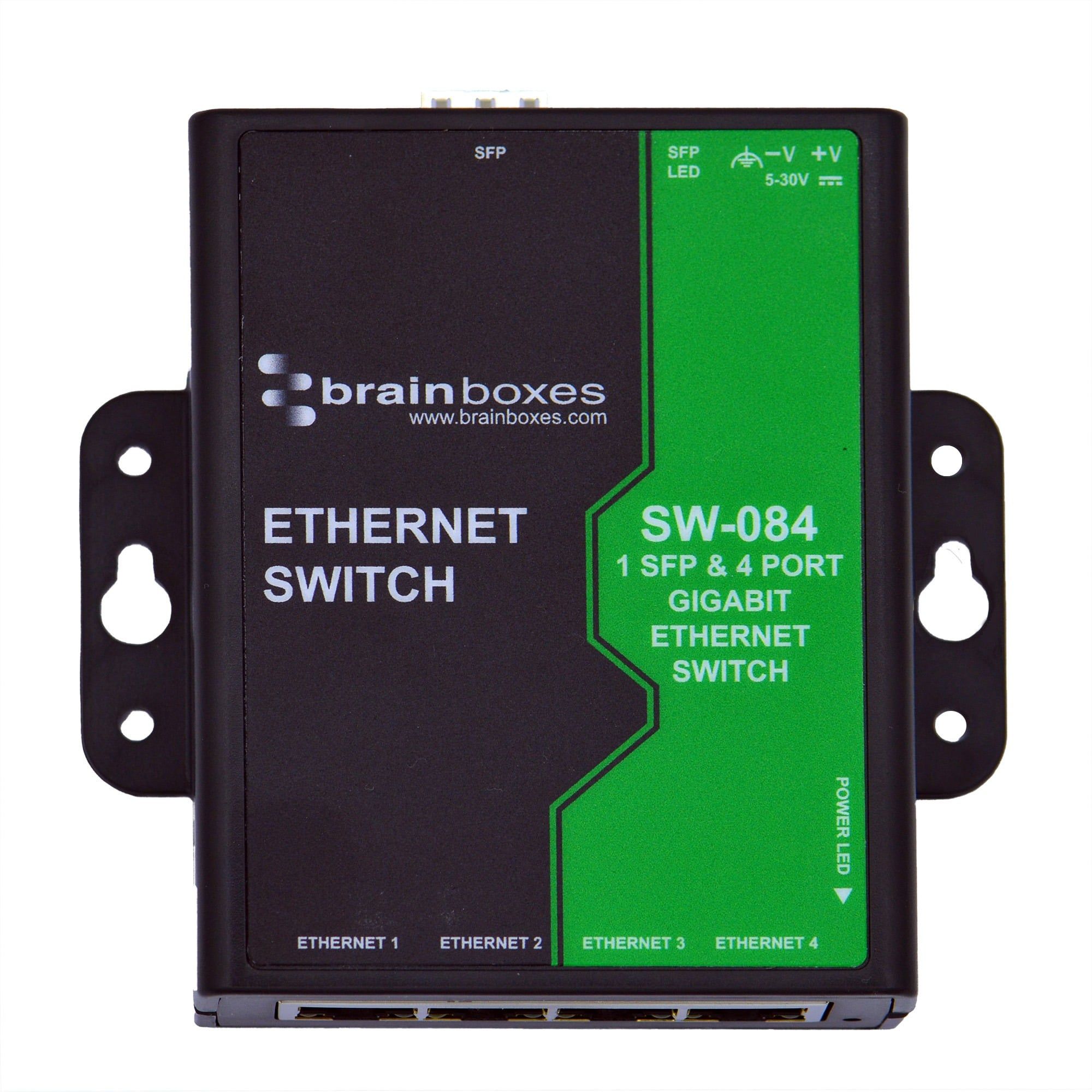

Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet brainboxes-SW-084-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Wide temperature range of -10ºC to +60ºC/-14ºF to +140ºF and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Switch type
Unmanaged
Switch layer
L2
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
1
Installed SFP+ modules quantity
0
Power connector
DC-in jack
10G support
No
Auto MDI/MDI-X
Yes
MAC address table
1000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Form factor
DIN rail
Product colour
Black, Green
International Protection (IP) code
IP30
Wall mountable
Yes

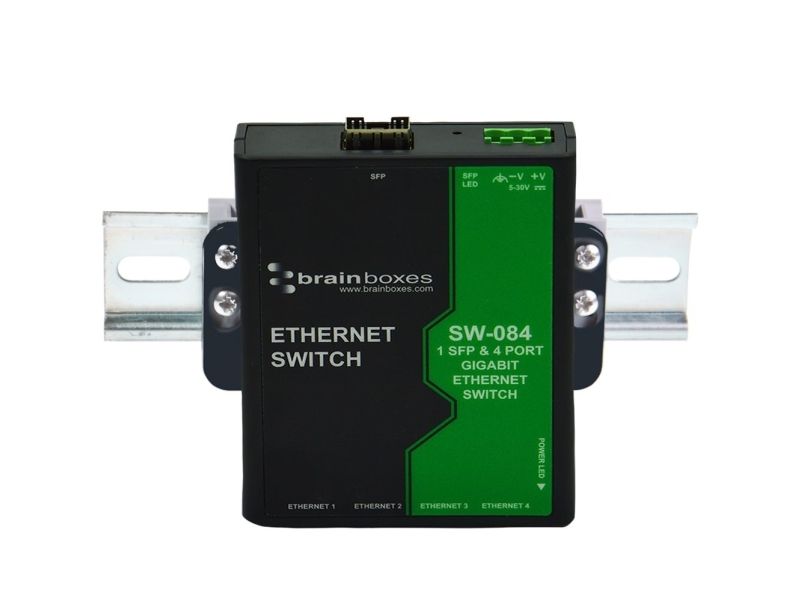

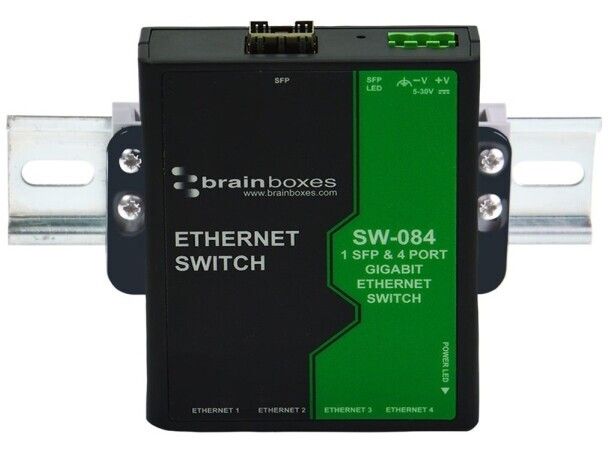

DIN rail mounting
Yes
Export Control Classification Number (ECCN)
5A991.b
Power source
DC
DC input voltage
5 - 30 V
Power consumption (max)
3.6 W
Power over Ethernet (PoE)
No
Operating temperature (T-T)
10 - 60 °C
Storage temperature (T-T)
40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

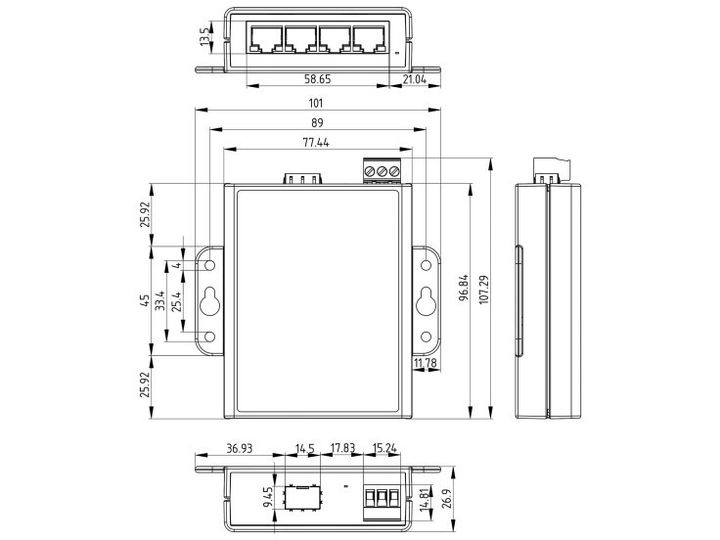

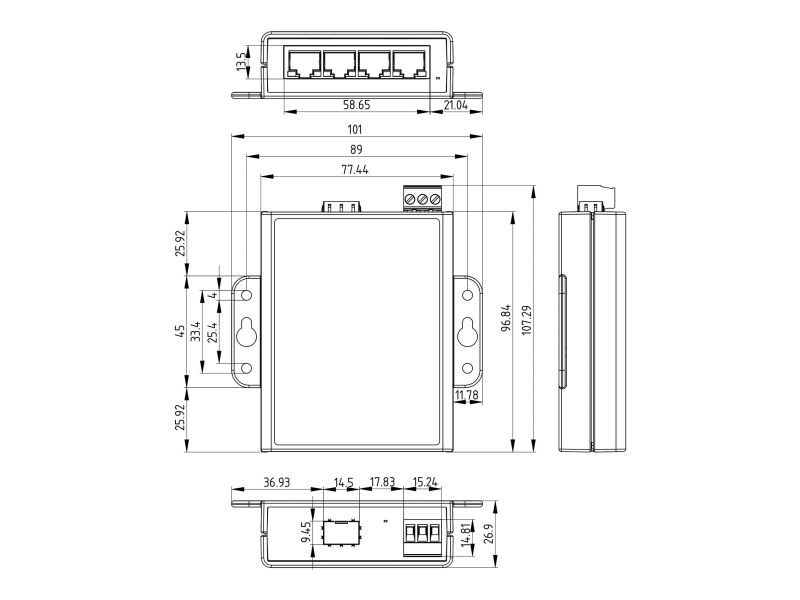

Width
106 mm
Depth
102 mm
Height
28 mm
Weight
276 g
Rack mount kit
Yes
Package width
135 mm
Package depth
160 mm
Package height
49 mm
Package weight
353 g
Compliance certificates
CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus
Harmonized System (HS) code
851762
