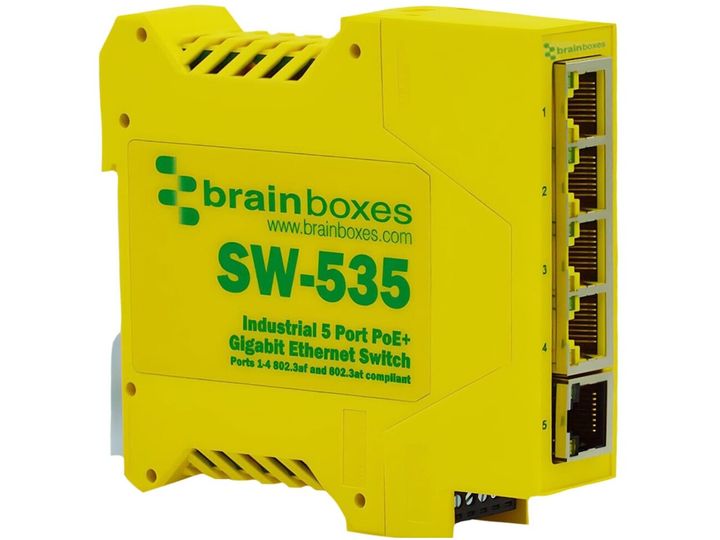

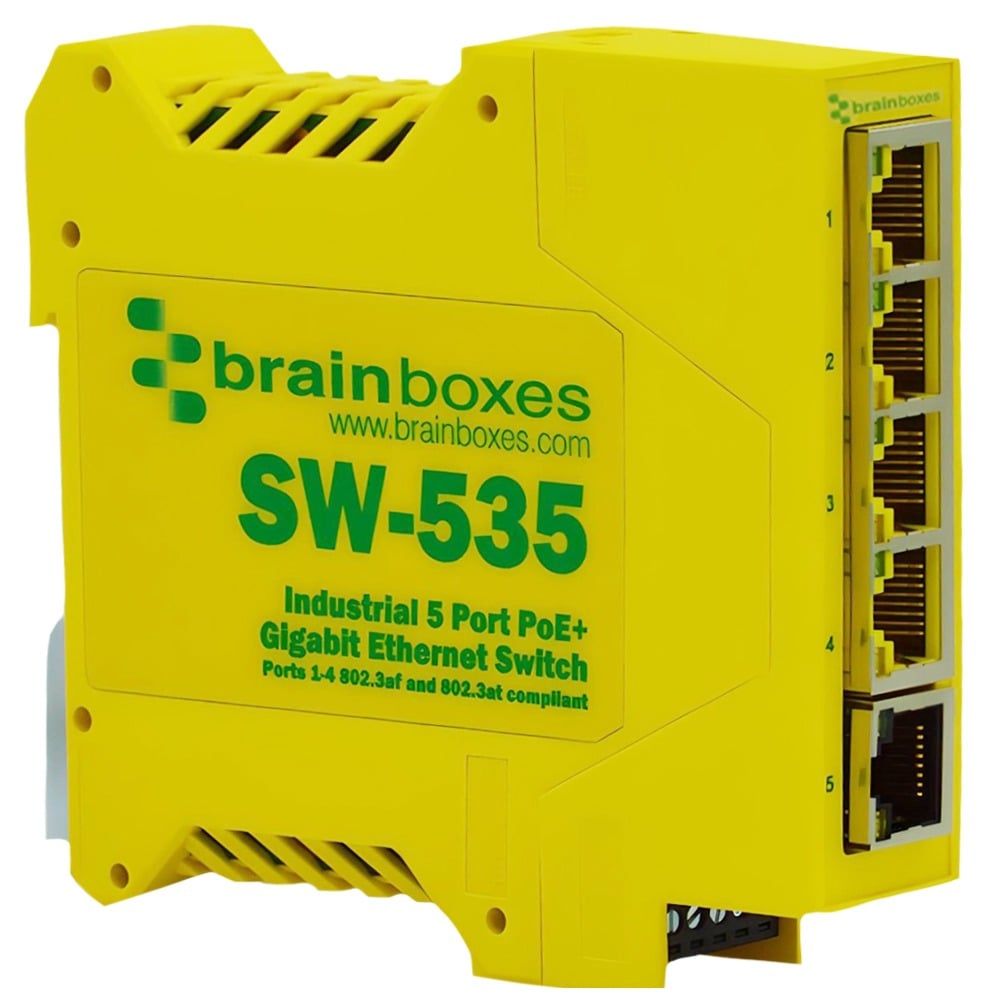

Industrial Compact 5 Port PoE+ Gigabit Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.

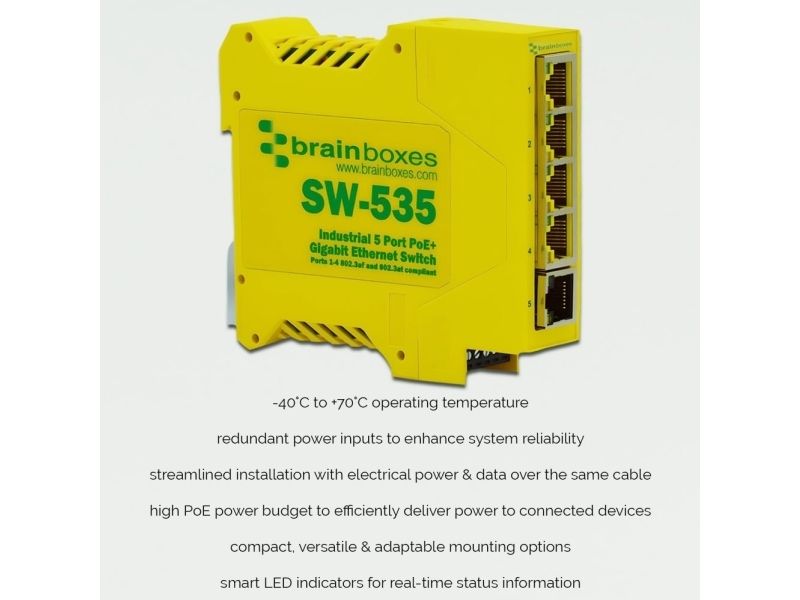

Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.
Compatible DIN rail power supply available: PW-301
Switch type
Unmanaged
Switch layer
L2
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Networking standards
IEEE 802.3af, IEEE 802.3at
10G support
No
Rack mounting
No
Stackable
No
Form factor
DIN rail
Product colour
Yellow
DIN rail mounting
Yes
Export Control Classification Number (ECCN)
5A991.b
Power source
DC/PoE
Power supply included
No
DC input voltage
44 - 57 V
Power consumption (max)
5.5 W
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Total Power over Ethernet (PoE) budget
90 W
Operating temperature (T-T)
40 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Width
0 mm
Depth
0 mm
Height
0 mm
Weight
233 g
Quick start guide
Yes
Package width
135 mm
Package depth
160 mm
Package height
49 mm
Package weight
240 g
Compliance certificates
CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus
Harmonized System (HS) code
851762
