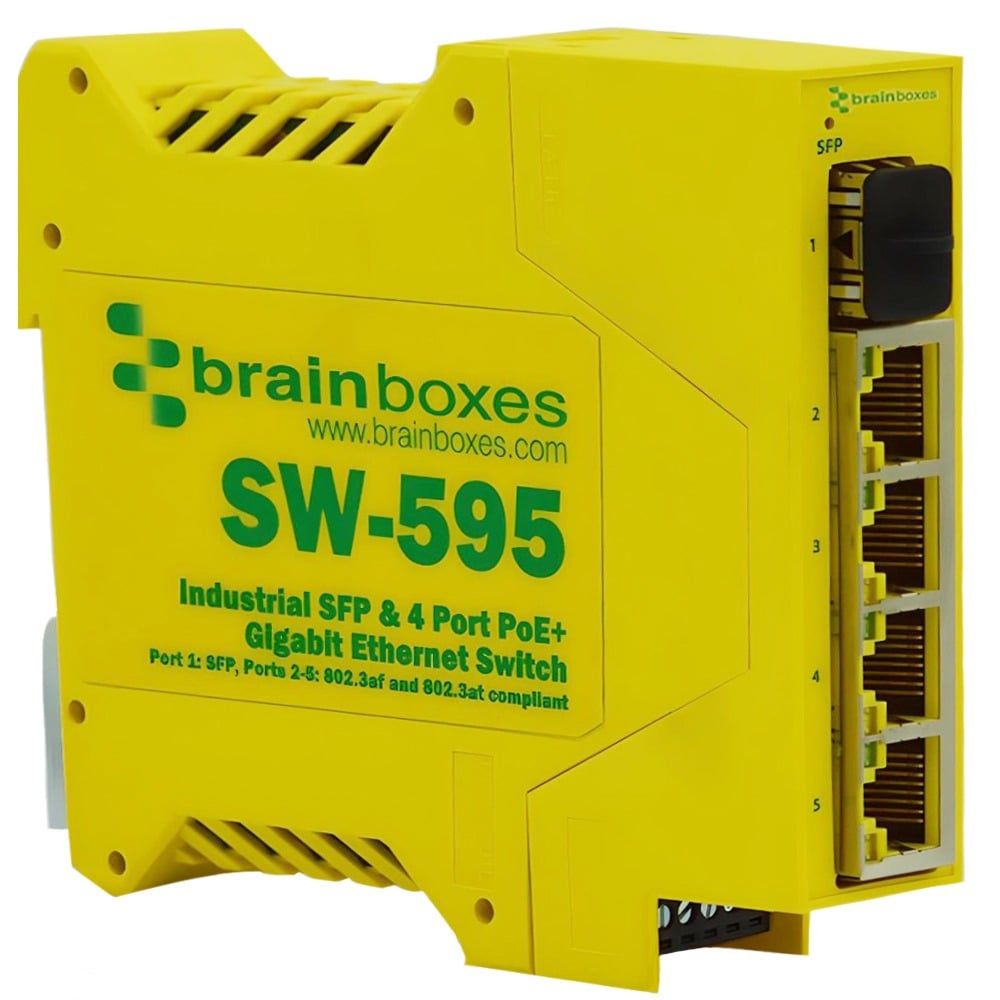

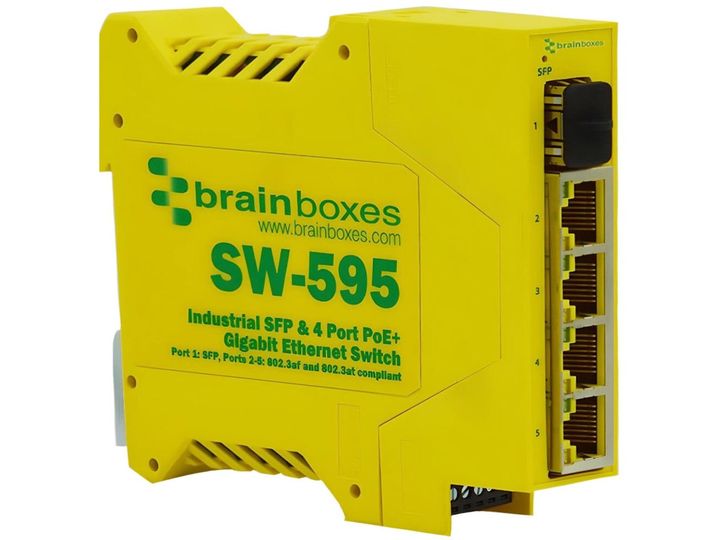

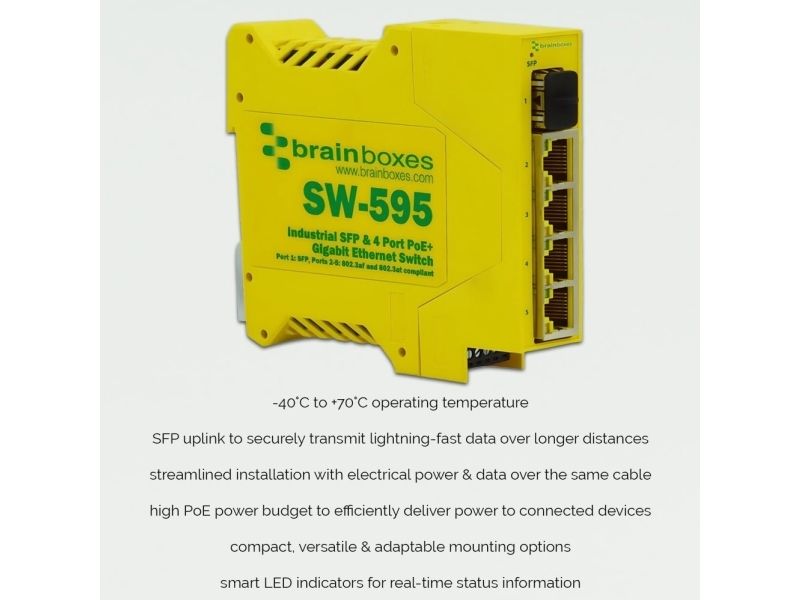

PoE+ Industrial Gigabit SFP Ethernet switch._x000D__x000D_Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances._x000D__x000D_Galvanically Isolated Ethernet brainboxes-SW-595-front-panel-ethernet-port-status-leds. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications._x000D__x000D_Compatible DIN rail power supply available: PW-301
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
1
Installed SFP+ modules quantity
0
Power connector
DC-in jack
Form factor
DIN rail
Product colour
Yellow

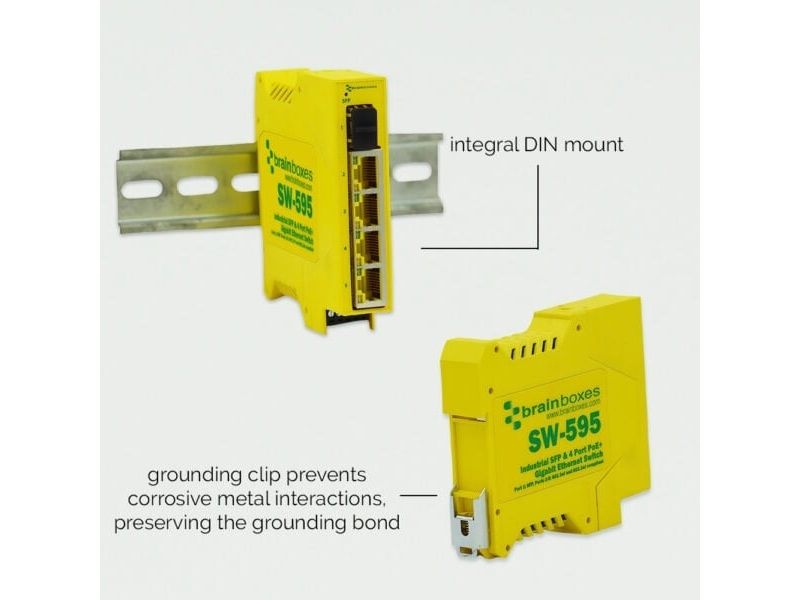

DIN rail mounting
Yes
Export Control Classification Number (ECCN)
5A991.b
Power source
DC
DC input voltage
44 - 57 V
Power consumption (max)
5.3 W

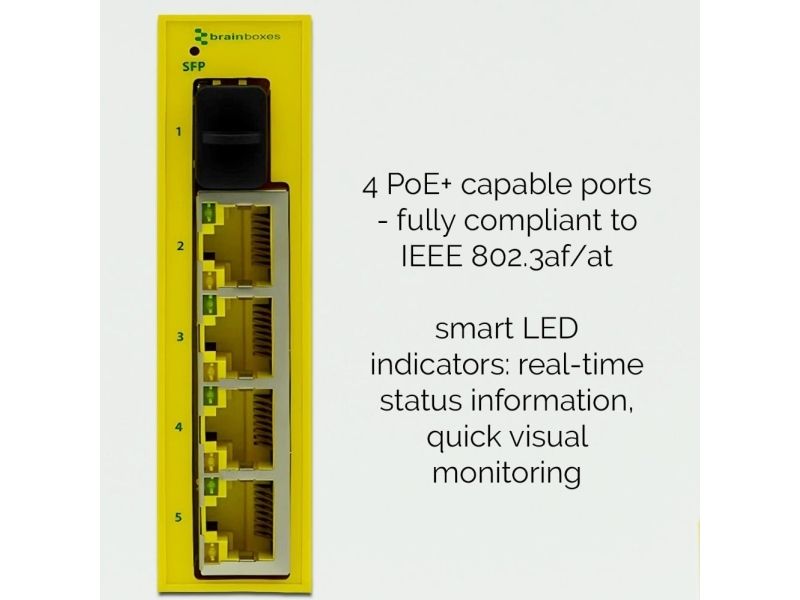

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
1
Total Power over Ethernet (PoE) budget
90 W
Operating temperature (T-T)
40 - 70 °C
Storage temperature (T-T)
40 - 85 °C
Width
0 mm
Depth
0 mm
Height
0 mm
Weight
232 g
Package width
135 mm
Package depth
160 mm
Package height
49 mm
Package weight
231 g

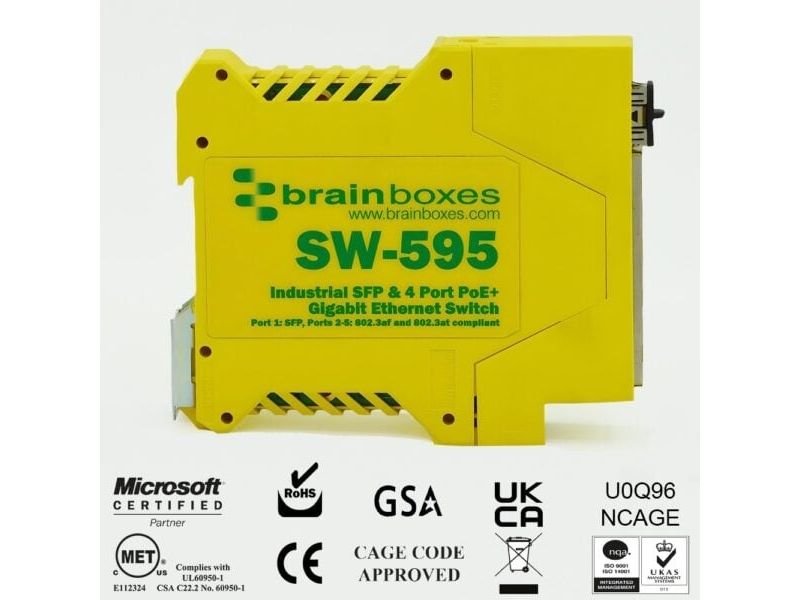

Compliance certificates
CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus
Harmonized System (HS) code
851762
The item is known under the following item numbers in our system
EAN:
0837324005080
UPC:
837324005080
SKU:
SW-595
