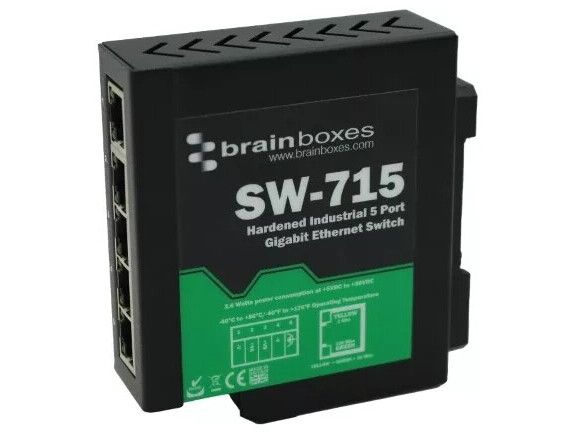

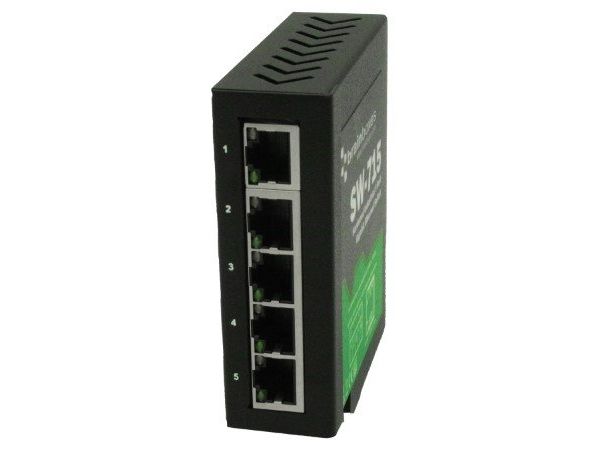

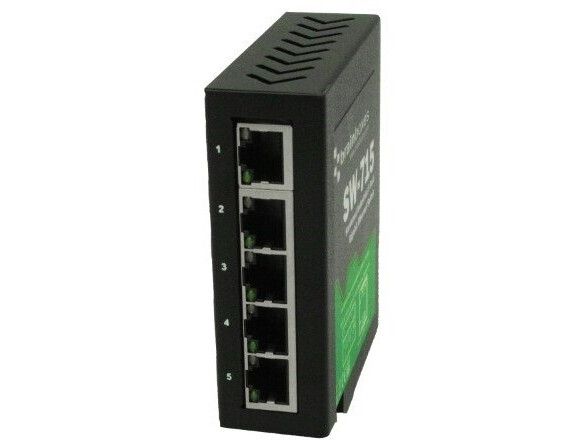

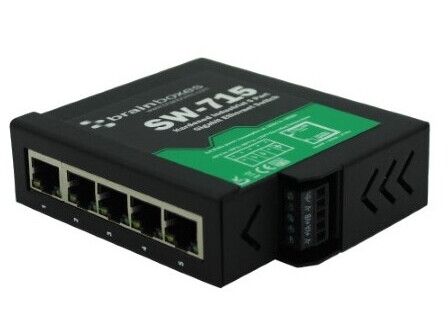

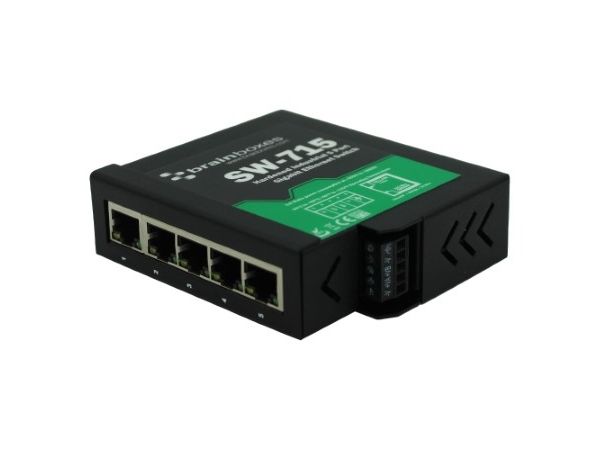

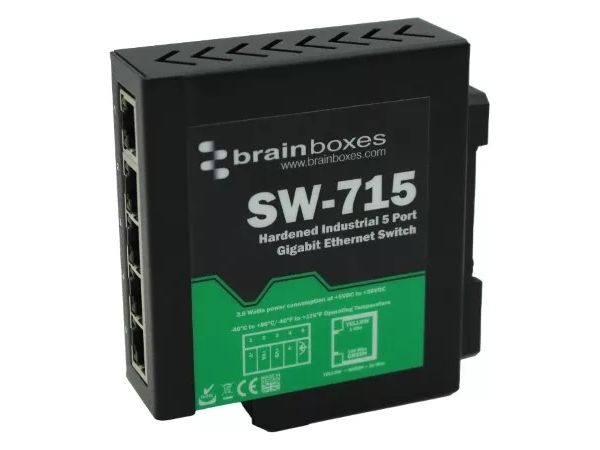

Compact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Gigabit Ethernet (copper) ports quantity
5
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto-sensing
Yes
MAC address table
1000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.448 MB
Form factor
DIN rail
Product colour
Black, Green
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP20

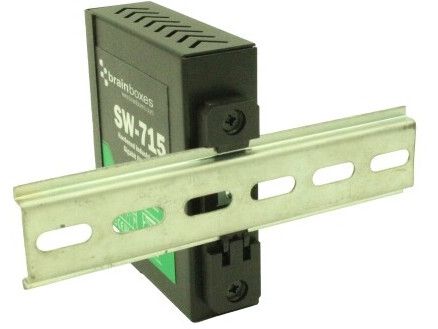

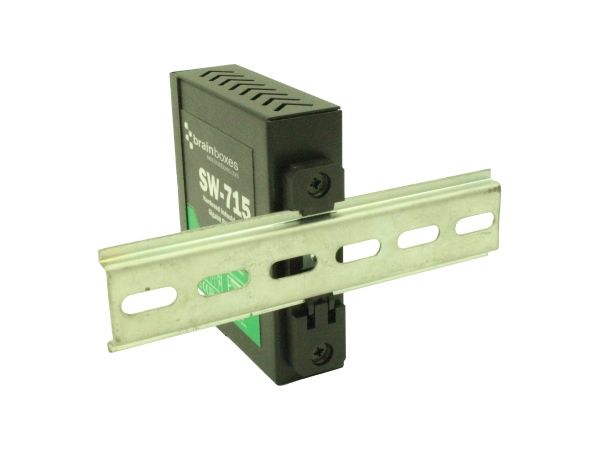

DIN rail mounting
Yes
Export Control Classification Number (ECCN)
5A991.b
Power source
DC
Redundant power supply (RPS) support
Yes
DC input voltage
5 - 30 V
Power consumption (max)
3.6 W
Operating temperature (T-T)
40 - 80 °C
Storage temperature (T-T)
40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Width
99 mm
Depth
94 mm
Height
29 mm
Weight
274 g
Quick start guide
Yes
Package width
49 mm
Package depth
135 mm
Package height
160 mm
Package weight
353 g
Compliance certificates
CE, UKCA, RoHS, REACH, WEEE
Country of origin
United Kingdom
Harmonized System (HS) code
851762
