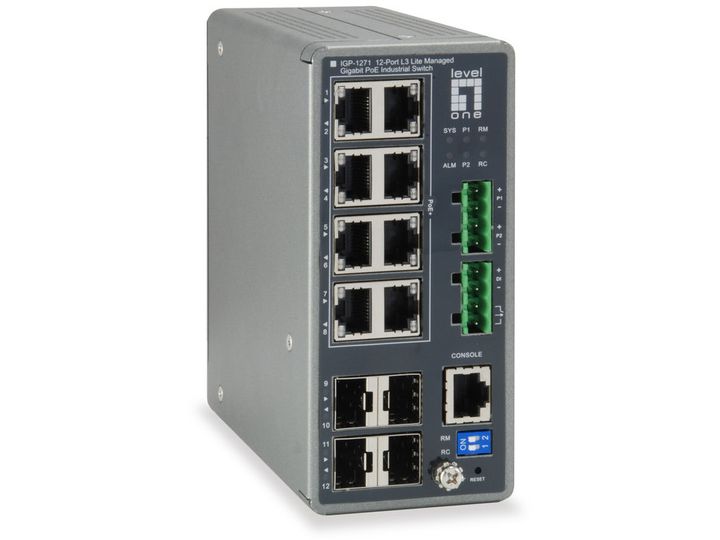

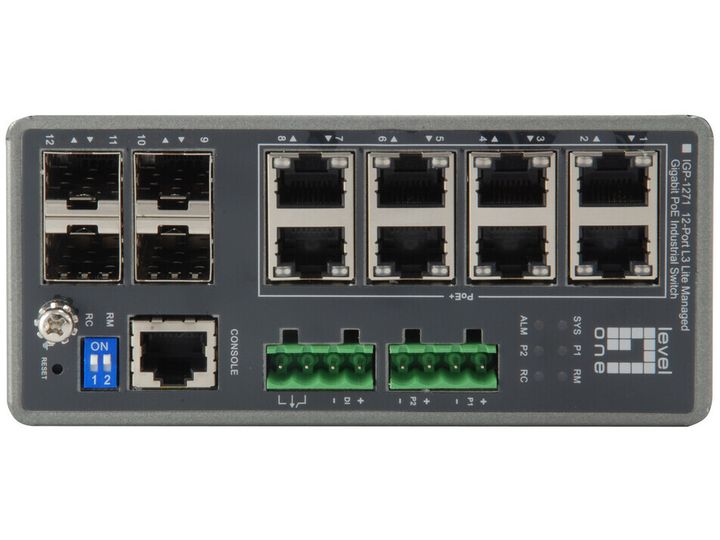

LevelOne TURING 12-Port L3 Lite Managed Gigabit Industrial Switch, 8 PoE Outputs, 240W, 802.3at/af PoE, 4 x SFP, -40°C to 75°C, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)

Item no.: [20994011] | Manufacturer: Level One | Model no.: 55052207 | EAN: 4015867202654

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 986,87

Incl. VAT 1.233,59

Total incl. delivery 1.248,59

Read further specifications and description

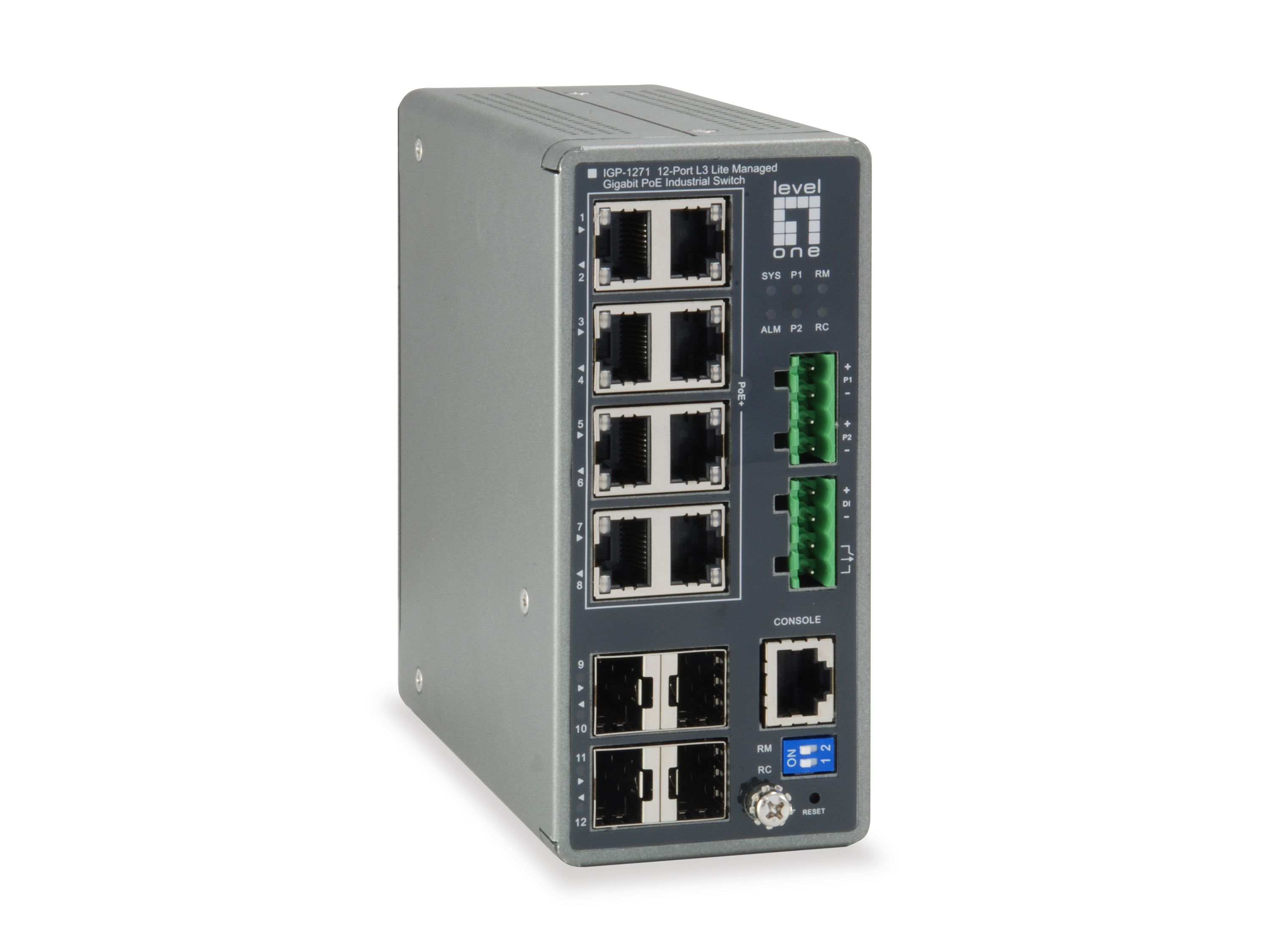

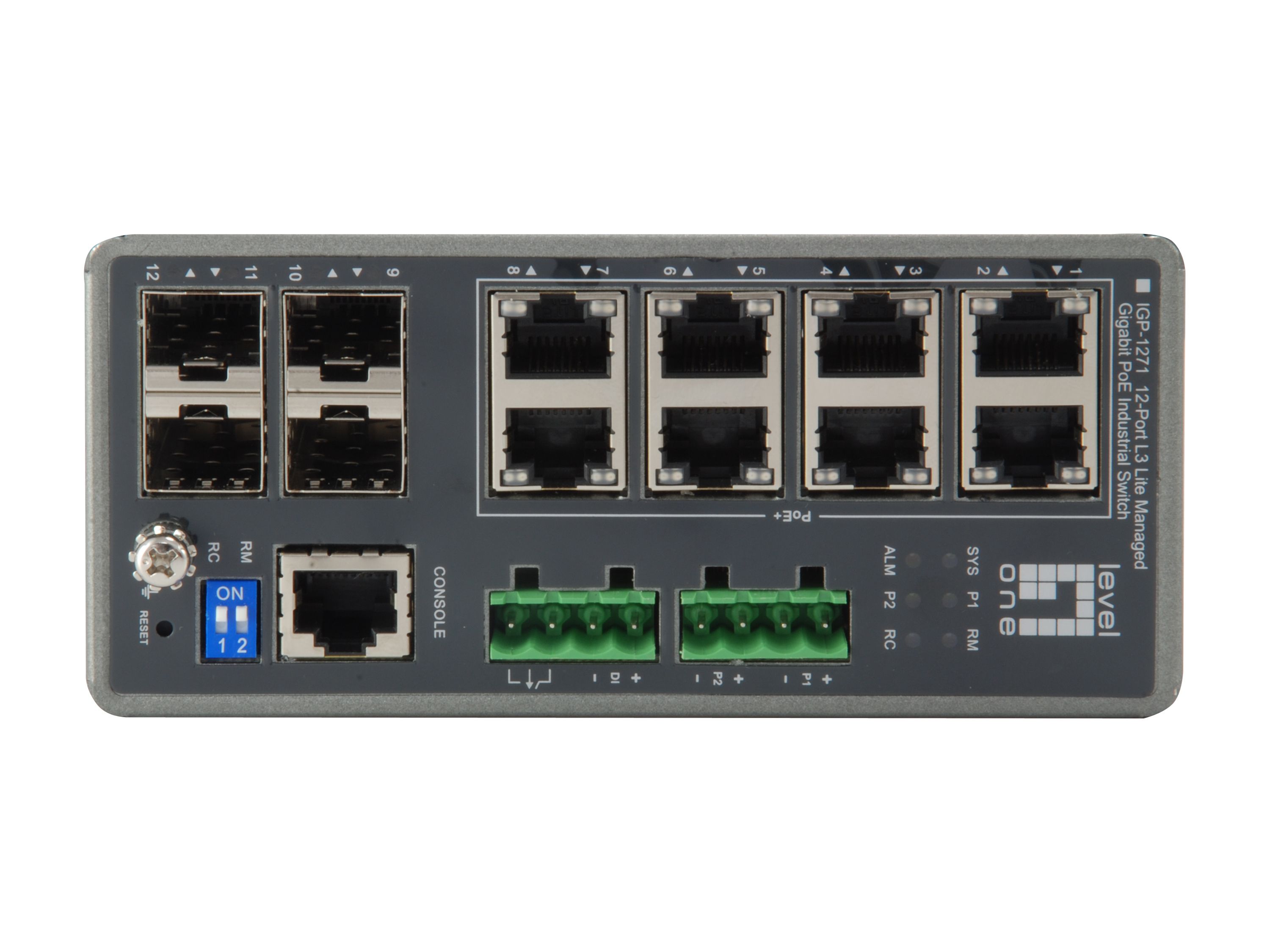

The LevelOne IGP-1271, a L3 Lite Managed PoE Industrial Switch with 8 ports of Gigaibit RJ45 PoE and 4 ports of Gigabit SFP. This switch is offering full suite of L2 management features, better PoE functionality with 240W PoE power budget and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in enterprise networks via fiber or copper connections.

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az
10G support	No
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Cable length detection	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Forwarding rate	17.856 Mpps
Store-and-forward	Yes
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	0.5 MB
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Loop protection	Yes
Root protection	Yes
BPDU tunneling	Yes
Management protocols	SNMP, Web, Telnet, SSH
Supported network protocols	IPv4/IPv6
GARP VLAN Registration Protocol (GVRP)	Yes
Product colour	Grey
Reset button	Yes
LED indicators	Alarm, Power, Ring, Status, System
International Protection (IP) code	IP30
DIN rail mounting	Yes
Safety	UL, CB
Internal memory	128 MB
Flash memory	32 MB
Firmware upgradeable	Yes
Telnet	Yes
sFlow	Yes
Mean time between failures (MTBF)	476206 h
Redundant power supply (RPS) support	Yes
DC input voltage	48 - 57 V
Power consumption (max)	239.2 W
Power protection features	Short circuit
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	40 - 75 °C
Storage temperature (T-T)	40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Heat dissipation	816.18 BTU/h
Width	62 mm
Depth	130 mm
Height	135 mm
Weight	700 g
Cables included	LAN (RJ-45)
Quick start guide	Yes
Manual	Yes
Resource CD	Yes
Package width	255 mm
Package depth	207 mm
Package height	85 mm
Package weight	900 g
Certification	RoHSFCC,CEEN61000-4-2EN61000-4-3EN61000-4-4EN61000-4-5EN61000-4-6IEC60068-2-32IEC60068-2-27IEC60068-2-6
Country of origin	Taiwan
Master (outer) case width	520 mm
Master (outer) case length	445 mm
Master (outer) case height	220 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	2.4 kg
Products per master (outer) case	10 pc(s)
