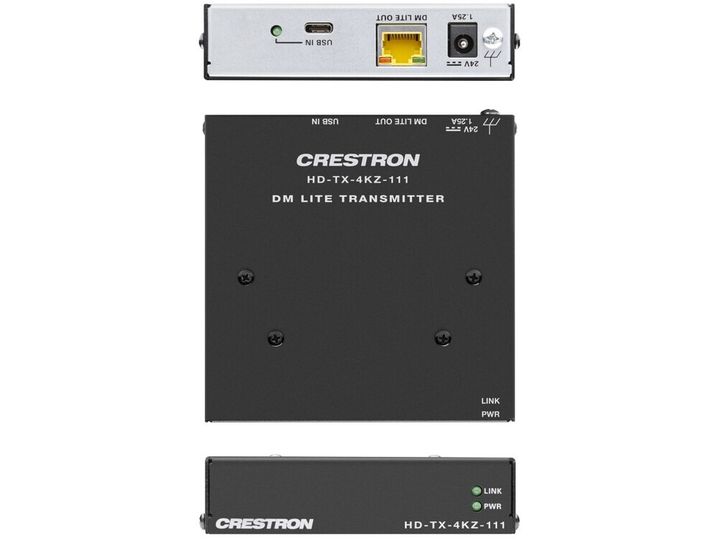

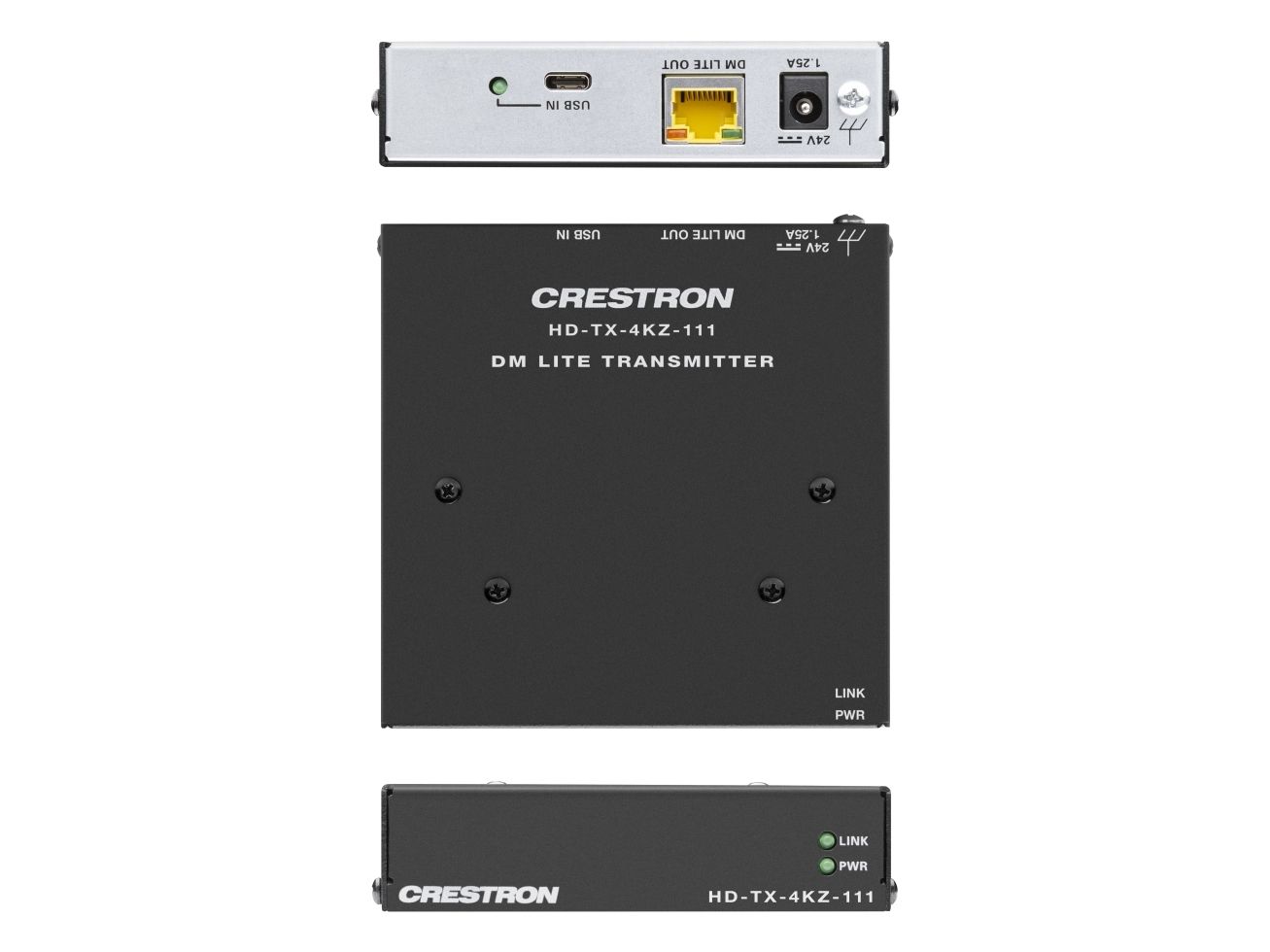

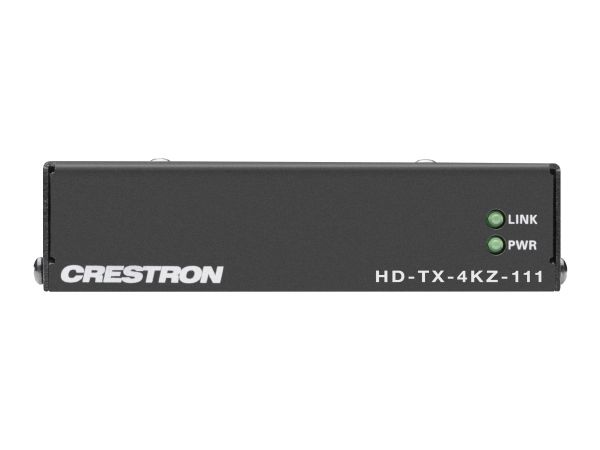

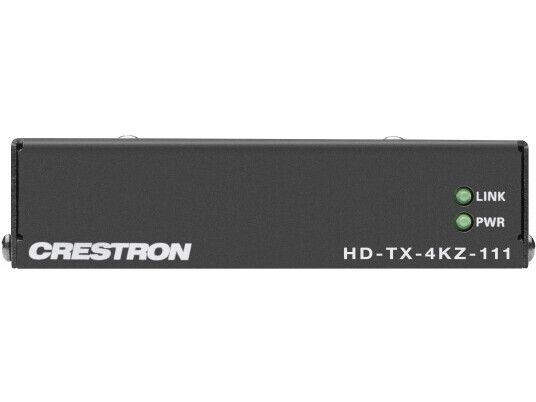

Crestron HD-TX-4KZ-111, 4096 x 2160 pixels, AV receiver, 70 m, Wired, White, HDCP
Item no.: [21009485] | Manufacturer: Crestron | Model no.: HD-TX-4KZ-111 | EAN: 8592978607517
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
325,32
Incl. VAT 406,65
Total incl. delivery
421,65
Notify me when the item is in stock again
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

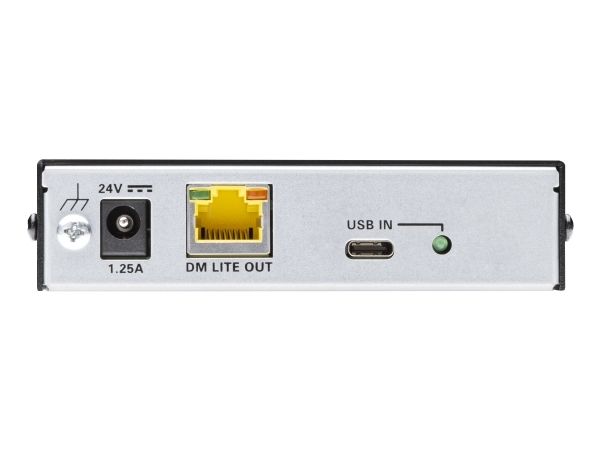

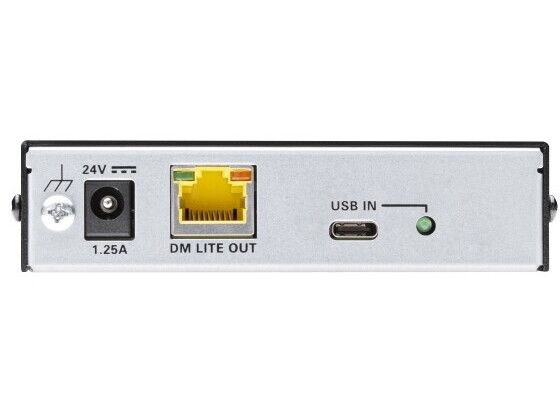

The HD-TX-4KZ-111 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111 includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111 to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, HD-PS402, and HD-RX-4K-210-C-E(-POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TX-4KZ-111 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-111 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.

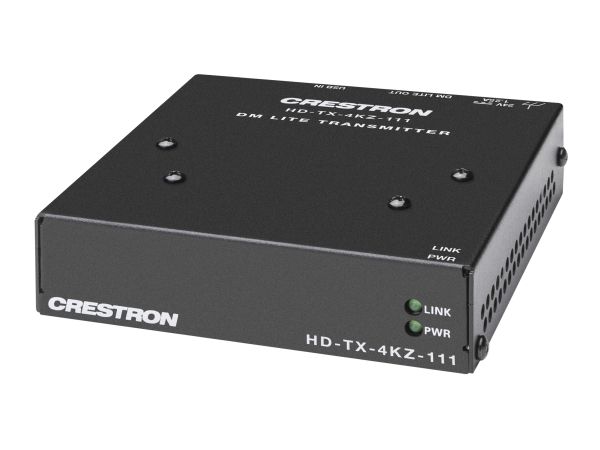

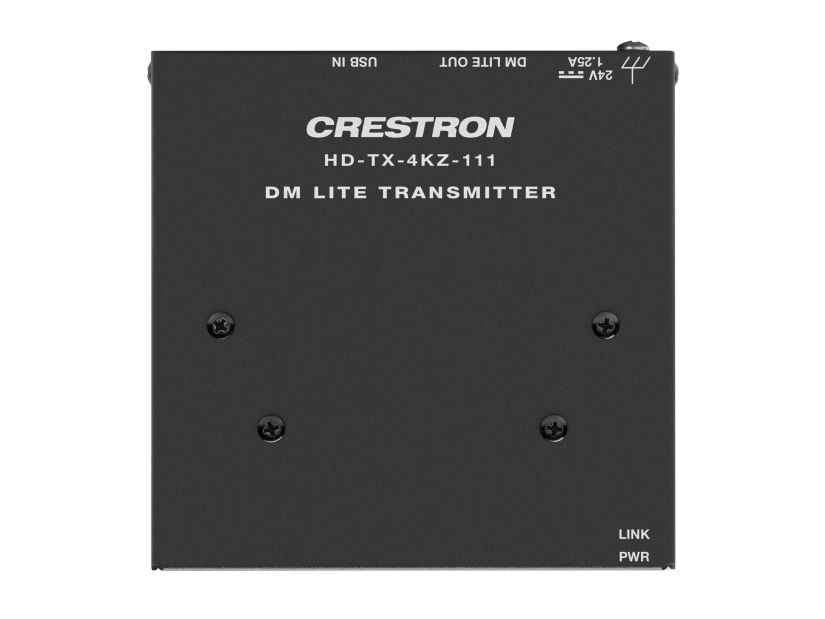

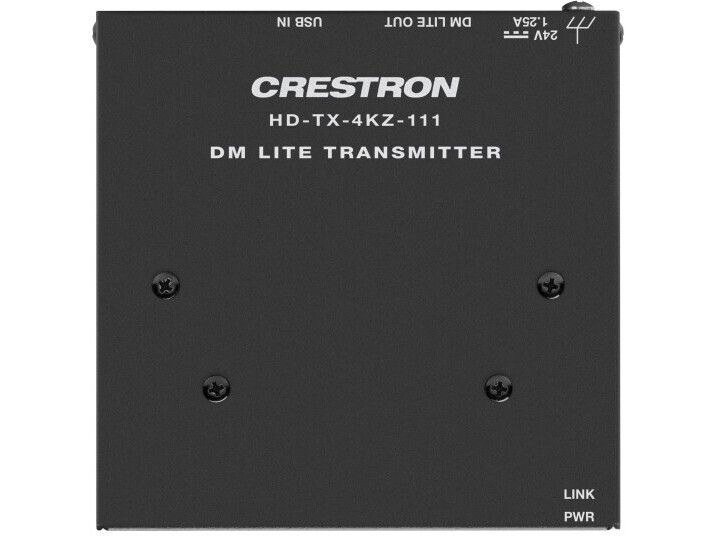

Compact, Surface-Mountable Design

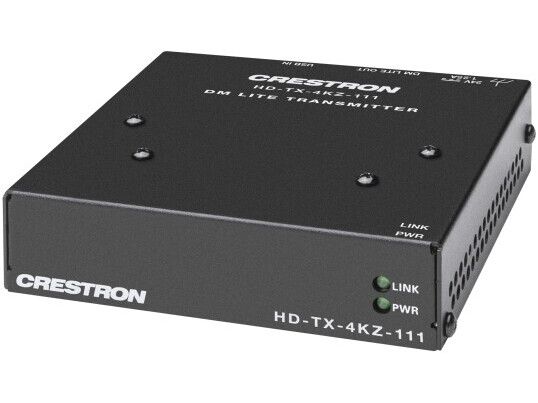

Compact in design, the HD-TX-4KZ-111 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TX-4KZ-111 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DMPS Lite switchers are the HD-PS621, HD-PS622, HD-PS401, HD-PS402, and HD-RX-4K-210-C-E(-POE).
Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.
The HD-TX-4KZ-111 can be configured and controlled only when it is used with a DMPS Lite switcher. The web interface of the switcher can be used to configure the HD-TX-4KZ-111. In addition, control system programming and .AV Framework™ software support of the HD-TX-4KZ-111 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD-TX-4KZ-111 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
Compact, Surface-Mountable Design
Compact in design, the HD-TX-4KZ-111 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TX-4KZ-111 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.
