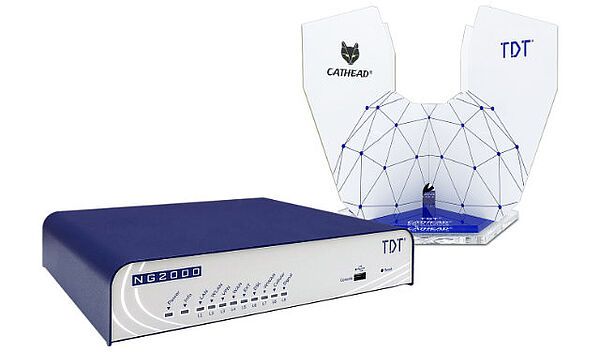

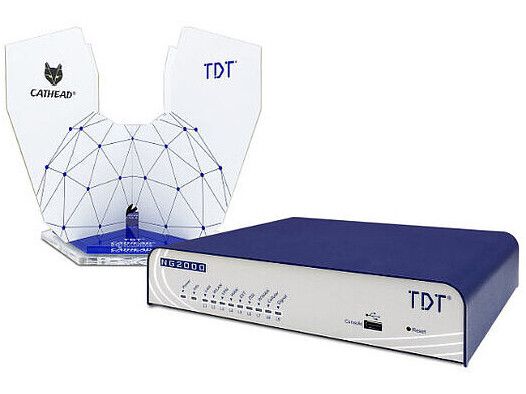

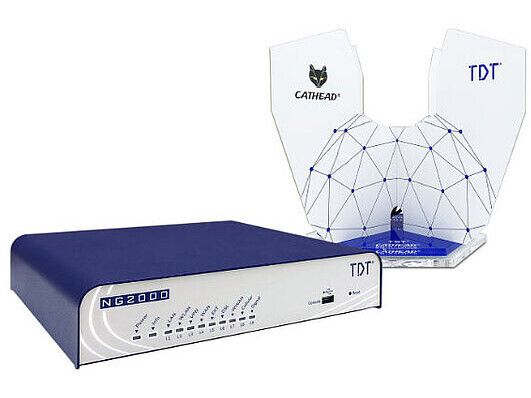

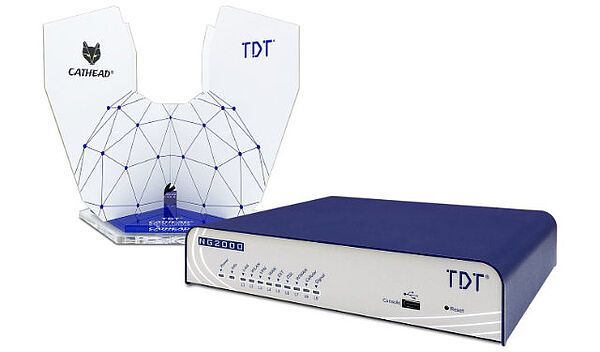

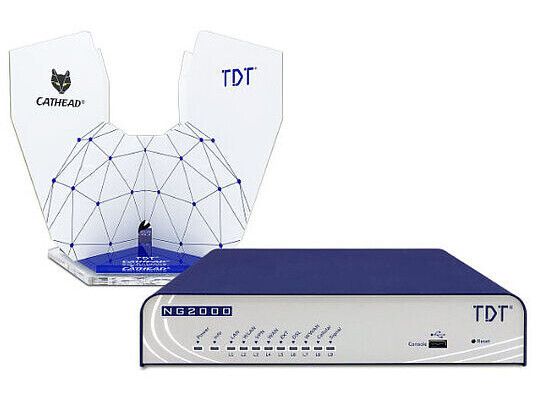

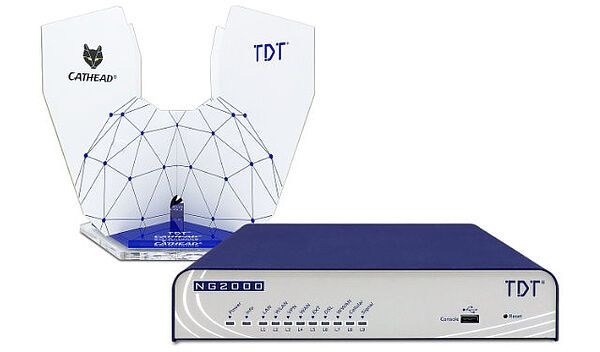

TDT NG2000-D 5G, Ethernet LAN, 5G, ADSL, ADSL2, Grey, Blue, Tabletop router

The high-end VPN router - with DSL and 5G modem - is manufactured to the highest quality standards and is ideal for setting up secure branch networks or connecting ATMs thanks to its high level of flexibility.

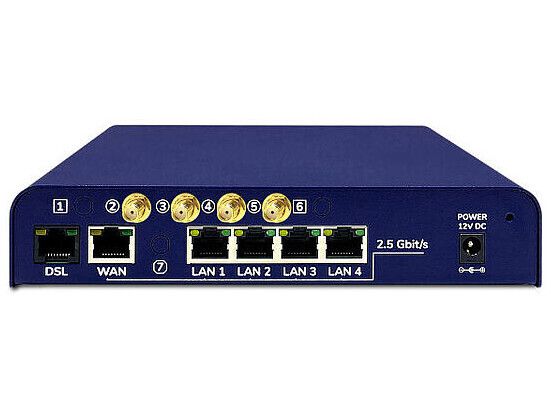

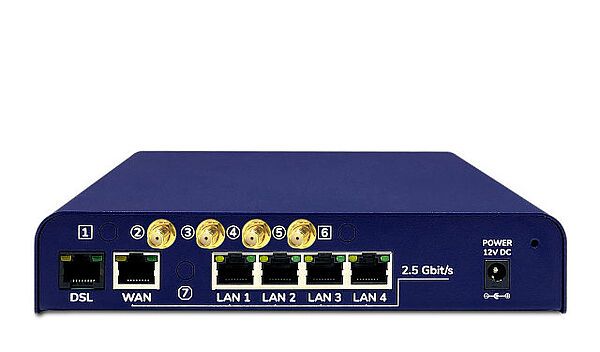

So that the router can be operated on all modern DSL connections, the NG2000-D 5G has an integrated DSL modem that supports the VDSL2, VDSL2 vectoring, ADSL/2/2+, SuperVectoring and G-fast standards. The WAN port allows the realization of any gateway connections as well as the connection of external modems (e.g. SDSL, cable, FTTH).

The integrated 4G radio modem allows the NG2000-D 5G to stay connected via cellular networks, which is particularly useful in environments where DSL connections are unavailable or unstable. This allows the router to maintain a reliable Internet connection anytime, anywhere.

The NG2000-D 5G router can be easily connected to a branch network or a head office via a permanently established VPN tunnel, making it directly accessible via private IP addressing. DynDNS is not required for access in this case, but can be set up at any time.

The fully implemented VPN standards IPSec and OpenVPN ensure maximum security during data transmission. Authentication is carried out using either stored certificates or pre-shared keys. The VPN router supports all modern encryption algorithms such as AES with a key length of up to 256 bits.

With its modular software structure, the NG2000-D 5G enables the seamless integration of customer-specific software and supports a wide range of network protocols, including IP, TCP, UDP, PPP, ARP, RARP and ICMP. The integrated DHCP (Dynamic Host Configuration Protocol) ensures automatic and efficient network configuration, while the DNS and Dynamic DNS system optimizes domain name management. The router is equipped with the NTP (Network Time Protocol) for precise time synchronization in networks.

In terms of routing, the NG2000-D 5G offers both static routing for IPv4 and IPv6 as well as policy-based routing. Network address translation is made possible by NAT (Network Address Translation), while the QoS (Quality of Service) function ensures effective prioritization of data packets. Real-time statistics and a log function are also available.

In terms of security, the NG2000-D 5G offers a zone-based stateful inspection firewall (IPv4/IPv6) with packet filtering and a demilitarized zone (DMZ). It supports a wide range of VPN protocols, including OpenVPN, IPSec, L2TP and WireGuard, enabling secure communication over insecure IP networks. Various hashing and encryption algorithms ensure maximum security.

In the area of high-availability, the NG2000-D 5G offers a MultiWAN manager with complex backup options, including multi-level backup target strategies and optimization of switchover times. VRRP (Virtual Router Redundancy Protocol) with support for Multi group VRRP ensures additional network stability.

Various options are available for efficient management and configuration of the router. Management can be carried out via the network using Command Line (SSH) and HTTPS or via Command Line (SSH) using the console port. Remote configuration and maintenance are possible via TR-069 standard, and firmware updates can be carried out via SSH, HTTPS and TR-069. The router also offers SNMP and a Checkmk agent for comprehensive network management.

Overall, the NG2000-D 5G with its integrated 5G radio modem offers an innovative solution for companies that require a flexible, secure and reliable network connection, regardless of the availability of DSL connections.
