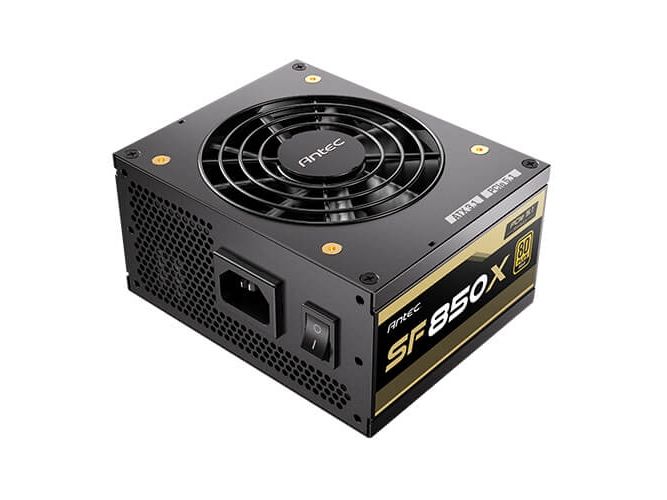

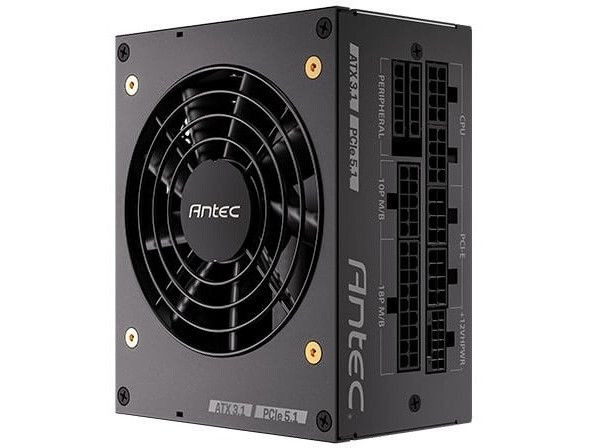

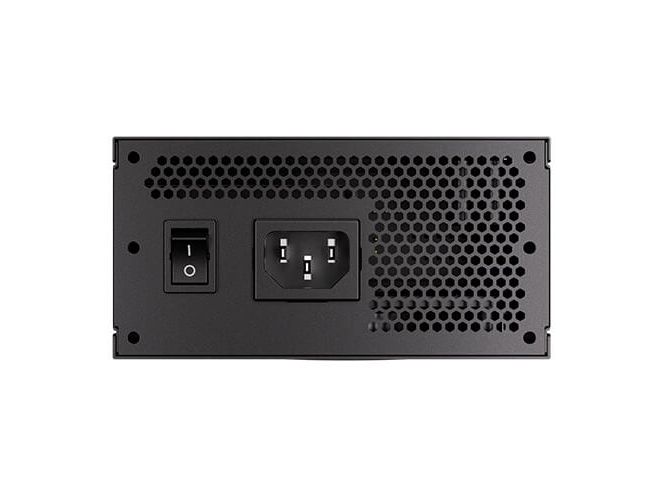

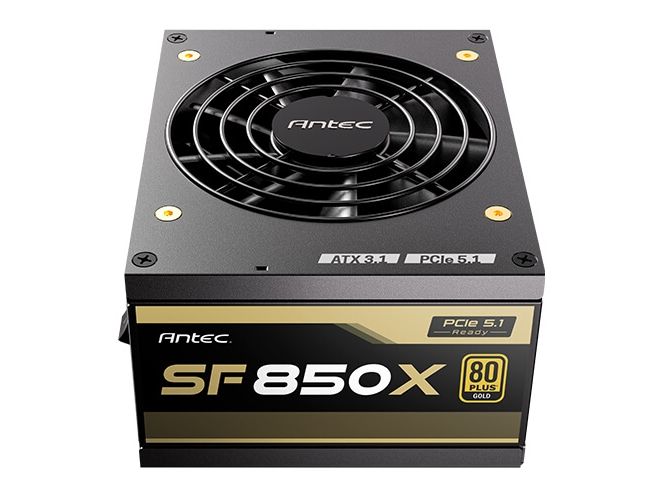

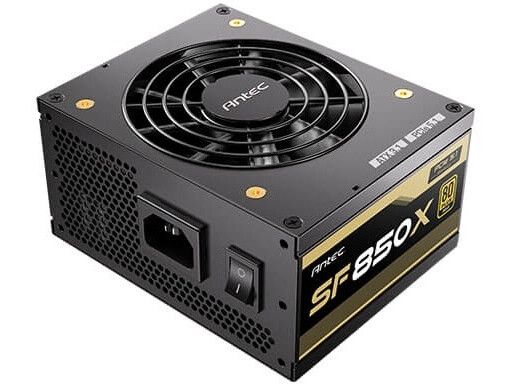

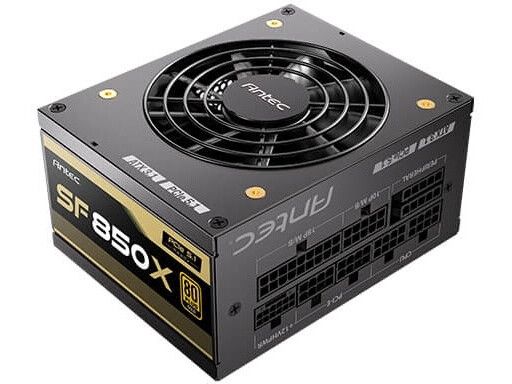

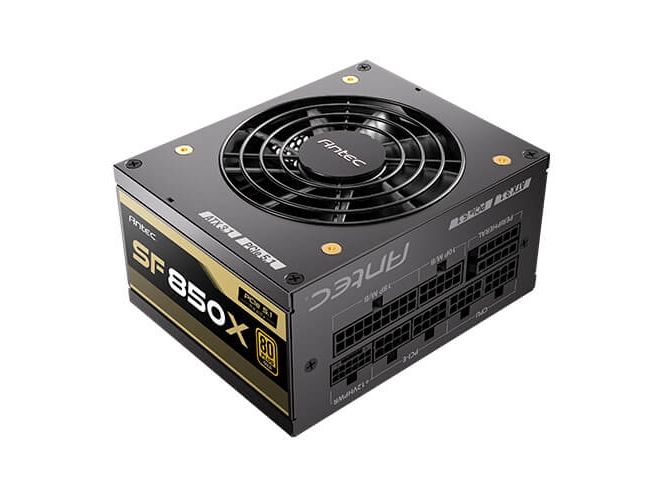

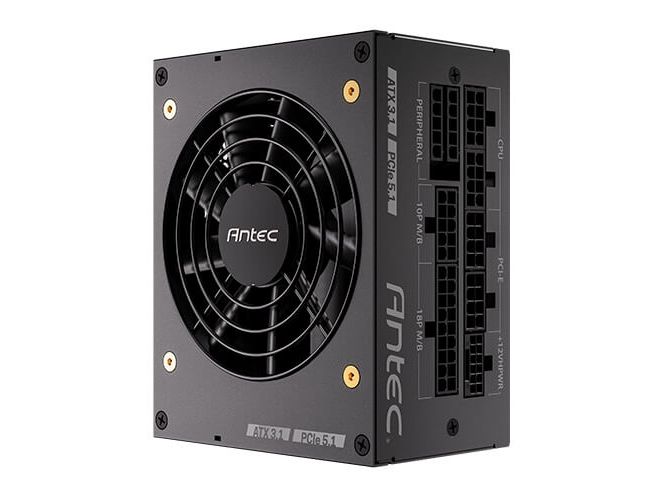

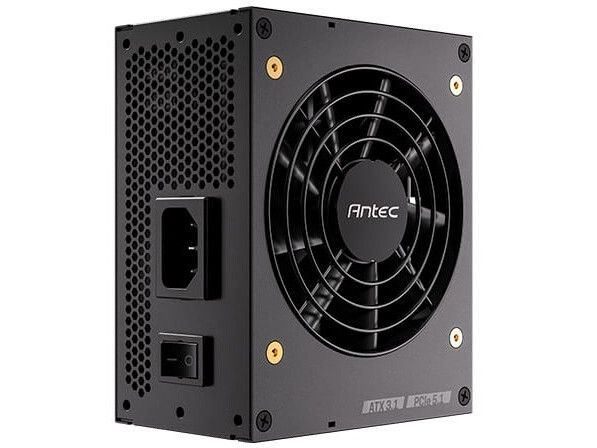

The Antec SF850X power supply offers reliable and efficient power delivery with an output of 850 W, suitable for both PC and server applications. Featuring a fully modular design, it allows for simplified cable management with a variety of detachable cables, including 2x 8-pin PCI Express power and 24-pin ATX connectors. This power supply includes important safety features such as overheat, overcurrent, and short-circuit protection, ensuring stable and secure operation even under demanding conditions.

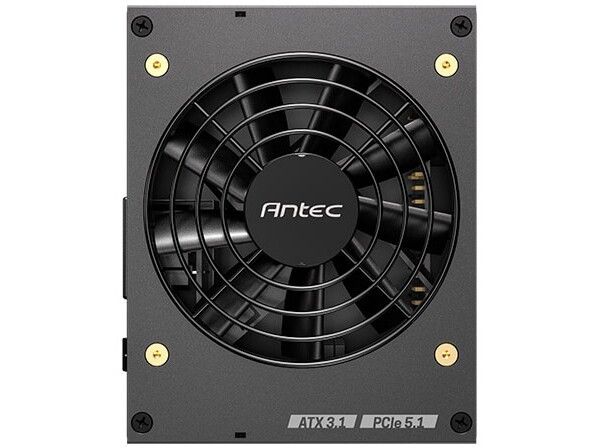

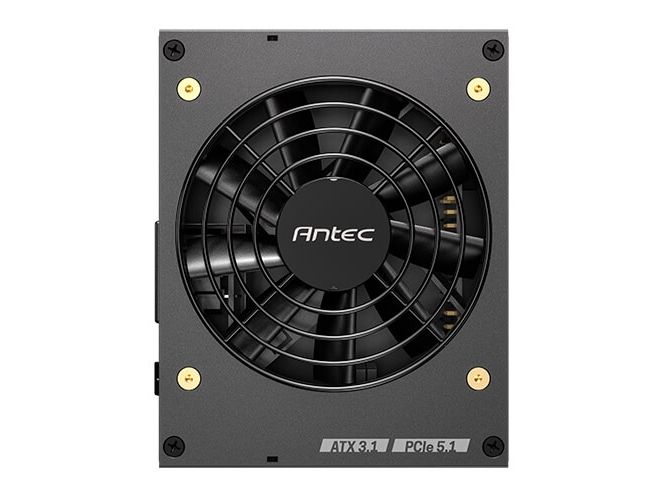

Designed for efficiency, the SF850X incorporates active Power Factor Correction and a 92 mm fan for optimal cooling. Running quietly, the Zero RPM fan mode ensures no fan noise during low load, while extensive compliance with international standards provides confidence in its construction and environmental performance. With an operating temperature range of 0°C to 40°C, this power supply meets the needs of a reliable and stable computing environment.
Produktbeskrivelse
Antec SF850X - strømforsyning - 850 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
850 Watt

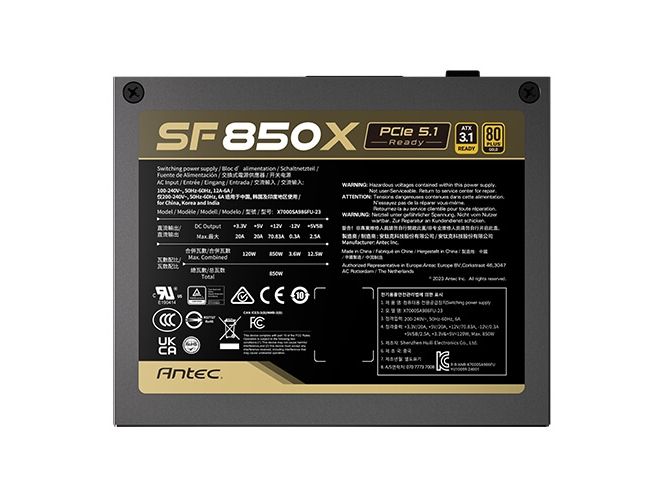

Output Current

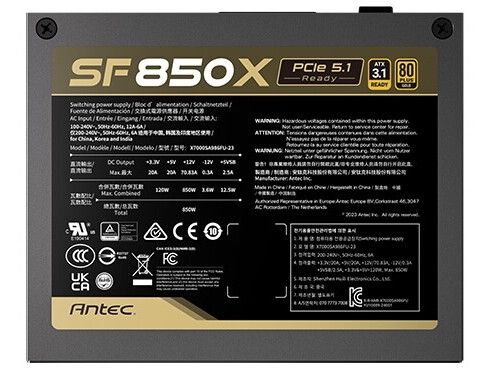

+3.3V - 20 A +5V - 20 A +12V - 70.83 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser

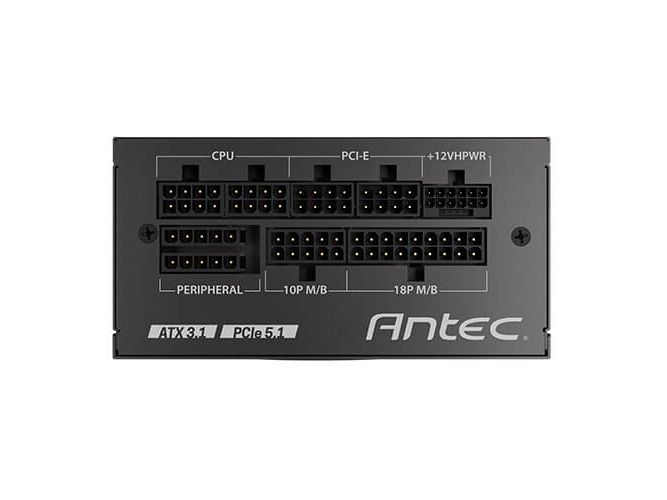

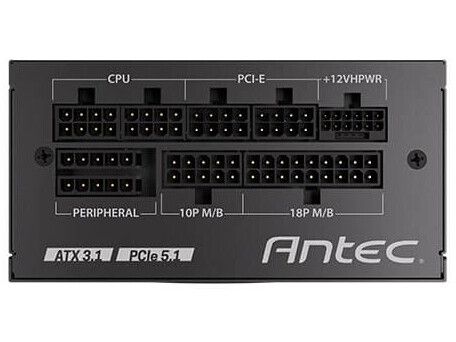

1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 16-pin PCI Express-strøm
Modulær Kabel Administration
Ja
Kølesystem
92 mm blæser
Dimensioner (B x D x H)
12.5 cm x 10 cm x 6.4 cm
Producentgaranti
7 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 3.1/ EPS12V
PSU formfaktor
SFX
Lokalisering
Europa
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 6 x 15 pin Serial ATA strøm 2 x 4-PIN intern strøm 1 x 16-pin PCI Express-strøm
Udgangspænding
+3.3, +5, ±12 V, +5Vsb V
Strømkapacitet
850 Watt
Output Current
+3.3V - 20 A +5V - 20 A +12V - 70.83 A -12V - 0.3 A +5VSB - 2.5 A
Modulær Kabel Administration
Ja
Diverse

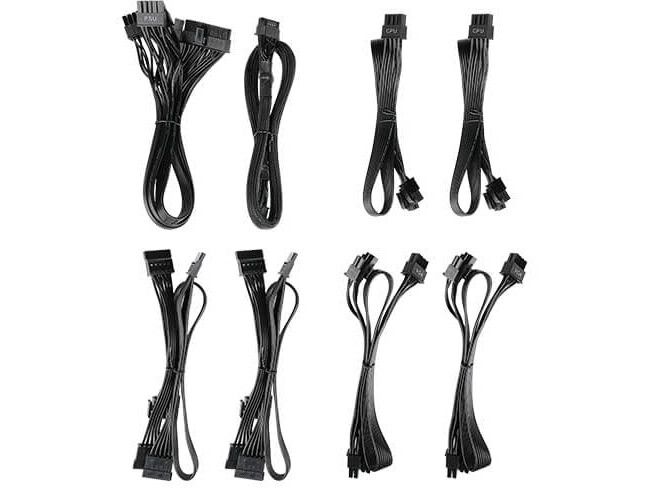

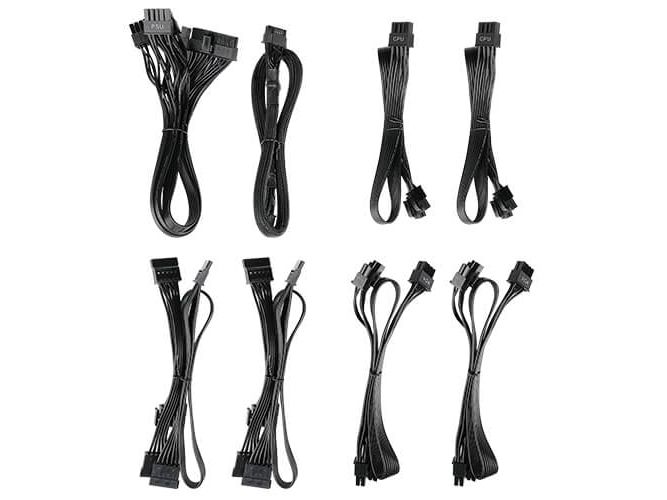

Medfølgende ledninger
AC-strømkabel Strøm 24 pin ATX med aftageligt 4 pin sektion modulært kabel 35 cm 2 x strøm 8 pin +12 V med aftageligt 4 pin sektion modulært kabel 45 cm 16-pin 12VHPWR strøm modulær kabel 50 cm 2 x 2x 8 pin PCI Express strøm med aftagelig 2 pin sektion modulært kabel 50 cm 15 pin Serial ATA strøm modulært kabel 91.5 cm Strøm 15 pin SATA-kabel/4 pin internt strømkabel 74 cm
Kølesystem
92 mm blæser
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, overbelastningsbeskyttelse, beskyttelse mod overophedning, spændings- og tilstrømningsbeskyttelse, ingen lastdriftbeskyttelse, fuld modulær, Zero RPM-blæsermodus, DC-DC teknologi
Overensstemmelsesstandarder
cTUVus, TUV, CB, RCM, FCC, BSMI, KC, UKCA, ICES, BIS
Producentgaranti
Service & Support
Begrænset garanti - 7 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Mål og vægt
Bredde
12.5 cm
Dybde
10 cm
Højde
6.4 cm
