Avigilon SYS-4ENT-DVE1, 10,100,1000 Mbit/s, CE (Europe), IC (Canada), FCC (United States), NOM (Mexico), RoHS, UKCA (United Kingdom), UL 294,..., 24 V, 12 - 24 V, 5 A, 24 V
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
1.320,78
Incl. VAT 1.650,98
Total incl. delivery
1.665,98
Notify me when the item is in stock again
Email:
Stock agent created. We will send an email when the item is in stock again.
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

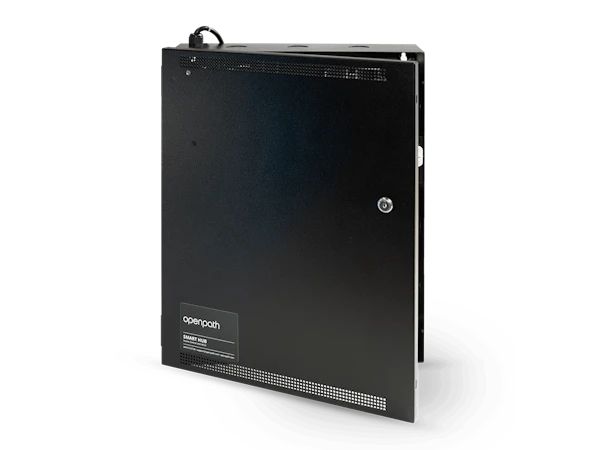

The 4-Door Smart Hub combines the Access Control Core, a 4-port expansion board and a power supply in a convenient enclosure. Supporting 4 Avigilon Readers and 4 doors, it’s ideal for commercial deployments and expansions. The Access Control Core securely makes all entry decisions, and is easily configured using the Admin App.
Access control for the modern workplace Avigilon Alta is a complete access control solution with sleek hardware, cloud management and easy-to-use mobile credentials. Designed to scale with ease, the system provides futureproof protection for any facility.
Take the guesswork out of setup The Avigilon 4-Door Smart Hub streamlines installation with the ability to connect readers, REX and contact sensors for up to 4 doors, and power all the necessary components for doors and panels.

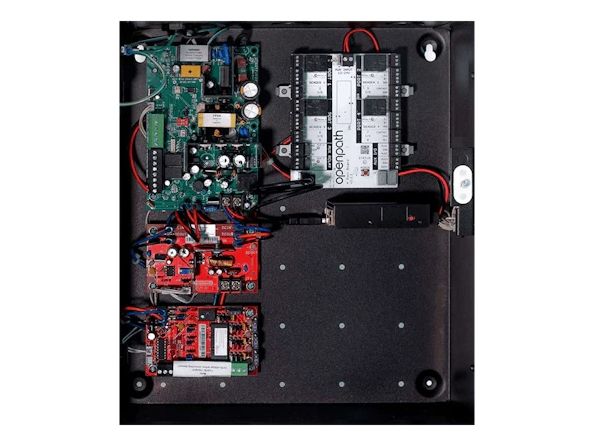

Plug-and-play device The Smart Hub combines an ACU, expansion board and power supply in a ready-to-install enclosure. Pre-assigned input ports and industry standard wiring make setup effortless.
Secure, trusted and fail-safe Credentials are decrypted by the ACU, reducing the risk of data being intercepted at the reader. All cloud configurations are stored locally to continue operation in the event of an outage.
Smart monitoring Built-in network and device monitoring with diagnostic insight and troubleshooting tools help resolve issues before they become disruptions.
Case design
Cabinet
Maximum number of doors
4 door(s)
Interface
RS-485
Display type
Not applicable
Supported network protocols
TLS 1.2+
Exit request
Yes
Relay inputs
2
Exit button supported
Yes
Compliance certificates
CE, Industry Canada (IC), Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RoHS, UKCA, UL
Compatible products
Avigilon Smart Readers
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Number of built-in relays
6
Wiegand interface
Yes
Alarm input channels
12
Certification
CE (Europe), IC (Canada), FCC (United States), NOM (Mexico), RoHS, UKCA (United Kingdom), UL 294, CAN/ULC 60839-11-1
Operating voltage
24 V
DC voltage range
12 - 24 V
Switchable current
5 A
Switchable DC voltage
24 V
AC voltage range
120 - 230 V
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
Operating temperature (T-T)
0 - 50 °C
Operating relative humidity (H-H)
5 - 85%
Country of origin
United States
Width
308 mm
Depth
119.9 mm
Height
355.6 mm
Weight
4.5 kg
Package width
406.4 mm
Package depth
406.4 mm
Package height
228.6 mm
Package weight
6.8 kg
The item is known under the following item numbers in our system
SKU:
SYS-4ENT-DVE1
Why do I find that the same product is available on different item numbers?
Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries.
We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
